Hi, in my laptop i have only one 3.5mm audio jack. I use it for my headphones. So my question is, can i use my external microphone on this port?
(My laptop is hp elitebook 840 g2)

Windows Build/Version
Windows

My Computer

System One

  • OS
    Windows

Try3

Well-known member
Power User
VIP
Local time
4:02 AM
Posts
573
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.675
The answer is almost certainly going to be, "Yes", but you ought to check the specs in your computer manual or on HP's website.

All the best,
Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.675

jbcarreon123

C:\> echo ^<jbcarreon123^>
Power User
VIP
Local time
11:02 AM
Posts
1,074
Location
Quezon City, Philippines
OS
Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
It may be a TRRS (Tip, Ring, Ring, Sleeve) 3.5 audio jack.

Most modern laptops use this, and most smartphones as well!
You can get a adapter for cheap that converts it to 2 TRS jacks, one for the speakers/headphones, and 1 for mic.

/edit
What is the port of your Microphone? If it's USB, just connect it to one of your USB ports, If it's a 3.5mm jack, get a TRRS to 2TRS cable, and if it's a XLR connector, get a audio interface, it will connect thru USB.

Last edited:

My Computer

System One

  • OS
    Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Hard Drives
    Patriot Burst 240GB SATA III SSD
    Internet Speed
    40MBit/s
    Browser
    Firefox [recently switched]
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10

Edwin

♦ ♦
Pro User
VIP
Local time
11:02 PM
Posts
4,063
OS
Windows 10

My Computers

System One System Two

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASUS ROG Strix
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook

Berton

Well-known member
Member
VIP
Local time
9:02 PM
Posts
673
Location
Wyoming
OS
Win11 Pro RTM x64

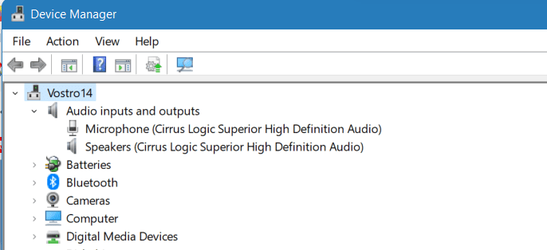

On Notebooks it may be good to check Device Manager, Audio Inputs and Outputs, may have a built-in Microphone, mine with Win11 does.


My Computers

System One System Two

  • OS
    Win11 Pro RTM x64
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5
    Memory
    8GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA using DisplayPort-to-VGA adapter
    Monitor(s) Displays
    21"
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security

Hani

New member
Thread Starter
Local time
6:02 AM
Posts
3
OS
Windows

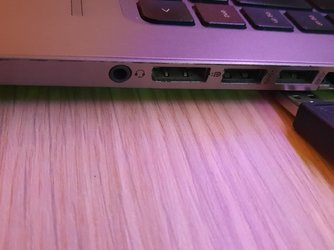

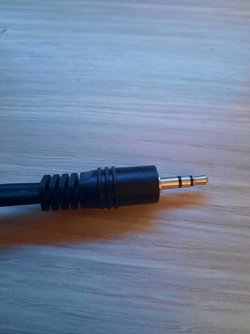

This is my audio jack and this is the port of my laptop. When i plug in my mic, my laptop does not find it. I dont0-02-05-07a31bc52a644e4bbf0c5f0e31793f9191c2bfc242cbd7e9794cda2d36f6e887_e4ed1be233b1d7de.jpg0-02-05-fbbc84bb94a51c0e051bcaa0b2e632c0d748ae8498fcfa587af804e111123490_bbf11e17d7cd2d9f.jpg know why.


My Computer

System One

  • OS
    Windows

Try3

Well-known member
Power User
VIP
Local time
4:02 AM
Posts
573
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.675
Hani,

What do the specs in your computer manual or on HP's website say about the audio jack?

Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.675

Hani

New member
Thread Starter
Local time
6:02 AM
Posts
3
OS
Windows
I think, it is possible, but i dont know, why my laptop does not recognize the mic.


My Computer

System One

  • OS
    Windows

jbcarreon123

C:\> echo ^<jbcarreon123^>
Power User
VIP
Local time
11:02 AM
Posts
1,074
Location
Quezon City, Philippines
OS
Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
@Hani, It may possible that your laptop does recognise it, but as Speakers. If you play a sound, best case scenario, will do nothing, worse case scenario, will damage the mic.

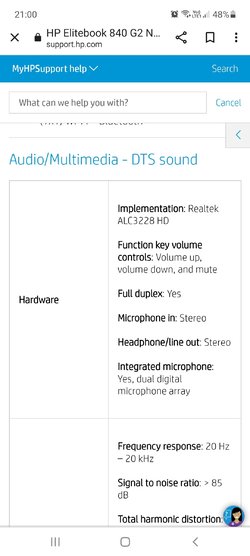

The documentation on your laptop says it has a mic and a speaker out and it is made on one port. Can you try a phone headset that has 3.5mm audio jack and has a microphone? Make sure that it's TRRS not TRS. See my Post #3 above.
