bypass TPM 1.2 and TPM 2.0 not working on older dell t3600 machine?


markm75

Member
Local time
6:15 AM
Posts
8
OS
windows 11
I've done the HKEY_LOCAL_MACHINE\SYSTEM\Setup guides found online to put the 3 keys in and try to rerun setup, but each time it fails on the tpm check.

I'm running an older Dell t3600 with an e5-1650 3.2ghz 6 core pc.

Any ideas what i could be missing here?

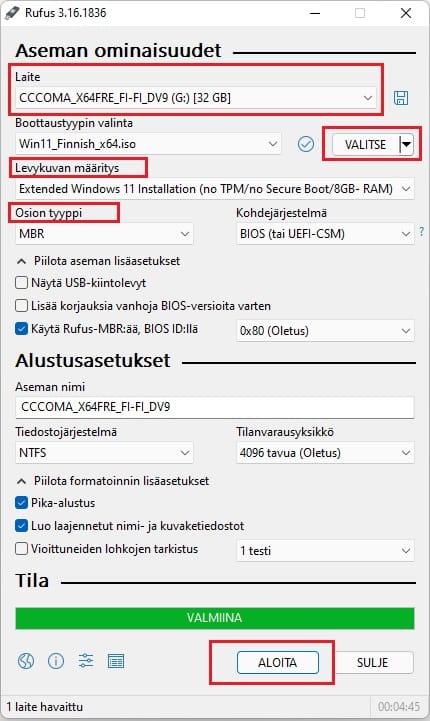

I've even tried making a rufus image on a stick that doesnt have the tpm 2.0 requirement but that setup gives me the same error.

Thanks in advance


My Computer

System One

  • OS
    windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    na
    CPU
    i9-10900k
    Motherboard
    msi z490
    Memory
    F4-4000C17D-32GTRSB
    Graphics Card(s)
    evga 3080 ftw3
    Monitor(s) Displays
    sony x800d
    Screen Resolution
    3840x2160
    Hard Drives
    SSD Nvme's
    PSU
    380 watt seasonic gold
    Cooling
    nzxt triple fan water cooled

Brink

Administrator
Staff member
MVP
Local time
5:15 AM
Posts
4,873
OS
Windows 11 Pro for Workstations
Hello Mark, and welcome to Ten Forums. :-)

Unfortunately, the bypass only allows you to not require TPM 2.0. At least TPM 1.2 is still required though.



My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 980 PRO M.2,
    1TB Samsung 970 EVO Plus M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Motorola MB8611 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S20 Ultra 5G phone
  • Operating System
    Windows 11 Pro for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1
    CPU
    i7-1065G7 3.9 GHz
    Memory
    16 GB LPDDR4-3200
    Graphics card(s)
    Intel Iris Plus
    Sound Card
    Intel SST
    Monitor(s) Displays
    13.3" 4K UWVA AMOLED multitouch
    Screen Resolution
    3840 x 2160
    Hard Drives
    512 GB PCIe NVMe M.2 SSD
    Browser
    Google Chrome
    Antivirus
    Windows Defender and Malwarebytes Premium

ThrashZone

Minor Threat
Power User
VIP
Local time
5:15 AM
Posts
1,140
OS
Linux-Mint-Cinnamon-20.2 Win-7-10-11Pro's
Hi,
Yeah just leapfrog all checks.


My Computer

System One

  • OS
    Linux-Mint-Cinnamon-20.2 Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    asus x3
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    To many to list
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro

spapakons

Well-known member
Power User
Local time
1:15 PM
Posts
939
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
I had no problem installing Windows 11 on old systems without UEFI, secure boot and TPM. Even the graphics driver wasn't WDDM 2.0 or higher. The method that always work for a clean install is the hybrid installation media. You download a Windows 10 ISO of the same language. You create a Windows 10 USB Flash drive with that ISO, as if you want to install Windows 10. Then you download the Windows 11 ISO, mount it and browse to the sources folder. Copy install.esd or install.wim file from Windows 11 ISO (whichever applies) and replace the respective file in the sources folder of the Windows 10 USB Flash drive. Make sure only the Windows 11 file is present in the folder, don't mix the two. Now boot that USB Flash drive on the target computer. Setup will ignore any compatibility check and let you install Windows 11 in MBR Legacy mode. Done it many times, always successfully.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

hsehestedt

Well-known member
Power User
VIP
Local time
5:15 AM
Posts
836
Location
Texas, USA
OS
Windows 11 21H2
If you do a clean install, you can install on a system with *NO TPM* whatsoever. I am running Windows 11 on a system with no TPM at this very moment. Runs absolutely flawlessy on my particular system.

Instructions

Create your bootable thumb drive as usual but add a batch file containing the following lines to the root of the drive. I'll assume that you call the file "bypass.bat":

Code:
@echo off
reg add HKLM\System\Setup\LabConfig /v BypassTPMCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassSecureBootCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassRAMCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassStorageCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassCPUCheck /t reg_dword /d 0x00000001 /f > NUL

Boot from your install media and at the very first static screen (where Windows setup stops to ask you for input), press SHIFT + F10 to open a command prompt.

Change to the drive letter of your installation media. to do this, run these commands in that command prompt window:

C:
DIR

If you see the bypass.bat file, you are on the correct drive. If not, run the same 2 commands but use D: rather than C:. Repeat these commands using E:, F:, etc. until you find bypass.bat.

Type in "bypass" (without the quotes) and press ENTER.

Close the command prompt.

Now simply continue setup as normal. Windows 11 will install even without any TPM at all installed (not even a version 1.2 TPM is needed). Note that this will also bypass the supported CPU check, as well as the need for UEFI and Secure Boot.

Enjoy, but be aware that this is a technically unsupported configuration.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

hsehestedt

Well-known member
Power User
VIP
Local time
5:15 AM
Posts
836
Location
Texas, USA
OS
Windows 11 21H2
Hello Mark, and welcome to Ten Forums. :)

Unfortunately, the bypass only allows you to not require TPM 2.0. At least TPM 1.2 is still required though.

@Brink - I just wanted to point out that you can easily bypass the need for ANY TPM (you don't even need a version 1.2 TPM) so long as you are willing to perform a clean install. Details in post #5 of this thread.


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

hsehestedt

Well-known member
Power User
VIP
Local time
5:15 AM
Posts
836
Location
Texas, USA
OS
Windows 11 21H2
A little bit of additional follow-up just to explain a little bit about how the batch file I describe in post #5 on this thread works...

That batch file is simply making some changes to the registry, but my reason for this post is to simply let you know that it makes no changes to the registry of the copy of Windows you are installing. When you boot from your install media, Windows PE is run, and it is within Windows PE that the installation of Windows is handled. When you run the batch file it is affecting ONLY the Windows PE registry.

This temporary and is lost after the first reboot during installation. It is no longer needed at that point any way, so this is just fine.

Bottom line: Don't go looking for these entries in your final Windows installation as they won't be there :-).


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

spapakons

Well-known member
Power User
Local time
1:15 PM
Posts
939
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
If you do a clean install, you can install on a system with *NO TPM* whatsoever. I am running Windows 11 on a system with no TPM at this very moment. Runs absolutely flawlessy on my particular system.

Instructions

Create your bootable thumb drive as usual but add a batch file containing the following lines to the root of the drive. I'll assume that you call the file "bypass.bat":

Code:
@echo off
reg add HKLM\System\Setup\LabConfig /v BypassTPMCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassSecureBootCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassRAMCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassStorageCheck /t reg_dword /d 0x00000001 /f > NUL
reg add HKLM\System\Setup\LabConfig /v BypassCPUCheck /t reg_dword /d 0x00000001 /f > NUL

Boot from your install media and at the very first static screen (where Windows setup stops to ask you for input), press SHIFT + F10 to open a command prompt.

Change to the drive letter of your installation media. to do this, run these commands in that command prompt window:

C:
DIR

If you see the bypass.bat file, you are on the correct drive. If not, run the same 2 commands but use D: rather than C:. Repeat these commands using E:, F:, etc. until you find bypass.bat.

Type in "bypass" (without the quotes) and press ENTER.

Close the command prompt.

Now simply continue setup as normal. Windows 11 will install even without any TPM at all installed (not even a version 1.2 TPM is needed). Note that this will also bypass the supported CPU check, as well as the need for UEFI and Secure Boot.

Enjoy, but be aware that this is a technically unsupported configuration.
I have noted these keys, but haven't thought to create a batch file for easy hacking. Thanks for sharing.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

hsehestedt

Well-known member
Power User
VIP
Local time
5:15 AM
Posts
836
Location
Texas, USA
OS
Windows 11 21H2
I have noted these keys, but haven't thought to create a batch file for easy hacking. Thanks for sharing.
I ended up creating the batch file because I wanted to add it to an unattended setup so that my unattended installation of Windows would automatically bypass those settings. Lots of fun :)


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

Nobody

Active member
Member
Local time
1:15 PM
Posts
126
OS
Windows 11 Pro 21H2 (22000.856)
The easiest way with rufus if you do a clean install. The picture shows the Finnish language, but the settings are probably the same in other languages. :) Only thing to do first is download official ISO from Microsoft.

Rufus windows11 installation without TPM.jpg


My Computer

System One

  • OS
    Windows 11 Pro 21H2 (22000.856)
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 5600X
    Motherboard
    Asus TUF Gaming B550-Plus
    Memory
    Kingston 16GB (2 x 8GB) DDR4 3200MHz
    Graphics Card(s)
    Gigabyte Radeon RX 580 AORUS 8GB GDDR5
    Monitor(s) Displays
    Samsung
    Screen Resolution
    1920X11080
    Hard Drives
    Samsung 970 EVO Plus NVMe M.2 500GB (OS)
    Samsung 980 NVMe 1TB (Games)
    Samsung 860 EVO 250GB
    Samsung 850 EVO 250GB (Music)
    PSU
    Super Flower / Leadex 750W 80Plus Titanium
    Cooling
    SilentiumPC Fortis 3 HE1425 v2
    Keyboard
    Logitech K520
    Mouse
    Logitech G700S
    Internet Speed
    50mbps/10mbps
    Browser
    Firefox, Chrome, Edge, Opera
    Antivirus
    Windows Defender

wabbit

Member
Local time
6:15 AM
Posts
28
OS
Windows 11 Pro
The easiest way with rufus if you do a clean install. The picture shows the Finnish language, but the settings are probably the same in other languages. :) Only thing to do first is download official ISO from Microsoft.

View attachment 14596
I did this on a 10-year old HP laptop with no TPM, no secure boot, no UEFI just to see if this worked, which it did. Clean install was the only option installing from that USB stick. I do not recommend doing this on a machine you rely on for daily business.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 3793
    CPU
    10th Gen. Intel Core(TM) i7-1065G7 @ 1.30GHz 1.50 GHz
    Memory
    16 GB
    Graphics Card(s)
    Intel Iris Plus Graphics with shared graphics memory
    Monitor(s) Displays
    Laptop Display 17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    512 GB SSD
    Internet Speed
    100 Mbs
    Browser
    Microsoft Edge / Google Chrome
    Antivirus
    McAfee Multi Access
    Other Info
    Upgraded from Windows 10 10-21-21
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion 23-q1133w AIO
    CPU
    Intel(R) Core(TM) i3-4170T CPU @ 3.20GHz 3.20 GHz
    Memory
    6 GB
    Graphics card(s)
    HP ALL-in-One (1920x1080@60Hz) Intel HD Graphics 4400 (HP)
    Monitor(s) Displays
    23"
    Screen Resolution
    1920 x 1080
    Hard Drives
    1TB HDD
    Internet Speed
    100 Mbps
    Browser
    Edge / Chrome
    Antivirus
    McAfee Multi-Access
    Other Info
    Bought in late 2015. System has secure boot, but no TPM. I have no intentions on upgrading this system to Windows 11.

spapakons

Well-known member
Power User
Local time
1:15 PM
Posts
939
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
I did this on a 10-year old HP laptop with no TPM, no secure boot, no UEFI just to see if this worked, which it did. Clean install was the only option installing from that USB stick. I do not recommend doing this on a machine you rely on for daily business.
I plan to clone my SSD on a spare SSD and attempt to upgrade my cloned Windows 10 installation to 11. Well, not my work computer, more like my main everyday home computer. I will have the chance to test Windows 11 in some games and video editing. It is an Intel Core i7 3770 (3rd generation), 16GB RAM, Legacy MBR installation, no TPM, no Secure Boot. I will report at the unsupported installation thread.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

markm75

Member
Thread Starter
Local time
6:15 AM
Posts
8
OS
windows 11
Thanks for the replies all, this makes sense now, that it only works on a fresh install. Im going to give the rufus no tpm a test soon and see how all this goes after acronising the old image :).


My Computer

System One

  • OS
    windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    na
    CPU
    i9-10900k
    Motherboard
    msi z490
    Memory
    F4-4000C17D-32GTRSB
    Graphics Card(s)
    evga 3080 ftw3
    Monitor(s) Displays
    sony x800d
    Screen Resolution
    3840x2160
    Hard Drives
    SSD Nvme's
    PSU
    380 watt seasonic gold
    Cooling
    nzxt triple fan water cooled
Top Bottom
