I've got a working but old PC I want to give away to a family member. Before I do I want to swap out the SSD for a new SSD. The new SSD is the exact same brand and capacity of the old one, and the old one works. The reason I'm swapping it out is because I want 100% peace of mind that old data can't be recovered with "undelete" software. I know there's software available to shred or make old deleted data inaccessible, but I don't trust it and would rather have the peace of mind of just getting a new SSD.

Anyway, I've tried using Imaging software to simply restore the OS partition (and associated partitions) to the new SSD, but it still won't boot. I've also used Imaging software to clone directly form the old SSD to the new SSD (by hooking both SSD drives up to a different computer). Even though it won't boot and gives me efi errors, I can fresh install windows onto the new SSD and it will work so I'm assuming the SSD isn't faulty.

When I originally formatted the new SSD and tried restore the old image to it, I set up the SSD for GPT format, matching the old SSD. After than, when I installed Windows 8.1 from DVD to test if the SSD was faulty, I noticed that it defaulted to MBR.

Using this fix...

I tried to boot from Windows DVD and start diskpart to reset to GPT and then install windows 8.1. I got an error when I tried to convert it it GPT, then ran rescan, but never really got it to work. My hope was to designate the SSD to GPT, then continue on with the fresh install. And the only reason I wanted to fresh install was in hopes of repairing whatever might be wrong with the new SSD format. And if that worked, then I'd try installing from image again. Maybe that's dumb. I'm just out of ideas at this point.

I'm certain it's possible to clone or restore an image from an old ssd to a new one and have it boot properly as I've done it before. Either I've made some mistake along the way this time or else the SSD is just faulty.

The other issue, other than GPT vs. MBR, is just the way in which WIn 8,10,11 do partitions differently. This old PC was originally Win 8.1 (full home version key purchased) which I then upgraded to Win 10. Partitions are different sizes and in different order for win 8, 10, 11 or at least it looks that way in my experience, so that's one more complication and another reason why simply installing windows from scratch on this new drive would be a huge hassle for me.

Well, this is a complicated mess, but if anyone has advice or suggestions to try, let me know.

Thanks!


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom built
When you Clone a drive, it copies all of the Users personal files. If deleted, it will still be able to restore them if using a data recovery software.
If you want to gift the computer, then do a Clean Install Of Windows. If the computer previously had Windows, the product key will be saved in the Bios. So no need to type one in.

Boot off if a Windows installer Flash Drive. Choose Language, and hold the Shift key + F10 to start the Command Prompt.
Type Diskpart and press Enter. Convert internal disk to GPT.
Restart booting back into the Windows Installer Flash Drive. Choose your Language, Install Now; then Custom Install.
In Where Do You Want To Install Windows? Delete All Partitions until the drive is all Unallocated Space
Then Press Next. Windows will create Partitions and Format them during the install.
In the installer, when it asks to connect to a Network and choose who is going to use the computer, Shut down and give the computer to the new user.
When they turn it on, it will start the setup where it left off. And the new user can choose their network and login with their Microsoft Account.


My Computer

System One

  • OS
    Windows 11 Pro 64 bit 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte Z390 UD
    CPU
    Intel Core i7 77000 3.60
    Motherboard
    Gigabyte Z390 UD
    Memory
    16 GB
    Graphics Card(s)
    nVidia GEForce RTX 2060 Super
    Sound Card
    onboard
    Monitor(s) Displays
    Two 27" Dell 4K monitors
    Screen Resolution
    3840 x 2160
    Hard Drives
    M.2 NVME SSD, 500 GB; Two 2TB Mechanical HDD's
    PSU
    850w PSU
    Case
    Cyberpower PC
    Cooling
    Water cooled
    Keyboard
    Backlit Cyberpower gamiong keyboard
    Mouse
    Backlit Cyberpower gaming mouse
    Internet Speed
    1 GB mbps
    Browser
    Brave
    Antivirus
    Windows Security
I don’t get why a family member would try to “recover/undelete” your old files, and the chances that they would know how to with any available software would be slim. Most programs are either unsuccessful or if successful just create an unreadable mess. Alternatively they could take it to a data specialist but once they got the quote, unless you have some pretty decent secrets, would probably run away from the quote given.
Everything you do makes it all the more complicated to retrieve old files. Even installing the new OS after running Diskpart would be more than enough. And you have programs like CCleaner that had the ability to securely delete files from a drive by repeatedly writing over it.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 Build: 22631.3880
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sin-built
    CPU
    Intel(R) Core(TM) i7-4770K CPU @ 3.50GHz (4th Gen?)
    Motherboard
    ASUS ROG Maximus VI Formula
    Memory
    32.0 GB of I forget and the box is in storage.
    Graphics Card(s)
    Gigabyte nVidia GeForce GTX 1660 Super OC 6GB
    Sound Card
    Onboard
    Monitor(s) Displays
    4 x LG 23MP75 1 x 24" LG M38H 1 x 32" LF6300 TV Monitor 1 x Wacom Pro 22" Tablet
    Screen Resolution
    All over the place
    Hard Drives
    2 x WD something Something 8TB HDD's / 2 x WD something Something 4TB HDD's / 1 x EVO 1TB SSD / 2 x QVO 1TB SSD's / 1 x EVO 250 GB SSD / 2 x QVO 1TB (External Hub) / 1 x EVO 1TB (Portable Backup Case)
    PSU
    Silverstone 1500
    Case
    NZXT Phantom 820 Full-Tower Case
    Cooling
    Noctua NH-D15 Elite Class Dual Tower CPU Cooler / 6 x EziDIY 120mm / 2 x Corsair 140mm somethings / 1 x 140mm Thermaltake something / 2 x 200mm Corsair.
    Keyboard
    Corsair K95 / Logitech diNovo Edge Wireless
    Mouse
    Logitech G402 / G502 / Mx Masters / MX Air Cordless
    Internet Speed
    100/40Mbps
    Browser
    All sorts
    Antivirus
    Kaspersky Premium
    Other Info
    I’m on a horse.
  • Operating System
    Windows 11 Pro 22621.2215
    Computer type
    Laptop
    Manufacturer/Model
    LENOVO Yoga 7i EVO OLED 14" Touchscreen i5 12 Core 16GB/512GB
    CPU
    Intel Core 12th Gen i5-1240P Processor (1.7 - 4.4GHz)
    Memory
    16GB LPDDR5 RAM
    Graphics card(s)
    Graphics processor is an Intel Iris Xe
    Sound Card
    optimized with Dolby Atmos®
    Screen Resolution
    QHD 2880 x 1800 OLED
    Hard Drives
    M.2 512GB
    Other Info
    …still on a horse.
I know there's software available to shred or make old deleted data inaccessible, but I don't trust it and would rather have the peace of mind of just getting a new SSD.

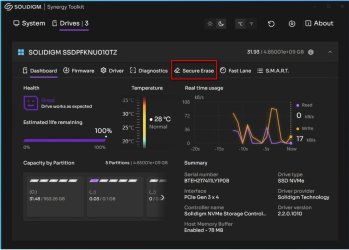

The way to do it properly on an ssd

there is various software that can issue the command to the ssd controller. If your ssd manufacturer doesnt provide it, the solidigm software says it will work for all brands



My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
Why not fresh install from a USB ISO?


My Computer

System One

  • OS
    11 Pro 23H2 (22631.3737) Feature Pack 1000.22700.1003.0
    Computer type
    Laptop
    Manufacturer/Model
    MSI
    CPU
    i7-10750H
    Motherboard
    MSI MS-17F5
    Memory
    16GB Samsung DDR4 3200
    Graphics Card(s)
    Intel + Nvidia RTX3060 Laptop
    Sound Card
    Realtek
    Monitor(s) Displays
    Samsung 24" Curved (HDMI)
    Screen Resolution
    1920x1080
    Hard Drives
    Sabrent Rocket Gen3 1Tb Smasung EVO 870 1TB
    Antivirus
    Avast
When I originally formatted the new SSD and tried restore the old image to it, I set up the SSD for GPT format, matching the old SSD. After than, when I installed Windows 8.1 from DVD to test if the SSD was faulty, I noticed that it defaulted to MBR...

The other issue, other than GPT vs. MBR, is just the way in which WIn 8,10,11 do partitions differently. This old PC was originally Win 8.1 (full home version key purchased) which I then upgraded to Win 10. Partitions are different sizes and in different order



If you post a screenshot of disk management showing both the source and target disks, we may be able to advise.
