Cloned HDD to SSD. Success but have a question...


jhiker

New member
Local time
8:55 PM
Posts
6
OS
Windows 11
My aging desktop PC has (had) a 1Tb HDD and I decided to replace it with a 1Tb SSD (Crucial MX500), SATA3.
I used Macrium Reflect to clone the HDD to the SSD and the clone was successful. Both were plugged in to the motherboard for cloning.
I unplugged the HDD and attempted to reboot and got a 'BOOTMGR missing' error message. I think this happened because I left my DVD drive plugged in and it must have tried to boot from that drive. Anyway, I went in to the BIOS and successfully changed the boot order so it picks up the SSD first. The 'old' HDD is still connected and is untouched so, for the moment, it's acting as a sort of backup I guess.

It is now apparently booting from the SSD. Everything is very much quicker and all appears to be well, except.....
I have a 'new' drive (F) showing up as a system reserved partition - this appears to be on the 'old bootable HDD'.
There is a matching system reserved partition on the 'new' SSD.

Where has it come from and what's it's purpose?
I'm inclined to leave it as it seems to be doing no harm but it's a bit of a puzzle.

I have not tried disconnecting the old HDD and rebooting yet - at some point I may wish to take advantage of the 1Tb storage space but for now I'll keep it as a bootable disk.

Many thanks for any insights.
Jeff
PS - I have just realised I've posted this in 'elevenforum' tho' I'm running Win10 - hope that's OK.


Windows Build/Version
Windows 10

My Computer

System One

  • OS
    Windows 11

Berton

Well-known member
Power User
VIP
Local time
1:55 PM
Posts
1,034
Location
Buffalo, Wyoming
OS
Win11 Pro RTM
My procedure in cloning is that when finished was to shut the computer down, unplugged the original drive then start up, see if it does and test for awhile. I've had times when leaving the original drive connected Windows won't work if that drive is removed, ended up with a re-install of Windows with only that drive connected.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5
    Memory
    8GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    21"
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security

hsehestedt

Well-known member
Power User
VIP
Local time
2:55 PM
Posts
971
Location
Texas, USA
OS
Windows 11 21H2
The solution to this is simple: Right-click that partition, the one with F: assigned, and choose to change the drive letter. Simply remove the drive letter. That partition should not be assigned a letter.

Done!


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

NavyLCDR

Well-known member
Power User
VIP
Local time
12:55 PM
Posts
999
OS
Windows 11
Or in Command Prompt with Admin privileges:
Code:
diskpart
select volume F
remove
exit
exit


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

SIW2

Well-known member
Member
VIP
Local time
8:55 PM
Posts
421
OS
Win7
Removing the letter wont make any difference.

It looks like the active partition on the old disk. It shouldnt cause an issue unless bios picks it up first. If you want to avoid any possible complications, remove the active flag.

diskpart
sel vol f
inact
exi


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

jhiker

New member
Thread Starter
Local time
8:55 PM
Posts
6
OS
Windows 11
Removing the letter wont make any difference.

It looks like the active partition on the old disk. It shouldnt cause an issue unless bios picks it up first. If you want to avoid any possible complications, remove the active flag.

diskpart
sel vol f
inact
exi
Is this reversible in case it causes any problems with booting?


My Computer

System One

  • OS
    Windows 11

SIW2

Well-known member
Member
VIP
Local time
8:55 PM
Posts
421
OS
Win7
If you ever want to boot from the old disk, mark that partition active again and make sure it is picked up first by bios ( or select from the one time boot menu)

bios will hand control to the mbr executable code at the beginning of the first bootable device it sees. It wont look any further.
By taking off that flag, bios will not regard it as bootable and will look at the next device.

It is not essential. As long as bios keeps picking up your new disk first it will keep handing control to the mbr code on the new disk,

Drive letters have nothing to do with it.

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

jhiker

New member
Thread Starter
Local time
8:55 PM
Posts
6
OS
Windows 11
If you ever want to boot from the old disk, mark that partition active again and make sure it is picked up first by bios ( or select from the one time boot menu)
Thank you. How would I mark it active again at a later date?


My Computer

System One

  • OS
    Windows 11

SIW2

Well-known member
Member
VIP
Local time
8:55 PM
Posts
421
OS
Win7
How would I mark it active again at a later date?


if you have left the letter F on it

diskpart
sel vol f
act
exi

if you have taken the letter off for unknown reasons

diskpart
sel dis 1
lis par
( in most cases the partition containing the boot critical files is 100mb by default and is partition 1 but it is always worth checking)
sel par 1
act
exi

or from any decent boot media you could use diskmgmt or any 3rd party partitioner to flag it active.
Gparted and simliar Linux partitioners call it the boot flag, it is the same thing.


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

NavyLCDR

Well-known member
Power User
VIP
Local time
12:55 PM
Posts
999
OS
Windows 11
The partition will remain active even after you remove the drive letter.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

SIW2

Well-known member
Member
VIP
Local time
8:55 PM
Posts
421
OS
Win7
Yes. removing the letter is pointless. Unless you ar running out of letters and need to use it somewhere else.


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

hsehestedt

Well-known member
Power User
VIP
Local time
2:55 PM
Posts
971
Location
Texas, USA
OS
Windows 11 21H2
Yes. removing the letter is pointless.
Why is removing the drive letter from a partition that normally should not have a drive letter pointless????


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

SIW2

Well-known member
Member
VIP
Local time
8:55 PM
Posts
421
OS
Win7
Why should it normally not have a letter?

MS do this thing where a letter isn't auto allocated to the current system partition ( unless it is also the boot partition ). Probably so the average user doesnt know it is there and wont try and fool around with it.

In the case of the OP the current system partition is disk0 partition 1.

It has been a while since I had multiple mbr disks hooked up to one machine, but if I remember correctly:

If the OP boots the old disk, then disk1 partition1 wont be auto allocated a letter ( because that would be the current system partition ) , but disk0 partition1 will.

With mbr style, what MS call the "system" partition is the one marked active and contains the boot critical files ( bootmgr and the folder called Boot that contains the bcd store ).

What MS calls the "boot" partition is the one that contains the operating system that is currently booted up.

Because any primary partition can be marked active and contain the boot critical files , it is not necessary to have a separate "system" partition.

It is quite common for the os to be on the same primary partition. In which case, disk management will show the words "system" and "boot" on the same partition.

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

SIW2

Well-known member
Member
VIP
Local time
8:55 PM
Posts
421
OS
Win7
The separate system partition thing is fairly recent. I seem to remember MS saying it was to get people used to the idea, because as more people move to gpt style and efi mode they will have a separate system partition ( probably, but again not necessarily )

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

jhiker

New member
Thread Starter
Local time
8:55 PM
Posts
6
OS
Windows 11
Thank you for the replies, some of which I'm still trying to understand properly.

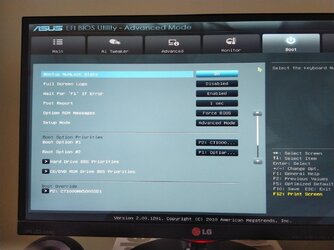

The 'Boot' page from the BIOS looks like this - to me this looks like it's booting from the new SSD - is that right?
In which case, if I don't want to see the F drive I could mark it 'inactive'.
...or I could just leave it as it's doing no harm...
Thank you.
IMG_20220705_102838 (Large).jpg


My Computer

System One

  • OS
    Windows 11

NavyLCDR

Well-known member
Power User
VIP
Local time
12:55 PM
Posts
999
OS
Windows 11
If you don't want to see F: drive you remove its drive letter.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

hsehestedt

Well-known member
Power User
VIP
Local time
2:55 PM
Posts
971
Location
Texas, USA
OS
Windows 11 21H2
Why should it normally not have a letter?
By default, the System Reserved partition would not be assigned a drive letter because there is no good reason for the user to normally need access to that partition. In fact, the very name of that partition, "System Reserved", effectively says that this is for use by the system, keep your paws off of it :-)


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

jhiker

New member
Thread Starter
Local time
8:55 PM
Posts
6
OS
Windows 11

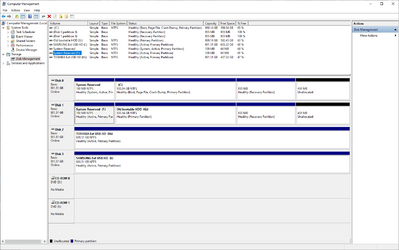

So, when all is said and done, what’s likely to happen if I unplug/disconnect the ‘old’ HDD (Disk 1 in the ‘disk management’ window) and reboot.

And why is that F: partition shown shaded?

Thanks for your patience.


My Computer

System One

  • OS
    Windows 11

hsehestedt

Well-known member
Power User
VIP
Local time
2:55 PM
Posts
971
Location
Texas, USA
OS
Windows 11 21H2
Unplugging the "old" drive should have no effect. If for some unexpected reason it does, you can simply plug it back in again, but I would not anticipate that.

The shading simply indicates that this is the currently selected partition. Click on another partition and it will now become shaded.


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD
Top Bottom
