Solved Creating VM from Macrium image


fixer

Active member
Member
VIP
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
I'm using these instructions from Macrium -
  1. Using Macrium Reflect take an image of your physical machine.
  2. Once you have an image, create a Rescue Media ISO image.
  3. Create a Virtual Machine using your preferred hypervisor (Hyper-V, VMware, Virtual box…), assigning to it a vCPU, Memory and a Virtual Hard Disk.
  4. Boot the VM using the created Rescue Media ISO image.
  5. From the booted Rescue Media restore your image on to the Virtual Hard Disk attached to your VM.
  6. Without exiting the Rescue Media, run the ReDeploy option.
  7. Detach the ISO from your VM and reboot it.
Using VMware I'm ok with 1 and 2 and at 3 I have created a vm but have not yet installed an OS. OK so far but I'm at a loss understanding how to proceed with 4 and am hoping one of the Macrium experts here has previously been down this road and can help.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

SoFine409

Active member
VIP
Local time
9:19 AM
Posts
45
Visit site
OS
Windows 10 Pro

My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell 8940
    CPU
    10th Gen Intel(R) Core(TM) i7-10700, 2.90GHz
    Motherboard
    Dell 0KV3RP (U3E1)
    Memory
    32GB, 2x16GB, DDR4, 2933Mhz
    Graphics Card(s)
    NVIDIA(R) GeForce(R) RTX 2060 SUPER(TM) 8GB GDDR6
    Sound Card
    Onboard, Realtek Codec, NVIDIA Hi Def Audio, Intel Display Audio
    Monitor(s) Displays
    Dell UltraSharp U3415W
    Screen Resolution
    3440x1440
    Hard Drives
    2TB M.2 PCIe NVMe SSD; 2TB Samsung SSD 860 EVO; 2TB Samsung SSD 860 EVO 2
    PSU
    500 W Dell
    Case
    Night Sky Bezel Chassis
    Cooling
    Dell
    Keyboard
    Logi Wireless
    Mouse
    Logi Wireless
    Internet Speed
    111 Mbps Download, 132 Mbps Upload
    Browser
    Edge, Chrome
    Antivirus
    Windows Defender, MalwareBytes
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Alienware Aurora R11
    CPU
    1oth Gen Intel Core i9 10900K, 3.7 - 5.3GHz
    Motherboard
    Dell
    Memory
    32GB Dual Channel HyperX(FM) FURY ODR4 XMP at 3200MHz
    Graphics card(s)
    NVIDIA GeForce RTX 2080 Ti 11GB GDDR
    Sound Card
    Motherboard
    Monitor(s) Displays
    Alienware AW2720 HF
    Screen Resolution
    1920 x 1080
    Hard Drives
    2TB M.2 PCle SSD (Boot); 6TB 7200RPM SATA
    PSU
    1000W Dell
    Case
    Dark Side of the Moon chassis
    Cooling
    High-Performance CPU Liquid Cooling
    Mouse
    Logitech G502
    Keyboard
    Logitech Pro Gamer
    Internet Speed
    111 Mbps Download, 132 Mbps Upload
    Browser
    Edge, Chrome
    Antivirus
    Windows Defender, MalwareBytes

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home
6. Without exiting the Rescue Media, run the ReDeploy option.
This of course assumes you have paid for your Reflect, this Premium feature is not included in Free.

However, it's not really necessary. I've never yet found a situation where Windows 10/11 cannot sort out its own drivers when starting up on a different machine.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home
Using VMware I'm ok with 1 and 2 and at 3 I have created a vm but have not yet installed an OS. OK so far but I'm at a loss understanding how to proceed with 4 and am hoping one of the Macrium experts here has previously been down this road and can help.
First you open your Macrium Reflect and use it to create the rescue media. Choose to create an ISO file. Use this ISO to boot your new VM.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

cereberus

Well-known member
Pro User
VIP
Local time
2:19 PM
Posts
3,268
Visit site
OS
Windows 10 Pro + others in VHDs
This of course assumes you have paid for your Reflect, this Premium feature is not included in Free.

However, it's not really necessary. I've never yet found a situation where Windows 10/11 cannot sort out its own drivers when starting up on a different machine.
Except quite often if new pc has an nvme drive.

However - never in a virtual machine.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
First you open your Macrium Reflect and use it to create the rescue media. Choose to create an ISO file. Use this ISO to boot your new VM.

The Vinchin link looks highly promising- I hope to be able to work on it a little later this evening. Thanks!

I'm using the paid for version btw.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home

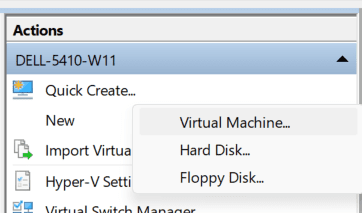

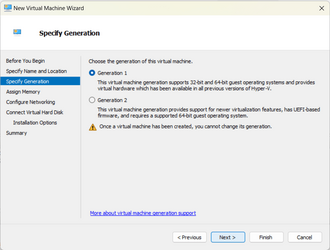

I'm using VMware rather than Hyper-V but on a quick scan through that looks promising. I'll study it, and thank you.

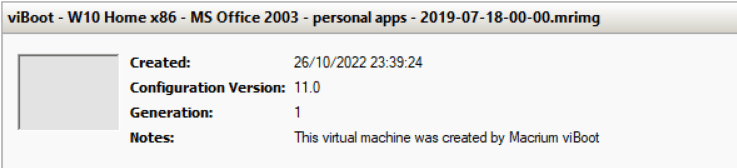

Macrium viBoot is a quick and easy way to boot a Macrium image as a VM but it doesn't support using VMWare. only Hyper-V and Virtualbox.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
We had a bit of a domestic emergency last night so 'computers' had to take a back seat. I was able to get through step 4 though and boot the VM with the rescue media. Need a clear time window now to try and complete the exercise. Hopefully update you later.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

jimbo45

Well-known member
Power User
VIP
Local time
2:19 PM
Posts
2,372
Location
Hafnarfjörður IS
Visit site
OS
Windows XP,7,10,11 Linux Arch Linux
Hi folks
You don't need the premium version of Macrium - assuming you have created a Stand alone bootable restore image of macrium and also have an image of your current physical system.

1) On ANY VM platform just create a Virtual disk for the target OS, and attach the disk containing the Macrium image as a physical disk

2) boot the stand alone macrium restore iso from WITHIN your new VM

3) restore the physical image

4) now remove the physical disk and reboot your VM

5) "Seemples" !!!! You might get activation problems but that's another issue -- Note also when creating the VM create the main disk (where you want your Windows system) as a SATA device in the VM wizard or whatever setup you use.

This sort of stuff is known as P2V or Physical to Virtual conversion and is really simple.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
My aim with this was to have the Win 10 system on my old laptop available as a VM on my new Win 11 laptop. I have a good Macrium image of the old laptop's system and instructions published by Macrium (cf #1) and felt it should be pretty straightforward, and with the help from posters on this thread it has indeed been straightforward - trouble is it it doesn't boot. :(

After going through this twice I'm going to turn my attention to Hyper-V and Macrium viBoot, both of which present a learning curve, and hope for better results. BTW, would the fact the old laptop was MBR but the new GPT make any difference?


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home
My aim with this was to have the Win 10 system on my old laptop available as a VM on my new Win 11 laptop ... it has indeed been straightforward - trouble is it it doesn't boot. :(
Boot your VM from the Macrium ISO again. Select 'Restore > Fix Windows boot problems'.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
Already tried that Bree, no change.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home
would the fact the old laptop was MBR but the new GPT make any difference?
The type of the host system makes no difference, but the type of the Hyper-V VM does. If the VM you created is a Generation 2 VM then it is a UEFI/GPT machine. For a Legacy/MBR machine you need to have created a Generation 1 VM.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
Can't see that option in the VMware new machine wizard but could well be why it isn't working. Unless it's a quick fix I am going to try Hyper-V.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home
Can't see that option in the VMware new machine wizard but could well be why it isn't working. Unless it's a quick fix I am going to try Hyper-V.
Sorry, that was a Hyper-V screenshot. Forgot for a moment you were using VMWare.

See if this helps....



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
@Bree

Looks like my hopes for creating a VM of my previous laptop can't be fulfilled. Macrium viBoot has now dropped the option to select the generation and new Hyper-V VMs now are all GPT. Somewhere I had read that the generation of new VMs would be determined by the architecture of the machine viBoot was installed on but that appears to have gone too - I tried it on my BIOS/MBR desktop but new VMs are GPT, no choice.

As I've no other use for VMs on my laptop I'll stop wasting my time. It's disappointing but I do have several VMware VMs of earlier Windows versions on my desktop which all work just fine should I need them.

Anyway, thank you very much for your efforts.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home
Looks like my hopes for creating a VM of my previous laptop can't be fulfilled. Macrium viBoot has now dropped the option to select the generation and new Hyper-V VMs now are all GPT.
No, not true. You can create either type of VM in Hyper-V. The screenshot I showed earlier was from a Windows 11 Pro UEFI/GPT host machine. Click New in the Actions pane and select Virtual Machine....


... follow the steps and you'll be offered the choice of a Generation 1 or Generation 2 machine. You need Generation 1 for a Legacy/MBR machine.

1666791324381-png.43385

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

Bree

Well-known member
Guru
VIP
Local time
2:19 PM
Posts
8,329
Location
S/E England, UK
Visit site
OS
Windows 11 Home
Somewhere I had read that the generation of new VMs would be determined by the architecture of the machine viBoot was installed on but that appears to have gone too...
No, viBoot will create the appropriate generation Hyper-V VM to suit the image. Here are two I've just created, one is an image of a legacy/MBR machine and is generation 1, the other is a UEFI image and generation 2.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

fixer

Active member
Member
VIP
Thread Starter
Local time
2:19 PM
Posts
139
Visit site
OS
Windows 11 Pro
Yep, my error. I had forgotten that back in September I had used this old Thinkpad to see if I could install Win 11 on it, and having done so I obviously imaged it. So the image I was using to create a new VM was Win 11, not its previous Win 10, and that's why viBoot was creating a GPT machine rather than a MBR machine. I really must apologise for wasting your time.:oops:

I do have a previous image so I'll have another go, though not right away - after all this there are a few other things needing attention!


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb

Latest Support Threads

Top Bottom
