Solved Dual boot not working both OS useable, no boot manager


RobbyK

New member
Local time
8:06 AM
Posts
27
OS
10/11 dual boot
It's been a full blown saga to get to this point. If you want to follow, just look for my other post. I got a lot of good help there, but that was for installing, this is a different situation, sort of. I mean it all flows together doesn't it? But here is where I am, I have managed to get a dual boot between 10 & 11, sort of. I can boot one or I can boot the other. If I boot into 10, I can boot 10 all day long, but when I restart it boots right back into 10.

If I F12,, and boot into recovery, then I choose "Use another operating system". Then I can boot 11. I don't know if it's just not giving me the bootloader, or what. Both OS's work great, once I do get it loaded. I'm attaching a pic of my partition layout, and my EasyBCD layout. Any suggestions that would get this thing going correctly would be appreciated.

10 Version 20H2 Build 19042.1110
11 Version unknown at the moment, would have to boot into 11. Downloaded a week ago from UUdump, it was the most recent version that day.

Windows Build/Version
10 Version 20H2 Build 19042.1110

Attachments

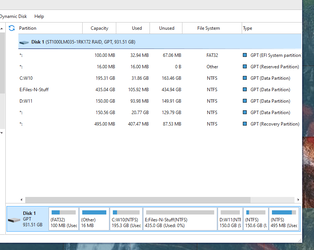

  • 10-11 parrtition.png
    10-11 parrtition.png
    31 KB · Views: 8

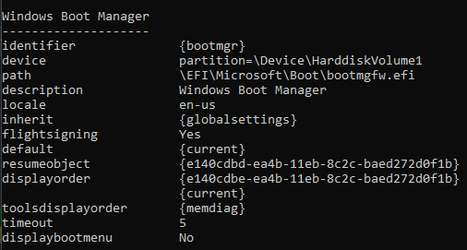

  • 10-11bcd.png
    18.2 KB · Views: 8

My Computer

System One

  • OS
    10/11 dual boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspirion 3795
    Mouse
    wired
    Internet Speed
    1Gig
    Browser
    Firefox/Chrome

SIW2

Well-known member
Member
VIP
Local time
2:06 PM
Posts
424
OS
Win7
at admin cmd prompt:

bcdedit /set {bootmgr} displaybootmenu yes
bcdedit /set {bootmgr} timeout 20
bcdedit /set {current} bootmenupolicy Legacy


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

jbcarreon123

C:\> echo ^<jbcarreon123^>
Power User
VIP
Local time
9:06 PM
Posts
1,087
Location
Quezon City, Philippines
OS
Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS

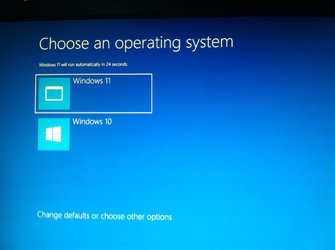

I'm dual-booting Win10 and Win11 now.. Bootmgr shows up.



My Computer

System One

  • OS
    Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Hard Drives
    Patriot Burst 240GB SATA III SSD
    Internet Speed
    40MBit/s
    Browser
    Firefox [recently switched]
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10

badrobot

Well-known member
MVP
Power User
VIP
Local time
9:06 AM
Posts
907
Location
Toronto, CANADA
OS
Windows 11 Pro
It's been a full blown saga to get to this point. If you want to follow, just look for my other post. I got a lot of good help there, but that was for installing, this is a different situation, sort of. I mean it all flows together doesn't it? But here is where I am, I have managed to get a dual boot between 10 & 11, sort of. I can boot one or I can boot the other. If I boot into 10, I can boot 10 all day long, but when I restart it boots right back into 10.

If I F12,, and boot into recovery, then I choose "Use another operating system". Then I can boot 11. I don't know if it's just not giving me the bootloader, or what. Both OS's work great, once I do get it loaded. I'm attaching a pic of my partition layout, and my EasyBCD layout. Any suggestions that would get this thing going correctly would be appreciated.

10 Version 20H2 Build 19042.1110
11 Version unknown at the moment, would have to boot into 11. Downloaded a week ago from UUdump, it was the most recent version that day.
That is how I normally wanted it. I don't want to see the boot option screen. I just have my Windows 10 as my default OS and call up the boot menu if I want to boot up Win 11.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

skcusime

Member
Local time
11:36 PM
Posts
4
OS
Windows11 21H2 22000.856
If you install Easybcd, you can adjust the waiting time for choosing which system you want. I set mine at 10 seconds, and if I do nothing, it loads the system I have set as default.


My Computer

System One

  • OS
    Windows11 21H2 22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Hybrid
    CPU
    AMD FX-8350
    Motherboard
    MSI 990FXA-GD65 (MS7640)
    Memory
    8.00GB Single-Channel DDR3 @ 800MHz
    Graphics Card(s)
    AMD Radeon R7 360 Series
    Sound Card
    AMD Built in
    Monitor(s) Displays
    LG 21inch
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD 2.5inch 1GB SSD
    Case
    Cooler Master
    Cooling
    3 case fans
    Keyboard
    Microsoft wired
    Mouse
    Microsoft wired
    Internet Speed
    50Mbps/20Mbps
    Browser
    Chrome
    Antivirus
    Malwarebytes
    Other Info
    No TPM, Legacy Boot, MBR, no secure boot

RobbyK

New member
Thread Starter
Local time
8:06 AM
Posts
27
OS
10/11 dual boot
That is how I normally wanted it. I don't want to see the boot option screen. I just have my Windows 10 as my default OS and call up the boot menu if I want to boot up Win 11.

How do you call it up? Right now I have to go into recovery in order to access it.


My Computer

System One

  • OS
    10/11 dual boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspirion 3795
    Mouse
    wired
    Internet Speed
    1Gig
    Browser
    Firefox/Chrome

RobbyK

New member
Thread Starter
Local time
8:06 AM
Posts
27
OS
10/11 dual boot
If you install Easybcd, you can adjust the waiting time for choosing which system you want. I set mine at 10 seconds, and if I do nothing, it loads the system I have set as default.
I have EasyBCD installed, and I have even set it up. But I still don't see the boot manager.


My Computer

System One

  • OS
    10/11 dual boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspirion 3795
    Mouse
    wired
    Internet Speed
    1Gig
    Browser
    Firefox/Chrome

badrobot

Well-known member
MVP
Power User
VIP
Local time
9:06 AM
Posts
907
Location
Toronto, CANADA
OS
Windows 11 Pro
How do you call it up? Right now I have to go into recovery in order to access it.
One of the F keys (it varies from hardware to hardware but mine is F11) will open the boot menu. From there, select the boot drive that you want to boot up.

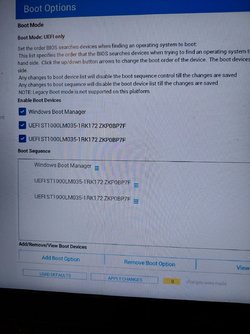

The boot menu looks like this..



My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

SIW2

Well-known member
Member
VIP
Local time
2:06 PM
Posts
424
OS
Win7
One of the F keys (it varies from hardware to hardware but mine is F11) will open the boot menu. From there, select the boot drive that you want to boot up.
The boot menu looks like this..

View attachment 3856

That is entirely different.

Robbyk wants to see the windows boot menu and select either os from there.

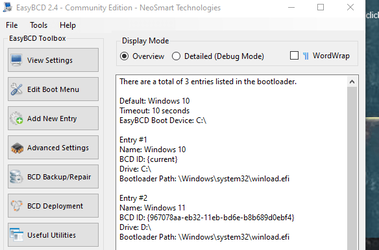

From his easybcd picture it looks like the live bcd store has both entries, but the bootmenu is not displaying.

at admin cmd prompt:

bcdedit /set {bootmgr} displaybootmenu yes

Is the official bcd command specified by MS


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

badrobot

Well-known member
MVP
Power User
VIP
Local time
9:06 AM
Posts
907
Location
Toronto, CANADA
OS
Windows 11 Pro
That is entirely different.

Robbyk wants to see the windows boot menu and select either os from there.

From his easybcd picture it looks like the live bcd store has both entries, but the bootmenu is not displaying.

at admin cmd prompt:

bcdedit /set {bootmgr} displaybootmenu yes

Is the official bcd command specified by MS
Exactly. I am just telling him how to do it the boot menu way because he asked.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

SIW2

Well-known member
Member
VIP
Local time
2:06 PM
Posts
424
OS
Win7
F12 one time menu is not suitable here because his win10 and win11 are on the same disk.

He just needs to tell bootmgr to display the menu


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

badrobot

Well-known member
MVP
Power User
VIP
Local time
9:06 AM
Posts
907
Location
Toronto, CANADA
OS
Windows 11 Pro
It wont work via F12 one time menu because his win10 and win11 are on the same disk
If it is UEFI, it may be possible by selecting boot manager instead of selecting boot drive. Otherwise, you are correct.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

cineman195

Active member
Local time
6:36 PM
Posts
120
OS
Windows 11
How do you call it up? Right now I have to go into recovery in order to access it.
Can you not go into Control Panel>System>Advanced System Settings>Startup & Recovery> TIme to display list of operating Systems and set the timeout to 20-30 seconds ?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Assembled
    CPU
    Intel i7-7700k
    Motherboard
    Asrock Z270 Taichi
    Memory
    16 GB
    Graphics Card(s)
    Intel 630 onboard
    Sound Card
    Onboard
    Monitor(s) Displays
    Benq 1080p
    Screen Resolution
    1920*1080
    Hard Drives
    NVMe
    Case
    Cooler Master
    Keyboard
    Some Chinese basic wired
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mbps
    Browser
    Chrome, Edge
    Antivirus
    Norton 360

RobbyK

New member
Thread Starter
Local time
8:06 AM
Posts
27
OS
10/11 dual boot
Can you not go into Control Panel>System>Advanced System Settings>Startup & Recovery> TIme to display list of operating Systems and set the timeout to 20-30 seconds ?
Tried that, and at the moment even have it set to "Wait for user input". Still skips right over it.


My Computer

System One

  • OS
    10/11 dual boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspirion 3795
    Mouse
    wired
    Internet Speed
    1Gig
    Browser
    Firefox/Chrome

RobbyK

New member
Thread Starter
Local time
8:06 AM
Posts
27
OS
10/11 dual boot
Here is a screenshot taken with my phone, the BIOS screen for the boot manager. But still no manager I can access,

bios boot menu.jpg


My Computer

System One

  • OS
    10/11 dual boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspirion 3795
    Mouse
    wired
    Internet Speed
    1Gig
    Browser
    Firefox/Chrome

jbcarreon123

C:\> echo ^<jbcarreon123^>
Power User
VIP
Local time
9:06 PM
Posts
1,087
Location
Quezon City, Philippines
OS
Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
Here is a screenshot taken with my phone, the BIOS screen for the boot manager. But still no manager I can access,

View attachment 3876
It looks like an Dell machine. And Windows Boot Manager is only one.

You can screenshot an bcdedit response on an administrative CMD.


My Computer

System One

  • OS
    Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Hard Drives
    Patriot Burst 240GB SATA III SSD
    Internet Speed
    40MBit/s
    Browser
    Firefox [recently switched]
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10

RobbyK

New member
Thread Starter
Local time
8:06 AM
Posts
27
OS
10/11 dual boot
It looks like an Dell machine. And Windows Boot Manager is only one.

You can screenshot an bcdedit response on an administrative CMD.
Ask and ye shall receive.....



My Computer

System One

  • OS
    10/11 dual boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspirion 3795
    Mouse
    wired
    Internet Speed
    1Gig
    Browser
    Firefox/Chrome

jbcarreon123

C:\> echo ^<jbcarreon123^>
Power User
VIP
Local time
9:06 PM
Posts
1,087
Location
Quezon City, Philippines
OS
Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
Ask and ye shall receive.....

View attachment 3883

No Windows Boot Manager?
If none, do this steps:
1. Boot to any Windows 10 bootable media. (Macrium Rescue disk will do)
2. Open an Command Prompt. In Windows 10 Install media, that will be Shift + F10.
3. Type slmgr /fixboot and press Enter.
4. And, type slmgr /fixmbr and press Enter.
5. reboot and type bcdedit and post here the results.


My Computer

System One

  • OS
    Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Hard Drives
    Patriot Burst 240GB SATA III SSD
    Internet Speed
    40MBit/s
    Browser
    Firefox [recently switched]
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10

SIW2

Well-known member
Member
VIP
Local time
2:06 PM
Posts
424
OS
Win7
Beginning of the output is missing from the screenshot


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

jbcarreon123

C:\> echo ^<jbcarreon123^>
Power User
VIP
Local time
9:06 PM
Posts
1,087
Location
Quezon City, Philippines
OS
Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
This one is missing.
If it is none to be seen, do the steps in the post #18.


My Computer

System One

  • OS
    Windows 11 [Insider (Enrolled using OfflineInsiderEnroll)], Linux Mint, Zorin OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Hard Drives
    Patriot Burst 240GB SATA III SSD
    Internet Speed
    40MBit/s
    Browser
    Firefox [recently switched]
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10
Top Bottom
