Event ID 566, The system session has transitioned from 197 to 199

user1010 · Dec 3, 2024

This event ID pops up in the event log when my monitor wakes up. I don't know the exact cause of this and why the monitor wakes without sometimes when I'm doing anything. Is it possible to get more info about this? Checked the task scheduler and found nothing from there that can cause it.

My old thread about the problem.

fishingfool · Dec 3, 2024

Hi user1010

I would suggest you download and run "FullEventLogView". No Install needed.
Note the exact time your monitor powers up from sleep state. The utility will tell you more about the trigger in a list view.

Event Log Viewer for Windows 11 / 10 / 8 / 7 / Vista

Marcus Vinicus · Dec 3, 2024

Hi @user1010

If you click on the Details tab in the Event Viewer (shown in your screen capture) does that give you any additional information about what the issue is?

user1010 · Dec 3, 2024

fishingfool said:
Hi user1010

I would suggest you download and run "FullEventLogView". No Install needed.
Note the exact time your monitor powers up from sleep state. The utility will tell you more about the trigger in a list view.

Event Log Viewer for Windows 11 / 10 / 8 / 7 / Vista

Thanks. Is it Thread ID and/or Process ID?

user1010 · Dec 3, 2024

Marcus Vinicus said:
Hi @user1010

If you click on the Details tab in the Event Viewer (shown in your screen capture) does that give you any additional information about what the issue is?

System

- Provider
[ Name] Microsoft-Windows-Kernel-Power
[ Guid] {331c3b3a-2005-44c2-ac5e-77220c37d6b4}
EventID 566
Version 0
Level 4
Task 268
Opcode 0
Keywords 0x8000000000000604
- TimeCreated
[ SystemTime] 2024-12-03T17:50:41.7623539Z
EventRecordID 18516
Correlation
- Execution
[ ProcessID] 4
[ ThreadID] 19888
Channel System
Computer
- Security
[ UserID] S-1-5-18

- EventData

BootId 30
Reason 6
PreviousSessionId 197
PreviousSessionType 1
PreviousSessionDurationInUs 994368275
PreviousEnergyCapacityAtStart 0
PreviousFullEnergyCapacityAtStart 0
PreviousEnergyCapacityAtEnd 0
PreviousFullEnergyCapacityAtEnd 0
NextSessionId 199
NextSessionType 0
PowerStateAc true
MonitorReason 6

glasskuter · Dec 3, 2024

That is an informational event, not an error. There are thousands of informational events every day.

Marcus Vinicus · Dec 3, 2024

As @glasskuter states it isn't an error being reported by the Event Viewer. To find out what specifically is making the monitor wake up could take a lot of digging around to find why.

fishingfool · Dec 3, 2024

To find out what specifically is making the monitor wake up could take a lot of digging around to find why.

Not Really

Thanks. Is it Thread ID and/or Process ID?

Like I said, look at the time when your monitor wakes up, run the utility. look at event time & event id. Double click description if needed. not difficult.

user1010 · Dec 4, 2024

fishingfool said:
Not Really

Like I said, look at the time when your monitor wakes up, run the utility. look at event time & event id. Double click description if needed. not difficult.

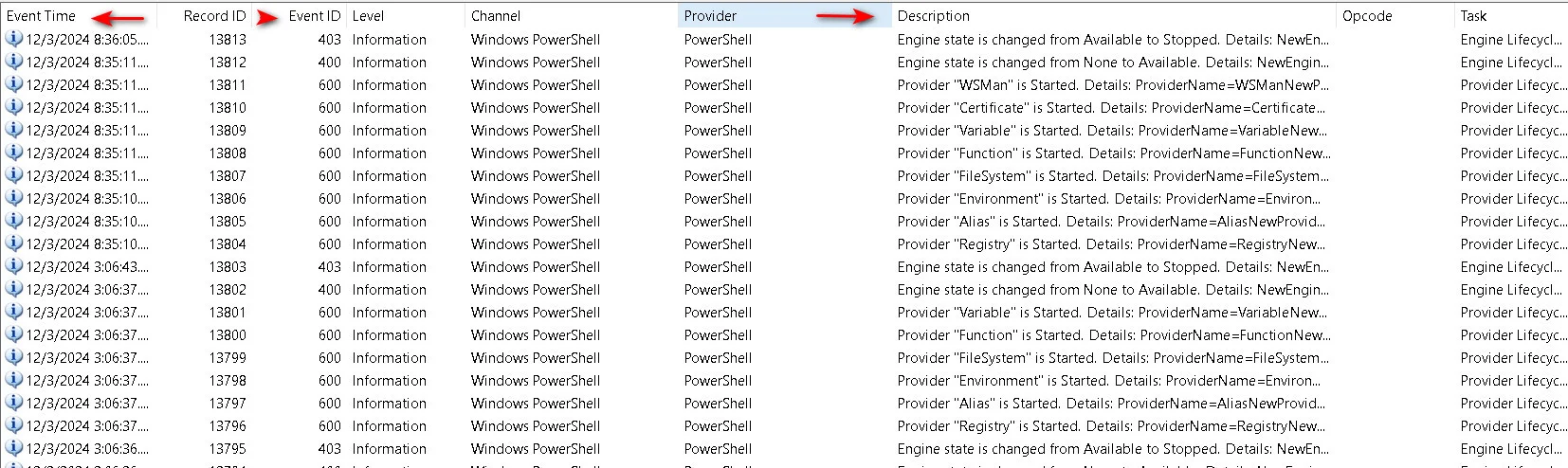

View attachment 118311

It's the same info I got there but I noticed that there is Process ID and Thread ID in FullEventLogView (which is not in the usual event viewer).

glasskuter said:
That is an informational event, not an error. There are thousands of informational events every day.

Ah ok. I just noticed it the same time and I have seen it before around the time when I got problem with the monitor.

Marcus Vinicus said:
As @glasskuter states it isn't an error being reported by the Event Viewer. To find out what specifically is making the monitor wake up could take a lot of digging around to find why.

Digging how? Give me one example or path :)

user1010 · Dec 7, 2024

Noticed that I got Google Chrome notification the same time that the monitor waked. Activated "do not disturb" under Notifications settings. See if it helps :)

Marcus Vinicus · Dec 7, 2024

user1010 said:
Digging how? Give me one example or path :)

You could try Process Monitor which is part of the Sysinternals Suite.
The information page at MS is here.

Process Monitor - Sysinternals

Monitor file system, Registry, process, thread and DLL activity in real-time.

learn.microsoft.com

If you've never used/seen it before you will need to become familiar with it. It is advanced software.
It does in real time have custom filters that can be setup to track specific Process ID's and Thread ID's and much more.

I don't guarantee it will find the information you seek, but if anything is going to this is what I would be trying out.
Good luck. :thumbsup:

Marcus Vinicus · Dec 7, 2024

The other Sysinternals tool that is definitely worth knowing about is Process Explorer which has some of the same features as Windows Task Manager except on steriods.

Process Explorer - Sysinternals

Find out what files, registry keys and other objects processes have open, which DLLs they have loaded, and more.

learn.microsoft.com

From the MS page.

Introduction
Ever wondered which program has a particular file or directory open? Now you can find out. Process Explorer shows you information about which handles and DLLs processes have opened or loaded.

user1010 · Dec 8, 2024

Marcus Vinicus said:
You could try Process Monitor which is part of the Sysinternals Suite.
The information page at MS is here.

Process Monitor - Sysinternals

Monitor file system, Registry, process, thread and DLL activity in real-time.

learn.microsoft.com

If you've never used/seen it before you will need to become familiar with it. It is advanced software.
It does in real time have custom filters that can be setup to track specific Process ID's and Thread ID's and much more.

I don't guarantee it will find the information you seek, but if anything is going to this is what I would be trying out.
Good luck.

I see the PID in Process Monitor. Thread ID should be expanded from the process if there is any?

Marcus Vinicus · Dec 8, 2024

user1010 said:
I see the PID in Process Monitor. Thread ID should be expanded from the process if there is any?

Thread ID = TID

Hit the shortcut Ctrl + L and the filter dialog box appears. Select PID or TID and add the correct number, hit enter then answer yes when the little dialog box appears.
Right click on any entry in the Process Monitor for a myriad of options. Properties is a good place to start. It shows ALL dll's being used by the process.

user1010 · Dec 31, 2024

It seems that it's the Chrome/Windows notification that wakes my monitor. I turned off the notifications and the monitor hasn't wake since.
