Finally - Updating 24H2 Media with All the Latest Updates is Working


hsehestedt

Well-known member
Guru
VIP
Local time
10:09 AM
Posts
3,477
Location
Texas, USA
OS
Win11 Pro 24H2
@garlin, this may be of particular interest to you.

I have been struggling to get my scripts and program that inject Windows updates into an image to work properly with 24H2. For months I have been trying to figure this out, but I finally resolved it today.

Garlin, I don't know if you will recall that we had a brief discussion about files that need to be moved from the boot.wim into the main install.wim file. You had asked me about that, and I sent a link showing where I had gotten that information. I was on the right track with that. It turns out that there is simply one additional file that needs to be copied with 24H2.

I have now updated my scripts and program, injected the updates into 26100.1742 to bring it up to 26100.2033 and then tested. I was now able to successfully install both manually and using unattended installation.

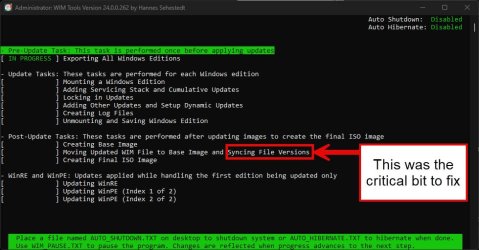

Here is how I figured it out...

First, take a look at this article related to updating installation media using dynamic updates:


Scroll down to the section called "Update remaining media files". You will note that what they are doing is copying several files from the boot.wim to the install.wim. I was missing one file: "setuphost.exe". It is that simple. That one change fixed everything for me.

What's odd is that I have poured over this doc before. It shows a date of July 15, 2024, but I swear that this change must have been snuck in later than that. Either that or I simply missed the change.

In any case, it all works perfectly now. Manual updates as well as unattended installations using media that I inject the updates into are working flawlessly. It even handles the new Checkpoint / Incremental updates perfectly.

With my batch file script, I update only a single edition in the ISO image, but with my program, it can recurse through all the editions and update them all. It takes maybe 2 hours or to update every edition in an ISO image, but it is entirely automated. I can just start the process and 2 hours lately I have a fully patched and up to date ISO image with all the latest SSU, LCU, Safe OS, and Setup updates plus the latest .NET updates.



My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
That could be part of the change. I never use Setup DU, because my normal process is to create an updated install image so DU would be of no practical use (image is current at install time). Also, I don't trust having DU installed since that transfers control of the install to random WU server updates.

But I know other people do follow the instructions with Setup DU. The problem is if you're not everyone uses a toolkit (or scripts) that apply Setup DU. In NTLite, Setup DU is normally recommended in the Updates Downloader. But I typically use a vanilla ISO to duplicate the average user's out-of-the-box experience.

And you're right they snuck it in:

Update Windows installation media with Dynamic Update - Windows Deployment (12/05/2023)
Code:
#
# update remaining files on media
#

# Add Setup DU by copy the files from the package into the newMedia
Write-Output "$(Get-TS): Adding package $SETUP_DU_PATH"
cmd.exe /c $env:SystemRoot\System32\expand.exe $SETUP_DU_PATH -F:* $MEDIA_NEW_PATH"\sources" | Out-Null

# Copy setup.exe from boot.wim, saved earlier.
Write-Output "$(Get-TS): Copying $WORKING_PATH\setup.exe to $MEDIA_NEW_PATH\sources\setup.exe"
Copy-Item -Path $WORKING_PATH"\setup.exe" -Destination $MEDIA_NEW_PATH"\sources\setup.exe" -Force -ErrorAction stop | Out-Null


# Copy bootmgr files from boot.wim, saved earlier.
$MEDIA_NEW_FILES = Get-ChildItem $MEDIA_NEW_PATH -Force -Recurse -Filter b*.efi

Foreach ($File in $MEDIA_NEW_FILES){
    if (($File.Name -ieq "bootmgfw.efi") -or `
        ($File.Name -ieq "bootx64.efi") -or `
        ($File.Name -ieq "bootia32.efi") -or `
        ($File.Name -ieq "bootaa64.efi"))
    {
        Write-Output "$(Get-TS): Copying $WORKING_PATH\bootmgfw.efi to $($File.FullName)"
        Copy-Item -Path $WORKING_PATH"\bootmgfw.efi" -Destination $File.FullName -Force -ErrorAction stop | Out-Null
    }
    elseif ($File.Name -ieq "bootmgr.efi")
    {
        Write-Output "$(Get-TS): Copying $WORKING_PATH\bootmgr.efi to $($File.FullName)"
        Copy-Item -Path $WORKING_PATH"\bootmgr.efi" -Destination $File.FullName -Force -ErrorAction stop | Out-Null
    }
}

Update Windows installation media with Dynamic Update (07/15/2024)
Code:
#
# update remaining files on media
#

# Add Setup DU by copy the files from the package into the newMedia
Write-Output "$(Get-TS): Adding package $SETUP_DU_PATH"
cmd.exe /c $env:SystemRoot\System32\expand.exe $SETUP_DU_PATH -F:* $MEDIA_NEW_PATH"\sources" | Out-Null

# Copy setup.exe from boot.wim, saved earlier.
Write-Output "$(Get-TS): Copying $WORKING_PATH\setup.exe to $MEDIA_NEW_PATH\sources\setup.exe"
Copy-Item -Path $WORKING_PATH"\setup.exe" -Destination $MEDIA_NEW_PATH"\sources\setup.exe" -Force -ErrorAction stop | Out-Null

# Copy setuphost.exe from boot.wim, saved earlier.
if (Test-Path -Path $WORKING_PATH"\setuphost.exe") {

Write-Output "$(Get-TS): Copying $WORKING_PATH\setuphost.exe to $MEDIA_NEW_PATH\sources\setuphost.exe"
Copy-Item -Path $WORKING_PATH"\setuphost.exe" -Destination $MEDIA_NEW_PATH"\sources\setuphost.exe" -Force -ErrorAction stop | Out-Null
}

# Copy bootmgr files from boot.wim, saved earlier.
$MEDIA_NEW_FILES = Get-ChildItem $MEDIA_NEW_PATH -Force -Recurse -Filter b*.efi

Foreach ($File in $MEDIA_NEW_FILES){
if (($File.Name -ieq "bootmgfw.efi") -or ($File.Name -ieq "bootx64.efi") -or ($File.Name -ieq "bootia32.efi") -or ($File.Name -ieq "bootaa64.efi"))
    {

Write-Output "$(Get-TS): Copying $WORKING_PATH\bootmgfw.efi to $($File.FullName)"
Copy-Item -Path $WORKING_PATH"\bootmgfw.efi" -Destination $File.FullName -Force -ErrorAction stop | Out-Null
    }
elseif ($File.Name -ieq "bootmgr.efi")
    {

Write-Output "$(Get-TS): Copying $WORKING_PATH\bootmgr.efi to $($File.FullName)"
Copy-Item -Path $WORKING_PATH"\bootmgr.efi" -Destination $File.FullName -Force -ErrorAction stop | Out-Null
    }
}


My Computer

System One

  • OS
    Windows 7
Sheesh!!! @hsehestedt and @garlin
You two with all your scrips are so far beyond me that I feel totally inadequate. I'm going to go to bed and pull the covers over my head now and pout.
Seriously, you both are amazing in figuring out this off the wall stuff with knowledge that that us mere mortals lack. I admire your skills.


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2 2600.1742
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 nvme+256gb SKHynix m.2 nvme /External +512gb Samsung m.2 sata+1tb Kingston m2.nvme
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Well if you're out volunteering to help local folks with their PC problems, that's more to be admired than us helping the few 5% that understand what we're muttering about.

You can't go to a summer BBQ and ask someone, "Hey have you tried fixing Windows 11 automated setup? Yeah, totally. I know!" :look:


My Computer

System One

  • OS
    Windows 7
Sheesh!!! @hsehestedt and @garlin
You two with all your scrips are so far beyond me that I feel totally inadequate. I'm going to go to bed and pull the covers over my head now and pout.
Seriously, you both are amazing in figuring out this off the wall stuff with knowledge that that us mere mortals lack. I admire your skills.
I very much appreciate it, but I don't really feel like I have any special skills. I think it is merely my stubbornness that forces me to sit down for hours or sometimes a day or two non-stop to figure something out. I guess it/'s kind of an OCD that refuses to let me fail :-)


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
guess it/'s kind of an OCD that refuses to let me fail
I can definitely relate to that. I get really OCD about this stuff too. Always did on my job when I was working, too. I simply refuse to give up for hours and days on end some time. At times, my persistance pays off. At other times, I end up with my head in my hands, brain dead, crying "uncle" My OCD has a hard time dealing with those other times. I simply can't stop thinking about something I can't figure out.


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2 2600.1742
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 nvme+256gb SKHynix m.2 nvme /External +512gb Samsung m.2 sata+1tb Kingston m2.nvme
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
I can definitely relate to that. I get really OCD about this stuff too. Always did on my job when I was working, too. I simply refuse to give up for hours and days on end some time. At times, my persistance pays off. At other times, I end up with my head in my hands, brain dead, crying "uncle" My OCD has a hard time dealing with those other times. I simply can't stop thinking about something I can't figure out.
Wow, that is perfect description. I guess that great minds think alike. And so do we :-)


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
To confirm, you're absolutely correct it's the only change in 24H2 Dynamic Setup.

I had to manually reformat the official *.ps1 files because of sloppy editing changes (inconsistent spacing, folded if-statements, random double spaces on the end of lines) before doing a line-by-line comparison.
So what's changed between 23H2 & 24H2 (according to the scripts)?

1. Get Started

We get a minor re-organization of staging folders.
Code:
17,23c17,22
< # Declare Dynamic Update packages. A dedicated folder is used for the latest cumulative update, and as needed
< # checkpoint cumulative updates.
< $LCU_PATH        = "C:\mediaRefresh\packages\CU\LCU.msu"
< $SSU_PATH        = "C:\mediaRefresh\packages\Other\SSU_DU.msu"
< $SETUP_DU_PATH   = "C:\mediaRefresh\packages\Other\Setup_DU.cab"
< $SAFE_OS_DU_PATH = "C:\mediaRefresh\packages\Other\SafeOS_DU.cab"
< $DOTNET_CU_PATH  = "C:\mediaRefresh\packages\Other\DotNet_CU.msu"
---
> # Declare Dynamic Update packages
> $LCU_PATH        = "C:\mediaRefresh\packages\LCU.msu"
> $SSU_PATH        = "C:\mediaRefresh\packages\SSU_DU.msu"
> $SETUP_DU_PATH   = "C:\mediaRefresh\packages\Setup_DU.cab"
> $SAFE_OS_DU_PATH = "C:\mediaRefresh\packages\SafeOS_DU.cab"
> $DOTNET_CU_PATH  = "C:\mediaRefresh\packages\DotNet_CU.msu"

2. Update WinRE

We get a whole set of changes to the Write-Output lines, mostly to rephrase the reason for script actions. If we exclude the Write-Output lines, we're left with one comment change.
Code:
5c5
< # Get the list of images contained within the main OS
---
> # Get the list of images contained within WinPE

3. Update WinPE

More Write-Output changes again. If we exclude them, we get this new code:
Code:
117,128d115
<
<         # Save setuphost.exe for later use. This will address possible binary mismatch with the version in the main OS \sources folder
<         # This is only required starting with Windows 11 version 24H2
<         $TEMP = Get-WindowsImage -ImagePath $MEDIA_NEW_PATH"\sources\boot.wim" -Index $IMAGE.ImageIndex
<         if ([System.Version]$TEMP.Version -ge [System.Version]"10.0.26100") {
<
<             Copy-Item -Path $WINPE_MOUNT"\sources\setuphost.exe" -Destination $WORKING_PATH"\setuphost.exe" -Force -ErrorAction stop | Out-Null
<         }
<         else {
<
<             Write-Output "$(Get-TS): Skipping copy of setuphost.exe; image version $($TEMP.Version)"
<         }

4. Update Media Files

Some of the same things after exclusion.
Code:
13,18d12
< # Copy setuphost.exe from boot.wim, saved earlier.
< if (Test-Path -Path $WORKING_PATH"\setuphost.exe") {
<
< Write-Output "$(Get-TS): Copying $WORKING_PATH\setuphost.exe to $MEDIA_NEW_PATH\sources\setuphost.exe"
<     Copy-Item -Path $WORKING_PATH"\setuphost.exe" -Destination $MEDIA_NEW_PATH"\sources\setuphost.exe" -Force -ErrorAction stop | Out-Null
< }

5. Finish Up
No changes made.


Key conclusion:
# Save setuphost.exe for later use. This will address possible binary mismatch with the version in the main OS \sources folder
# This is only required starting with Windows 11 version 24H2


My Computer

System One

  • OS
    Windows 7
@garlin,

Thank you so much. You are a wealth of information that never ceases to amaze me. I'm also highly appreciative of your taking the time to post this information.

This has been a difficult road for me because I have no formal experience with this. It's all simply stuff I figured out reading posts on TenForums and ElevenForum, lots and lots of testing and experimenting, many long nights of web searches, and asking plenty of questions.

I had initially started a project to just inject the latest updates into a Windows image purely as an exercise for testing and to help solidify what I was learning by forcing me to implement it in code. The problem is that I was never satisfied so I kept adding functionality and now I have a complete tool to help me do almost anything I could ever want with Windows images. This is what the main menu looks like just to give you an idea of some of the capabilities:


I'm particularly proud of menu option 5 - it allows me to create a bootable disk that allows me to pick from an unlimited number of ISO images somewhat like Ventoy, etc. Even if the system is completely unbootable due to no or corrupted OS, I can boot from that disk, and it will ask what ISO I want to boot.

So, thank you again for the valuable info. That makes me feel really good. I was playing the scenario in my mind over and over again that this would be a nightmare that I might never figure out, frustrating because I have spent literally a few years creating and refining this. It feels incredibly good to have this off my mind :-)


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Any chance of a copy of your batch file script please, looks really useful


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Special Build
    CPU
    AMD Ryzen 7 3700X *Core
    Motherboard
    ASUS Prime B450-Plus
    Memory
    16gb
    Graphics Card(s)
    NVidia Geforce RTX 2060 Super
    Sound Card
    On-Board
    Monitor(s) Displays
    2 x Dell 27"
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung SSD970 500gb
    ST2000DM008 2tb
    Internet Speed
    500mb
Any chance of a copy of your batch file script please, looks really useful
I have both a batch file and the app that I posted the screenshot from.

I was doing one last check up here before getting some sleep since it is about 4:00 AM for me. I will post a copy of the batch file now below as well as a link to the app up on GitHub.

WARNING: The version of the app up on GitHub has not been updated to the new version yet. I want to do some hammering on it and plan to post the update later today (October 9th). You will want the update because it will have the 24H2 fix.

Also, be aware that the batch file will update just a single edition. For example, if you have an ISO image that has all the editions like Home, Pro, etc. the batch file will only update one edition of your choosing. It assumes that you know some things about the ISO image such as the fact that index #1 is the home edition and index #6 is Pro. You should read the comments at the top because there are user adjustable settings that you need to set before running the batch file.

On the other hand, the app is WAY more useful. It can update just a single edition, all editions, or any combination of editions that you select. It can also tell you what index number is associated with what edition, so you don't have to guess. Of course, the app also has LOTS of additional capabilities like adding drivers, creating multi-boot flash drives, built-in help and much, much more.

I typically provide the batch file so that people can easily look at it to see the entire process by dissecting the batch file.

Below is the batch file. I will post an update and link in this thread when I upload the new version to GitHub.

Please note that you need to have the Windows ADK installed. I'm thinking of revising this so that the ADK is not needed, but for now it is needed. You can get the ADK from here:


When installing the ADK, you will be given a choice of options to install. You only need the Deployment Tools and nothing else (this is very small).

Save batch file to any file name with a .bat extension.

Batch:
@echo off
cd /d %~dp0
cls


:::::::::::::::::::::::::::::::::::::::
:: Windows Image Updater             ::
::                                   ::
:: Version 6.0.3                     ::
::                                   ::
:: Oct 08, 2024 by Hannes Sehestedt  ::
:::::::::::::::::::::::::::::::::::::::


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
::                                                                                                     ::
:: PURPOSE OF THIS SCRIPT                                                                              ::
::                                                                                                     ::
:: This script will take one Windows edition in a Windows ISO image and inject Windows                 ::
:: updates into it. The updated edition of Windows will be saved to a new file containing              ::
:: just that one edition of Windows. As an example, assume that you have a retail Windows              ::
:: ISO image. This ISO image has multiple editions of Windows such as Win 11 Home, Pro, etc.           ::
:: Each edition of Windows has an index number associated with it.                                     ::
::                                                                                                     ::
:: For example, on the US English consumer edition ISO images from Microsoft, Windows 11 Pro is index  ::
:: number 6. To get a list of Windows editions and the index number associated with each edition, you  ::
:: can run this command:                                                                               ::
::                                                                                                     ::
:: dism /Get-WimInfo /WimFile:C:\Project\ISO_Files\Sources\install.wim                                 ::
::                                                                                                     ::
:: If located elsewhere, substitute the correct location of the install.wim file in the above command. ::
::                                                                                                     ::
:: This utility will perform the updates THE RIGHT WAY by updating all elements of the image           ::
:: including not only the cumulative update, but also the SSU (Servicing Stack Update), Safe           ::
:: OS Dynamic Update, Setup Dynamic Update, other updates such as .NET updates and Microcode           ::
:: updates, and will even allow you to add custom scripts to the Windows PE image. However,            ::
:: if you want to update only one item, such as the cumulative update, you can do that as well.        ::
::                                                                                                     ::
:: IMPORTANT: As noted, this script will only update one edition of Windows from an image. If          ::
:: you want to update multiple editions and combine them all into a single image, please               ::
:: message me as noted above. I can provide to you a tool that will allow you to update many           ::
:: Windows editions and combine them into a single image. That same tool also has many other           ::
:: features such as being able to inject drivers into an image, create bootable media, and many        ::
:: other tasks related to Windows Image Management.                                                    ::
::                                                                                                     ::
:: Please note that it is possible to also add updates such as language packs and other language       ::
:: related components to Windows images. This batch file does not apply those updates, however         ::
:: I can provide information regarding how to update those components if you need to do so.            ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
::                                                                                                                 ::
:: SUMMARY OF INSTRUCTIONS                                                                                         ::
::                                                                                                                 ::
::                                                                                                                 ::
:: 1) Read the instructions below to learn how to organize the folders that this project needs.                    ::
::                                                                                                                 ::
:: 2) Review the "User defined variables" section below and modify as needed.                                      ::
::                                                                                                                 ::
:: 3) Make sure that you have the Windows ADK installed. Only the Deployment Tools from the                        ::
::    ADK need to be installed.                                                                                    ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
::                                                                                                                 ::
:: DETAILED INSTRUCTIONS                                                                                           ::
::                                                                                                                 ::
:: Create the following folders before you run this batch file.                                                    ::
::                                                                                                                 ::
:: NOTE: The paths below assume the default settings of user defined variables. If you change those variables,     ::
:: Please alter the below paths accordingly.                                                                       ::
::                                                                                                                 ::
:: Do either one of the following:                                                                                 ::
::                                                                                                                 ::
:: 1) Create a folder and copy the contents of your Windows ISO image that you want to update to it.               ::
::                                                                                                                 ::
:: OR                                                                                                              ::
::                                                                                                                 ::
:: 2) Mount the ISO image by double-clicking it.                                                                   ::
::                                                                                                                 ::
:: For whichever of the above options you choose, note the location as the batch file will ask you for that        ::
:: location when you run it.                                                                                       ::
::                                                                                                                 ::
:: Create a folder under which you will place the Windows updates to be installed.                                 ::
::                                                                                                                 ::
:: NOTE: This location can be changed using the user defined variables below. In this example, we assume that      ::
:: location will be "C:\WinUpdates". Beneath that folder, create all of the following folders and place the        ::
:: updates described into that folder. All of these updates can be downloaded from the "Microsoft Update Catalog". ::
::                                                                                                                 ::
:: NOTE: All items are optional. For example, if you do not have a Safe OS Dynamic Update, simply leave that       ::
:: folder empty.                                                                                                   ::
::                                                                                                                 ::
:: The "PE_Files" folder can be used to place files that you want to copy to Windows setup. For example, I have a  ::
:: couple of scripts that I want to be available to Windows setup. Any files that you place here will be available ::
:: on drive X: during windows setup. Note that X: is the RAM Drive that Windows creates during setup. Since this   ::
:: is just about the first thing setup does, these files will be available very early in setup. IT IS EXTREMEMELY  ::
:: UNLIKELY that you will ever put anything in this folder unless you have a very specific reason for doing so. As ::
:: a result, you will typically leave this folder empty.                                                           ::
::                                                                                                                 ::
:: If you wish to DELETE files from Windows PE, for example, scripts that you previously added as described in the ::
:: above paragragh, please search this batch file for the text "delete files from WinPE" and follow the            ::
:: instructions found there. Once again, IT IS EXTREMEMELY UNLIKELY that you will need to do this.                 ::
::                                                                                                                 ::
:: When downloading updates from the Microsoft Update Catalog, please note that the "Safe OS Dynamic Update"       ::
:: will include "Windows Safe OS Dysnamic Update" in the "Products" column. The "Setup Dynamic Update" will        ::
:: simply be called a "Dynamic Update" in this same column.                                                        ::
::                                                                                                                 ::
:: Once again, note that the "C:\WinUpdates" portion of the paths below can be changed using the user defined      ::
:: variables that are described below.                                                                             ::
::                                                                                                                 ::
:: C:\WinUpdates\LCU       <--- Place Latest Cumulative Update in this folder. DON'T use a DYNAMIC version.        ::
:: C:\WinUpdates\SSU       <--- Place a Standalone SSU in this folder if one is available. These are not common.   ::
:: C:\WinUpdates\Other     <--- Place other updates (for example .NET and OOBE ZDP Updates) in this folder.        ::
:: C:\WinUpdates\SafeOS_DU <--- Place the latest Safe OS Dynamic Update in this folder.                            ::
:: C:\WinUpdates\Setup_DU  <--- Place the latest Setup Dynamic Update in this folder.                              ::
:: C:\WinUpdates\PE_Files  <--- Place any files such as scripts that you want copied to WinPE here.                ::
::                                                                                                                 ::
:: IMPORTANT: Please note that for each type of update, you should only download the latest update of that type    ::
:: because updates are cumulative. However, there is one exception to this rule: The OOBE ZDP updates are NOT      ::
:: cumulative, so you should download ALL available updates of that type and place them in the Other folder. Also, ::
:: be aware that there may sometimes be no update of a certain type available. As an example, Safe OS updates do   ::
:: not get released every month, so it is possible that there is no update of that type available, especially soon ::
:: after the release of a new version of Windows.                                                                  ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
::                                                                                                                     ::
:: USER DEFINED VARIABLES                                                                                              ::
::                                                                                                                     ::
:: Below you will find a description of variables that you can set. You should check each one to make sure that it     ::
:: fits your needs. The actual variables are found below the description section. Please note that spaces in path      ::
:: names or file names are perfectly fine. you should NOT use quotes to enclose file names or paths even if there      ::
:: are spaces in the names.                                                                                            ::
::                                                                                                                     ::
:: IndexNum - Set "IndexNum" to the index number corresponding to the Windows edition you want to update. By default   ::
::    we have this set to "6" which corresponds to Windows 10 or 11 Pro when using the standard retail edition ISO     ::
::    image from Microsoft. To get a list of Windows editions and the index number associated with each edition, you   ::
::    can run this command:                                                                                            ::
::                                                                                                                     ::
::       dism /Get-WimInfo /WimFile:C:\Project\ISO_Files\Sources\install.wim                                           ::
::                                                                                                                     ::
::    If located elsewhere, substitute the correct location of the install.wim file in the above command.              ::
::                                                                                                                     ::
:: ProjectFolder - Set "ProjectFolder" to the location where the project will be created. The batch file will create   ::
::    a number of folders under the project folder. Many of the files here are temporary files. Be aware that there    ::
::    will be a lot files. You can easily need 20GB or more of space in this location.                                 ::
::                                                                                                                     ::
:: WinUpdates - Set "WinUpdates" to the location of the Windows update files. Under this folder, you should create the ::
::    folder structure that is desribed above in the "DETAILED INSTRUCTIONS" section.                                  ::
::                                                                                                                     ::
:: EnableLogs - If you want logging to show what updates actually got installed into your WinRE.WIM, BOOT.WIM, and     ::
::    INSTALL.WIM files, set "EnableLogs" to "1". Otherwise, set it "0". This will cause two text files for each WIM   ::
::    to be created. The first is created after updates are applied, but before the cleanup of the image is performed. ::
::    The second is created after cleanup. As an example, after a combined LCU / SSU package is applied, you may see   ::
::    more than one SSU package in the log prior to the cleanup, however, after the cleanup, the older SSU should have ::
::    been removed. Note that for WinPE four files are created because a pair is created for each of the two indicies  ::
::    that get updated. The files are created in the same folder from which the batch file is run. You can normally    ::
::    leave this set to "0".                                                                                           ::
::                                                                                                                     ::
:: NewImageFileName - Set "NewImageFileName" to the name you want to use for the final ISO image to be created. Make   ::
::    sure to include the .ISO file extension. Spaces in the file name are okay.                                       ::
::                                                                                                                     ::
:: ADK_Location - Set this variable to the location of the "Deployment Tools" folder within the Windows ADK. You       ::
::    should only need to change this if you did not install to the default location.                                  ::
::                                                                                                                     ::
:: SaveWinRE - Set this to "1" if you wish to save a copy of the WinRE.wim file after it is updated. This can be       ::
::    helpful if you need to replace the WinRE.wim file in your Recovery Partition. This file could otherwise be       ::
::    difficult to obtain because it is located within another WIM file (the install.wim) so saving a copy after       ::
::    updating can be helpful. Setting this to "0" (or anything other than "1") will cause a copy of the file to       ::
::    not be saved.                                                                                                    ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


set IndexNum=6
set ProjectFolder=C:\Project
set WinUpdates=C:\WinUpdates\x64
set EnableLogs=0
set NewImageFileName=Windows.ISO
set ADK_Location=C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools
set SaveWinRE=0


:::::::::::::::::::::::::::::::::::
:: End of user defined variables ::
:::::::::::::::::::::::::::::::::::


::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: Check to see if this batch file is being run as Administrator. If it is not, then rerun the batch file ::
:: automatically as admin and terminate the initial instance of the batch file.                           ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


(Fsutil Dirty Query %SystemDrive%>Nul)||(PowerShell start """%~f0""" -verb RunAs & Exit /B) > NUL 2>&1


::::::::::::::::::::::::::::::::::::::::::::::::
:: End Routine to check if being run as Admin ::
::::::::::::::::::::::::::::::::::::::::::::::::


::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: Change the console mode to 120 columns wide by 25 lines high ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


mode con: cols=120 lines=25


:::::::::::::::::::::::::::::::::::
:: Display introductory comments ::
:::::::::::::::::::::::::::::::::::


echo It is VERY IMPORTANT that prior to running this batch file, you open it in an editor such as notepad and read the
echo following sections: PURPOSE OF THIS SCRIPT, SUMMARY OF INSTRUCTIONS, DETAILED INSTRUCTIONS. Make certain to set the
echo user defined variables as instructed.
echo.
echo If you have not done so, please press CTRL + C to terminate this batch file, and then run it again after you perform
echo the above steps.
echo.
pause


::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: Save the current location where this batch file is being run, then run the the "DandISetEnv.bat" file  ::
:: which sets environment variables for the ADK. This also changes the current directory, which we do NOT ::
:: want, so we will change it back to the current directory.                                              ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


pushd %~dp0
call "%ADK_Location%\DandISetEnv.bat"
popd


::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: Ask user for location of mounted ISO image or the directory containing the Windows files ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


:GetSourcePath

cls
echo Enter the path to the SOURCE where your Windows files are located below.
echo.
echo Note that these files can be located in a folder on your HDD, SSD, flash drive, etc. or they can be located on an ISO
echo image that you have mounted.
echo.
echo Tip: The path can end with or without a backslash (\). D:, D:\, D:\ISO_Files, D:\ISO_Files\ are all valid paths.
echo.

:GetSourcePath

set /p SourcePath="Enter source path: "

:: Add a trailing backslash (\) if one does not exist

IF NOT "%SourcePath:~-1%"=="\" (
set SourcePath=%SourcePath%\
)


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: Any valid Windows boot media will have a file called "boot\bootfix.bin" on the drive. This is true for both ::
:: single architecture images (x64 or x86) or for images with dual architectures. We will do a simple check to ::
:: see if such a file exists as a basic test for a valid source image location.                                ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


if NOT EXIST "%SourcePath%boot\bootfix.bin" (
cls
echo The location that you specified does not contain a valid Windows image. Please try another location. If you are
echo specifying a location on disk, please be sure to specify the location to the root of the Windows image. If you
echo are using an ISO image, you should double-click the ISO image to mount it and note the drive letter to which it
echo was mounted.
echo.
pause
goto GetSourcePath
)

:: Finally, all preparation is done. We can now begin the update process.

cls
echo ***************************************************************
echo ***************************************************************
echo **                                                           **
echo ** PLEASE BE PATIENT! Applying updates is a lengthy process. **
echo **                                                           **
echo ***************************************************************
echo ***************************************************************
echo.

:: Create the initial directory structure for this project

md "%ProjectFolder%\Mount" > NUL 2>&1
md "%ProjectFolder%\WinRE" > NUL 2>&1
md "%ProjectFolder%\WinRE_Mount" > NUL 2>&1
md "%ProjectFolder%\WinPE" > NUL 2>&1
md "%ProjectFolder%\WinPE_Mount" > NUL 2>&1
md "%ProjectFolder%\Assets" > NUL 2>&1
md "%ProjectFolder%\Temp" > NUL 2>&1
md "%ProjectFolder%\Base" > NUL 2>&1
md "%ProjectFolder%\SSU" > NUL 2>&1

:: Copy the ISO image files to base folder

echo ****************************************
echo * Copy Windows files to working folder *
echo ****************************************
echo.


::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: Note: Because the source path end with a backslash, and this is seen as an escape    ::
:: when followed by the double quotes, we have to add a space before the double quotes. ::
:: Also, we need to make sure that the files we are working with are accessible, so     ::
:: we are stripping the read-only, hidden, and system attributes from the files.        ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


robocopy "%SourcePath% " "%ProjectFolder%\Base" /mir /a-:HSR > NUL

:: Mount the install.wim file

echo ****************************************
echo * Mounting main OS image (install.wim) *
echo ****************************************
echo.

DISM /mount-image /imagefile:"%ProjectFolder%\Base\sources\install.wim" /index:%IndexNum% /mountdir:"%ProjectFolder%\Mount" > NUL

:: Update Win RE

echo ******************************
echo * Updating WinRE (winre.wim) *
echo ******************************
echo.
echo    ***************************
echo    * Applying Standalone SSU *
echo    ***************************
echo.

copy /B "%ProjectFolder%\Mount\Windows\System32\Recovery\WinRE.wim" "%ProjectFolder%\WinRE" > NUL
DISM /mount-image /imagefile:"%ProjectFolder%\WinRE\WinRE.wim" /index:1 /mountdir:"%ProjectFolder%\WinRE_Mount" > NUL

DISM /Add-Package /Image:"%ProjectFolder%\WinRE_Mount" /PackagePath="%WinUpdates%\SSU" > NUL

echo    ************************************************
echo    * Applying SSU from combined LCU / SSU package *
echo    ************************************************
echo.

::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: We are now applying the SSU from the combined SSU / LCU package. Note that since the SSU is contained within ::
:: the combined SSU / LCU package, we first need to extract the SSU from that package. Once we have extracted   ::
:: the SSU package, we can use it here and later when we also apply the SSU to WinPE (boot.wim) and the main    ::
:: Windows image (install.wim). We will not need to extract the SSU again since we are already doing so here.   ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

expand "%WinUpdates%\LCU\*.msu" /f:SSU*.cab "%ProjectFolder%\SSU" > NUL
DISM /Add-Package /Image:"%ProjectFolder%\WinRE_Mount" /PackagePath="%ProjectFolder%\SSU" > NUL

::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: Microsoft documentation indicates that the LCU package does NOT get applied to the WinRE.wim. However,   ::
:: testing related to a Windows vulnerability in Jan of 2023 reveals that it is necessary to apply the LCU. ::
:: As a result, this batch file has been updated as of Jan 2023 to apply the SSU, LCU, and Safe OS Dynamic  ::
:: Updates.                                                                                                 ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

echo    ***********************************
echo    * Applying Safe OS Dynamic Update *
echo    ***********************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\WinRE_Mount" /PackagePath="%WinUpdates%\SafeOS_DU" > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\WinRE_Mount" > WinRE_Before_Cleanup.txt
)

echo    ************************************
echo    * Cleaning up old files from image *
echo    ************************************
echo.

DISM /Cleanup-Image /Image:"%ProjectFolder%\WinRE_Mount" /StartComponentCleanup > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\WinRE_Mount" > WinRE_After_Cleanup.txt
)

echo    ********************
echo    * Unmounting image *
echo    ********************
echo.

DISM /Unmount-Image /MountDir:"%ProjectFolder%\WinRE_Mount" /Commit > NUL

echo    *************************
echo    * Exporting WinRE image *
echo    *************************
echo.

DISM /Export-Image /SourceImageFile:"%ProjectFolder%\WinRE\WinRE.wim" /SourceIndex:1 /DestinationImageFile:"%ProjectFolder%\Assets\WinRE.wim" > NUL


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: It is possible that the user may wish to save a copy of the WinRE.wim file. As an example, in Jan 2023 a vulnerability required ::
:: that the WinRE on a running system be updated to avoid an exploit that could allow access to a BitLocker encrypted OS volume    ::
:: from the Recovery Environment. Unfortunatley, there may not be enough room on the Recovery volume to update this file in place. ::
:: If the users chooses to save the WinRE.wim, we will save a copy to the same place where the final ISO image is saved.           ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


if %SaveWinRE%==1 (
copy /B /Y "%ProjectFolder%\Assets\WinRE.wim" "%ProjectFolder%" > NUL
)

echo **********************************
echo * Updating main OS (install.wim) *
echo **********************************
echo.

echo    ***************************
echo    * Applying Standalone SSU *
echo    ***************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\Mount" /PackagePath="%WinUpdates%\SSU" > NUL

echo    ************************************************
echo    * Applying SSU from combined LCU / SSU package *
echo    ************************************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\Mount" /PackagePath="%ProjectFolder%\SSU" > NUL

echo    ****************
echo    * Applying LCU *
echo    ****************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\Mount" /PackagePath="%WinUpdates%\LCU" > NUL

echo    ********************************************************
echo    * Move updated winre.wim back into mounted install.wim *
echo    ********************************************************
echo.

move /Y "%ProjectFolder%\Assets\WinRE.wim" "%ProjectFolder%\Mount\Windows\System32\Recovery" > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\Mount" > MainOS_Before_Cleanup.txt
)

echo    ************************************
echo    * Cleaning up old files from image *
echo    ************************************
echo.

DISM /Cleanup-Image /Image:"%ProjectFolder%\Mount" /StartComponentCleanup /ResetBase /ScratchDir:"%ProjectFolder%\Temp" > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\Mount" > MainOS_After_Cleanup.txt
)

echo    *************************************************************************************************
echo    * Install "Other" updates such as .NET and OOBE ZDP updates to the main OS image (install.wim). *
echo    *************************************************************************************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\Mount" /PackagePath="%WinUpdates%\Other" > NUL


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: We could copy files from the mounted install.wim now but just as with the boot.wim we will delay doing so ::
:: until after the Setup Dynamic Update has been applied.                                                    ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


echo **************************************
echo * Updating WinPE (boot.wim), index 1 *
echo **************************************
echo.

copy /B "%ProjectFolder%\Base\sources\boot.wim" "%ProjectFolder%\WinPE" > NUL
DISM /mount-image /imagefile:"%ProjectFolder%\WinPE\boot.wim" /index:1 /mountdir:"%ProjectFolder%\WinPE_Mount" > NUL

echo    ***************************
echo    * Applying Standalone SSU *
echo    ***************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\WinPE_Mount" /PackagePath="%WinUpdates%\SSU" > NUL

echo    ************************************************
echo    * Applying SSU from combined LCU / SSU package *
echo    ************************************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\WinPE_Mount" /PackagePath="%ProjectFolder%\SSU" > NUL

echo    ****************
echo    * Applying LCU *
echo    ****************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\WinPE_Mount" /PackagePath="%WinUpdates%\LCU" > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\WinPE_Mount" > WinPE_Index1_Before_Cleanup.txt
)

echo    ************************************
echo    * Cleaning up old files from image *
echo    ************************************
echo.

DISM /Cleanup-Image /Image:"%ProjectFolder%\WinPE_Mount" /StartComponentCleanup > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\WinPE_Mount" > WinPE_Index1_After_Cleanup.txt
)

echo    ********************
echo    * Unmounting image *
echo    ********************
echo.

DISM /Unmount-Image /MountDir:"%ProjectFolder%\WinPE_Mount" /Commit > NUL

echo    **********************************
echo    * Exporting WinPE image, index 1 *
echo    **********************************
echo.

DISM /Export-Image /SourceImageFile:"%ProjectFolder%\WinPE\boot.wim" /SourceIndex:1 /DestinationImageFile:"%ProjectFolder%\Assets\boot.wim" > NUL

echo **************************************
echo * Updating WinPE (boot.wim), index 2 *
echo **************************************
echo.

DISM /mount-image /imagefile:"%ProjectFolder%\WinPE\boot.wim" /index:2 /mountdir:"%ProjectFolder%\WinPE_Mount" > NUL

echo    ***************************
echo    * Applying Standalone SSU *
echo    ***************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\WinPE_Mount" /PackagePath="%WinUpdates%\SSU" > NUL

echo    ************************************************
echo    * Applying SSU from combined LCU / SSU package *
echo    ************************************************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\WinPE_Mount" /PackagePath="%ProjectFolder%\SSU" > NUL

echo    ****************
echo    * Applying LCU *
echo    ****************
echo.

DISM /Add-Package /Image:"%ProjectFolder%\WinPE_Mount" /PackagePath="%WinUpdates%\LCU" > NUL

echo    **************************************
echo    * Copy any user files to WinPE image *
echo    **************************************
echo.

robocopy "%ProjectFolder%\PE_Files" "%ProjectFolder%\WinPE_Mount" *.* /E > NUL

:: If you want to delete files from WinPE, such as scripts you may have added previously, uncommet the
:: line below and change the filename to the name of the file you want to delete. Add additional lines using
:: the same format if needed.

:: del "%ProjectFolder%\WinPE_Mount\MyScript.bat" /Q > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\WinPE_Mount" > WinPE_Index2_Before_Cleanup.txt
)

echo    ************************************
echo    * Cleaning up old files from image *
echo    ************************************
echo.

DISM /Cleanup-Image /Image:"%ProjectFolder%\WinPE_Mount" /StartComponentCleanup > NUL

if %EnableLogs%==1 (
DISM /Get-Packages /image:"%ProjectFolder%\WinPE_Mount" > WinPE_Index2_After_Cleanup.txt
)


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: We are going to delay exporting of the boot.wim index 2 until later so that we can copy files while ::
:: it is still mounted to the main media. We could this right now, but by delaying it until after the  ::
:: Setup Dynamic Update is applied, we can demonstrate that there are files that are out of sync after ::
:: all updates, including the Setup Dynamic Update, have been applied.                                 ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


echo ******************************
echo * Apply Setup Dynamic Update *
echo ******************************
echo.

Expand "%WinUpdates%\Setup_DU\*" -F:* "%ProjectFolder%\Base\Sources" > NUL

echo **************************************************
echo * Copy mismatched files to appropriate locations *
echo **************************************************
echo.


::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: The section below syncs files between Windows PE and the base media. It is ::
:: possible that some files which should be the same are not synced properly. ::
:: This section will correct that situation.                                  ::
::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::


:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
:: These are the items that should be synced (In x64 Images):                                                            ::
::                                                                                                                       ::
:: From WinPE, Index 2, \Sources\Setup.exe > \Sources folder on base media.                                              ::
:: From WinPE, Index 2, \Windows\boot\efi\bootmgfw.efi > base media \efi\boot\bootx64.efi (replace the file bootx64.efi) ::
:: From WinPE, Index 2, \Windows\boot\efi\bootmgr.efi > base media \bootmgr.efi (replace the file bootmgr.efi)           ::
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

copy /b /y "%ProjectFolder%\winpe_mount\sources\setup.exe" "%ProjectFolder%\Base\sources\setup.exe" > NUL
copy /b /y "%ProjectFolder%\winpe_mount\sources\setuphost.exe" "%ProjectFolder%\Base\sources\setuphost.exe" > NUL
copy /b /y "%ProjectFolder%\winpe_mount\windows\boot\efi\bootmgfw.efi" "%ProjectFolder%\Base\efi\boot\bootx64.efi" > NUL
copy /b /y "%ProjectFolder%\winpe_mount\windows\boot\efi\bootmgr.efi" "%ProjectFolder%\Base\bootmgr.efi" > NUL

echo ******************************************
echo * Unmounting index 2 of WinPE (boot.wim) *
echo ******************************************
echo.

DISM /Unmount-Image /MountDir:"%ProjectFolder%\WinPE_Mount" /Commit > NUL

echo    **********************************
echo    * Exporting WinPE Image, Index 2 *
echo    **********************************
echo.

DISM /Export-Image /Bootable /SourceImageFile:"%ProjectFolder%\WinPE\boot.wim" /SourceIndex:2 /DestinationImageFile:"%ProjectFolder%\Assets\boot.wim" > NUL

echo ****************************************
echo * Unmounting the Main OS (install.wim) *
echo ****************************************
echo.

DISM /Unmount-Image /MountDir:"%ProjectFolder%\Mount" /Commit > NUL

echo ***************************************
echo * Exporting the Main OS (install.wim) *
echo ***************************************
echo.

DISM /Export-Image /SourceImageFile:"%ProjectFolder%\Base\sources\install.wim" /SourceIndex:%IndexNum% /DestinationImageFile:"%ProjectFolder%\Assets\install.wim" > NUL

echo ******************************************************
echo * Move updated boot.wim and install.wim image folder *
echo * to replace the original files                      *
echo ******************************************************
echo.

move /Y "%ProjectFolder%\Assets\boot.wim" "%ProjectFolder%\Base\Sources" > NUL
move /Y "%ProjectFolder%\Assets\install.wim" "%ProjectFolder%\Base\Sources" > NUL

echo ******************************
echo * Create the final ISO image *
echo ******************************
echo.

oscdimg.exe -m -o -u2 -udfver102 -bootdata:2#p0,e,b"%ProjectFolder%\Base\boot\etfsboot.com"#pEF,e,b"%ProjectFolder%\Base\efi\microsoft\boot\efisys.bin" "%ProjectFolder%\Base" "%ProjectFolder%\%NewImageFileName%" > NUL 2>&1

:: Cleanup the temporary folders.

rd "%ProjectFolder%\Mount" /s /q > NUL
rd "%ProjectFolder%\winre" /s /q > NUL
rd "%ProjectFolder%\winre_mount" /s /q > NUL
rd "%ProjectFolder%\winpe" /s /q > NUL
rd "%ProjectFolder%\winpe_mount" /s /q > NUL
rd "%ProjectFolder%\assets" /s /q > NUL
rd "%ProjectFolder%\temp" /s /q > NUL
rd "%ProjectFolder%\Base" /s /q > NUL
rd "%ProjectFolder%\SSU" /s /q > NUL

echo Done! The ISO image has been saved as "%ProjectFolder%\%NewImageFileName%"
echo.
pause


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Very many thanks, will monitor Github for the other file update.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Special Build
    CPU
    AMD Ryzen 7 3700X *Core
    Motherboard
    ASUS Prime B450-Plus
    Memory
    16gb
    Graphics Card(s)
    NVidia Geforce RTX 2060 Super
    Sound Card
    On-Board
    Monitor(s) Displays
    2 x Dell 27"
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung SSD970 500gb
    ST2000DM008 2tb
    Internet Speed
    500mb
Done, the new version (24.0.0.262) is now available.

On the page linked below, select "WIM-Tools"



My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Back
Top Bottom
