Devices Find Windows Display Driver Model (WDDM) Version in Windows 11


  • Staff

The Windows Display Driver Model (WDDM) is the graphics display driver architecture introduced in Windows Vista (WDDM v1.0). WDDM is required starting with Windows 8 (WDDM v1.2). The WDDM design guide discusses WDDM requirements, specifications, and behavior for WDDM drivers.

WDDM provides the functionality required to render the desktop and applications using Desktop Window Manager, a compositing window manager running on top of Direct3D. It also supports new DXGI interfaces required for basic device management and creation. The WDDM specification requires at least Direct3D 9-capable video card and the display driver must implement the device driver interfaces for the Direct3D 9Ex runtime in order to run legacy Direct3D applications; it may optionally implement runtime interfaces for Direct3D 10 and higher.

WDDM versions for quick reference:

Operating System
Supported WDDM Version
Windows VistaWDDM 1.0
Windows 7WDDM 1.1
Windows 8WDDM 1.2
Windows 8.1WDDM 1.3
Windows 10 build 10240WDDM 2.0
Windows 10 version 1607WDDM 2.1
Windows 10 version 1703WDDM 2.2
Windows 10 version 1709WDDM 2.3
Windows 10 version 1803WDDM 2.4
Windows 10 version 1809WDDM 2.5
Windows 10 version 1903WDDM 2.6
Windows 10 version 2004WDDM 2.7 and WDDM 2.8
Windows 10 version 20H2WDDM 2.9
Windows 10 version 21H1
Windows 11
WDDM 3.0
Windows 11 build 22262 version 22H2WDDM 3.1

See also:

This tutorial will show you how to find the current Windows Display Driver Model (WDDM) version you have in Windows 10 and Windows 11.


Here's How:

1 Press the Win + R keys to open Run, type dxdiag into Run, and click/tap on OK to open the DirectX Diagnostic Tool.

The first time you use the DirectX Diagnostic Tool, you might be asked whether you want to check if your drivers are digitally signed. It is recommend that you select Yes to help ensure that your drivers have been signed by a publisher that has verified their authenticity.


2 Click/tap on a Display tab you want to check in the DirectX Diagnostic Tool. (see screenshot below)

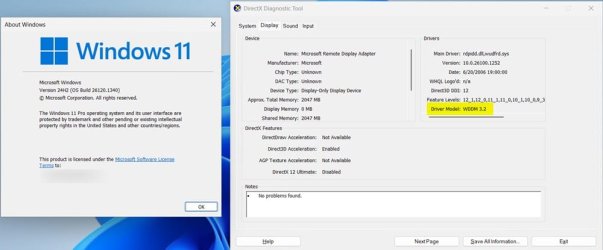

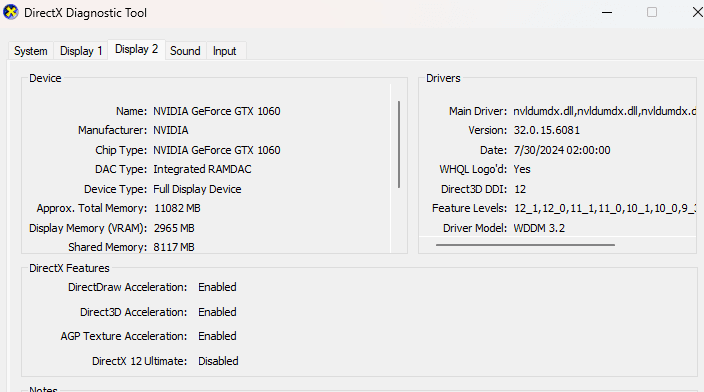

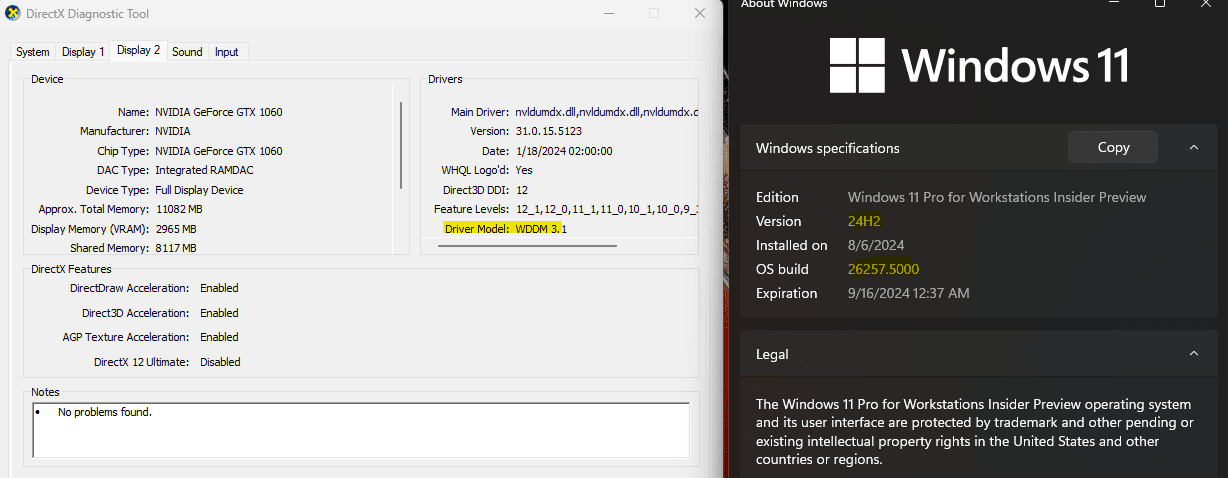

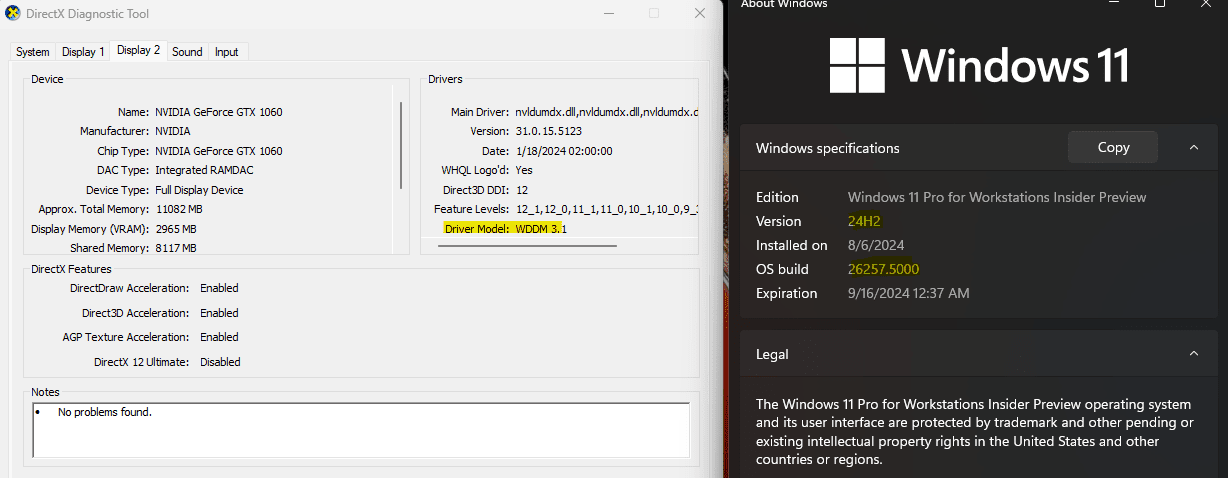

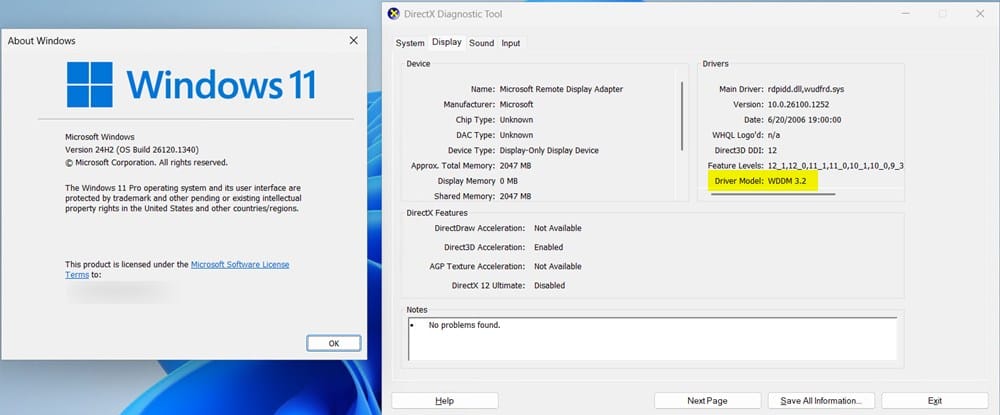

3 You will see the WDDM version (ex: "WDDM 3.1") to the right of Driver Model in the Drivers section.




That's it,
Shawn Brink




Attachments

  • Display_adapters.png
    4.8 KB · Views: 31
Last edited:

asturias7

Active member
Member
Local time
8:59 PM
Posts
175
OS
Windows 11 Home
Thanks! (y)


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Alienware

energetika

Member
Local time
2:59 AM
Posts
3
OS
win 11
(y)


My Computer

System One

  • OS
    win 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen3200G
    Motherboard
    ASRock A320M
    Memory
    16
    Graphics Card(s)
    VegaRadeon 8
