Solved Graphic issues black/blue/orange screen with occasional need for a 10 sec power bottom shut down


klausindc

Member
Local time
8:13 AM
Posts
6
OS
Windows 11
I have a PC with two Windows 11 OS on two separate SSD (one for work and one for game). I started to have graphic issues like green dots on the work drive and occasional black screens (or other colors) that sometimes would recover and sometimes lead to a completely non-responsive computer. The work OS now becomes non-responsive each time I try to log in. The graphic issues also happens at the log in where I choose either of the two OS. If I choose the game OS and wait for a little time before logging in it can become non-responsive; however, if I log in fast enough, everything works - I can play for long times with CPU and GPU working very hard without any graphic issues. The only issue with the gaming OS is that some times when I shut down the game OS, it never shuts the computer down and I have to do a 10 sec power bottom shut down.

My question is do people think this is a virus in the BIOS or a component error like the PSU (750W) or my graphic card (NVidia 2070)? I would like to rule out the 'virus' before starting to buy a new PSU or graphic card. Since the SSD with my work is not working anymore I disconnected the SSD from the PSU and motherboard but the error is still occurring.

Any suggestions is very much appreciated!

If I try to do the automatic startup repair I get the following error: SrtTrail

Boot critical file c:\efi\microsoft\boot\cipolicies\active\{cdd5cb55-db68-4d71-aa38-3df2b6473a52}.cip is corrupt.
Repair action: File repair
Result: Failed. Error code = 0x57
Time taken = 1297 ms
Repair action: System files integrity check and repair
Result: Failed. Error code = 0x57
Time taken = 782 ms

The only Error that might be informative under Event viewer/Administrative Events are 4 nvlddmkm (source) Errors. I am not sure this is important.
1) The description for Event ID 0 from source nvlddmkm cannot be found. Either the component that raises this event is not installed on your local computer or the installation is corrupted. You can install or repair the component on the local computer.
If the event originated on another computer, the display information had to be saved with the event.
The following information was included with the event:
\Device\Video3
(1) UCodeReset TDR occurred on GPUID:100
(2) Resetting TDR occurred on GPUID:100
(3) Reset TDR occurred on GPUID:100
(4) Restarting TDR occurred on GPUID:100

Thanks very much.

Windows Build/Version
Ver21H2 (Build 22000.739)

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    msi mpg z490 gaming edge wifi
    CPU
    i7 10700K
    Motherboard
    msi mpg z490 gaming edge wifi
    Memory
    32.0GB Dual-Channel @ 2000MHz (17-19-19-39) 4x 8GB Viper Steel 4400MHz
    Graphics Card(s)
    4095MB NVIDIA GeForce RTX 2070 (Gigabyte)
    Monitor(s) Displays
    LG 322GK650F
    Screen Resolution
    2560x1440 / 144 Hz
    Hard Drives
    260GB NVMe INTEL SSDPED1D28 (Unknown (SSD))
    238GB NVMe Samsung SSD 950 SCSI Disk Device (Unknown (SSD))
    953GB INTEL SSDPEKNW010T9 (Unknown (SSD))
    PSU
    Rosewill Hive-750, Hive Series 750W Modular Power Supply, 80 PLUS Bronze Certified, Single +12V Rail,
    Cooling
    Corsair H110i GT 280mm Extreme Performance Liquid CPU Cooler

FreeBooter

Well-known member
Power User
VIP
Local time
4:13 PM
Posts
1,005
Location
Adana
OS
Windows 11
Boot computer into BIOS setup utility and if problem persist within BIOS that indicate its faulty hardware.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion
    CPU
    AMD Ryzen 7 5700G
    Motherboard
    Erica6
    Memory
    Micron Technology DDR4-3200 16GB
    Graphics Card(s)
    NVIDIA GeForce RTX 3060
    Sound Card
    Realtek ALC671
    Monitor(s) Displays
    Samsung SyncMaster U28E590
    Screen Resolution
    3840 x 2160
    Hard Drives
    SAMSUNG MZVLQ1T0HALB-000H1

klausindc

Member
Thread Starter
Local time
8:13 AM
Posts
6
OS
Windows 11
Thanks I didn't think about that. I have been in the BIOS a lot lately and I have never observed any graphic issues. Any good ideas about how to combat the 'virus'?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    msi mpg z490 gaming edge wifi
    CPU
    i7 10700K
    Motherboard
    msi mpg z490 gaming edge wifi
    Memory
    32.0GB Dual-Channel @ 2000MHz (17-19-19-39) 4x 8GB Viper Steel 4400MHz
    Graphics Card(s)
    4095MB NVIDIA GeForce RTX 2070 (Gigabyte)
    Monitor(s) Displays
    LG 322GK650F
    Screen Resolution
    2560x1440 / 144 Hz
    Hard Drives
    260GB NVMe INTEL SSDPED1D28 (Unknown (SSD))
    238GB NVMe Samsung SSD 950 SCSI Disk Device (Unknown (SSD))
    953GB INTEL SSDPEKNW010T9 (Unknown (SSD))
    PSU
    Rosewill Hive-750, Hive Series 750W Modular Power Supply, 80 PLUS Bronze Certified, Single +12V Rail,
    Cooling
    Corsair H110i GT 280mm Extreme Performance Liquid CPU Cooler

glasskuter

Well-known member
Pro User
VIP
Local time
8:13 AM
Posts
2,583
Location
The Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.608
I don't think it's a virus. I think it GPU related. Do you have the newest Nvidia drivers installed on both OS(released within last 2 weeks)?

1. Download latest drivers applicable for your GPU and OS.
2. Disconnect from the internet to block windows update from interfering with DDU and install of new driver.
2. Use DDU to completely uninstall current drivers and Geforce software . Run DDU in safe mode and follow the instructions carefully.
3. With internet still disconnected, boot in normal mode and install new drivers.
5. reconnect internet.

CORRECTED to add link.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.608
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

FreeBooter

Well-known member
Power User
VIP
Local time
4:13 PM
Posts
1,005
Location
Adana
OS
Windows 11
You should also execute bellow commands one at a time from Command Prompt.

Code:
Dism /online /cleanup-image /restorehealth

Sfc  /scannow


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion
    CPU
    AMD Ryzen 7 5700G
    Motherboard
    Erica6
    Memory
    Micron Technology DDR4-3200 16GB
    Graphics Card(s)
    NVIDIA GeForce RTX 3060
    Sound Card
    Realtek ALC671
    Monitor(s) Displays
    Samsung SyncMaster U28E590
    Screen Resolution
    3840 x 2160
    Hard Drives
    SAMSUNG MZVLQ1T0HALB-000H1

klausindc

Member
Thread Starter
Local time
8:13 AM
Posts
6
OS
Windows 11
Thanks I have been doing the sfc /scannow very regularly and also been doing the image / restorehealth

However, @glasskuter I think you are right unfortunately it is not working for me. I downloaded DDU logged back in in safe mode without internet and ran DDU and restarted the computer. Everything is fine. But when I then install the newest Nvidia driver (without being connected to the internet) the screen goes black as normal and comes back and then right after finishing the installation it goes black again and mostly stays black (I did it three times - safe mode uninstall using DDU restart install Nvidia without internet connection and bang the problem is back). Any ideas? Could it be my graphic card. Btw my game OS is now also dead - the screen goes black shortly after logging in so updating it seems to make it worse even though it had the newest driver earlier today where I at least still could use my gaming computer. Any suggestions is very much appreciated, thanks


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    msi mpg z490 gaming edge wifi
    CPU
    i7 10700K
    Motherboard
    msi mpg z490 gaming edge wifi
    Memory
    32.0GB Dual-Channel @ 2000MHz (17-19-19-39) 4x 8GB Viper Steel 4400MHz
    Graphics Card(s)
    4095MB NVIDIA GeForce RTX 2070 (Gigabyte)
    Monitor(s) Displays
    LG 322GK650F
    Screen Resolution
    2560x1440 / 144 Hz
    Hard Drives
    260GB NVMe INTEL SSDPED1D28 (Unknown (SSD))
    238GB NVMe Samsung SSD 950 SCSI Disk Device (Unknown (SSD))
    953GB INTEL SSDPEKNW010T9 (Unknown (SSD))
    PSU
    Rosewill Hive-750, Hive Series 750W Modular Power Supply, 80 PLUS Bronze Certified, Single +12V Rail,
    Cooling
    Corsair H110i GT 280mm Extreme Performance Liquid CPU Cooler

FreeBooter

Well-known member
Power User
VIP
Local time
4:13 PM
Posts
1,005
Location
Adana
OS
Windows 11

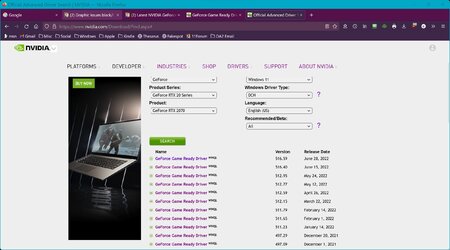

Try older versions of the graphic card driver or beta version from graphic card manufacturer website.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Pavilion
    CPU
    AMD Ryzen 7 5700G
    Motherboard
    Erica6
    Memory
    Micron Technology DDR4-3200 16GB
    Graphics Card(s)
    NVIDIA GeForce RTX 3060
    Sound Card
    Realtek ALC671
    Monitor(s) Displays
    Samsung SyncMaster U28E590
    Screen Resolution
    3840 x 2160
    Hard Drives
    SAMSUNG MZVLQ1T0HALB-000H1

glasskuter

Well-known member
Pro User
VIP
Local time
8:13 AM
Posts
2,583
Location
The Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.608

My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.608
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

glasskuter

Well-known member
Pro User
VIP
Local time
8:13 AM
Posts
2,583
Location
The Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.608
As @FreeBooter said you can run DDU again which removes all drivers, and then install an older driver manually or you can reconnect to the internet and run windows update which will install one for you. In the meantime until you can work this out you can rely on the Intel Integrated 630 graphics if you have to. This is the list of drivers on Nvidia's site. As you can see they've been throwing out new drivers every month for some reason. I suggest you work on one OS at a time until you can get it stable. Advanced Driver Search official NVIDIA drivers Screenshot 2022-07-20 230141.jpg

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.608
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

spapakons

Well-known member
Power User
Local time
4:13 PM
Posts
1,014
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.978)
I am afraid that your graphics card is damaged. This usually can be fixed by a technician who will heat the Nvidia chip and repair any loose connection. If it is rather old, you might consider to replace it.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.978)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v22H2 (build 22621.521)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

imanlien2020

EternalSoul
Member
Local time
8:13 AM
Posts
243
Location
USA
OS
Windows 11 Pro Version 21H2(OS Build 22000.795)
Try older versions of the graphic card driver or beta version from graphic card manufacturer website.
i would suggest that as well. Recently I had a few screen related issues with AMDs drivers and had to revert back to drivers that were 2 versions old else my PC froze and all kinds of things.


My Computer

System One

  • OS
    Windows 11 Pro Version 21H2(OS Build 22000.795)
    Computer type
    PC/Desktop
    Manufacturer/Model
    AMD
    CPU
    AMD Ryzen 7 5800X 8 Core
    Motherboard
    Gigabyte X570 Aorus Pro WiFi
    Memory
    32 GB
    Graphics Card(s)
    PCI Express 3.0 x16: PowerColor RX Vega 56 Red Dragon
    Sound Card
    Realtek ALC1220 and AMD Greenland - High Definition Audio Controller
    Monitor(s) Displays
    2 - 27 inch Westinghouse
    Screen Resolution
    1920 x 1080
    Hard Drives
    2 SSD - 2 TB each
    1 HDD - 2 TB
    Keyboard
    logitech
    Mouse
    logitech
    Internet Speed
    1 GB
    Browser
    Microsoft Edge
    Antivirus
    Avast Premium

klausindc

Member
Thread Starter
Local time
8:13 AM
Posts
6
OS
Windows 11
Thanks all. The card is more than 2.5 years old but I bought it used. It has nevertheless been fine until now. I will try the beta version or to roll back a few versions. Right now the computer becomes non-responsive so fast that I can't check the version under manager. I did install the driver in normal mode, only the DDU was done in safe mode. Will update when I get home from work. (I am focusing solely on the game computer - the important part 😉)


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    msi mpg z490 gaming edge wifi
    CPU
    i7 10700K
    Motherboard
    msi mpg z490 gaming edge wifi
    Memory
    32.0GB Dual-Channel @ 2000MHz (17-19-19-39) 4x 8GB Viper Steel 4400MHz
    Graphics Card(s)
    4095MB NVIDIA GeForce RTX 2070 (Gigabyte)
    Monitor(s) Displays
    LG 322GK650F
    Screen Resolution
    2560x1440 / 144 Hz
    Hard Drives
    260GB NVMe INTEL SSDPED1D28 (Unknown (SSD))
    238GB NVMe Samsung SSD 950 SCSI Disk Device (Unknown (SSD))
    953GB INTEL SSDPEKNW010T9 (Unknown (SSD))
    PSU
    Rosewill Hive-750, Hive Series 750W Modular Power Supply, 80 PLUS Bronze Certified, Single +12V Rail,
    Cooling
    Corsair H110i GT 280mm Extreme Performance Liquid CPU Cooler

spapakons

Well-known member
Power User
Local time
4:13 PM
Posts
1,014
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.978)
In case it is a software issue, I would boot in safe mode, use DDU to remove any old drivers and then go to Device Manager, Display Adapters and manually set the driver to Microsoft Basic Display Adapter. This will prevent the system from crashing until proper drivers are installed. Also Windows Update should not attempt to upgrade the drivers and mess things. Then restart in normal mode, try your old drivers and see if they work. To prevent Windows Update replacing your working driver use Windows Update Show/Hide Tool to hide (block) any driver update.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.978)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v22H2 (build 22621.521)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

glasskuter

Well-known member
Pro User
VIP
Local time
8:13 AM
Posts
2,583
Location
The Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.608
Like I said, use the integrated graphics while you get the drivers worked out on the Nvidia. There is a setting in bios to choose dedicated, integrated, or auto. If it's set to auto, you should have graphics output directly from the mobo automatically. Just move your cable. If it's on auto, windows update should have already installed an intel graphics driver that will work.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.608
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

klausindc

Member
Thread Starter
Local time
8:13 AM
Posts
6
OS
Windows 11
I changed the BIOS from PEG to IGD (do not have the auto option) and downloaded 472.12-desktop-win10-win11-64bit-international-whql and also tried 512.77-desktop-win10-win11-64bit-international-dch-whql. Everything is fine in IGD but in both cases when I switch to PEG in BIOS and then log in again the problem is back. Guess it is a bad 2070 card?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    msi mpg z490 gaming edge wifi
    CPU
    i7 10700K
    Motherboard
    msi mpg z490 gaming edge wifi
    Memory
    32.0GB Dual-Channel @ 2000MHz (17-19-19-39) 4x 8GB Viper Steel 4400MHz
    Graphics Card(s)
    4095MB NVIDIA GeForce RTX 2070 (Gigabyte)
    Monitor(s) Displays
    LG 322GK650F
    Screen Resolution
    2560x1440 / 144 Hz
    Hard Drives
    260GB NVMe INTEL SSDPED1D28 (Unknown (SSD))
    238GB NVMe Samsung SSD 950 SCSI Disk Device (Unknown (SSD))
    953GB INTEL SSDPEKNW010T9 (Unknown (SSD))
    PSU
    Rosewill Hive-750, Hive Series 750W Modular Power Supply, 80 PLUS Bronze Certified, Single +12V Rail,
    Cooling
    Corsair H110i GT 280mm Extreme Performance Liquid CPU Cooler

glasskuter

Well-known member
Pro User
VIP
Local time
8:13 AM
Posts
2,583
Location
The Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.608
I did a web search for 'NVIDIA GeForce RTX 2070 problems'. It seems you are not alone, 2070 and 2080 have a lot of reported problems that vary across the board from not accepting updates, black screens, crashing games, overheating.

I've been following a number of BSOD and crash threads on this forum and each user has one of those same GPU.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.608
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

klausindc

Member
Thread Starter
Local time
8:13 AM
Posts
6
OS
Windows 11
Dang, well I really appreciate everyones help. Thanks. Guess I need to give some money to Newegg.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    msi mpg z490 gaming edge wifi
    CPU
    i7 10700K
    Motherboard
    msi mpg z490 gaming edge wifi
    Memory
    32.0GB Dual-Channel @ 2000MHz (17-19-19-39) 4x 8GB Viper Steel 4400MHz
    Graphics Card(s)
    4095MB NVIDIA GeForce RTX 2070 (Gigabyte)
    Monitor(s) Displays
    LG 322GK650F
    Screen Resolution
    2560x1440 / 144 Hz
    Hard Drives
    260GB NVMe INTEL SSDPED1D28 (Unknown (SSD))
    238GB NVMe Samsung SSD 950 SCSI Disk Device (Unknown (SSD))
    953GB INTEL SSDPEKNW010T9 (Unknown (SSD))
    PSU
    Rosewill Hive-750, Hive Series 750W Modular Power Supply, 80 PLUS Bronze Certified, Single +12V Rail,
    Cooling
    Corsair H110i GT 280mm Extreme Performance Liquid CPU Cooler

spapakons

Well-known member
Power User
Local time
4:13 PM
Posts
1,014
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.978)
Sell the card for as much as you can and buy a new generation model.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.978)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v22H2 (build 22621.521)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4
Top Bottom
