Help customizing the windows 11 setup installer

thatwindowsuser · May 29, 2023

Hello, I have here a screen shot of the windows setup installer. I want to know how to change the white background and the windows logo. Thanks

SIW2 · May 29, 2023

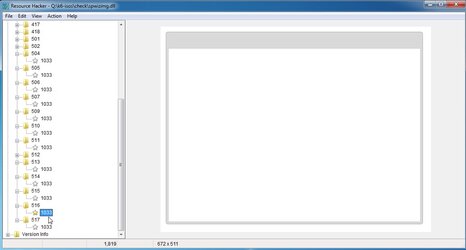

find out where it is and try changing it with an image of the same size using resource hacker

boot.wim image2 \sources\spwizimg.dll and spwizres.dll would be a good place to look.

hunt around and you will find these kind of things.

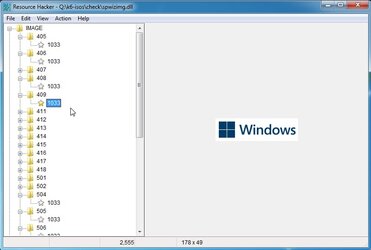

you could try replacing that

with a different .png image of the same size 178x49

jimbo45 · May 30, 2023

SIW2 said:
find out where it is and try changing it with an image of the same size using resource hacker

boot.wim image2 \sources\spwizimg.dll and spwizres.dll would be a good place to look.

hunt around and you will find these kind of things.

you could try replacing that

View attachment 61274

with a different .png image of the same size 178x49

View attachment 61272

View attachment 61273

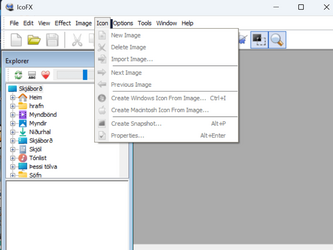

You can also create your own icons with program IcoFX. While now paid software -- the last free version is still available

Download IcoFX 1.6.4 for Windows - OldVersion.com

seems like a good mix combined with resource-hacker --perhaps I should replace the Windows logo with the Linux penguin !!!

Cheers
jimbo
