How to enable missing power plan profiles on Windows 10 20H2 and later, and Windows 11


Almighty1

Well-known member
Power User
VIP
Local time
7:41 AM
Posts
1,845
Location
San Francisco, California USA
OS
Windows XP/7/8/8.1/10/11, Linux, Android, FreeBSD Unix
There used to be the option of setting CsEnabled option to 0 in the registry key prior to Windows 10 20H2 which Microsoft had removed and disabled on Windows 10 2004 and later:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power

Update for Windows 10 >= 20h2 including Windows 11:


Prior to doing the above, you need to do the following and reboot:


Setting PlatformAoAcOverride to 0 under HKLM\System\CurrentControlSet\Control\Power. Removing the entry again to get back modern standby.

Open cmd.exe as admin and run:

reg add HKLM\System\CurrentControlSet\Control\Power /v PlatformAoAcOverride /t REG_DWORD /d 0

You can just run regedit as admin and delete PlatformAoAcOverride under HKLM\System\CurrentControlSet\Control\Power again to revert back. Or just as admin in cmd.exe:

reg delete "HKLM\System\CurrentControlSet\Control\Power" /v PlatformAoAcOverride


My Computer

System One

  • OS
    Windows XP/7/8/8.1/10/11, Linux, Android, FreeBSD Unix
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 15 9570
    CPU
    Intel® Core™ i7-8750H 8th Gen Processor 2.2Ghz up to 4.1Ghz
    Motherboard
    Dell XPS 15 9570
    Memory
    32GB using 2x16GB modules
    Graphics Card(s)
    Intel UHD 630 & NVIDIA GeForce GTX 1050 Ti with 4GB DDR5
    Sound Card
    Realtek ALC3266-CG
    Monitor(s) Displays
    15.6" 4K Touch UltraHD 3840x2160 made by Sharp
    Screen Resolution
    3840x2160
    Hard Drives
    Toshiba KXG60ZNV1T02 NVMe 1024GB/1TB SSD
    PSU
    Dell XPS 15 9570
    Case
    Dell XPS 15 9570
    Cooling
    Stock
    Keyboard
    Stock
    Mouse
    SwitftPoint ProPoint
    Internet Speed
    Comcast/XFinity 1.44Gbps/42.5Mbps
    Browser
    Microsoft EDGE (Chromium based) & Google Chrome
    Antivirus
    Windows Defender that came with Windows
It works in Windows 11?

PS E:\Temp> [environment]::OSVersion.Version

Major Minor Build Revision
----- ----- ----- --------
10 0 19043 0


PS E:\Temp> C:\Windows\System32\powercfg.exe /l

Existing Power Schemes (* Active)
-----------------------------------
Power Scheme GUID: 381b4222-f694-41f0-9685-ff5bb260df2e (Balanced)
Power Scheme GUID: 8c5e7fda-e8bf-4a96-9a85-a6e23a8c635c (High performance) *

PS E:\Temp> C:\Windows\System32\powercfg.exe /SETACTIVE SCHEME_MAX

PS E:\Temp> C:\Windows\System32\powercfg.exe /l

Existing Power Schemes (* Active)
-----------------------------------
Power Scheme GUID: 381b4222-f694-41f0-9685-ff5bb260df2e (Balanced)
Power Scheme GUID: a1841308-3541-4fab-bc81-f71556f20b4a (Power saver) *

PS E:\Temp> C:\Windows\System32\powercfg.exe /SETACTIVE SCHEME_BALANCED

PS E:\Temp> C:\Windows\System32\powercfg.exe /l

Existing Power Schemes (* Active)
-----------------------------------
Power Scheme GUID: 381b4222-f694-41f0-9685-ff5bb260df2e (Balanced) *
PS E:\Temp>

Power plan hidden, but exists in the system.

Last edited:

My Computer

System One

  • OS
    Microsoft Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI MS-7D98
    CPU
    Intel Core i5-13490F
    Motherboard
    MSI B760 GAMING PLUS WIFI
    Memory
    2 x 16 Patriot Memory (PDP Systems) PSD516G560081
    Graphics Card(s)
    GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G (GV-N4070WF3OC-12GD)
    Sound Card
    Bluetooth Аудио
    Monitor(s) Displays
    INNOCN 15K1F
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD_BLACK SN770 250GB
    KINGSTON SNV2S1000G (ELFK0S.6)
    PSU
    Thermaltake Toughpower GF3 1000W
    Case
    CG560 - DeepCool
    Cooling
    ID-COOLING SE-224-XTS / 2 x 140Mm Fan - rear and top; 3 x 120Mm - front
    Keyboard
    Corsair K70 RGB TKL
    Mouse
    Corsair KATAR PRO XT
    Internet Speed
    100 Mbps
    Browser
    Firefox
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    https://www.userbenchmark.com/UserRun/66553205

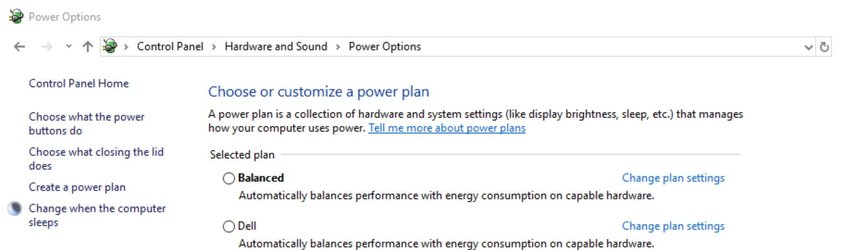

image_2021-07-15_154602.pngPretty sure these came standard with the last win11 update, the previous version had them but were named or viewed slightly differently i think


My Computer

System One

  • OS
    11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    Viper Steelseries 32gb@ 3600mhz
    Graphics Card(s)
    Gigabyte 2070 Super 8GB, +200 core + 600 memory
    Monitor(s) Displays
    ASUS 4k HDR, Two 1080p Benq and Samsung
    Screen Resolution
    3840x2160/2560x1440/1920x1080
    Hard Drives
    Adata XPG SX8200 PRO 1tb
    Samsung EVO 870 500GB
    PSU
    Corsair RX 650
    Case
    NZXT h510
    Cooling
    CM HYPER 212 RGB
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steelseries Rival 710
Oh, the ole "registry hacks" makes everything fine mentality.

Pretty sure if people actually "explored" the OS they would find that many of those reg hacks are unnecessary and aren't required.

Also, when something goes wrong due to such hacks, it's always Windows' fault, never the one tinkering with the registry.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (Build 22631.3296)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 G2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, music, school.
  • Operating System
    Win 10 Pro 22H2 (build 19045.2130)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Built
    CPU
    Intel i7-7700K
    Motherboard
    Gigabyte GA-Z270X-GAMING 8
    Memory
    32G (4x8) DDR4 Corsair Dominator Platinum (3333Mhz)
    Graphics card(s)
    AMD Radeon R9 Fury
    Sound Card
    Onboard (Creative Sound Blaster certified ZxRi)
    Monitor(s) Displays
    Dell U2415 (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    3 Samsung SSD drives: 1x 512gig 950 NVMe drive (OS drive), 1 x 512gig 850 Pro, 1x 256gig 840 Pro.
    PSU
    EVGA Super Nova 1000 P2 (1000 watt)
    Case
    Phantek Enthoo Luxe
    Cooling
    Corsair H100i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech MK 710
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security
    Other Info
    This is my backup system.
Oh, the ole "registry hacks" makes everything fine mentality.

Pretty sure if people actually "explored" the OS they would find that many of those reg hacks are unnecessary and aren't required.

Also, when something goes wrong due to such hacks, it's always Windows' fault, never the one tinkering with the registry.
Thays what I mean. I didnt do any of the reg things. I installed windows and hello power plans xD.


My Computer

System One

  • OS
    11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    Viper Steelseries 32gb@ 3600mhz
    Graphics Card(s)
    Gigabyte 2070 Super 8GB, +200 core + 600 memory
    Monitor(s) Displays
    ASUS 4k HDR, Two 1080p Benq and Samsung
    Screen Resolution
    3840x2160/2560x1440/1920x1080
    Hard Drives
    Adata XPG SX8200 PRO 1tb
    Samsung EVO 870 500GB
    PSU
    Corsair RX 650
    Case
    NZXT h510
    Cooling
    CM HYPER 212 RGB
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steelseries Rival 710
Policies for Windows = reg hacks


My Computer

System One

  • OS
    Microsoft Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI MS-7D98
    CPU
    Intel Core i5-13490F
    Motherboard
    MSI B760 GAMING PLUS WIFI
    Memory
    2 x 16 Patriot Memory (PDP Systems) PSD516G560081
    Graphics Card(s)
    GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G (GV-N4070WF3OC-12GD)
    Sound Card
    Bluetooth Аудио
    Monitor(s) Displays
    INNOCN 15K1F
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD_BLACK SN770 250GB
    KINGSTON SNV2S1000G (ELFK0S.6)
    PSU
    Thermaltake Toughpower GF3 1000W
    Case
    CG560 - DeepCool
    Cooling
    ID-COOLING SE-224-XTS / 2 x 140Mm Fan - rear and top; 3 x 120Mm - front
    Keyboard
    Corsair K70 RGB TKL
    Mouse
    Corsair KATAR PRO XT
    Internet Speed
    100 Mbps
    Browser
    Firefox
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    https://www.userbenchmark.com/UserRun/66553205

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (Build 22631.3296)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 G2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, music, school.
  • Operating System
    Win 10 Pro 22H2 (build 19045.2130)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Built
    CPU
    Intel i7-7700K
    Motherboard
    Gigabyte GA-Z270X-GAMING 8
    Memory
    32G (4x8) DDR4 Corsair Dominator Platinum (3333Mhz)
    Graphics card(s)
    AMD Radeon R9 Fury
    Sound Card
    Onboard (Creative Sound Blaster certified ZxRi)
    Monitor(s) Displays
    Dell U2415 (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    3 Samsung SSD drives: 1x 512gig 950 NVMe drive (OS drive), 1 x 512gig 850 Pro, 1x 256gig 840 Pro.
    PSU
    EVGA Super Nova 1000 P2 (1000 watt)
    Case
    Phantek Enthoo Luxe
    Cooling
    Corsair H100i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech MK 710
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security
    Other Info
    This is my backup system.

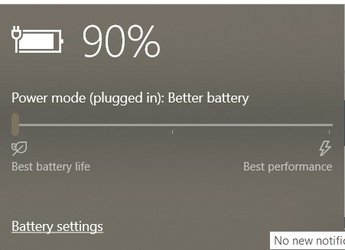

For laptops, there is only one power plan by default - balancing. I need another one for games (with SpeedShift=2 e.g.).


My Computer

System One

  • OS
    Microsoft Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI MS-7D98
    CPU
    Intel Core i5-13490F
    Motherboard
    MSI B760 GAMING PLUS WIFI
    Memory
    2 x 16 Patriot Memory (PDP Systems) PSD516G560081
    Graphics Card(s)
    GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G (GV-N4070WF3OC-12GD)
    Sound Card
    Bluetooth Аудио
    Monitor(s) Displays
    INNOCN 15K1F
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD_BLACK SN770 250GB
    KINGSTON SNV2S1000G (ELFK0S.6)
    PSU
    Thermaltake Toughpower GF3 1000W
    Case
    CG560 - DeepCool
    Cooling
    ID-COOLING SE-224-XTS / 2 x 140Mm Fan - rear and top; 3 x 120Mm - front
    Keyboard
    Corsair K70 RGB TKL
    Mouse
    Corsair KATAR PRO XT
    Internet Speed
    100 Mbps
    Browser
    Firefox
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    https://www.userbenchmark.com/UserRun/66553205
For laptops, there is only one power plan by default - balancing. I need another one for games (with SpeedShift=2 e.g.).

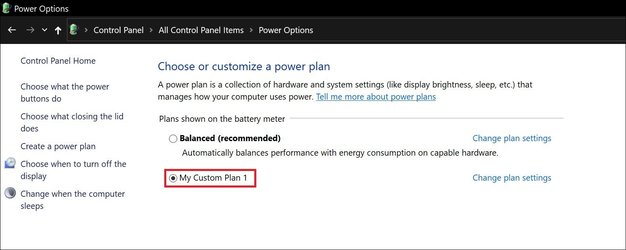

But you can always create a custom power plan as well. From my Lenovo ThinkPad laptop....

Create Power Plan_1.JPG

Create Power Plan_2.JPG
Again, all you have to do is look :wink:


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (Build 22631.3296)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 G2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, music, school.
  • Operating System
    Win 10 Pro 22H2 (build 19045.2130)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Built
    CPU
    Intel i7-7700K
    Motherboard
    Gigabyte GA-Z270X-GAMING 8
    Memory
    32G (4x8) DDR4 Corsair Dominator Platinum (3333Mhz)
    Graphics card(s)
    AMD Radeon R9 Fury
    Sound Card
    Onboard (Creative Sound Blaster certified ZxRi)
    Monitor(s) Displays
    Dell U2415 (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    3 Samsung SSD drives: 1x 512gig 950 NVMe drive (OS drive), 1 x 512gig 850 Pro, 1x 256gig 840 Pro.
    PSU
    EVGA Super Nova 1000 P2 (1000 watt)
    Case
    Phantek Enthoo Luxe
    Cooling
    Corsair H100i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech MK 710
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security
    Other Info
    This is my backup system.
Almost all settings are hidden. Need "reg hack".
for example
# Processor Energy Performance Preference Policy
C:\Windows\System32\powercfg.exe -attributes SUB_PROCESSOR PERFEPP -ATTRIB_HIDE


My Computer

System One

  • OS
    Microsoft Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI MS-7D98
    CPU
    Intel Core i5-13490F
    Motherboard
    MSI B760 GAMING PLUS WIFI
    Memory
    2 x 16 Patriot Memory (PDP Systems) PSD516G560081
    Graphics Card(s)
    GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G (GV-N4070WF3OC-12GD)
    Sound Card
    Bluetooth Аудио
    Monitor(s) Displays
    INNOCN 15K1F
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD_BLACK SN770 250GB
    KINGSTON SNV2S1000G (ELFK0S.6)
    PSU
    Thermaltake Toughpower GF3 1000W
    Case
    CG560 - DeepCool
    Cooling
    ID-COOLING SE-224-XTS / 2 x 140Mm Fan - rear and top; 3 x 120Mm - front
    Keyboard
    Corsair K70 RGB TKL
    Mouse
    Corsair KATAR PRO XT
    Internet Speed
    100 Mbps
    Browser
    Firefox
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    https://www.userbenchmark.com/UserRun/66553205
It's your PC.

Peace :cool:


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (Build 22631.3296)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 G2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, music, school.
  • Operating System
    Win 10 Pro 22H2 (build 19045.2130)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Built
    CPU
    Intel i7-7700K
    Motherboard
    Gigabyte GA-Z270X-GAMING 8
    Memory
    32G (4x8) DDR4 Corsair Dominator Platinum (3333Mhz)
    Graphics card(s)
    AMD Radeon R9 Fury
    Sound Card
    Onboard (Creative Sound Blaster certified ZxRi)
    Monitor(s) Displays
    Dell U2415 (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    3 Samsung SSD drives: 1x 512gig 950 NVMe drive (OS drive), 1 x 512gig 850 Pro, 1x 256gig 840 Pro.
    PSU
    EVGA Super Nova 1000 P2 (1000 watt)
    Case
    Phantek Enthoo Luxe
    Cooling
    Corsair H100i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech MK 710
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security
    Other Info
    This is my backup system.
Almost all settings are hidden. Need "reg hack".
for example
# Processor Energy Performance Preference Policy
C:\Windows\System32\powercfg.exe -attributes SUB_PROCESSOR PERFEPP -ATTRIB_HIDE

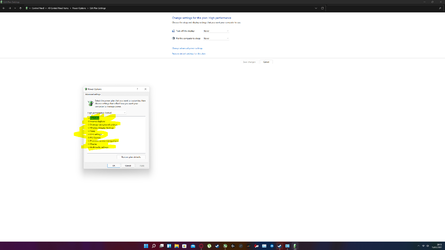

these settings?ww.PNG


My Computer

System One

  • OS
    11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    Viper Steelseries 32gb@ 3600mhz
    Graphics Card(s)
    Gigabyte 2070 Super 8GB, +200 core + 600 memory
    Monitor(s) Displays
    ASUS 4k HDR, Two 1080p Benq and Samsung
    Screen Resolution
    3840x2160/2560x1440/1920x1080
    Hard Drives
    Adata XPG SX8200 PRO 1tb
    Samsung EVO 870 500GB
    PSU
    Corsair RX 650
    Case
    NZXT h510
    Cooling
    CM HYPER 212 RGB
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steelseries Rival 710
Thays what I mean. I didnt do any of the reg things. I installed windows and hello power plans xD.
Depends on the system and the BIOS. If S3 is disabled in the BIOS, you won't see all the power plans until you add that key. One easy way to tell is look at the properties of your network adapter in Device Manager, does it have a "Power Management" tab? If not, then you will not see any power plan other than the Balanced, you will not even see the Power Saver or the High Performance even if you did what Brink had linked to.

Last edited:

My Computer

System One

  • OS
    Windows XP/7/8/8.1/10/11, Linux, Android, FreeBSD Unix
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 15 9570
    CPU
    Intel® Core™ i7-8750H 8th Gen Processor 2.2Ghz up to 4.1Ghz
    Motherboard
    Dell XPS 15 9570
    Memory
    32GB using 2x16GB modules
    Graphics Card(s)
    Intel UHD 630 & NVIDIA GeForce GTX 1050 Ti with 4GB DDR5
    Sound Card
    Realtek ALC3266-CG
    Monitor(s) Displays
    15.6" 4K Touch UltraHD 3840x2160 made by Sharp
    Screen Resolution
    3840x2160
    Hard Drives
    Toshiba KXG60ZNV1T02 NVMe 1024GB/1TB SSD
    PSU
    Dell XPS 15 9570
    Case
    Dell XPS 15 9570
    Cooling
    Stock
    Keyboard
    Stock
    Mouse
    SwitftPoint ProPoint
    Internet Speed
    Comcast/XFinity 1.44Gbps/42.5Mbps
    Browser
    Microsoft EDGE (Chromium based) & Google Chrome
    Antivirus
    Windows Defender that came with Windows

My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium

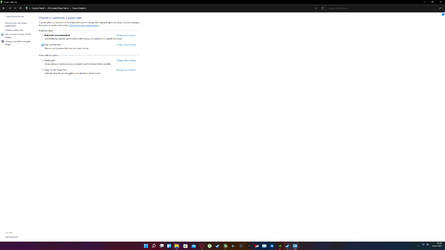

But you can always create a custom power plan as well. From my Lenovo ThinkPad laptop....

View attachment 3039

View attachment 3040
Again, all you have to do is look :wink:
It depends on the laptop. On a Dell, you will only see Dell and Balanced until ModernStandby is disabled which requires the registry hack.
Lenovo seems to be more generic as they do not even have their own plans so they just enabled everything Windows shipped with. Take a look your wireless adapter in Device Manager and the properties, if you have a "Power Management" tab, that is the reason you can see everything as what it boils down to is if S3 mode is still available in the BIOS or not. If it is, then you will see all the profiles. If not, then you won't until one does the registry hack.

2021-07-15_13-06-03.jpgThe Power Saver, High Performance and Ultimate Performace are hidden without that registry hack. Create a power plan will only create from Balanced and nothing else. A lot has to do with if S3 is enabled in the BIOS or not. That's why either you will see Power Saver and High Performance or not as Windows does ship with 4 profiles, but they will only show up if the BIOS still allows S3 sleep mode, otherwise it will not because they are trying to move to Modern Standby. So the only way you will even have those profiles shown is if your BIOS still supported Connected Standby.


Last edited:

My Computer

System One

  • OS
    Windows XP/7/8/8.1/10/11, Linux, Android, FreeBSD Unix
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 15 9570
    CPU
    Intel® Core™ i7-8750H 8th Gen Processor 2.2Ghz up to 4.1Ghz
    Motherboard
    Dell XPS 15 9570
    Memory
    32GB using 2x16GB modules
    Graphics Card(s)
    Intel UHD 630 & NVIDIA GeForce GTX 1050 Ti with 4GB DDR5
    Sound Card
    Realtek ALC3266-CG
    Monitor(s) Displays
    15.6" 4K Touch UltraHD 3840x2160 made by Sharp
    Screen Resolution
    3840x2160
    Hard Drives
    Toshiba KXG60ZNV1T02 NVMe 1024GB/1TB SSD
    PSU
    Dell XPS 15 9570
    Case
    Dell XPS 15 9570
    Cooling
    Stock
    Keyboard
    Stock
    Mouse
    SwitftPoint ProPoint
    Internet Speed
    Comcast/XFinity 1.44Gbps/42.5Mbps
    Browser
    Microsoft EDGE (Chromium based) & Google Chrome
    Antivirus
    Windows Defender that came with Windows
In addition: :)

That only works if your BIOS supports enabling S3 mode as I have already used that tutorial before, nothing other than Dell and Balanced shows up no matter how many times you do it. There will be new "Balances" but there will not be a hidden section with the High Performance and Power Saving or even Ultimate Performance. See post #6 in this thread who explains the issue better as basically until you have a power management tab in Device Manager when looking at device properties, the restore missing default power plans will not do anything:

It works in Windows 11?

PS E:\Temp> [environment]::OSVersion.Version

Major Minor Build Revision
----- ----- ----- --------
10 0 19043 0


PS E:\Temp> C:\Windows\System32\powercfg.exe /l

Existing Power Schemes (* Active)
-----------------------------------
Power Scheme GUID: 381b4222-f694-41f0-9685-ff5bb260df2e (Balanced)
Power Scheme GUID: 8c5e7fda-e8bf-4a96-9a85-a6e23a8c635c (High performance) *

PS E:\Temp> C:\Windows\System32\powercfg.exe /SETACTIVE SCHEME_MAX

PS E:\Temp> C:\Windows\System32\powercfg.exe /l

Existing Power Schemes (* Active)
-----------------------------------
Power Scheme GUID: 381b4222-f694-41f0-9685-ff5bb260df2e (Balanced)
Power Scheme GUID: a1841308-3541-4fab-bc81-f71556f20b4a (Power saver) *

PS E:\Temp> C:\Windows\System32\powercfg.exe /SETACTIVE SCHEME_BALANCED

PS E:\Temp> C:\Windows\System32\powercfg.exe /l

Existing Power Schemes (* Active)
-----------------------------------
Power Scheme GUID: 381b4222-f694-41f0-9685-ff5bb260df2e (Balanced) *
PS E:\Temp>

Power plan hidden, but exists in the system.

Yes, because I did it and tested it before posting as the profiles won't show up on my Dell XPS 15 9570 until I did the registry hack on 22000.65 yesterday. I have been trying to get the hidden settings to show up since January 2020 in Widows 10 as Killer Networking support required it to provide further support but was not able to do so until yesterday.

Existing Power Schemes (* Active)
-----------------------------------
Power Scheme GUID: 20b4f54d-e850-463e-b554-36014b51f917 (Ultimate Performance - Vince) *
Power Scheme GUID: 381b4222-f694-41f0-9685-ff5bb260df2e (Balanced)
Power Scheme GUID: 49ef8fc0-bb7f-488e-b6a0-f1fc77ec649b (Dell)
Power Scheme GUID: 67bf11d5-acc4-4e86-a2ba-d89755ded899 (Ultimate Performance)
Power Scheme GUID: 8228821c-29dd-4e5f-b210-08cb574d0cca (High performance)
Power Scheme GUID: f46c0812-9b20-4e9c-8e84-5e9f0256e15b (Power saver)
PS C:\Users\vince>

Last edited:

My Computer

System One

  • OS
    Windows XP/7/8/8.1/10/11, Linux, Android, FreeBSD Unix
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 15 9570
    CPU
    Intel® Core™ i7-8750H 8th Gen Processor 2.2Ghz up to 4.1Ghz
    Motherboard
    Dell XPS 15 9570
    Memory
    32GB using 2x16GB modules
    Graphics Card(s)
    Intel UHD 630 & NVIDIA GeForce GTX 1050 Ti with 4GB DDR5
    Sound Card
    Realtek ALC3266-CG
    Monitor(s) Displays
    15.6" 4K Touch UltraHD 3840x2160 made by Sharp
    Screen Resolution
    3840x2160
    Hard Drives
    Toshiba KXG60ZNV1T02 NVMe 1024GB/1TB SSD
    PSU
    Dell XPS 15 9570
    Case
    Dell XPS 15 9570
    Cooling
    Stock
    Keyboard
    Stock
    Mouse
    SwitftPoint ProPoint
    Internet Speed
    Comcast/XFinity 1.44Gbps/42.5Mbps
    Browser
    Microsoft EDGE (Chromium based) & Google Chrome
    Antivirus
    Windows Defender that came with Windows
Be aware that sometimes updating the chipset driver will change power plans, also.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
It depends on the laptop. On a Dell, you will only see Dell and Balanced until ModernStandby is disabled which requires the registry hack.

I guess I can't argue about your laptop, but on mine no such issues exist. I just created this custom High Performance power plan. No registry hacks required. All done from the Power Settings...

Custom Power Plan.JPG

Custom Power Plan Settings.JPG

Works for me. This is on a 2017 (2nd gen) Lenovo ThinkPad Yoga X1.

At any rate I recognize that not everyone doesn't have the same equipment with the same options so, I guess other actions are needed.

Peace :cool:


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (Build 22631.3296)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 G2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, music, school.
  • Operating System
    Win 10 Pro 22H2 (build 19045.2130)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Built
    CPU
    Intel i7-7700K
    Motherboard
    Gigabyte GA-Z270X-GAMING 8
    Memory
    32G (4x8) DDR4 Corsair Dominator Platinum (3333Mhz)
    Graphics card(s)
    AMD Radeon R9 Fury
    Sound Card
    Onboard (Creative Sound Blaster certified ZxRi)
    Monitor(s) Displays
    Dell U2415 (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    3 Samsung SSD drives: 1x 512gig 950 NVMe drive (OS drive), 1 x 512gig 850 Pro, 1x 256gig 840 Pro.
    PSU
    EVGA Super Nova 1000 P2 (1000 watt)
    Case
    Phantek Enthoo Luxe
    Cooling
    Corsair H100i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech MK 710
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security
    Other Info
    This is my backup system.
I just created this custom High Performance power plan. No registry hacks required.
If nothing is configured for a specific processor, you may not need to create a plan. Will Windows implicitly launch it (High Performance power plan)? (Laptop)


Power Saver Plan :


Last edited:

My Computer

System One

  • OS
    Microsoft Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI MS-7D98
    CPU
    Intel Core i5-13490F
    Motherboard
    MSI B760 GAMING PLUS WIFI
    Memory
    2 x 16 Patriot Memory (PDP Systems) PSD516G560081
    Graphics Card(s)
    GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G (GV-N4070WF3OC-12GD)
    Sound Card
    Bluetooth Аудио
    Monitor(s) Displays
    INNOCN 15K1F
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD_BLACK SN770 250GB
    KINGSTON SNV2S1000G (ELFK0S.6)
    PSU
    Thermaltake Toughpower GF3 1000W
    Case
    CG560 - DeepCool
    Cooling
    ID-COOLING SE-224-XTS / 2 x 140Mm Fan - rear and top; 3 x 120Mm - front
    Keyboard
    Corsair K70 RGB TKL
    Mouse
    Corsair KATAR PRO XT
    Internet Speed
    100 Mbps
    Browser
    Firefox
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    https://www.userbenchmark.com/UserRun/66553205
these settings?
For example, I want to disable turbo boost, but this setting is hidden. Have to run
# Processor performance boost mode
C:\Windows\System32\powercfg.exe -attributes SUB_PROCESSOR PERFBOOSTMODE -ATTRIB_HIDE


My Computer

System One

  • OS
    Microsoft Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI MS-7D98
    CPU
    Intel Core i5-13490F
    Motherboard
    MSI B760 GAMING PLUS WIFI
    Memory
    2 x 16 Patriot Memory (PDP Systems) PSD516G560081
    Graphics Card(s)
    GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G (GV-N4070WF3OC-12GD)
    Sound Card
    Bluetooth Аудио
    Monitor(s) Displays
    INNOCN 15K1F
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD_BLACK SN770 250GB
    KINGSTON SNV2S1000G (ELFK0S.6)
    PSU
    Thermaltake Toughpower GF3 1000W
    Case
    CG560 - DeepCool
    Cooling
    ID-COOLING SE-224-XTS / 2 x 140Mm Fan - rear and top; 3 x 120Mm - front
    Keyboard
    Corsair K70 RGB TKL
    Mouse
    Corsair KATAR PRO XT
    Internet Speed
    100 Mbps
    Browser
    Firefox
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    https://www.userbenchmark.com/UserRun/66553205

Latest Support Threads

Back
Top Bottom
