Hi, I'm an idiot.

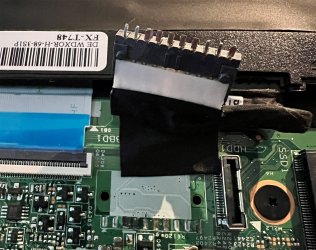

I am not sure if I removed the pads off the motherboard or if it's a clean break. Repairs on Laptops are new to me.
I am curious of the sequence
BUT
I think it's pulled the pads off the motherboard, which would mean I can't repair this, would that be a fair assumption?
Is it worth a try? The laptop isn't worth what it would cost to send it to a store for detailed repair.
(Images when clicked on zoom in pretty close)
I am not sure if I removed the pads off the motherboard or if it's a clean break. Repairs on Laptops are new to me.
I am curious of the sequence
- Hot Air Reworks station
- Solder removal with wick
- Flux
- 63/37 No Clean Solder paste
BUT
I think it's pulled the pads off the motherboard, which would mean I can't repair this, would that be a fair assumption?
Is it worth a try? The laptop isn't worth what it would cost to send it to a store for detailed repair.
(Images when clicked on zoom in pretty close)
