Solved Incompatible Driver - Unable to Enable Core Isolation


TBone2022

New member
Local time
10:46 AM
Posts
2
OS
Windows 11 Version 21H2
Operating system:

I am unable to 're-enable' Core Isolation due to an incompatible driver identified as...
wdsm64_prewin8.sys
Western Digital Technologies
Import date: 11/6/2021
Driver date: 11/29/2017
Driver version: 1.2.0.0
Published name: oem34.inf

1. I am not aware of nor do I know how to go about determining what device(s) uses that particular driver. It is only my ‘best guess’ that the only device that it is associated with this driver is a '2 TB USB 3.0 external storage hard drive - Western Digital model WD Elements' (purchased June2020) that I plug in to my computer for 'manually' backing up files. Namely I no longer use any of the software that came with WD Elements.
2. And I don't really know what this driver does exactly. If I can continue manually backing up my files to this external hard drive without this driver as a solution to re-enable Core Isolation, that'd fine by me.

Is there an easy way to determine above 1. and 2.?

I am thinking that deleting the driver would be the solution. But I'm not computer savvy enough to confidently make that decision. I surely don't want to delete (or attempt to delete) the driver without knowing for certain that it won't create other problems by doing so.

Any suggestions would be appreciated.

Windows Build/Version
Windows 11 Version 21H2 (OS Build 22000.1042)

My Computer

System One

  • OS
    Windows 11 Version 21H2
Have a look at this post,



My Computers

System One System Two

  • OS
    Win 11 Pro & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    Samsung SSD 970 EVO Plus 2TB NVMe 1.3
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
Hello TBone, and welcome. :-)

You can use option 6 below to uninstall that driver to then be able to turn on Memory Integrity.



My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
You could also use Autoruns from Sysinternals to determine what uses the driver and to tempoarily disable the driver before possibly uninstalling to see if it will cause other unforseen issues.
I suggest if you are going to be modifying your system at the driver level you should create a system image using something like Macrium Reflect Free and a Macrium boot disk (tested to make sure it works), unless you already take such precautions of course. :-)


My Computer

System One

  • OS
    Windows 11 Pro 22H2, build: 22621.521
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS Custom 1700
    CPU
    Intel i7-12700K 3.6GHz Base (5.0GHz Turbo)
    Motherboard
    Asus ProArt Creator B660 D4
    Memory
    64GB DDR 3600Mhz
    Graphics Card(s)
    Asus Tuff RTX 3080 10GB OC
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Gigabyte G32QC 32inch 16:9 curved @2560 x 1440p 165Hz Freesync Premium Pro/ Dell SE2422H 24inch 16:9 1920 x 1080p 75Hz Freesync
    Screen Resolution
    2560 x 1440p & 1920 x 1080p
    Hard Drives
    WD SN570 1TB NVME (Boot), Samsung 870QVO 1TB (SSD), SanDisk 3D Ultra 500Gb (SSD) x2, Seagate 3Tb Expansion Desk (Ext HDD), 2x Toshiba 1Tb P300 (Ext HDD)
    PSU
    Corsair RM1000X Modular
    Case
    Corsair 4000D Airflow Desktop
    Cooling
    Corsair Hydro H150i RGB Pro XT 360mm Liquid Cooler, 3 x 120mm fans, 1x Exhaust
    Keyboard
    Microsoft Ergonomic
    Mouse
    Logitech G402
    Internet Speed
    800Mbs
    Browser
    Edge Chromium
    Antivirus
    Defender, Malwarebytes
Ok so with thanks to Brink for the suggestion, but I was not able to find the driver via Option 6 of the tutorial.
Instead I took a chance and simply removed the driver via device manager, restarted the computer, and was then able to turn on (enable) Memory Integrity / Core Isolation.
As far as I know, for now, all is working just fine. Including the WD external hard drive (still able to manually copy back up files to it). So who knows?
To be honest - all this makes little sense / overly complicated to me. Why doesn't WD or Microsoft just issue a suitable driver update to fix this sort of issue? Guys like me who know little about such things are bound to screw something up by doing this themselves.
Onward through the fog!


My Computer

System One

  • OS
    Windows 11 Version 21H2
I ... simply removed the driver via device manager, restarted the computer, and was then able to turn on (enable) Memory Integrity / Core Isolation.
As far as I know, for now, all is working just fine. Including the WD external hard drive (still able to manually copy back up files to it). So who knows?
To be honest - all this makes little sense / overly complicated to me. Why doesn't WD or Microsoft just issue a suitable driver update to fix this sort of issue? Guys like me who know little about such things are bound to screw something up by doing this themselves.
Onward through the fog!

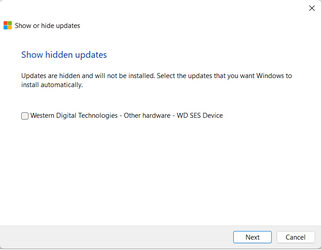

Yes, that's exactly how I removed it from my system too, screenshot in post #5 in the thread Fabler2 pointed you to. Any PC that has ever has a WD external usb HDD plugged into it will thereafter be offered the 'WD SES device' driver as an optional update. You really don't need it unless you want to use WD's own encryption....

....it is only ever needed if you want to use the WD encryption software that WD supply with their external usb drives.

The WD SES Device only shows in Device Manager while a WD usb drive is plugged in. To see (and be able to uninstall it along with its driver) at any other time you need to tell Device Manager to 'View > Show hidden devices'.

All my PCs, Windows 10 and 11 had this driver installed. All have now had it removed, and the driver hidden using wushowhide.diagcab.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
I am having a similar issue and cannot identify what is using the files to cause the issue :(

These are the 2 files that prevent core isolation being enabled.


They are old, and except for them being in mentioned in the inf files I cannot find them installed, not can I find them referenced in the Registry.

Can I simply delete these inf files (though I suspect not) and how would I get rid of these reference to these files that I don't seem to using anyway as I cannot find them by name :(

Hopefully something simple and easy to cure :)


My Computer

System One

  • OS
    Win11
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude 7530
    CPU
    Intel(R) Core(TM) i7-1265u
    Memory
    16Gb
Those are I believe the Samsung drivers for USB transfer (files) and Wi-Fi hotspot (modem driver?) for mobile phones. Have you at some time or do you currently connect a Samsung mobile to your PC?
Autoruns from Sysinternals will show both these drivers in it's driver section, unchecking the box next to the driver name and re booting will prevent them from being loaded.
The devices should show under Disk Drives and Universal Serial Bus controllers in device manager if you choose show hidden devices, they can be uninstalled from there, of course they will show as normal if the Samsung device is connected.


My Computer

System One

  • OS
    Windows 11 Pro 22H2, build: 22621.521
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS Custom 1700
    CPU
    Intel i7-12700K 3.6GHz Base (5.0GHz Turbo)
    Motherboard
    Asus ProArt Creator B660 D4
    Memory
    64GB DDR 3600Mhz
    Graphics Card(s)
    Asus Tuff RTX 3080 10GB OC
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Gigabyte G32QC 32inch 16:9 curved @2560 x 1440p 165Hz Freesync Premium Pro/ Dell SE2422H 24inch 16:9 1920 x 1080p 75Hz Freesync
    Screen Resolution
    2560 x 1440p & 1920 x 1080p
    Hard Drives
    WD SN570 1TB NVME (Boot), Samsung 870QVO 1TB (SSD), SanDisk 3D Ultra 500Gb (SSD) x2, Seagate 3Tb Expansion Desk (Ext HDD), 2x Toshiba 1Tb P300 (Ext HDD)
    PSU
    Corsair RM1000X Modular
    Case
    Corsair 4000D Airflow Desktop
    Cooling
    Corsair Hydro H150i RGB Pro XT 360mm Liquid Cooler, 3 x 120mm fans, 1x Exhaust
    Keyboard
    Microsoft Ergonomic
    Mouse
    Logitech G402
    Internet Speed
    800Mbs
    Browser
    Edge Chromium
    Antivirus
    Defender, Malwarebytes
@DigitalGoat I have run Autoruns, and it doesn't find these drivers, I have deleted all entries for hidden devices in Device Manager, I have searched the hard drive for these files and I have searched in Regedit, yet they are not found by anything - except windows when I try to enable Core Isolation.

Any suggestions how to find these files?


My Computer

System One

  • OS
    Win11
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude 7530
    CPU
    Intel(R) Core(TM) i7-1265u
    Memory
    16Gb
Any suggestions how to find these files?
The last known hiding place for such hard to find drivers in in the Driver Store, a repository of drivers not currently active, but available for use as and when needed.

Driver Store Explorer [RAPR] makes it easier to deal with Windows driver store. Supported operations include list/add/install/delete third-party driver packages.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
That was a challenge. I had to use Safe Mode to get Driver Store Explorer [RAPR] to delete the problematic inf files that were pointing to the sys files however now deleted and Core Isolation enabled!

Thanks to all for your suggestions and help.


My Computer

System One

  • OS
    Win11
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude 7530
    CPU
    Intel(R) Core(TM) i7-1265u
    Memory
    16Gb
