Info Only- What can trigger bitlocker recovery


glasskuter

aka Mama Glass
Guru
VIP
Local time
10:57 PM
Posts
6,946
Location
The Lone Star State of Texas
OS
Windows 11 Pro 23H2 22631.3593
Yesterday I encountered a device that was giving me fits with being in a perpetual bitlocker recovery loop despite me entering the correct bitlocker key. Since what I knew about bitlocker would fit into a thimble, I resorted to extensive reading. I still don't know much but more than I did. I thought I'd share some things I found for anyone interested.
Included are : things that can trigger bitlocker recovery and how to get out of a bitlocker recovery loop.

COMMON BUT NOT ALL INCLUSIVE LIST OF THINGS THAT CAN TRIGGER BITLOCKER RECOVERY - Some apply to all devices, some only apply to certain devices dependent on the manufacturer.

1. With TPM 1.2 (NOT TPM 2.0), changing boot order in UEFI bios.
2. Having the CD or DVD drive before the hard drive in the BIOS boot order and then inserting or removing a CD or DVD.
3.Failing to boot from a network drive before booting from the hard drive.1.Docking or undocking a portable computer. (Dependant on manufacturer and bios) If a portable computer is connected to its docking station when BitLocker is turned on, then it might also need to be connected to the docking station when it's unlocked. Conversely, if a portable computer isn't connected to its docking station when BitLocker is turned on, then it might need to be disconnected from the docking station when it's unlocked.
4. Creating, deleting, or resizing a primary NTFS partition.
5. Entering incorrect PIN too many times.
6. Turning off, disabling, deactivating, or clearing the TPM
7. BIOS or UEFI firmware upgrade
8. Forgetting the PIN when PIN authentication has been enabled
9. Upgrading TPM firmware
10. Adding or removing hardware
11. Removing, inserting, or completely depleting the charge on a smart battery on a portable computer.
12. Changes to the master boot record on the disk
13. Changes to the boot manager on the disk
14. Moving the BitLocker-protected drive into a new computer
15. Upgrading the motherboard to a new one with a new TPM
16. Losing the USB flash drive containing the startup key when startup key authentication has been enabled
17. Failing the TPM self-test
18. Pressing the F8 or F10 key during the boot process

BITLOCKER RECOVERY GOES INTO CONTINUOUS REBOOT LOOP

Symptoms - Even after correctly entering a recovery key, the system reboots to Bitlocker recovery again.
I believe Point # 11 above was my culprit.

Workaround – In BL recovery press Esc for more BitLocker recovery options. Click 'skip this drive'. Advanced Options. Select Troubleshoot>Advanced Options>Command Prompt. Type manage-bde -status c:
If the status is returned as locked, you’ll need to use the following command to unlock it using your recovery password: manage-bde -unlock c: -rp <your 48-digit recovery password>

Once the drive is unlocked you'll need to use the following command to suspend protection. manage-bde -protectors -disable c:

Exit and reboot. The computer should now successfully boot Windows. Once there, use the BitLocker control panel to resume BitLocker protection.

Using bitlocker is a personal choice but I strongly suggest you become familiar with the situations that might arise and be prepared for it. Others may have bitlocker turned on even though the user never even chose to use it. Some computers come preset from the factory to turn it on. You can check bitlocker status by opening a command prompt as administrator and typing manage-bde -status


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3593
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Kind of makes you want to permanently disable Bitlocker.



Other things that can trigger Bitlocker Encryption without the user's permission...

1. Yelling at the computer.
2. Typing on any forum, anywhere, that MS is less than perfect.
3. Even "talking" to MAC or Linux users.
4. Being a participant in any EU vs. MS class action lawsuit.
5. Disabling Telemetry.
6. "Not" using a Microsoft driver.
7. Using the phrase SNAFU or FUBAR, when discussing anything Microsoft.
8. "Not" kneeling down and paying homage to Redmond, Washington at 10am PST every morning.
9. Even "thinking" that Microsoft is less than perfect.

:D

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
@Ghot Your humor always brightens my day. Yeah, not to get into a pi$$ing match with any BL advocate, I read enough to know that, for me, I made the correct choice to not use it.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3593
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
@Ghot Your humor always brightens my day. Yeah, not to get into a pi$$ing match with any BL advocate, I read enough to know that, for me, I made the correct choice to not use it.


Same. :-)


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
Good info!

When in doubt, this is what I do:

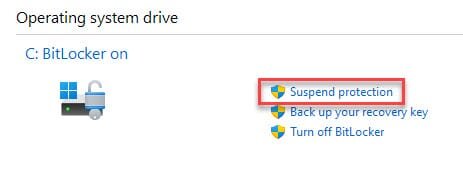

Right-click the drive if File Explorer, select Manage BitLocker, then select Suspend protection.

You can now safely makes changes to the BIOS, upgrade your BIOS, etc. without triggering a BitLocker request for the recovery key. Please note that the suspension of BitLocker is valid until the next time you boot into Windows. In other words, if you reboot the system after suspending BitLocker, BitLocker will again be enabled as soon as Windows is booted again.



My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Kind of makes you want to permanently disable Bitlocker.
That is what I have also been doing ever since BitLocker first came to existence, as it just isn't a reliable solution in any way whatsoever. Case in point:




My Computers

System One System Two

  • OS
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus TUF Gaming F16 (2024)
    CPU
    i7 13650HX
    Memory
    16GB DDR5
    Graphics Card(s)
    GeForce RTX 4060 Mobile
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    512GB SSD internal
    37TB external
    PSU
    Li-ion
    Cooling
    2× Arc Flow Fans, 4× exhaust vents, 5× heatpipes
    Keyboard
    Logitech K800
    Mouse
    Logitech G402
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF
  • Operating System
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Medion S15450
    CPU
    i5 1135G7
    Memory
    16GB DDR4
    Graphics card(s)
    Intel Iris Xe
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    2TB SSD internal
    37TB external
    PSU
    Li-ion
    Mouse
    Logitech G402
    Keyboard
    Logitech K800
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF

Latest Support Threads

Back
Top Bottom
