Installing 24H2 on system-disk of less than 64GB - is it possible?


M

mingle

Well-known member
Local time
3:59 PM
Posts
52
Visit site
OS
Windows 11
Hi Chaps,

I'm usually rather miserly with allocating space for my system disk, as I don't really use much capacity and I usually assign more to my data partition.

My current install of Win 23H2 resides on a system disk with 40GB of total space. I have two partitions on a single SSD: the 40GB system partition and a ~405GB data partition. The OS and all of my installed applications takes up a mere 15.5GB, leaving me with around 24.5GB free space on C:.

However, the requirement for 24H2 seems to require 64GB of free-space. I'm unable to resize the system partition, as the data partition is fully used.

Is there any way to install 24H2 on my 40GB system partition, given that I have a fairly generous 24.5GB of free space?

Cheers,

Mike.


My Computer

System One

  • OS
    Windows 11

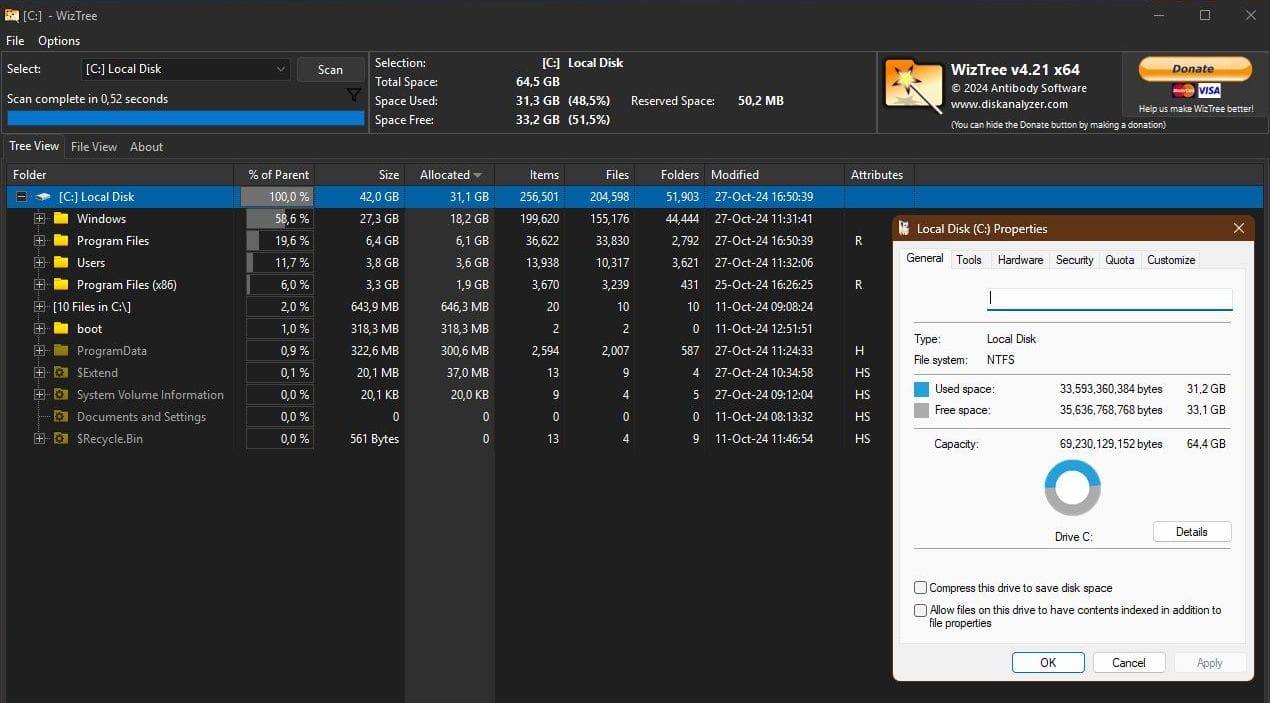

No. 11 needs at least 52GB partition, but when I clean installed 24H2, there was like 2 GB free space left.
11 downloads updates and drivers during the setup, it is cleaned afterwards, but the setup might fail.
If you compress system partition, you might get a few GBs back, but 52GB is literally the minimum.
24H2 is more robust, it reserves a certain space, I have cleaned everything, yet it takes 30GB+


Attachments

  • capture_10272024_113231.jpg
    98 KB · Views: 1

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 8600G (07/24)
    Motherboard
    ASROCK B650M-HDV/M.2 3.09 (07/24)
    Memory
    2x32GB Kingston FURY DDR5 5600 MHz CL36 @4800 CL40 (07/24)
    Graphics Card(s)
    ASROCK Radeon RX 6600 Challenger D 8G @60FPS (08/24)
    Sound Card
    Creative Sound BlasterX AE-5 Plus (05/24)
    Monitor(s) Displays
    24" Philips 24M1N3200ZS/00 (05/24)
    Screen Resolution
    1920×1080@165Hz via DP1.4
    Hard Drives
    Kingston KC3000 NVMe 2TB (05/24)
    ADATA XPG GAMMIX S11 Pro 512GB (07/19)
    PSU
    Seasonic Core GM 550 Gold (04/24)
    Case
    Fractal Design Define 7 Mini with 3x Noctua NF-P14s/12@555rpm (04/24)
    Cooling
    Noctua NH-U12S with Noctua NF-P12 (04/24)
    Keyboard
    HP Pavilion Wired Keyboard 300 (07/24) + Rabalux 76017 Parker (01/24)
    Mouse
    Logitech M330 Silent Plus (04/23)
    Internet Speed
    500/100 Mbps via RouterOS (05/21) & TCP Optimizer
    Browser
    Edge & Brave for YouTube & LibreWolf for FB
    Antivirus
    NextDNS
    Other Info
    Backup: Hasleo Backup Suite (PreOS)
    Headphones: Sennheiser RS170 (09/10)
    Phone: Samsung Galaxy Xcover 7 (02/24)
    Chair: Huzaro Force 4.4 Grey Mesh (05/24)
    Notifier: Xiaomi Mi Band 9 Milanese (10/24)
    2nd Monitor: AOC G2460VQ6 @75Hz (02/19)
TairikuOkami said:
No. 11 needs at least 52GB partition, but when I clean installed 24H2, there was like 2 GB free space left.
11 downloads updates and drivers during the setup, it is cleaned afterwards, but the setup might fail.
If you compress system partition, you might get a few GBs back, but 52GB is literally the minimum.
24H2 is more robust, it reserves a certain space, I have cleaned everything, yet it takes 30GB+
Click to expand...
Incorrect. I have an ASUS laptop with internal storage of 32GB and I install 24H2 to it no problem at all and have 8GB free space.

Make sure to use the "Compact OS" feature either during installation or afterward to maximize space savings. If you need info on how to do this, let me know and I will provide details.

EDIT: Note that these results are even with a larger than normal Recovery partition of 1GB.

EDIT #2: LOL. Just remembered that I have a second laptop that has 64GB internal storage and when installing onto that system it feels like I have all kinds of free space (a little sarcasm intended). Seriously, I can add Microsoft 365 and a bunch of other stuff with no problems on 64GB. I forgot about that system initially because that system also has an M.2 NVMe slot so I did add an SSD but the point remains that 64GB actually feels roomy compared to the 32GB system.

Last edited:

My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
hsehestedt said:
Make sure to use the "Compact OS" feature either during installation or afterward to maximize space savings. If you need info on how to do this, let me know and I will provide details.
Click to expand...

Any pointers or instructions you can give me (upgrade, rather than clean install) would be great!


My Computer

System One

  • OS
    Windows 11
mingle said:
Any pointers or instructions you can give me (upgrade, rather than clean install) would be great!
Click to expand...
I'll respond back with details when I get in front of my main PC later this morning. It is 6:00 AM where I am and I'm not yet fully functional :-)


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Below is a copy of my notes when I was figuring this out for the first time. In my notes I reference an unattended answer file that can be used to enable Compact OS during installation. If you want more info about that, let me know.



On a system with a very small amount of storage, for example, 32 GB or 64 GB, you may want to consider performing a Compact OS installation. This causes Windows to store a number of system files in a compressed state.

You can install Windows with "Compact OS" enabled by using an unattended answer file, but this is not mandatory. You can also enable it after Windows is already installed. Instructions for both are below.

How to Install Windows with Compact OS Enabled Using an Unattended Answer File

To deploy Windows as a Compact OS install, in your autounattend.xml answer file, navigate to Pass 1 windowsPE > Setup > ImageInstall > OSImage. Change the value of Compact to true. In my testing, on a 64-bit installation of Windows, this can save about 2.6 GB of storage space.


How to Enable Compact OS After Windows is Installed

You can also turn on Compact OS after Windows is installed. Do this by opening an elevated command prompt and then running this command:

Compact /CompactOS:Always

You can disable Compact OS with this command from an elevated command prompt:

Compact /CompactOS:Never


How to Determine if Compact OS is Enabled

You can determine if the system is running a Compact OS by running this command:

Compact /CompactOS:Query


Additional Space Savings

You can save some additional space by reducing the size of the hibernation file by 30%. To do this, use this command:

Powercfg /h /type reduced


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Follow-up to my above post:

I just did a quick mini-research session. I was curious to know how the Powercfg /h /type reduced command makes the hibernation file smaller. If you run that command it eliminates the ability to perform a standard hibernation and will support only "hiberboot" aka Fast Startup.

To save even more space you can disable hibernation altogether: powercfg /h off


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
My Win 11 24h2 use less than 30G on the drive but I have moved C:\Users (SSD) to D:\Users (HDD) and also my Virtual memory (16G fix) is on D:\ and hibernation is disabled.

Compacting the OS makes it slower.
As you have the data partition on same drive why don't you make C: a 80G partition?


My Computers

System One System Two

  • OS
    Windows 7 HP 64 - Windows 11 Pro - Lubuntu
    Computer type
    PC/Desktop
    Manufacturer/Model
    custom build
    CPU
    i5 6600K - 800MHz to 4400MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Win 11
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    (4) -1 BX500 SSD - 128G for Windows 7 and Lubuntu
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500 Mb/s
    Browser
    Firefox 64
  • Operating System
    Windows 7 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Asus Q550LF
    CPU
    i7-4500U 800- 3000MHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs
    & 1T HDD for data
    Internet Speed
    350 Mb/s
    Browser
    Firefox 64
Megahertz said:
Compacting the OS makes it slower.
Click to expand...
That may be technically true, but in the real world, I notice no discernable difference. Of course, your milage may vary.
Megahertz said:
I have moved C:\Users (SSD) to D:\Users (HDD) and also my Virtual memory (16G fix) is on D:\ and hibernation is disabled.
Click to expand...
Ah, yes. Good point. You can also easily move the libraries such as Documents, Downloads, Videos, etc. to another location. Just bring up the properties in File Explorer and go to the "Location" tab.


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
I had Windows 10 on my Fujitsu Stylistic Q702 hybrid tablet/laptop which has only 64GB internal storage. I installed all applications and keep my data on a 256GB SDXC card. I upgraded that to all versions of Windows 11 including 24H2. I compacted OS and the entire storage and always make sure any application is installed on the SDXC card. I barely have 5GB free space but at least it is enough to keep the system from crawling as is the case with 2GB or less.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (build 22631.4249) test laptop, Windows 11 Pro v24H2 (build 26100.2314) main PC
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, no SSE4.2, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v24H2 (build 26100.2314)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    WD Blue SA510 2.5 1000GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Deepcool Gamma Archer CPU cooler, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4
I have run 24H2 on Lenovo IdeaPad 120S RAM 2GB Storage 32GB (eMMC, real 29.1 GB, un-upgradeable).

Running 24H2 on Lenovo IdeaPad 120S RAM 2GB Storage 32GB

The computer was shipped with OS Windows 10 Home, RAM 2GB Storage 32GB. my IdeaPad has gotten update every year, from Windows 10, to Windows 11 22H2, 23H2, 24H2. its RAM 2GB (un-upgradeable DDR4, soldered on motherboard) is limited from any Windows updates, freezing up forever. its storage 32GB...
www.elevenforum.com www.elevenforum.com


My Computer

System One

  • OS
    Windows 7/11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP/Lenovo/Asus
    CPU
    Intel i7-11800H
    Motherboard
    Lenovo Legion 5i Pro Gen 6
    Memory
    32GB DDR4 3200MHz
    Graphics Card(s)
    NVIDIA GeForce RTX 3070
    Hard Drives
    1TB PCIe SSD
siliconbeaver said:
I have run 24H2 on Lenovo IdeaPad 120S RAM 2GB Storage 32GB (eMMC, real 29.1 GB, un-upgradeable).

Running 24H2 on Lenovo IdeaPad 120S RAM 2GB Storage 32GB

The computer was shipped with OS Windows 10 Home, RAM 2GB Storage 32GB. my IdeaPad has gotten update every year, from Windows 10, to Windows 11 22H2, 23H2, 24H2. its RAM 2GB (un-upgradeable DDR4, soldered on motherboard) is limited from any Windows updates, freezing up forever. its storage 32GB...
www.elevenforum.com www.elevenforum.com
Click to expand...
I also have an HP Stream 7 tablet with Intel Atom Z series, 1GB RAM and 32GB internal storage originally run Windows 8 32-bit and I replaced it with 10 32-bit (clean installation), as there was not enough free space to properly upgrade. No matter what I do (compact OS etc), free space is barely over 2GB, it is slow but usable. Too bad the UEFI firmware is locked by HP to 32-bit only and I cannot test it with Windows 11.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (build 22631.4249) test laptop, Windows 11 Pro v24H2 (build 26100.2314) main PC
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, no SSE4.2, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v24H2 (build 26100.2314)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    WD Blue SA510 2.5 1000GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Deepcool Gamma Archer CPU cooler, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4
My Desktop came with 512GB NVMe M.2 in Apr. '22 with Win10 Pro and immediately after setup was Upgraded to Win11:


The C: partition has 254GB free and I have a 4TB D: HDD for data.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe M.2
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 4TB Seagate HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
I just tested the dism method of 24H2 installation to a VHDX set at 40 GB and it installed fine but it was slower installing than normal.

As you can see, I still have 17 GB free. So yeah it is possible to clean install in 40GB,

You can obviously improve on this by invoking compatos, moving pagefile, disabling hibernation, moving user drivers etc.

Having said that 40GB is very tight, not leaving much space for apps.





My Computer

System One

  • OS
    Windows 11 Pro + Win11 Canary VM.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Zenbook 14
    CPU
    I9 13th gen i9-13900H 2.60 GHZ
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB soldered
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    laptop OLED screen
    Screen Resolution
    2880x1800 touchscreen
    Hard Drives
    1 TB NVME SSD (only weakness is only one slot)
    PSU
    Internal + 65W thunderbolt USB4 charger
    Case
    Yep, got one
    Cooling
    Stella Artois (UK pint cans - 568 ml) - extra cost.
    Keyboard
    Built in UK keybd
    Mouse
    Bluetooth , wireless dongled, wired
    Internet Speed
    900 mbs (ethernet), wifi 6 typical 350-450 mb/s both up and down
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    TPM 2.0, 2xUSB4 thunderbolt, 1xUsb3 (usb a), 1xUsb-c, hdmi out, 3.5 mm audio out/in combo, ASUS backlit trackpad (inc. switchable number pad)

    Macrium Reflect Home V8
    Office 365 Family (6 users each 1TB onedrive space)
    Hyper-V (a vm runs almost as fast as my older laptop)
In systems with such low disk space you either install a couple of apps or you need a larger drive such as an SDXC card to install applications and data. I haven't move my user files, I just leave the folders empty and store my data on the SDXC card.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (build 22631.4249) test laptop, Windows 11 Pro v24H2 (build 26100.2314) main PC
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, no SSE4.2, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v24H2 (build 26100.2314)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    WD Blue SA510 2.5 1000GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Deepcool Gamma Archer CPU cooler, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4
spapakons said:
In systems with such low disk space you either install a couple of apps or you need a larger drive such as an SDXC card to install applications and data. I haven't move my user files, I just leave the folders empty and store my data on the SDXC card.
Click to expand...
Speaking of an SD card, my little laptop with only 32GB storage does have enough space to hold Windows and install Microsoft 365, but that leaves me extremely tight on space. I consider 365 to be mandatory on every one of my systems but I can't figure out how to get it to install on my SD card.

That machine is pretty much just experimental, but it would still be nice if I could get that to work.

One experiment was to create a junction point to redirect it to the SD card. That seemed to work, at least for installation, but it would not allow me to run it from there.

Is anyone aware of a way to actually install Microsoft 365 to something other than C:?

NOTE: There are references on the Web to using a registry entry, but that seems to no longer work on current versions.


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
hsehestedt said:
Speaking of an SD card, my little laptop with only 32GB storage does have enough space to hold Windows and install Microsoft 365, but that leaves me extremely tight on space. I consider 365 to be mandatory on every one of my systems but I can't figure out how to get it to install on my SD card.

That machine is pretty much just experimental, but it would still be nice if I could get that to work.

One experiment was to create a junction point to redirect it to the SD card. That seemed to work, at least for installation, but it would not allow me to run it from there.

Is anyone aware of a way to actually install Microsoft 365 to something other than C:?

NOTE: There are references on the Web to using a registry entry, but that seems to no longer work on current versions.
Click to expand...
I have never found a way to install MS 365 to another drive. I even tried with symlinks to fool installer it was installing to C drive.


My Computer

System One

  • OS
    Windows 11 Pro + Win11 Canary VM.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Zenbook 14
    CPU
    I9 13th gen i9-13900H 2.60 GHZ
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB soldered
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    laptop OLED screen
    Screen Resolution
    2880x1800 touchscreen
    Hard Drives
    1 TB NVME SSD (only weakness is only one slot)
    PSU
    Internal + 65W thunderbolt USB4 charger
    Case
    Yep, got one
    Cooling
    Stella Artois (UK pint cans - 568 ml) - extra cost.
    Keyboard
    Built in UK keybd
    Mouse
    Bluetooth , wireless dongled, wired
    Internet Speed
    900 mbs (ethernet), wifi 6 typical 350-450 mb/s both up and down
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    TPM 2.0, 2xUSB4 thunderbolt, 1xUsb3 (usb a), 1xUsb-c, hdmi out, 3.5 mm audio out/in combo, ASUS backlit trackpad (inc. switchable number pad)

    Macrium Reflect Home V8
    Office 365 Family (6 users each 1TB onedrive space)
    Hyper-V (a vm runs almost as fast as my older laptop)
cereberus said:
I have never found a way to install MS 365 to another drive. I even tried with symlinks to fool installer it was installing to C drive.
Click to expand...
Thanks for the confirmation. I guess I'll just use my workaround of Windows to go on an external SSD.


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
TairikuOkami said:
No. 11 needs at least 52GB partition, but when I clean installed 24H2, there was like 2 GB free space left.
11 downloads updates and drivers during the setup, it is cleaned afterwards, but the setup might fail.
If you compress system partition, you might get a few GBs back, but 52GB is literally the minimum.
24H2 is more robust, it reserves a certain space, I have cleaned everything, yet it takes 30GB+
Click to expand...
This part is true if you're using Windows Setup, which enforces a 52 GB drive minimum.

But it's possible to install Windows manually using the following steps:
1. Boot from WinPE. Open a CMD shell (with Shift-F10)​
2. Manually re-partitioning and reformat the volumes as needed.​
3. Run DISM /Apply-Image to extract the install image to the target volume.​
4. Run "bcdboot [drive]:\Windows".​
5. Reboot into the newly installed Windows.​

Because you're not using Setup, there are no checks for the Windows volume size. For more details, you can follow this guide:
gist.github.com

Installing Windows using CMD. (UEFI and BIOS Supported)

Installing Windows using CMD. (UEFI and BIOS Supported) - win-dism.md
gist.github.com gist.github.com


My Computer

System One

  • OS
    Windows 7
You must log in or register to reply here.

Latest Support Threads

Latest Tutorials

Back
Top Bottom
