To be honest, I don't know if this is a network question or not.
Recently upgraded from W10>W11. Since then I can not get my backup program to write to my NAS - connected to my router via cable. PC connected to router wirelessly. Keep getting something similar to 'Failed to create directory' which I understand to mean 'lacks permission.'
I've found to grant permission, I must open Explorer, right click on the NAS, select Properties, select the Security tab. I have no Security tab. I have NO tabs.
How do I determine if W11 has granted permission to write to my NAS?
How do I grant permssion?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo Think Center M79
    Memory
    24MB
    Keyboard
    Loogitech
    Mouse
    Mogitech
    Browser
    Firefox

Dru2

Well-known member
Power User
VIP
Local time
4:25 AM
Posts
2,085
Location
Virginia
OS
Windows 11 Pro 21H2 (22000.795)
If you want help, you'll need to provide a few more details
  • What NAS - Brand? Model?
  • What backup program?
  • What version of Windows 11 - Insiders or RTM?
While I may not be able to help with your issue, someone else may with the info I asked about.

Good luck :)


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 (22000.795)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 P2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, audiophile media center, work.
  • Operating System
    Win 11 Pro Dev 22H2 (build 25140.1000)
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkPad Yoga X1
    CPU
    Intel i7-7600U
    Motherboard
    Intel
    Memory
    16igg
    Graphics card(s)
    Intel HD 620
    Sound Card
    Onboard
    Monitor(s) Displays
    14.0 WQHD OLED Touch
    Screen Resolution
    2560 x 1440
    Hard Drives
    1TB NVMe Drive (OEM)
    PSU
    laptop
    Case
    laptop
    Cooling
    Laptop cooling
    Mouse
    Logitech MX Anywhere 2S
    Keyboard
    Laptop
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security

lunisj

New member
Thread Starter
Local time
4:25 AM
Posts
16
OS
Windows 11
Synology DS210j.
Backup program - EaseUS to Do Home
Version W11 21H2
Insiders? RTM?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo Think Center M79
    Memory
    24MB
    Keyboard
    Loogitech
    Mouse
    Mogitech
    Browser
    Firefox

Wynona

Well-known member
Power User
VIP
Local time
3:25 AM
Posts
1,497
Location
Arkansas
OS
Windows 11 20000.613
Synology DS210j.
Backup program - EaseUS to Do Home
Version W11 21H2
Insiders? RTM?
Further to @Dru2's request, you should complete the specifications in My computer. There is room for a second system, so it would probably be good to give specs for the NAS also.

And, I know I can't help, except to help you understand what's necessary for the real experts to help you.


My Computers

System One System Two

  • OS
    Windows 11 20000.613
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Envy TE01-1xxx
    CPU
    ntel(R) Core(TM) i7-10700 CPU @ 2.90GHz 2.90 GHz
    Motherboard
    16.0GB Dual-Channel Unknown @ 1463MHz (21-21-21-47)
    Memory
    16384 MBytes
    Graphics Card(s)
    Intel UHD Graphics 630
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Monitor 1 - Acer 27" Monitor 2 - Acer 27"
    Screen Resolution
    1920 x 1080
    Hard Drives
    WDC PC SN530 SDBPNPZ-512G-1006 (SSD)
    Seagate ST1000DM003-1SB102
    Seagate BUP Slim SCSI Disk Device (SSD)
    PSU
    HP
    Case
    HP
    Cooling
    Standard
    Keyboard
    Logitech Wave K350
    Mouse
    Logitech M705
    Internet Speed
    100 mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    That's all Folks!
  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP
    CPU
    Intel Core i7 (10th gen) 10700
    Motherboard
    Intel
    Memory
    16 GB
    Graphics card(s)
    Intel UHD Graphics 630
    Sound Card
    Built-in
    Monitor(s) Displays
    Acer 27" & Samsung 24"
    Screen Resolution
    1920 x
    Hard Drives
    SSD (512 GB)
    HDD (1 TB)
    Seagate
    PSU
    Intel i7 10th Generation
    Case
    HP
    Cooling
    HP/Intel?
    Mouse
    Logitech M705
    Keyboard
    Logitech Wave K350
    Internet Speed
    50 mbps
    Browser
    Firefox 90.2
    Antivirus
    Windows Defender
    Other Info
    Headphone/Microphone Combo
    SuperSpeed USB Type-A (4 on front)
    HP 3-in-One Card Readr
    SuperSpeed USB Type-C
    DVD Writer

lunisj

New member
Thread Starter
Local time
4:25 AM
Posts
16
OS
Windows 11
"complete the specifications in My computer." Completely lost. I know how to find My Computer. What specs should I complete?
"There is room for a second system, so it would probably be good to give specs for the NAS also." Lost on that too


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo Think Center M79
    Memory
    24MB
    Keyboard
    Loogitech
    Mouse
    Mogitech
    Browser
    Firefox

Dru2

Well-known member
Power User
VIP
Local time
4:25 AM
Posts
2,085
Location
Virginia
OS
Windows 11 Pro 21H2 (22000.795)
We can forgo the system specs for now as it's more about the NAS and backup software.

WIth that when you upgraded to Windows 11, did you setup up networking as it was under Windows 10? Those may have been reset during the upgrade to 11....


Let us know.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 (22000.795)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 P2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 3
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, audiophile media center, work.
  • Operating System
    Win 11 Pro Dev 22H2 (build 25140.1000)
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkPad Yoga X1
    CPU
    Intel i7-7600U
    Motherboard
    Intel
    Memory
    16igg
    Graphics card(s)
    Intel HD 620
    Sound Card
    Onboard
    Monitor(s) Displays
    14.0 WQHD OLED Touch
    Screen Resolution
    2560 x 1440
    Hard Drives
    1TB NVMe Drive (OEM)
    PSU
    laptop
    Case
    laptop
    Cooling
    Laptop cooling
    Mouse
    Logitech MX Anywhere 2S
    Keyboard
    Laptop
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security

lunisj

New member
Thread Starter
Local time
4:25 AM
Posts
16
OS
Windows 11
Network discovery is on


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo Think Center M79
    Memory
    24MB
    Keyboard
    Loogitech
    Mouse
    Mogitech
    Browser
    Firefox

fixer

Member
Member
Local time
9:25 AM
Posts
63
OS
Windows 11 Pro
Try this -

Open Turn Windows features on or off
Tick SMB 1.0/CIFS File Sharing Support

Accept any security warning and try to connect. If unsuccessful undo the change.


My Computer

System One

  • OS
    Windows 11 Pro

Bree

Well-known member
Guru
VIP
Local time
9:25 AM
Posts
4,386
Location
S/E England, UK
OS
Windows 11 Home
I can not get my backup program to write to my NAS....
Try this -

Open Turn Windows features on or off
Tick SMB 1.0/CIFS File Sharing Support

That should work. From the User Manual for the DS210j it states that "Synology NAS supports the following file sharing protocols:
- For Windows: SMB/CIFS..."


There is no mention in the manual of any support for SMB 2.0, so it is safe to assume that it is a legacy device that only supports SMB 1.0. You just need to enable the 'SMB 1.0/CIFS Client' in Windows Features to be able to read/write to a legacy NAS such as yours appears to be. You do not need the 'SMB 1.0/CIFS Server', and you should make sure the automatic removal is not enabled.

smb-1-0-client-jpg.25911


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

lunisj

New member
Thread Starter
Local time
4:25 AM
Posts
16
OS
Windows 11
>>Open Turn Windows features on or off
>>Tick SMB 1.0/CIFS File Sharing Support

PERFECT!!! Thanks


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo Think Center M79
    Memory
    24MB
    Keyboard
    Loogitech
    Mouse
    Mogitech
    Browser
    Firefox

fixer

Member
Member
Local time
9:25 AM
Posts
63
OS
Windows 11 Pro

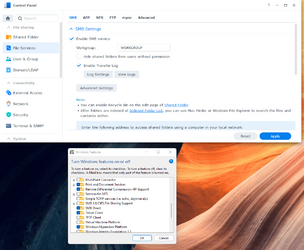

Pleased it worked for you but just a small correction - open the settings for SMB 1.0 and only select the Client option. That will reduce the security risk of running SMB 1.0. but it will still do what you want.

Last edited:

My Computer

System One

  • OS
    Windows 11 Pro

Compumind

Senior IT Consultant
MVP
VIP
Local time
4:25 AM
Posts
28
Location
USA
OS
W11 Professional

My Computer

System One

  • OS
    W11 Professional
    Computer type
    PC/Desktop
    Manufacturer/Model
    Various
    CPU
    Various
    Motherboard
    Various
    Memory
    Various
    Graphics Card(s)
    AMD and Nvidia
    Sound Card
    Integrated on Motherboard
    Monitor(s) Displays
    Dell Ultrasharp, ASUS
    Screen Resolution
    1080P, 4K
    Hard Drives
    HDD and SSD
    PSU
    500-1000 Watts
    Case
    Various
    Cooling
    Fan and/or Liquid (Preferred)
    Keyboard
    Various
    Mouse
    Various
    Internet Speed
    500/100 Mbps
    Browser
    Firefox and Edge
    Antivirus
    Various
    Other Info
    Wireless - AX and 6E

Bree

Well-known member
Guru
VIP
Local time
9:25 AM
Posts
4,386
Location
S/E England, UK
OS
Windows 11 Home
Windows 11 doesn't support SMB 2 or does it by default?
A default install of Windows 10/11 supports SMB2 and SMB3, with a preference for using the highest available version. It will however connect using SMB2 to a Windows 7 machine. SMB1 is available, but not enabled by default. Win7 only supports up to SMB 2.1. SMB 3.0 came in with Win8, 3.02 in Win8.1 and 3.1.1 in Win10.

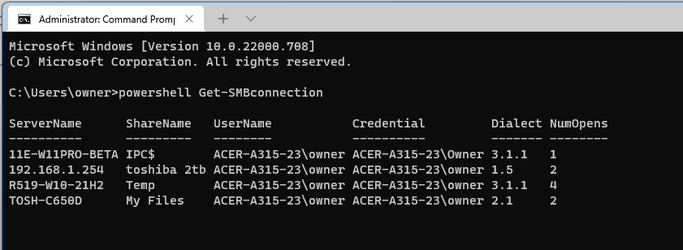

Here my network as seen from a Windows 11 PC, where the Toshiba 2TB share is a usb HDD on my router (SMB 1.5), TOSH-C650D is a Win7 PC (SMB 2.1) and the two W10 and W11 PCs are connected to using SMB 3.1.1.

SMB connections - mixed network.png


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

PenPusher

Member
Local time
9:25 AM
Posts
31
Location
Portsmouth, UK
OS
Windows 11 21H2

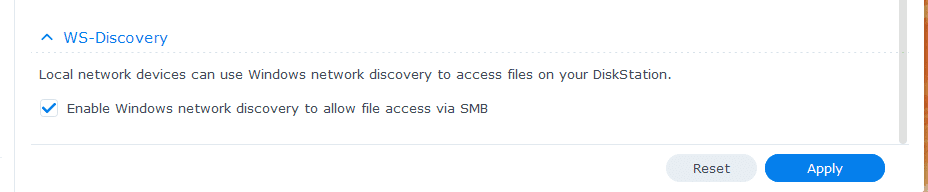

My file share settings just use SMB direct...

Screenshot 2022-06-13 130749.pngScreenshot 2022-06-13 132554.png

Last edited:

My Computer

System One

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    My Self
    CPU
    Intel Alder lake i7 12700K
    Motherboard
    Asus z690 Gaming WiFi D4
    Memory
    32 Gb Corsair Vengeance LPX DDR4 3200 XMP
    Graphics Card(s)
    EVGA 1080 sc
    Sound Card
    Via Display port
    Monitor(s) Displays
    Dell S2417DG
    Screen Resolution
    2560 x 1440 @ 165Hz G-Sync mode
    Hard Drives
    WD Black SN850 1Tb NVME, Samsung 970 Evo 500Gb NVME, Samsung 870 Qvo 1Tb SSD,
    Seagate ST2000DM001 2Gb
    PSU
    Corsair TX650v2
    Case
    Phanteks Enthoo Pro M Tempered Glass
    Cooling
    Be Quiet Shadow Rock 3
    Keyboard
    Logitech G Pro
    Mouse
    Logitech G903, Lightspeed + Powerplay Mat
    Internet Speed
    40Mb
    Browser
    Firefox
    Antivirus
    MS Defender
    Other Info
    Logitech C930e webcam, Synology DS218 play 4Tb

Bree

Well-known member
Guru
VIP
Local time
9:25 AM
Posts
4,386
Location
S/E England, UK
OS
Windows 11 Home
My file share settings just use SMB direct...
As long as your NAS uses SMB 2.0 or higher, as any modern one would, then that is sufficient. The problem only occurs if you have an older NAS or file server that can only use SMB 1.0.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

jimbo45

Well-known member
Power User
VIP
Local time
8:25 AM
Posts
1,894
Location
Hafnarfjörður IS
OS
Windows XP,7,10,11 Linux Arch Linux
As long as your NAS uses SMB 2.0 or higher, as any modern one would, then that is sufficient. The problem only occurs if you have an older NAS or file server that can only use SMB 1.0.
Any Linux distro these days even running on really ancient hardware can use SMBV3 or whatever these days -- just set the level in your smb.conf file (Samba). The problem is if you have older smart TVs, fire / roku sticks etc or even older "built in stand alone" NAS drives then SMB1 is likely to be needed still.

If you update KODI on a fire stick type device to latest (rel 19.xx) or dev version (rel 20.xx) then later SMB protocols are supported and work. -- Use settings->system from kodi panel and enable expert settings. I find Kodi brilliant on an amazon fire stick for accessing NAS multimedia -- plays any content (audio / video) even obscure formats like ape/cue and plays dvd / blu ray iso rips (including menus etc).

Cheers


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

GrayOldman1

I play with Trains
Local time
4:25 AM
Posts
20
OS
Windows 11
I have a Terramaster F4-210 Nas. I was having problems with one backup program. It would write to the Nas but nyou could not get the backoff off the Nas with the program(Macrium Reflect). I would have to copy it and paste it to a intenal drive in my computer. Aomei Backupper worked fine with the Nas in both directions. Come to find out it was my router giving the program problems. I had updated routers and it worked fine. I was having other problems at the same time with the router.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Myself
    CPU
    Ryzen 5-5600x
    Motherboard
    Asus B550A Gaming
    Memory
    16 GB
    Graphics Card(s)
    Nvida GeForce GTX 1060 6GB
    Sound Card
    On board sound
    Monitor(s) Displays
    Wide screen Samsung
    Hard Drives
    Evo M.2 Boot Drive 500GB, Evo 250 GB ssd, 2 each Seagate 1 Terabyte Hard disk.
    Teramaster NAS F4-210 with 4 6TB drives.
    PSU
    EVGA
    Case
    Rosewell
    Cooling
    Cooler master
    Internet Speed
    300meg
    Other Info
    Computers I have had are Ti-99A, Commodore 64(2) Original IBM PC with 2 floppies drives. Commodore 128, PC base 286, 386 cpu, Compaq 386 with internal DSL modem.
    A number of other computers, and now my last one.(I think)
Top Bottom
