Need help to identify problems with new laptop!


rezpower

Well-known member
Member
VIP
Local time
5:23 PM
Posts
184
OS
Windows 11 PRO
Here is the story: This is a brand new laptop (A Lenovo Legion 7i) with an intel 12800HX cpu and Nvidia RTX3070ti GPU.
The laptop has been having problems right out of its sealed box. But when using it, it's working fine and stable and I
have been playing many demanding games with it for hours without any problems or crashes. I have also used it for few
hours editing videos with adobe premiere without a single problem. Only strange thing I experience is some pops and clicks
when listening to music or watching videos while sound is perfect when playing games.

What I need, is to understand what kind of problem this laptop has and to make a decision on keeping it as it is, or sending
it for repair. Unfortunately as I live in France and as I ordered the laptop from UK I could not send it back to the vendor
for an exchange or refund. So I contacted Lenovo and they refused to exchange it. But as the laptop is under warranty for 3
years they are proposing that I send it to them for a repair. (Probably a motherboard change). The laptop cost 2800 euros
which is pretty expensive and it's kind of heart braking to have a brand new laptop opened up and repaired.


here are the errors and problems I am facing with this laptop:

On every restart the laptop is giving me few WHEA error 17:

A corrected hardware error has occurred.

Component: PCI Express Endpoint
Error Source: Advanced Error Reporting (PCI Express)

Primary Bus:Device:Function: 0x5:0x0:0x0
Secondary Bus:Device:Function: 0x0:0x0:0x0
Primary Device Name:pCI\VEN_144D&DEV_A80A&SUBSYS_A801144D&REV_00 <---This is Samsung NVMe Controller

I get 3 times this error on every boot but sometimes I get 20 to 30 times the same error when gaming.


I also get this error on every boot:

A corrected hardware error has occurred.

Component: PCI Express Legacy Endpoint
Error Source: Advanced Error Reporting (PCI Express)

Primary Bus:Device:Function: 0x1:0x0:0x0
Secondary Bus:Device:Function: 0x0:0x0:0x0
Primary Device Name:pCI\VEN_10DE&DEV_24E0&SUBSYS_3F9617AA&REV_A1 <---This is Nvidia RTX3070ti

PCI\VEN_8086&DEV_7AC5&SUBSYS_380117AA&REV_11 (Intel PCI Express Root Port #22)

Also on VEN_10DE&DEV_228B Nvidia high def audio and on PCI Express


The other warnings are:
The driver \Driver\WUDFRd failed to load for the device USB\VID_04F3&PID_0C4B\5&23c7526d&0&10. ELAN:Fingerprint

The driver \Driver\WUDFRd failed to load for the device ROOT\SYSTEM\0001. System Interface Foundation V2 Device

The driver \Driver\WUDFRd failed to load for the device PCI\VEN_8086&DEV_1137&SUBSYS_21080108&REV_00\08BAD8010F23040000. Thunderbolt(TM) Controller - 1137

The driver \Driver\WUDFRd failed to load for the device PCI\VEN_8086&DEV_461D&SUBSYS_380E17AA&REV_02\3&11583659&0&20. Intel(R) Innovation Platform Framework Processor Participant

WLAN Extensibility Module has stopped.
Module Path: C:\Windows\System32\DriverStore\FileRepository\netwtw6e.inf_amd64_05bb65221939f713\IntelIHVRouter10.dll


Also I get warnings on few CPU cores:
EX: The speed of processor 23 in group 0 is being limited by system firmware. The processor has been in this reduced performance state for 71 seconds since the last report.

Do you guys think that it is possible to figure out what is exactly causing these errors and what the problem is?
What would you do in my place? Would you keep it as long as it works correctly or would you send it for repair?

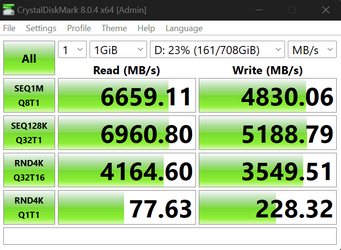

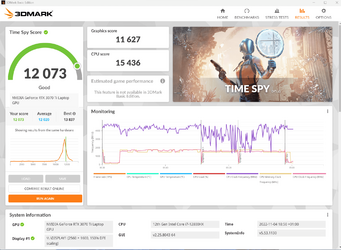

Screenshot 2022-11-04 185805.pngScreenshot 2022-11-21 MY CINEBENCH RESULT.pngScreenshot 2022-11-22 031031.png

Last edited:

My Computer

System One

  • OS
    Windows 11 PRO
    Computer type
    Laptop
    Manufacturer/Model
    Razer Blade 17
    CPU
    Intel i7-12800H
    Memory
    32 GB DDR5 4800 MHz dual-channel
    Graphics Card(s)
    NVIDIA® GeForce RTX™ 3080 Ti
    Sound Card
    Steinberg UR44
    Hard Drives
    1 TB SSD (M.2 NVMe PCIe 4.0 x4
    Browser
    Firefox
    Antivirus
    Windows Defender + Malwarebytes
What would you do in my place? Would you keep it as long as it works correctly or would you send it for repair?
But it's not working correctly is it? Send it for repair while you can.

You are not overclocking it, are you?


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
But it's not working correctly is it? Send it for repair while you can.

You are not overclocking it, are you?
As I mentioned earlier the laptop is working pretty well and not giving any trouble.
And no, of course no overclocking.
I would really like to know is if there is anyway (any kind of test) to understand what exactly is wrong !

I have already done a memory test which seems to be OK:

Last edited:

My Computer

System One

  • OS
    Windows 11 PRO
    Computer type
    Laptop
    Manufacturer/Model
    Razer Blade 17
    CPU
    Intel i7-12800H
    Memory
    32 GB DDR5 4800 MHz dual-channel
    Graphics Card(s)
    NVIDIA® GeForce RTX™ 3080 Ti
    Sound Card
    Steinberg UR44
    Hard Drives
    1 TB SSD (M.2 NVMe PCIe 4.0 x4
    Browser
    Firefox
    Antivirus
    Windows Defender + Malwarebytes
it is working pretty well! Either live with it and trouble shoot as you go along but my advice would be if it's under warranty send it back as some minor niggles now will only get worse


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Alienware M18 R1
    CPU
    13th Gen Core i9 13900HX
    Memory
    32GB DDR5 @4800MHz 2x16GB
    Graphics Card(s)
    Geforce RTX 4090HX 16GB
    Sound Card
    Nvidia HD / Realtek ALC3254
    Monitor(s) Displays
    18" QHD+
    Screen Resolution
    25660 X 1600
    Hard Drives
    C: KIOXIA (Toshiba) 2TB KXG80ZNV2T04 NVMe PCIe M.2 SSD
    D: KIOXIA (Toshiba) 2TB KXG80ZNV2T04 NVMe PCIe M.2 SSD
    Case
    Dark Metallic Moon
    Keyboard
    Alienware M Series per-key AlienFX RGB
    Mouse
    Alienware AW610M
    Browser
    Chrome and Firefox
    Antivirus
    Norton
    Other Info
    Killer E3000 Ethernet Controller
    Killer Killer AX1690 Wi-Fi Network Adaptor Wi-Fi 6E
    Bluetooth 5.2
    Alienware Z01G Graphic Amplifier
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Alienware Area 51m R2
    CPU
    10th Gen i-9 10900 K
    Memory
    32Gb Dual Channel DDR4 @ 8843MHz
    Graphics card(s)
    Nvidia RTX 2080 Super
    Sound Card
    Nvidia
    Screen Resolution
    1920 x 1080
    Hard Drives
    Hard Drive C: Samsung 2TB SSD PM981a NVMe
    Hard Drive D:Samsung 2TB SSD 970 EVO Plus
    Mouse
    Alienware 610M
    Browser
    Chrome
    Antivirus
    Norton
it is working pretty well! Either live with it and trouble shoot as you go along but my advice would be if it's under warranty send it back as some minor niggles now will only get worse
Thanks a lot. The laptop has a 3 year premium warranty. Without this I would only sit and cry! So I know that for the next 3 years anytime I want I can ask for a repair.


My Computer

System One

  • OS
    Windows 11 PRO
    Computer type
    Laptop
    Manufacturer/Model
    Razer Blade 17
    CPU
    Intel i7-12800H
    Memory
    32 GB DDR5 4800 MHz dual-channel
    Graphics Card(s)
    NVIDIA® GeForce RTX™ 3080 Ti
    Sound Card
    Steinberg UR44
    Hard Drives
    1 TB SSD (M.2 NVMe PCIe 4.0 x4
    Browser
    Firefox
    Antivirus
    Windows Defender + Malwarebytes
Those are warnings, not actual errors right? And you have not seen any crashes.
The system is also reporting the majority as correctable errors.
Just hope for some driver updates, or a BIOS update.

It's your call and it's your machine.
