New microcode for Intel 13th and 14th gen issues 9/25/2024 UPDATE

PerpetualCycle · Aug 8, 2024

EDIT: update 9/25/2024 New microcode 0x12B incoming:

Intel Core 13th and 14th Gen Desktop Instability Root Cause Update

Following extensive investigation of the Intel® Core™ 13th and 14th Gen desktop processor Vmin Shift Instability issue, Intel can now confirm the root cause diagnosis for the issue. This post will cover Intel’s understanding of the root cause, as well as additional mitigations and next steps for...

community.intel.com

Microcode and BIOS code requesting elevated core voltages which can cause Vmin shift especially during periods of idle and/or light activity.
a. Mitigation: Intel® is releasing microcode 0x12B, which encompasses 0x125 and 0x129 microcode updates, and addresses elevated voltage requests by the processor during idle and/or light activity periods.

===========================================================================================

I have a beta BIOS with the 129h Intel microcode with the voltage fixes and am testing it now on my Asus/13900KS system.

Looks like it is on track for mid-August official BIOS release I imagine, for those following this.

EDIT:1 So far so good on memory stability,

erpster4 · Aug 8, 2024

Asus is not the only board maker releasing new bios updates.

Asrock & MSI are also dishing out bios updates for some of their boards that use 13th & 14th gen Intel CPUs:

Intel's patch for CPU instability and crashing issues rolls out from MSI and ASRock — Asus ROG motherboard users can also access a beta update

Enthusiasts will be keen to check performance and see a halt to degradation.

www.tomshardware.com

https://www.msi.com/news/detail/BIOS-Update-For-Intel-Core-14th-and-13th-Gen-Desktop-Processor-Instability-144258

Marcus Vinicus · Aug 8, 2024

Thanks for the update @PerpetualCycle.

When Asus release the final version of the new bios I'll update my ProArt Z790 then.

PerpetualCycle · Aug 8, 2024

erpster4 said:
Asus is not the only board maker releasing new bios updates.

Asrock & MSI are also dishing out bios updates for some of their boards that use 13th & 14th gen Intel CPUs:

Intel's patch for CPU instability and crashing issues rolls out from MSI and ASRock — Asus ROG motherboard users can also access a beta update

Enthusiasts will be keen to check performance and see a halt to degradation.

www.tomshardware.com

https://www.msi.com/news/detail/BIOS-Update-For-Intel-Core-14th-and-13th-Gen-Desktop-Processor-Instability-144258

Sure. No doubt. Point was Intel has released it to board manufacturers.

Steve C · Aug 9, 2024

PerpetualCycle said:
I have a beta BIOS with the 129h Intel microcode with the voltage fixes and am testing it now on my Asus/13900KS system.

Looks like it is on track for mid-August official BIOS release I imagine, for those following this.

EDIT:1 So far so good on memory stability,

Is there a performance hit?

PerpetualCycle · Aug 9, 2024

Steve C said:
Is there a performance hit?

Still working on the memory testing (I had tightened the timings alot), but I don't think so. Will report back.

no1yak · Aug 9, 2024

PerpetualCycle said:
I have a beta BIOS with the 129h Intel microcode with the voltage fixes and am testing it now on my Asus/13900KS system.

Looks like it is on track for mid-August official BIOS release I imagine, for those following this.

EDIT:1 So far so good on memory stability,

Also running the beta Bios on a 790 Strix -F and 13900K. My instant voltage for single core has never been higher than 1.350v even before this new microcode. Still using LLC3 and SVID In trained mode @1.296v. So As far as I 'm concerned this update hasn't done anything. Memory is running @6400 Mt in tweaked mode and is steady as a rock. Just as a test I ran Cinebench R23, cpu pulled 225 watts @ 1.1640v with a one off score of 38589. So for me there is no drop in the performance from the previous BIOS.

retiredat44 · Aug 9, 2024

yay installed another Asus Bios,,, yesterday,, if this continues it will probably brick

PerpetualCycle · Aug 9, 2024

No performance hits here that I have found
Ran Cinibench23, y-cruncher, desktop graphics GDI - all good. Cinibench at 40k+

I am running LLC4, ACLL 0.20, pCores 5.7GHz all core, Ecores 4.4GHz all cores, rIng 4.8 GHz, SVID adaptive
Have Maximum core Temp set to 85c, power limits both 320W and current 400A

PerpetualCycle · Aug 9, 2024

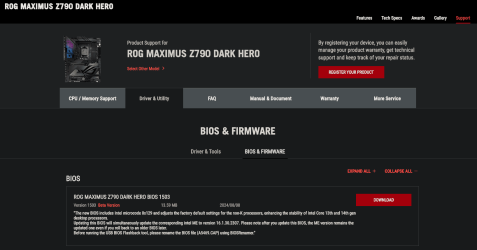

These beta BIOS are showing up on the official Asus support web-sites now..

I am liking this BIOS so far

Scott · Aug 9, 2024

They just added a beta version for my Z690

Steve C · Aug 10, 2024

PerpetualCycle said:
These beta BIOS are showing up on the official Asus support web-sites now..

I am liking this BIOS so far

View attachment 103814

There are reports on the Asus forum about worse instability and poor performance using the Beta BIOS. I'm waiting for the full release and positive user feedback.

PurSpyk!! · Aug 10, 2024

My Asus Z790 ProArt Creator, originally had beta bios 2503, today 2504 was listed, so there had to be some issues.

PerpetualCycle · Aug 10, 2024

This article has Intel's latest statement on the microcode with some detail of what they have done in the microcode.

Read Intel’s biggest statement yet on how it’s addressing Raptor Lake CPU woes

Three mitigations, and more to come.

www.theverge.com

Excerpt:

The latest microcode update (0x129) will limit voltage requests above 1.55V as a preventative mitigation for processors not experiencing instability symptoms. This latest microcode update will primarily improve operating conditions for K/KF/KS processors. Intel is also confirming, based on extensive validation, all future products will not be affected by this issue.

Intel is continuing to investigate mitigations for scenarios that can result in Vmin shift on potentially impacted Intel Core 13th and 14th Gen desktop processors. Intel will provide updates by end of August.

Intel’s internal testing – utilizing Intel Default Settings - indicates performance impact is within run-to-run variation (eg. 3DMark: Timespy, WebXPRT 4, Cinebench R24, Blender 4.2.0) with a few sub-tests showing moderate impacts (WebXPRT Online Homework; PugetBench GPU Effects Score). For gaming workloads tested, performance has also been within run-to-run variation (eg. Cyberpunk 2077, Shadow of the Tomb Raider, Total War: Warhammer III – Mirrors of Madness) with one exception showing slightly more impact (Hitman 3: Dartmoor). However, system performance is dependent on configuration and several other factors.

For unlocked Intel Core 13th and 14th Gen desktop processors, this latest microcode update (0x129) will not prevent users from overclocking if they so choose. Users can disable the eTVB setting in their BIOS if they wish to push above the 1.55V threshold. As always, Intel recommends users proceed with caution when overclocking their desktop processors, as overclocking may void their warranty and/or affect system health. As a general best practice, Intel recommends customers with Intel Core 13th and 14th Gen desktop processors utilize the Intel Default Settings.

So it is more of a mitigation than a fix IMO. I already had my core voltage limited 10 1.5 in my BIOS (and I assume that actually worked as intended).

snerd · Aug 10, 2024

PurSpyk!! said:
My Asus Z790 ProArt Creator, originally had beta bios 2503, today 2504 was listed, so there had to be some issues.

Yep. I’m on 2103 and when checking for newer bios I see those two. I’m holding off for now, not sure of either one.

BrandonR · Aug 10, 2024

Not sure if this is the correct place to ask this. is updating to the latest bios for the K version of the i9 14900 required? I've had no issues with my CPU and I'm not really seeing the need to update and risk frying my board.

bobkn · Aug 11, 2024

BrandonR said:
Not sure if this is the correct place to ask this. is updating to the latest bios for the K version of the i9 14900 required? I've had no issues with my CPU and I'm not really seeing the need to update and risk frying my board.

Intel has extended their warranty on that CPU.

It's unclear whether not updating the BIOS would affect the warranty. My guess is that it's not required for the warranty extension.

On the other hand, I haven't bricked a motherboard in many years with a BIOS update, though. (A couple of early EFI boards had issues.)

PerpetualCycle · Aug 11, 2024

BrandonR said:
Not sure if this is the correct place to ask this. is updating to the latest bios for the K version of the i9 14900 required? I've had no issues with my CPU and I'm not really seeing the need to update and risk frying my board.

What BIOS version are you on now? How do you use your computer?

This BIOS version correctly uses the Intel profile by default. Earlier versions do not, which can possibly result in instability and long term degradation of the processor. It also contains new processor microcode that mitigates a microcode bug that gave the cores too much voltage by limiting the voltage. This is what iintel currently considers the root cause of stability and degredation issues. Depending on we hat version you have, it may also update your Intel ME firmware.

It is up to you, but I would/ did and I recommend it. It is not going to burn your rig down. But if you do update it, I would wait until they release an official version rather than the beta.

BrandonR · Aug 11, 2024

I'm on Version 1662 Beta Version. just got done updating the bios to the latest. to answer previous questions.. I use my PC for gaming/recording gameplay or basic use such as watching YouTube.

Steve C · Aug 11, 2024

Asus have now released a beta BIOS with microcode 0x129 for my Z790 board. What do people think of this beta release? I usually skip beta BIOS releases and wait for the fully tested BIOS update.
