Partition Wizard Shows Partition Fully Used


HalfManHalfBean

New member
Local time
6:47 PM
Posts
6
Visit site
OS
Windows 10
Hi there, I am trying to upgrade my laptop SSD, for which I'd like to copy my OS to the new drive using MiniTool Partition Wizard version 10. I would like to resize the OS partition to just 300gb (instead of 475 on current drive). It won't let me resize the partition in the destination drive (see screenshot 1 for reference). I think its because its showing the partition to be fully used, which it is not (see screenshot 2). Any help on how to fix this would be appreciated, I don't want the partition which i'll just use for the OS to be 500gb!

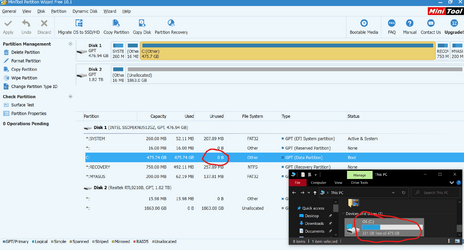

1670018663829.pngScreenshot 1
1670018440057.pngScreenshot 2


My Computer

System One

  • OS
    Windows 10

OAT

I never seem to know enough.
Member
Local time
10:47 AM
Posts
488
Location
San Diego, CA
Visit site
OS
Windows 11 Pro for workstation Dev
The partition is not a NTFS partition, so it needs formatting.
Please do a search for disk management, hit create and format hard disk partitions .
It will take you to where you want.
Make sure to manipulate the right partitions.


My Computers

System One System Two

  • OS
    Windows 11 Pro for workstation Dev
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Keyboard
    AZERTY
    Mouse
    MS Bluetooth
    Internet Speed
    ADSL
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
  • Operating System
    Windows 11 Insider Beta
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM

HalfManHalfBean

New member
Thread Starter
Local time
6:47 PM
Posts
6
Visit site
OS
Windows 10
I'm not sure I want to re-format my C:/ partition containing my OS haha!
Or did you mean I should assign the destination drive do have a partition name thru 'create simple volume' in diskmgmt?

Would having my OS on a partition with a different path than C:/ not cause problems with Windows?


My Computer

System One

  • OS
    Windows 10

HalfManHalfBean

New member
Thread Starter
Local time
6:47 PM
Posts
6
Visit site
OS
Windows 10
The partition is not a NTFS partition, so it needs formatting.
Please do a search for disk management, hit create and format hard disk partitions .
It will take you to where you want.
Make sure to manipulate the right partitions.
I'm not sure I want to re-format my C:/ partition containing my OS haha!
Or did you mean I should assign the destination drive do have a partition name thru 'create simple volume' in diskmgmt?
View attachment 46745

Would having my OS on a partition with a different path than C:/ not cause problems with Windows?
Man its been a while since i've posted on an actual forum, forgot replies work thru quotes :))


My Computer

System One

  • OS
    Windows 10

OAT

I never seem to know enough.
Member
Local time
10:47 AM
Posts
488
Location
San Diego, CA
Visit site
OS
Windows 11 Pro for workstation Dev
Or did you mean I should assign the destination drive do have a partition name thru 'create simple volume' in diskmgmt?
Yes, the smart move would be NOT to erase your OS partition. (y)
At this point you want to use the unallocated area of drive 1.
Copying the OS to the new SSD drive will require you to do a bit of searching on this site.

You'll get more info here:
How to move Microsoft's Windows 11 from a hard drive to an SSD | IT PRO
They recommend using Macrium free which many of us use.
Then you will clone the partition.
Follow the instructions, take your time, it should be a piece of cake.


My Computers

System One System Two

  • OS
    Windows 11 Pro for workstation Dev
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Keyboard
    AZERTY
    Mouse
    MS Bluetooth
    Internet Speed
    ADSL
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
  • Operating System
    Windows 11 Insider Beta
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM

HalfManHalfBean

New member
Thread Starter
Local time
6:47 PM
Posts
6
Visit site
OS
Windows 10
Seems to be fixed, was able to resize the partition on the target drive. Small issue with not being able to hide the 16mb windows reserves on the drive, but i'll fix that after migration/frying of target drive. Thanks for the help!


My Computer

System One

  • OS
    Windows 10
  • Like
Reactions: OAT

cereberus

Well-known member
Pro User
VIP
Local time
5:47 PM
Posts
3,388
Visit site
OS
Windows 10 Pro + others in VHDs
Seems to be fixed, was able to resize the partition on the target drive. Small issue with not being able to hide the 16mb windows reserves on the drive, but i'll fix that after migration/frying of target drive. Thanks for the help!
Just remove drive letter for 16MB partition if one has been assigned using diskpart or tool like minitool partition wizard free.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Winuser

Well-known member
Pro User
VIP
Local time
12:47 PM
Posts
4,465
Visit site
OS
Windows 11
Looks like a bug in MiniTool Partition Wizard version 10. I'm running the licensed version and it's up to 12.7 and it shows the correct size used on all of my drives.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

HalfManHalfBean

New member
Thread Starter
Local time
6:47 PM
Posts
6
Visit site
OS
Windows 10
So, quick update:
Managed to resize and clone, but wasn't able to boot from the cloned drive. Retried with Macrium, same problem. After much research I've managed to fix it. Seems there was an issue with the Master Boot Record (MBR) on the clone-drive.

For anyone with the same issue trying to follow along *proceed at your own risk, the following is prone to error, involves making edits in system32 through command prompt and may ruin your drive further*.

What I ended up doing to solve the issue:
Created installation media USB drive
Installed cloned drive into laptop (doesn't boot, but contains OS)
Booted from USB drive with windows installation media to access command prompt thru troubleshoot function
Tried following this guide to repair the master boot record (using the bootrec commands listed):
Cloned Drive Won't Boot | How to Make Cloned Drive Bootable?
When running into an access denied prompt with the bootrec /fixboot command, wound up on this guide:
https://www.partitionwizard.com/clone-disk/bootrec-fixboot-access-is-denied.html?amp
Following the above guide, ran into a hitch on step 12, for which I used this video:

and poof, i was in Windows!
Imagine reinstalling Windows like a pleb, ha!


My Computer

System One

  • OS
    Windows 10

Ghot

Well-known member
Pro User
VIP
Local time
12:47 PM
Posts
5,654
Location
PA, USA
Visit site
OS
Win 11 Home ♦♦♦22621.1194 ♦♦♦♦♦♦♦22H2
@HalfManHalfBean


Looks like a bug in MiniTool Partition Wizard version 10. I'm running the licensed version and it's up to 12.7 and it shows the correct size used on all of my drives.

As mentioned here.... update Minitool Partition Wizard.



My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22621.1194 ♦♦♦♦♦♦♦22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4201)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Winuser

Well-known member
Pro User
VIP
Local time
12:47 PM
Posts
4,465
Visit site
OS
Windows 11
So, quick update:
Managed to resize and clone, but wasn't able to boot from the cloned drive. Retried with Macrium, same problem. After much research I've managed to fix it. Seems there was an issue with the Master Boot Record (MBR) on the clone-drive.
This is why I always use an image. I've never had a cloned drive boot without having to fix the MBR.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

Winuser

Well-known member
Pro User
VIP
Local time
12:47 PM
Posts
4,465
Visit site
OS
Windows 11
Yeah I saw imaging being mentioned here and there. What's the difference and how would I've gone about it?
When I do an image the first thing I do is make a folder for it. I use the date as the name of the folder. Then in Macrium I click on the drive that contains the C:\ partition and make sure that all partitions are selected, then I choose image this disk. I then select the folder to save the image to and hit Finish. I untick the save as a backup definition file and hit OK.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

Scott

Well-known member
Member
VIP
Local time
7:47 AM
Posts
432
Location
Maui, HI
Visit site
OS
Win 11 Pro 22H2 22621.1194
So, quick update:
Managed to resize and clone, but wasn't able to boot from the cloned drive. Retried with Macrium, same problem. After much research I've managed to fix it. Seems there was an issue with the Master Boot Record (MBR) on the clone-drive.

Strange, I literally just did the same thing with a really old ASUS laptop. Cloned the HDD to a SSD in a USB caddy, put the SSD in laptop and it booted right up. Didn't have to do anything special. Used Macrium 8 Free.


My Computers

System One System Two

  • OS
    Win 11 Pro 22H2 22621.1194
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i5-11600KF
    Motherboard
    ASUS TUF GAMING Z590-PLUS WIFI
    Memory
    CORSAIR Vengeance LPX 64GB (4x16GB)
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Creative Labs PCIe Sound Blaster X-Fi Titanium (dan_k drivers)
    Monitor(s) Displays
    ASUS TUF Gaming 27" WQHD
    Screen Resolution
    2560 x 1440
    Hard Drives
    SAMSUNG 980 Pro SSD 500GB PCle 4.0 NVMe (boot)
    SAMSUNG 970 EVO 1TB PCle 3.0 NVMe (x2)
    SAMSUNG 870 EVO 2TB SATA III (x2)
    SAMSUNG 870 EVO 250GB SATA III
    PSU
    CORSAIR HX750
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Corsair Hydro Series H60 AIO
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    200Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    UEFI, Secure Boot, TPM 2.0
    MR 8 HE
  • Operating System
    Win 11 Pro 22H2 22621.963
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel Core i7-8700
    Motherboard
    Asus Prime Z370 P-II
    Memory
    32 GB DDR4
    Graphics card(s)
    EVGA GeForce GTX 760
    Sound Card
    Realtek
    Monitor(s) Displays
    Samsung SMT27A300
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 870 EVO 500GB SSD
    Seagate Barracuda 7200rpm 1TB HDD (X2)
    PSU
    Corsair CX550M
    Case
    Old Antec, unknown model
    Cooling
    Hyper 212 EVO
    Browser
    Firefox
    Antivirus
    Windows Security

SIW2

Well-known member
Power User
VIP
Local time
5:47 PM
Posts
647
Visit site
OS
Win7
So, quick update:
Managed to resize and clone, but wasn't able to boot from the cloned drive. Retried with Macrium, same problem. After much research I've managed to fix it. Seems there was an issue with the Master Boot Record (MBR) on the clone-drive.
That is why I suggest diskgenius ( free version is fine ) for cloning/os migration.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

jumanji

Well-known member
Member
VIP
Local time
11:17 PM
Posts
1,455
Visit site
OS
Windows10
My observation and comments:
Hi there, I am trying to upgrade my laptop SSD, for which I'd like to copy my OS to the new drive using MiniTool Partition Wizard version 10. I would like to resize the OS partition to just 300gb (instead of 475 on current drive). It won't let me resize the partition in the destination drive (see screenshot 1 for reference). I think its because its showing the partition to be fully used, which it is not (see screenshot 2). Any help on how to fix this would be appreciated, I don't want the partition which i'll just use for the OS to be 500gb!


View attachment 46740Screenshot 1
View attachment 46739Screenshot 2
You weren't able to resize the system partition because you had selected "2. Copy partitions wthout resize"


What I ended up doing to solve the issue:
Created installation media USB drive
Installed cloned drive into laptop (doesn't boot, but contains OS)
Booted from USB drive with windows installation media to access command prompt thru troubleshoot function
Tried following this guide to repair the master boot record (using the bootrec commands listed):
Cloned Drive Won't Boot | How to Make Cloned Drive Bootable?
When running into an access denied prompt with the bootrec /fixboot command, wound up on this guide:
Quickly Fix: Bootrec /Fixboot Access Is Denied in Windows 10
Following the above guide, ran into a hitch on step 12, for which I used this video:
If only using the same Partition Wizard you had given the volume label OS ( the volume label of your original C:) to the copied partition in the target disk, there wouldn't have been any need to go through this convoluted process to assign the volume label to make the target disk bootable.


My Computer

System One

  • OS
    Windows10

Latest Support Threads

Top Bottom
