problem with Disk and Volumes 'System FAT 32 Fo;; repair needed'


Nancee

New member
Local time
4:04 PM
Posts
12
OS
windows 11
Hello help please
I have a new laptop which came with windows 11. I upgrade it to Windows 11, it din't work as expected , lots of niggles , like spotlight wouldn't work, it didn't find my desktop settings, so I did an install repair, .But some how it had bitlocker on ( I didn't even know Bitlocker was available it Windows Home ) so it restored from online only.
I have sorted most problems with help from this site but I found this problem 'System Fat 32 Full repir needed'
Does it matter? Can I prepare a Recovery Drive on my HDD ?
If not what do Ineed to do please? I am a novice. I can follow indtructions but have little knowledge .
Thank you in advance for your help

Windows Build/Version
Windows 11 21H2 (OS build 22000.613 )

Attachments

  • Screenshot 2022-04-22 201704.png
    Screenshot 2022-04-22 201704.png
    25.7 KB · Views: 3

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

Ghot

Well-known member
Pro User
VIP
Local time
11:04 AM
Posts
3,159
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778
Hello help please
I have a new laptop which came with windows 11. I upgrade it to Windows 11, it din't work as expected , lots of niggles , like spotlight wouldn't work, it didn't find my desktop settings, so I did an install repair, .But some how it had bitlocker on ( I didn't even know Bitlocker was available it Windows Home ) so it restored from online only.
I have sorted most problems with help from this site but I found this problem 'System Fat 32 Full repir needed'
Does it matter? Can I prepare a Recovery Drive on my HDD ?
If not what do Ineed to do please? I am a novice. I can follow indtructions but have little knowledge .
Thank you in advance for your help



Use backup software. Then no matter what happens or breaks... you can always restore from a backup.



My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

zbook

Well-known member
Power User
VIP
Local time
10:04 AM
Posts
1,086
OS
Windows 10
Please perform the following steps:


1) Post an image of disk management:

a) widen these rows: disk 0, disk 1, disk 2, etc. > make sure that no characters are cut off

b) widen these columns: Volume and Sources > make sure that no characters are cut off






2) Run: (these currently may require a Ten Forums logon)

a) https://www.tenforums.com/attachmen...-files-use-bsod-debugging-tuneup_plus_log.bat

b) https://www.tenforums.com/attachmen...atch-files-use-bsod-debugging-diskparinfo.bat

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
Thank you
iIthink I've done as you asked


Attachments

  • Tuneup.log
    5.8 KB · Views: 1
  • DiskParlInfo.txt
    5.8 KB · Views: 2

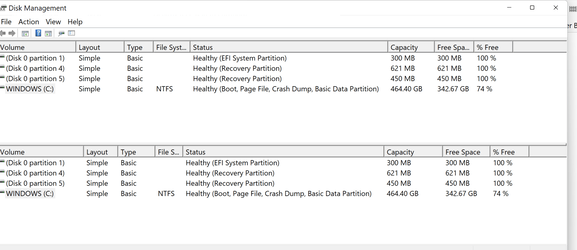

  • disk managment 1.png
    disk managment 1.png
    72.6 KB · Views: 3

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
Sorry
Had to leave it to get dinner didn't realise it had been posted.
I wanted to add my back up report, took me a while to change it to an acceptable Format
Thank you in advamce for looking at this it means nothing to me! i have found an olde back up which appears to be Ok so i thought i might try restoring ( good idea)?


Attachments

  • Backup Report ECPC System Image (NewPC) ( 2022-04-22 23 06 28 ).pdf
    93.2 KB · Views: 1

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

zbook

Well-known member
Power User
VIP
Local time
10:04 AM
Posts
1,086
OS
Windows 10
The disk management image share link was missing the rows for the disk drives.
Please post new images or share links displaying all of the displayed data.

The tuneup plus results were all unremarkable.

There were no diskpar info results.
The link opened with tuneup plus results.

Please post a share link for diskpar info.
If necessary you can run the scrip again.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
thanks I have tried again sorry for not getting it right first time! Thanks again for looking !


Attachments

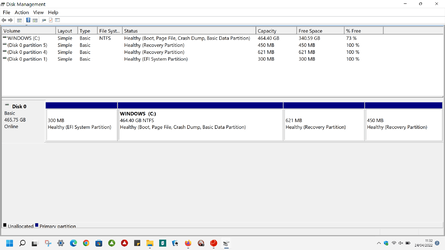

  • disk management .png
    disk management .png
    63.2 KB · Views: 2
  • diskparl.pdf
    71.9 KB · Views: 1

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

zbook

Well-known member
Power User
VIP
Local time
10:04 AM
Posts
1,086
OS
Windows 10
Open administrative command prompt and type or copy and paste:

manage-bde -status C:

Post images of the command with results.

Turn off Bitlocker:



Open administrative command prompt and type or copy and paste:

bcdedit
reagentc /info
diskpart
lis dis
lis vol
sel dis 0
det dis
lis par
sel par 1
assign letter=W
exit

bcdboot C:\windows /s W: /f UEFI

Reboot the computer


The computer has an extra Windows recovery partition.
Indicate whether you want to delete it or leave it.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
Thank you
I think I've done thsi followed your instructions screen print is not working so used snipping tool however once i got to the last instruction it said W was not available so I used Z went to reboot and the machine insited on doing an update so din't manage to get the last screen shots Do I have another go tomorrow? the disks and volume si still showin g the same reprair needed nand the disk management looks the same, Shouls I give up and reinsatll windows? Silly question ( for you ) do i use the recovery in windows or us ethe zhift restet option? My son told me about that one! He's good with computers but doesn't use windows! Thank you so much for your time. I'm off to bed now.


Attachments

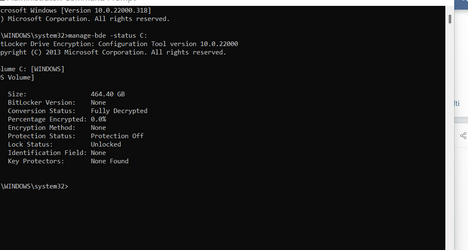

  • manage-bde.png
    15.1 KB · Views: 1

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

zbook

Well-known member
Power User
VIP
Local time
10:04 AM
Posts
1,086
OS
Windows 10
When using administrative command prompt or administrative power shell results can be copied and pasted using the following steps:

Right click on the top bar or title bar of the box > left click on edit then select all > right click on the top bar again > left click on edit then copy > paste into the thread, notepad, wordpad, word, etc.

When posting text into the thread please click the menu option </> and paste into the box > click continue
(this will maintain the layout for columns and rows)

Please run the commands again in the earlier post so that the commands can be see with the results.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
thank you I hope I've got it correctly this time


Attachments

  • results 1.txt
    4 KB · Views: 1

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

zbook

Well-known member
Power User
VIP
Local time
10:04 AM
Posts
1,086
OS
Windows 10
This was the above report:

Code:
Microsoft Windows [Version 10.0.22000.613]
(c) Microsoft Corporation. All rights reserved.

C:\windows\system32>bcdedit

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  en-us
inherit                 {globalsettings}
default                 {current}
resumeobject            {b607b2f0-c410-11ec-a57c-7c70dbfd084e}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 30

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \windows\system32\winload.efi
description             Windows 11
locale                  en-us
inherit                 {bootloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \windows
resumeobject            {b607b2f0-c410-11ec-a57c-7c70dbfd084e}
nx                      OptIn
bootmenupolicy          Standard

C:\windows\system32>reagentc /info
Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: 484440a7-c3df-11ec-a578-7c70dbfd084e
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0

REAGENTC.EXE: Operation Successful.


C:\windows\system32>diskpart

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: ECPC

DISKPART> lis dis

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          465 GB  2048 KB        *

DISKPART> lis vol

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   WINDOWS      NTFS   Partition    464 GB  Healthy    Boot
  Volume 1         SYSTEM       FAT32  Partition    300 MB  Healthy    System
  Volume 2                      NTFS   Partition    621 MB  Healthy    Hidden
  Volume 3         RECOVERY     NTFS   Partition    450 MB  Healthy    Hidden

DISKPART> sel dis  0

Disk 0 is now the selected disk.

DISKPART> det dis

WD Blue SN570 500GB
Disk ID: {E2CE9353-19AA-463A-90CD-32DBC6C81AD4}
Type   : NVMe
Status : Online
Path   : 0
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0600)#PCI(0000)#NVME(P00T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   WINDOWS      NTFS   Partition    464 GB  Healthy    Boot
  Volume 1         SYSTEM       FAT32  Partition    300 MB  Healthy    System
  Volume 2                      NTFS   Partition    621 MB  Healthy    Hidden
  Volume 3         RECOVERY     NTFS   Partition    450 MB  Healthy    Hidden

DISKPART> lis par

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             300 MB  1024 KB
  Partition 2    Reserved            16 MB   301 MB
  Partition 3    Primary            464 GB   317 MB
  Partition 4    Recovery           621 MB   464 GB
  Partition 5    Recovery           450 MB   465 GB

DISKPART> sel par 1

Partition 1 is now the selected partition.

DISKPART> assign letter=W

DiskPart successfully assigned the drive letter or mount point.

DISKPART> exit

Leaving DiskPart...

C:\windows\system32>bcdboot C;\windows/sW;/fUEFI
Failure when attempting to copy boot files.

C:\windows\system32>


The command was typed incorrectly.

Please copy and paste this command:

bcdboot C:\windows /s W: /f UEFI

Please post results into this thread or post an image or share link.



There are two recovery partitions.

Only one is needed.

It displayed disabled and can be evaluated after the system partition is fixed.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
tahnks Zbook
got it this time but now.. sorry totally out of my depth!


Attachments

  • windows boot manager.txt
    4 KB · Views: 1

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

zbook

Well-known member
Power User
VIP
Local time
10:04 AM
Posts
1,086
OS
Windows 10
Nice.

The command completed.

See if there is any way to see if you can prompt the error message.


Open administrative command prompt and type or copy and paste:

reagentc /enable
reagentc /info

Post a link for the command with results.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
Try 3
found it when looking at settings system -storage disks and volumes


Attachments

  • Screenshot 2022-04-22 201704.png
    Screenshot 2022-04-22 201704.png
    25.7 KB · Views: 1

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
to Zbooks
done it


Attachments

  • reagentc.txt
    707 bytes · Views: 1

My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)

Try3

Well-known member
Power User
VIP
Local time
4:04 PM
Posts
575
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.739
found it when looking at settings system -storage disks and volumes

And I'm sorry for asking. I can now see that you'd posted that diagram in your original question.

The report says that your EFI System partition is damaged.

@SIW2
@NavyLCDR
If I remember correctly, you have helped people recreate their EFI System partitions. Perhaps you can help this OP.

All the best,
Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.739

zbook

Well-known member
Power User
VIP
Local time
10:04 AM
Posts
1,086
OS
Windows 10
The commands worked.
Looks good.
Please indicate if you need any additional help.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Nancee

New member
Thread Starter
Local time
4:04 PM
Posts
12
OS
windows 11
yes please I have no idea what happend next I noted you said i get an option to delete something I didn;t see taht anywhere/ I have looked at Disk volumes is is still saying the same thing/ I am sorry to keep bothering you dut do i now try yo do a back up ? Last time it said
'
2022-04-22 23:06:27 Error Disk 0 bytes
The disk '<unknown>' was not backed up because it is not accessible at the moment.'
so I haven't tried to restore or to create a recovery disk. Only tme I have come accross making a recovery disk was W ndows 8 I think I was told onlt to do it ronce But it ws to DVD or may CD! I can't thank you enough for your time


My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Novatech
    CPU
    Intel(R) Core(TM) i3-10110U CPU @ 2.10GHz 2.59 GHz
    Memory
    16.0 GB (15.8 GB usable)
Top Bottom
