Recommended bios settings for installing new M.2 NVME SSD


angiemike6

Member
Local time
3:45 PM
Posts
10
OS
Windows 11
I currently have an Asus Tuf Z390 Gaming Plus motherboard with an Intel Core i7 8700 processor and 32 gb ram. I have a small Adata NVME SSD in the M2_1 slot which was installed by local computer shop on which the OS is loaded. In addition I have an internal Sata SSD and an internal HDD. I have a UEFI bios and am running Windows 11 version 22H2. In the PCH Storage configuration I currently have the option of AHCI or RST, and it is currently set to RST. I am not aware that I have RAID set up, but Speccy mentions that my current Adata NVME RAID Type is Software RAID.

My intention is to purchase a 2tb gen 3 NVME SSD and install it in the M2_1 slot moving the existing Adata SSD to the M2-2 slot. I will do a fresh install of Windows 11 and have already created Windows 11 Installation media on a bootable USB.

I do not fully understand the difference between AHCI and RST. Could someone advise me which setting is best for my proposed configuration, and what other changes if any I should make to my BIOS before installing windows 11. Any further advice for making any other changes would be appreciated.

Thank you.

Windows Build/Version
Windows 11/22H2

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Build
    CPU
    Intel Core i7 8700
    Motherboard
    ASUSTeK TUF Z390-PLUS GAMING
    Memory
    32 GB
    Graphics Card(s)
    Asus NVIDIA GeForce GTX 1650 SUPER
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    BenQ PD2700U
    Screen Resolution
    3840 x 2160
    Hard Drives
    Internal:
    NVMe ADATA SX8200NP (SSD) - 240gb -Boot drive
    Crucial M4-CT256M4SSD2 (SSD) - 256 gb
    Western Digital WDC WD20EZRX-00D8PB0 - 2tb
    External:
    Western Digital WD Elements 25A3 USB Device - 4tb
    Western Digizatl WD My Book 1130 USB Device - 2tb
    PSU
    Not known - I believe 650w
    Case
    ATX case
    Cooling
    Be Quiet vertical cooler with two fans. Also 2 fans venting out of back of case. Graphic card also has 2 fans.
    Keyboard
    Lenovo Black USB Keyboard UK Model Standard Full Size QWERTY
    Mouse
    Microsoft USB Wheel Mouse Optical
    Internet Speed
    350 Mbps, but actually connects at 384 Mbps
    Browser
    Microsoft Edge, Google Chrome and Brave
    Antivirus
    Norton 360 and Malwarebytes
    Other Info
    Also run Kerish Doctor
I have just looked at my BIOS settings and AHCI is enabled, also the M.2 is enabled rather than auto. There are settings for the generation of M.2 slot, my setting is 3, the maximum my motherboard runs at. I think that another of my motherboards has an nvme setting, also. All motherboards have different setup proceedures, there is no standard.



My Computers

System One System Two

  • OS
    W11 pro beta
    Computer type
    PC/Desktop
    Manufacturer/Model
    home built
    CPU
    Athlon 3000G
    Motherboard
    Asrock A320M-HDV r4.0
    Memory
    16Gb Crucial DDR4 2400
    Graphics Card(s)
    onboard cpu
    Sound Card
    onboard
    Monitor(s) Displays
    AOC 27
    Screen Resolution
    2560-1440
    Hard Drives
    WD black SN750 M2 500Gb
    PSU
    500W Seasonic core 80+gold non modular
    Case
    Fractal Design Define R2
    Cooling
    front 2 x 120mm rear 100mm stock psu
    Internet Speed
    135/20
    Browser
    Firefox and edge
    Antivirus
    Windows Security and free Malwarebytes
  • Operating System
    W11 pro 64 beta (from W10 pro system builder pack)
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Ryzen 7 5700G
    Motherboard
    MSI B450 tomahawk max II
    Memory
    4 x 8Gb Corsair Vengeance LPX 3000 DDR4
    Graphics card(s)
    onboard cpu
    Sound Card
    motherboard
    Monitor(s) Displays
    LG 21.5" IPS
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD 1Tb Black M2 SN850X on Asus hyper M2 X16 max V2 card
    PSU
    Be Quiet 400 semi modular 80+gold
    Case
    Coolermaster Silencio 650
    Cooling
    140mm front, 120 rear Akasa Vegas Chroma AM
    Internet Speed
    135/20
    Browser
    edge/Firefox
    Antivirus
    WD plus Malwarebytes free
I currently have an Asus Tuf Z390 Gaming Plus motherboard with an Intel Core i7 8700 processor and 32 gb ram. I have a small Adata NVME SSD in the M2_1 slot which was installed by local computer shop on which the OS is loaded. In addition I have an internal Sata SSD and an internal HDD. I have a UEFI bios and am running Windows 11 version 22H2. In the PCH Storage configuration I currently have the option of AHCI or RST, and it is currently set to RST. I am not aware that I have RAID set up, but Speccy mentions that my current Adata NVME RAID Type is Software RAID.

My intention is to purchase a 2tb gen 3 NVME SSD and install it in the M2_1 slot moving the existing Adata SSD to the M2-2 slot. I will do a fresh install of Windows 11 and have already created Windows 11 Installation media on a bootable USB.

I do not fully understand the difference between AHCI and RST. Could someone advise me which setting is best for my proposed configuration, and what other changes if any I should make to my BIOS before installing windows 11. Any further advice for making any other changes would be appreciated.

Thank you.

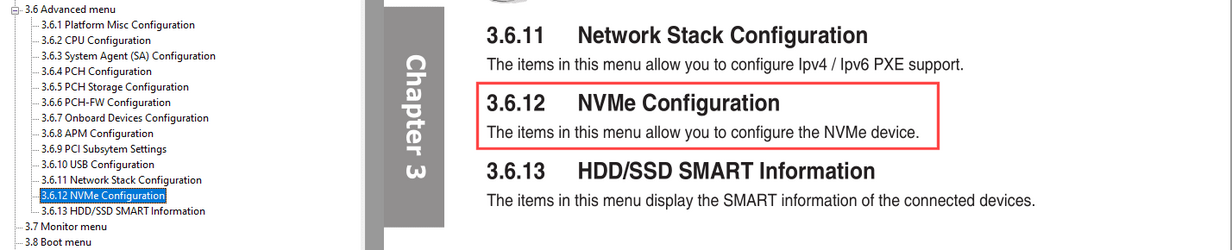

Unfortunately, your motherboard manual doesn't "show" the NVMe settings.
You would need to take a screen shot and post it on here.




My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3374 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
I do not fully understand the difference between AHCI and RST. Could someone advise me which setting is best for my proposed configuration, and what other changes if any I should make to my BIOS before installing windows 11. Any further advice for making any other changes would be appreciated.

Thank you.
AHCI vs. RST is really nothing to concern yourself with and will only confuse if you're not aware. At the end of the day, for UEFI, Windows 11 you will want the system in ACHI Mode.

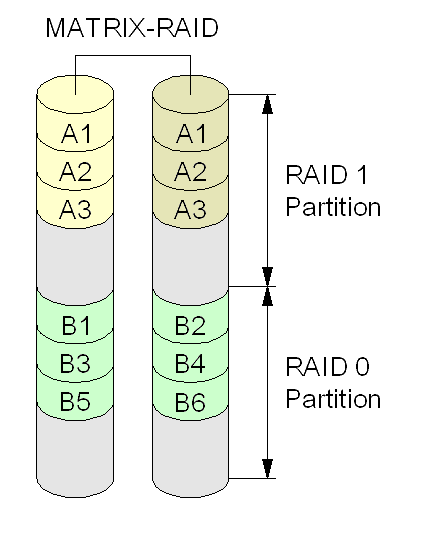

RST is Intel's Rapid Storage Technology used to accelerates drives via supported Optane drives or RAID. If you're not using either there is no need to worry about enabling RST in the BIOS. In keeping things simple unless running Optane memory wanting to use RAID stick to AHCI.


New system build - AHCI or RST Premium? I'm confused!

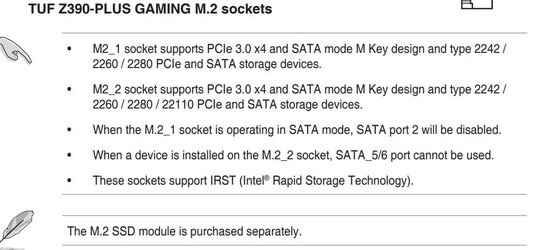

BTW, Chapter 1, pg. 1-16 of the online owner's manual states STATA ports will be lost depending on which M.2 Port is used....
