sysprep- what does it do, I sorta know


PA WOODCHUCK

Well-known member
Local time
12:44 AM
Posts
81
OS
Windows 11
It was on my desktop and I ran it(yikes). I think it's from when Dell did a remote repair??? well anyways PC rebooted and when into local admin account and looked like wanted to reset "out of box"... but with some playing around I was able to log back into my account. I think everything is back to normal... but will know over the days if anything FUBAR? comments please

thanks


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER
Sysprep is used to prepare a Windows installation for the purpose of creating a custom installation.

A sample workflow might look something like this. Note this is simplified and leaves off details for sake of brevity:

1) Install Windows on a "reference system" and customize to your needs. Customization can include changes to Windows settings including personalization settings, installing apps, etc.

2) Run SYSPREP to "generalize" Windows. This removes the installation specific details such as SIDs so that a unique set of IDs are created on each system that the new image will be installed on.

3) Create a new Windows image file (this is the large INSTALL.WIM file located in the \sources folder of your installation media).

4) Replace the INSTALL.WIM file on your Windows media with your customized INSTALL.WIM file.

Now you have a new installation media customized to your needs.

If you are interested in reading more on the topic, here are some tutorials that cover this in detail. Note that these tutorials are from TenForums but they apply equally to Windows 11 with no changes at all.




My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
This AM on boot it started to run again, can I just delete it, or how do I stop it from running on boot up?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER
This AM on boot it started to run again, can I just delete it, or how do I stop it from running on boot up?
Visit the link below for disabling "sysprep" at startup.



My Computer

System One

  • OS
    Windows 11 Professional
    Computer type
    PC/Desktop
    Manufacturer/Model
    Microcenter B677
    CPU
    Intel Core i5-9400
    Motherboard
    ASRock H310CM-HDV/M.2
    Memory
    32GB
    Graphics Card(s)
    Integrated Intel UHD Graphics 630
    Sound Card
    Intel Kaby Lake - High Definition Audio / cAVS (Audio, Voice, Speech) [A0]
    Monitor(s) Displays
    LG Model: GSM59F1
    Screen Resolution
    2560x1080
    Case
    Lian Li 205M
    Antivirus
    Kaspersky AV

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER

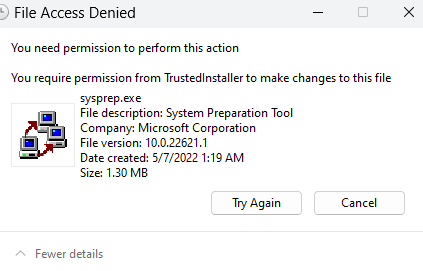

Info is from 2012. Here's a captureView attachment 48464
It appears that what was applicable back in 2012 is no longer applicable. Since I can't test the following on any of my computers, this is just speculation. When you are logged in do you have access to the "startup apps"? If so, is "sysprep" in the list? Delete it, if it is.

You mention that Dell support did a remote repair. They may have the solution.


My Computer

System One

  • OS
    Windows 11 Professional
    Computer type
    PC/Desktop
    Manufacturer/Model
    Microcenter B677
    CPU
    Intel Core i5-9400
    Motherboard
    ASRock H310CM-HDV/M.2
    Memory
    32GB
    Graphics Card(s)
    Integrated Intel UHD Graphics 630
    Sound Card
    Intel Kaby Lake - High Definition Audio / cAVS (Audio, Voice, Speech) [A0]
    Monitor(s) Displays
    LG Model: GSM59F1
    Screen Resolution
    2560x1080
    Case
    Lian Li 205M
    Antivirus
    Kaspersky AV
Maybe this is a better choice, I have Acronis backup 5 days old. Should a recover get eerything back to normal? Found out I can't get HP printer to work even after reinstalling drivers.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER
Maybe this is a better choice, I have Acronis backup 5 days old. Should a recover get eerything back to normal? Found out I can't get HP printer to work even after reinstalling drivers.
It depends on what the backup contains. A "Full System Image" backup should work. Additionally, you shouldn't be any worse off then you are now.


My Computer

System One

  • OS
    Windows 11 Professional
    Computer type
    PC/Desktop
    Manufacturer/Model
    Microcenter B677
    CPU
    Intel Core i5-9400
    Motherboard
    ASRock H310CM-HDV/M.2
    Memory
    32GB
    Graphics Card(s)
    Integrated Intel UHD Graphics 630
    Sound Card
    Intel Kaby Lake - High Definition Audio / cAVS (Audio, Voice, Speech) [A0]
    Monitor(s) Displays
    LG Model: GSM59F1
    Screen Resolution
    2560x1080
    Case
    Lian Li 205M
    Antivirus
    Kaspersky AV
It appears that what was applicable back in 2012 is no longer applicable. Since I can't test the following on any of my computers, this is just speculation. When you are logged in do you have access to the "startup apps"? If so, is "sysprep" in the list? Delete it, if it is.

You mention that Dell support did a remote repair. They may have the solution.

It's not listed under startups, Dell said it's a software issue and that's $100 Tried to rename delete or move to another place!1672091323756.png


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER
It was on my desktop and I ran it
Dell should have their behinds kicked for leaving it on there as it is not something to be run unless there is a specific need to run it.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

My Computer

System One

  • OS
    Windows 11 Professional
    Computer type
    PC/Desktop
    Manufacturer/Model
    Microcenter B677
    CPU
    Intel Core i5-9400
    Motherboard
    ASRock H310CM-HDV/M.2
    Memory
    32GB
    Graphics Card(s)
    Integrated Intel UHD Graphics 630
    Sound Card
    Intel Kaby Lake - High Definition Audio / cAVS (Audio, Voice, Speech) [A0]
    Monitor(s) Displays
    LG Model: GSM59F1
    Screen Resolution
    2560x1080
    Case
    Lian Li 205M
    Antivirus
    Kaspersky AV
It depends on what the backup contains. A "Full System Image" backup should work. Additionally, you shouldn't be any worse off then you are now.

Yes Full System Image about 1.7tb. I need to read up on task as never had to do recovery before. If I continue to continue as is now I'm sure going to find more issues?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Wow! That is one HUUUGE image. Is that just your C partition?
I have OS and programs on C:, 500GB D: 2TB files, folders, documents, E: 1TB only has microsoft flight simulator. I hope I can just recover/restore C:??? Not sure if arconis 2020 can do that... still researching


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER
I use a different backup program but yes Acronis should allow you to recover only the partitions you choose.

To reduce the size of my images as well as make recovery a much more straightforward and faster effort , I do not put my C: into the same image as all my connected drives. I backup my OS boot drive separately and more often than the other 2 drives I have.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Ended up doing recovery from 8 day old backup. But another issue I'll start new posting.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER
So far only other issue was I had to reinstall MSFS 2020(flight sim).


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell R11
    CPU
    i7-10700
    Memory
    32GB
    Graphics Card(s)
    GFORCE RTX 2070 SUPER
