Unable to change Display Resolution in VM


Steven

Well-known member
Member
VIP
Local time
2:35 PM
Posts
143
OS
Windows 11

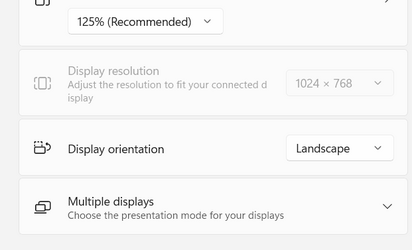

Windows 11 on VirtualBox is now a box window. I tried to change the resolution but it greyed out. :(




My Computer

System One

  • OS
    Windows 11
This video helped solve the issue



My Computer

System One

  • OS
    Windows 11
That video helps. After I installed the Guest Additions I could change my resolution. Currently I have it set to 1280x960. Note the maximum you can set it depends upon your computers display resolution. My laptops display is 1920x1080.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    ASUS TUF Gaming A15 (2022)
    CPU
    AMD Ryzen 7 6800H with Radeon 680M GPU (486MB RAM)
    Memory
    Micron DDR5-4800 (2400MHz) 16GB (2 x 8GB)
    Graphics Card(s)
    NVIDIA RTX 3060 Laptop (6GB RAM)
    Sound Card
    n/a
    Monitor(s) Displays
    15.6-inch
    Screen Resolution
    1920x1080 300Hz
    Hard Drives
    2 x Samsung 980 (1TB M.2 NVME SSD)
    PSU
    n/a
    Mouse
    Wireless Mouse M510
    Internet Speed
    1200Mbps/250Mbps
    Browser
    Firefox
    Antivirus
    Malwarebytes
  • Operating System
    Windows 11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom build
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    ASUS PRIME X370-PRO
    Memory
    G.SKILL Flare X 32GB (2x16GB) DDR4
    Graphics card(s)
    ASUS ROG-STRIX-RTX3060TI-08G-V2-GAMING (RTX 3060-Ti, 8GB RAM)
    Monitor(s) Displays
    Samsung S23A300B (23-in LED)
    Screen Resolution
    1080p 60Hz
    Hard Drives
    2TB XPG SX8200 Pro (M2. PCIe SSD) || 2TB Intel 660P (M2. PCIe SSD) ||
    PSU
    Corsair RM750x (750 watts)
    Case
    Cooler Master MasterCase 5
    Cooling
    Corsair H60 AIO water cooler
    Mouse
    Logitech K350 (wireless)
    Keyboard
    Logitech M510 (wireless)
    Internet Speed
    1200 Mbps down / 200 Mbps up
    Browser
    Firefox, Edge, Chrome
    Antivirus
    Malwarebytes (Premium)
    Other Info
    ASUS Blu-ray Burner BW-16D1HT (SATA) || Western Digital Elements 12TB USB 3.0 external hard drive used with Acronis True Image backup software || HP OfficeJet Pro 6975 Printer/Scanner
That video helps. After I installed the Guest Additions I could change my resolution. Currently I have it set to 1280x960. Note the maximum you can set it depends upon your computers display resolution. My laptops display is 1920x1080.
Hi there
as you've discovered you do need to have the "Virtual Video driver" installed on the VM to access all the resolutions available. On Vbox this is in "Guest Additions", on VMWare it's in Vmware Tools, and if you use a KVM Linux Host for Windows VM's the appropriate video driver is available from the virtio ISO downloadable from the Fedora site or from git.



Hyper-V users can obviously use windows drivers -- also if you can physically pass thru a video card to the VM then you can also use native windows video drivers.


@MisterEd

Note with Virtual video drivers you CAN set the resolution to greater than your physical display depending on the virtualisation software you are using - but you will need to do a lot of scrolling so not worth it !!!.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
In VBox you can have the screen resolution depending on the size of the window of the virtual machine.

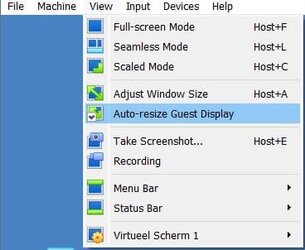

Under Menu-item "View" activate "Auto-resize Guest Display":


That's only possible after activating Guest Addtions of course!
