Using old hard drive


Hazel123

Well-known member
Member
VIP
Local time
12:18 PM
Posts
848
OS
Windows 10 Pro
I have a 500gb ssd with my previous windows set up and files on. I had upgraded to a 1tb ssd a couple of years ago, clean installed (on a different laptop).

Kept the old 500gb one as additional file back ups. I now want to wipe the 500gb and use it as an external storage drive in a case. But it is not being recognised by windows. Other drives work in the case but not this one. At first I thought it was a dead drive, Bht just wondering if it’s something else (ie it has windows on from another computer). Any way I can check if it’s working and access contents? Don’t need the contents as I’m planning on wiping it but do need access to it to reformat it.


My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Pavilion 14-ce3514sa
    CPU
    Core i5
    Memory
    8gb
    Hard Drives
    Samsung 970 evo plus 1TB
    Cooling
    Could be better
    Internet Speed
    Dismal
    Browser
    Firefox
    Other Info
    Originally installed with a 500gb H10 Optane ssd
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus Eee PC 1015PX 10" netbook
    CPU
    Intel Atom N570
    Memory
    2gb
    Hard Drives
    Samsung Evo 860 250gb ssd
    Internet Speed
    Dismal
    Browser
    Firefox
    Antivirus
    Defender

hsehestedt

Well-known member
Power User
VIP
Local time
6:18 AM
Posts
648
Location
Texas, USA
OS
Windows 11 21H2
A couple of things:

First, since this is an SSD you want to make certain that the enclosure that you are placing the drive in supports TRIM operations (very important for SSDs). Not all enclosures (especially old models) support this.

That said, even if your enclosure does not support TRIM, you should be able to at least see the SSD. I'm wondering if the reason that you don't see the SSD is simply that a drive letter is not assigned to it.

Could you possibly try this...

1) Leave the SSD disconnected.
2) Open DISK MANAGEMENT and take note of what you see there.
3) Connect the SSD and wait a few seconds to allow it to be seen by the system.
4) Refresh Disk Management (select Action > Refresh at the top of the screen).

Do you now see an additional drive that was not there previously? If so, could you take a screenshot and post it here?

If you are still not seeing that SSD, do you have any other enclosure in which you could try that drive? Would it be possible to connect it to a SATA port and power internally on a desktop computer to see if it is seen then?


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

Winuser

Well-known member
Pro User
VIP
Local time
7:18 AM
Posts
2,811
OS
Windows 11
If other drives work in the case, I would say the drive died. Don't get rid of it until you know for sure. I had an old 250GB Kingston SSD that I replaced with an 500GB Samsung SSD. I put the drive in my desk and after not being used for a couple of years it died. I stored it in the container the Samsung came in, so I have idea why.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

Hazel123

Well-known member
Member
VIP
Thread Starter
Local time
12:18 PM
Posts
848
OS
Windows 10 Pro

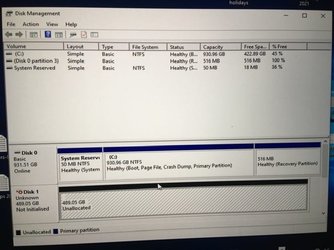

Thanks. I should have thought to look in disk management. It does show there as “unknown “ Not initialised - unallocated. However if I right click on it no options to format - everything greyed out except properties and help.


Attachments

  • D7A6ED81-F0FE-4E36-A4F3-9B13D917C5F3.jpeg
    36.9 KB · Views: 3

My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Pavilion 14-ce3514sa
    CPU
    Core i5
    Memory
    8gb
    Hard Drives
    Samsung 970 evo plus 1TB
    Cooling
    Could be better
    Internet Speed
    Dismal
    Browser
    Firefox
    Other Info
    Originally installed with a 500gb H10 Optane ssd
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus Eee PC 1015PX 10" netbook
    CPU
    Intel Atom N570
    Memory
    2gb
    Hard Drives
    Samsung Evo 860 250gb ssd
    Internet Speed
    Dismal
    Browser
    Firefox
    Antivirus
    Defender

SIW2

Active member
Member
VIP
Local time
12:18 PM
Posts
233

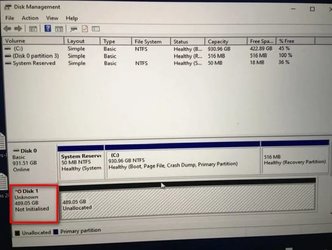

Did you right click where it says disk 1 ?

If you rt click where it says disk 1 you should get the option to initialize it.

1. initialize
2. create partition(s)
3. format partition(s)

cant format until the disk has ben initialized and partition (s) have been created.




My Computer

Hazel123

Well-known member
Member
VIP
Thread Starter
Local time
12:18 PM
Posts
848
OS
Windows 10 Pro
Sorted - went into properties and disabled and re enabled device and it shows up now, with its partitions.


My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Pavilion 14-ce3514sa
    CPU
    Core i5
    Memory
    8gb
    Hard Drives
    Samsung 970 evo plus 1TB
    Cooling
    Could be better
    Internet Speed
    Dismal
    Browser
    Firefox
    Other Info
    Originally installed with a 500gb H10 Optane ssd
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus Eee PC 1015PX 10" netbook
    CPU
    Intel Atom N570
    Memory
    2gb
    Hard Drives
    Samsung Evo 860 250gb ssd
    Internet Speed
    Dismal
    Browser
    Firefox
    Antivirus
    Defender

Hazel123

Well-known member
Member
VIP
Thread Starter
Local time
12:18 PM
Posts
848
OS
Windows 10 Pro
Did you right click where it says disk 1 ?
Yes and also in menus. Right click only showed properties but disabled and re enabled device and it shows up now with all its partitions.


My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Pavilion 14-ce3514sa
    CPU
    Core i5
    Memory
    8gb
    Hard Drives
    Samsung 970 evo plus 1TB
    Cooling
    Could be better
    Internet Speed
    Dismal
    Browser
    Firefox
    Other Info
    Originally installed with a 500gb H10 Optane ssd
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus Eee PC 1015PX 10" netbook
    CPU
    Intel Atom N570
    Memory
    2gb
    Hard Drives
    Samsung Evo 860 250gb ssd
    Internet Speed
    Dismal
    Browser
    Firefox
    Antivirus
    Defender

Hazel123

Well-known member
Member
VIP
Thread Starter
Local time
12:18 PM
Posts
848
OS
Windows 10 Pro
Hmm. Deleted two of the partitions so they are unallocated ready to format but can’t seem to delete the third partition 855mb Recovery Partition. Right clicking just gives “help”. So have only been able to format the rest of the disk. Would like to get rid of that partition.


My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Pavilion 14-ce3514sa
    CPU
    Core i5
    Memory
    8gb
    Hard Drives
    Samsung 970 evo plus 1TB
    Cooling
    Could be better
    Internet Speed
    Dismal
    Browser
    Firefox
    Other Info
    Originally installed with a 500gb H10 Optane ssd
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus Eee PC 1015PX 10" netbook
    CPU
    Intel Atom N570
    Memory
    2gb
    Hard Drives
    Samsung Evo 860 250gb ssd
    Internet Speed
    Dismal
    Browser
    Firefox
    Antivirus
    Defender

SIW2

Active member
Member
VIP
Local time
12:18 PM
Posts
233
Might be because of the partition id.

Can either change the id , or use diskpart with override


My Computer

Hazel123

Well-known member
Member
VIP
Thread Starter
Local time
12:18 PM
Posts
848
OS
Windows 10 Pro
Thanks. I did it in disk part. Can’t remember what did it now. I did clean first, then extend. So sorted now, newly formatted 500gb ssd.


My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Pavilion 14-ce3514sa
    CPU
    Core i5
    Memory
    8gb
    Hard Drives
    Samsung 970 evo plus 1TB
    Cooling
    Could be better
    Internet Speed
    Dismal
    Browser
    Firefox
    Other Info
    Originally installed with a 500gb H10 Optane ssd
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus Eee PC 1015PX 10" netbook
    CPU
    Intel Atom N570
    Memory
    2gb
    Hard Drives
    Samsung Evo 860 250gb ssd
    Internet Speed
    Dismal
    Browser
    Firefox
    Antivirus
    Defender

Bree

Well-known member
Pro User
VIP
Local time
12:18 PM
Posts
2,328
Location
S/E England, UK
OS
Windows 11 Home
the Diskpart CLEAN command will remove all partition tables and leave it completely unallocated, ready to make your own partition.

DISKPART> help clean

Removes any and all partition or volume formatting from the disk with
focus.

Syntax: CLEAN [ALL]

ALL Specifies that each and every byte\sector on the disk is set to
zero, which completely deletes all data contained on the disk.

On master boot record (MBR) disks, only the MBR partitioning information
and hidden sector information are overwritten. On GUID partition table
(GPT) disks, the GPT partitioning information, including the Protective
MBR, is overwritten. If the ALL parameter is not used, the first 1MB
and the last 1MB of the disk are zeroed. This erases any disk formatting
that had been previously applied to the disk. The disk's state after
cleaning the disk is 'UNINITIALIZED'.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Hazel123

Well-known member
Member
VIP
Thread Starter
Local time
12:18 PM
Posts
848
OS
Windows 10 Pro
the Diskpart CLEAN command will remove all partition tables and leave it completely unallocated, ready to make your own partition.

DISKPART> help clean

Removes any and all partition or volume formatting from the disk with
focus.

Syntax: CLEAN [ALL]

ALL Specifies that each and every byte\sector on the disk is set to
zero, which completely deletes all data contained on the disk.

On master boot record (MBR) disks, only the MBR partitioning information
and hidden sector information are overwritten. On GUID partition table
(GPT) disks, the GPT partitioning information, including the Protective
MBR, is overwritten. If the ALL parameter is not used, the first 1MB
and the last 1MB of the disk are zeroed. This erases any disk formatting
that had been previously applied to the disk. The disk's state after
cleaning the disk is 'UNINITIALIZED'.
Thanks Bree that is really useful to know.


My Computers

System One System Two

  • OS
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Pavilion 14-ce3514sa
    CPU
    Core i5
    Memory
    8gb
    Hard Drives
    Samsung 970 evo plus 1TB
    Cooling
    Could be better
    Internet Speed
    Dismal
    Browser
    Firefox
    Other Info
    Originally installed with a 500gb H10 Optane ssd
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus Eee PC 1015PX 10" netbook
    CPU
    Intel Atom N570
    Memory
    2gb
    Hard Drives
    Samsung Evo 860 250gb ssd
    Internet Speed
    Dismal
    Browser
    Firefox
    Antivirus
    Defender

tinmar49

Active member
Member
Local time
12:18 PM
Posts
268
Location
UK
OS
W11 pro beta
I use the free version of Mini Tool Partition Wizard, it recognises all types of discs better than the Windows one and will have no bother resetting a drive back to only one partition.


My Computers

System One System Two

  • OS
    W11 pro beta
    Computer type
    PC/Desktop
    CPU
    Athlon 3000G
    Motherboard
    Asrock A320M-HDV r4.0
    Memory
    16Gb Crucial DDR4 2400
    Graphics Card(s)
    onboard cpu
    Sound Card
    onboard
    Monitor(s) Displays
    AOC 27
    Screen Resolution
    2560-1440
    Hard Drives
    WD black SN750 M2 500Gb
    PSU
    400W Novatech semi modular 80+bronze.
    Case
    Fractal Design Define R2
    Cooling
    front 2 x 120mm rear 100mm stock psu
    Internet Speed
    215/21
    Browser
    Firefox and edge
    Antivirus
    Windows Security and free Malwarebytes
  • Operating System
    W11 pro 64
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Ryzen 3200G
    Motherboard
    MSI B450M PRO-VDH
    Memory
    2 x 8Gb Corsair Vengeance LPX 3000 DDR4
    Graphics card(s)
    onboard cpu
    Sound Card
    motherboard
    Monitor(s) Displays
    LG
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD Black M2 SN750 500Gb
    PSU
    Be Quiet 400 semi modular 80+gold
    Case
    Coolermaster Silencio 650
    Cooling
    140mm front, 120 rear Akasa Vegas Chroma AM
    Internet Speed
    21/215
    Browser
    edge/Firefox
    Antivirus
    WD plus Malwarebytes free
Top Bottom
