Verifications in Macrium Reflect Free (MRF)


Haydon

Well-known member
Member
VIP
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro
I'd appreciate comments from the forum experts on the following, thanks!

The most real verification is doing an actual restore of the MRF image. You can do spot checks on OS, apps, user data. But if the image is bad, you may have permanently damaged your user data, for example (hope you have a good image at hand, it does not have to be an MRF image, it could be an image from another backup software)

One step down the MRF verification list is viBoot. You can do spot checks on OS, apps, user data. And if the image is bad, just delete it (and the VM) and try again.

Two steps down the MRF verification list is mounting the image in File Explorer. You can do spot checks on your user data. Protecting user data is most important for me personally (protecting OS and apps is less important for me because they can be reconstructed) and having said that, why use such a feature-rich app like MRF to do the user data job? Because MR is very reliable? I note that MRF does not have an error log for user data.

Three steps down the MRF verification list is to push the verification button with the 'automatically attempt repair' option.

Bottom of the list is not doing any verification of the MRF image at all. I guess that this may already give some people their peace of mind while others will want one or more verifications done at least before and/or after making important changes.

Last edited:

My Computer

System One

  • OS
    Windows 10 Pro

cereberus

Well-known member
Pro User
VIP
Local time
12:26 AM
Posts
2,521
OS
Windows 10 Pro + others in VHDs
You have not included the optional write verification that is done at time of creation of image.

Also, restoring rhe image in a native booring vhdx file is the best test short of a full restore, as that 100% uses native host drivers rather than interface vm drivers.

I seriously doubt most users go beyond doing the write verification and perhaps using ViBoot.

After that, I am sure most users basically take an "experience" leap of faith that the restore will work fine.

In the end, data integrity is more important really than image backups of OS and software which can be rebuilt.
Lost data can be irretrievable of course.

The first two golden rules of computing are
1. Always back up data regularly.
2. If there is any doubt, refer to rule 1.

Conventional wisdom is critical data should preferably be backed up on two (or more) different media, preferably at different locations. My personal choice is a usb hard drive and OneDrive. Others will have different choices.

Less critical data should be backed up on at least one other media e.g. usb hard drive.

Non critical data - well that is for each user to decide e.g. if it is videos that can be redownloaded from web, is it worth backing up?

I am a great Macrium Reflect fan and I rely on it 100% for OS + apps backups BUT I do not rely on it 100% for data (integrity) backup. I just use it as part of my overall data backup strategy.

There really is no "one size fits all" strategy to backups and verification. Every user has to decides what suits them.

As an aside, all you say above is equally applicable to any of the mainstream imaging tools and virtual machine tools. Even though they may not have viboot, you can still basically do same i.e. restore an image to a vm but it is a (less slick) manual operation.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro
You have not included the optional write verification that is done at time of creation of image.
I think I included that as the following.
Three steps down the MRF verification list is to push the verification button with the 'automatically attempt repair' option.
-----------------------------
Lost data can be irretrievable of course.
That's why I regretted that MRF has no error log for user data.
-----------------------------
I think it is time to go beyond backup basics, from 'doing a backup' (that has been discussed ad nauseum) to 'doing a backup plan' (that has been barely discussed) like using MRF without error log for user data with robocopy with its error log for user data.

I mentioned in scattered threads using multiple backup tools (MRF, robocopy, FH, Direct Copy are the ones I use, there are obviously many, many others) and using multiple backup media (multiple DAS is what I use, there is obviously NAS and cloud) and combine tools and media into an effective and still efficient backup plan. Perhaps we can continue this thread in this 'backup plan' direction, it's an extremely broad topic, though.


My Computer

System One

  • OS
    Windows 10 Pro

glasskuter

Well-known member
Pro User
VIP
Local time
6:26 PM
Posts
2,543
Location
The Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.382
@cereberus I use the paid version of Macrium which lets me set my default option to verify each image as it is is created. Does the free version not have that automatic option?


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.382
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro

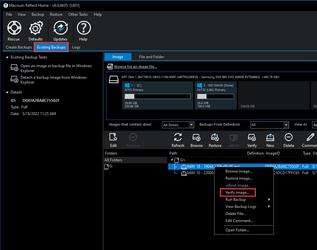

Screenshot from Macrium Reflect 8 Free, clicking on the Verify button ...

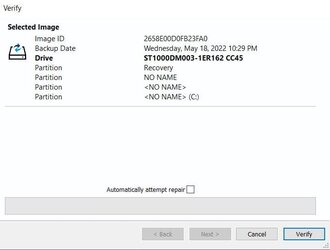

... displays the following window where you could tick off 'automatically attempt repair'

I don't see a setting where I could have included the verification step as part of the image creation step. Anyway, that's what I meant in my OP.


My Computer

System One

  • OS
    Windows 10 Pro

glasskuter

Well-known member
Pro User
VIP
Local time
6:26 PM
Posts
2,543
Location
The Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.382
I see. So with the free version you have to manually run the verify. Here's my version.


Attachments

  • Screenshot 2022-05-20 223706.jpg
    Screenshot 2022-05-20 223706.jpg
    86.3 KB · Views: 3

My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.382
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Ghot

Well-known member
Pro User
VIP
Local time
7:26 PM
Posts
4,057
Location
PA, USA
OS
Win 11 Home ♦♦♦22621.521
Screenshot from Macrium Reflect 8 Free, clicking on the Verify button ...
View attachment 29629

... displays the following window where you could tick off 'automatically attempt repair'
View attachment 29630

I don't see a setting where I could have included the verification step as part of the image creation step. Anyway, that's what I meant in my OP.



Right after the backup completes is when I do the verification. Free and paid.
I think the only things I ever auto-verify are CDs or DVDs when I burn them.





My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22621.521
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4201)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro
Right after the backup completes is when I do the verification. Free and paid.
What @glasskuter meant was not 'after' but as an integral part of the image creation step.

@glasskuter I see the settings window now too, see my screenshot below, which is equivalent to yours. However, this settings window does not have a tick box 'automatically attempt repair', it ought to be still there, somewhere


My Computer

System One

  • OS
    Windows 10 Pro

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro
However, this settings window does not have a tick box 'automatically attempt repair', it ought to be still there, somewhere
Update: I turned on 'Auto Verify Image' in the settings window > then created such an auto verified image.

The 'Verify' button is still available for the auto verified image, and with that the 'automatically attempt repair' is still available in case there is an issue with the auto verification. That seems to be the design intent.

I wonder, though, whether it would not be much more prudent to delete the problematic image altogether and simply create a new image that passes auto verification right away.


My Computer

System One

  • OS
    Windows 10 Pro

Fabler2

Well-known member
Power User
VIP
Local time
12:26 AM
Posts
1,865
OS
Win 11 Pro & Dev.
What @glasskuter meant was not 'after' but as an integral part of the image creation step.

@glasskuter I see the settings window now too, see my screenshot below, which is equivalent to yours. However, this settings window does not have a tick box 'automatically attempt repair', it ought to be still there, somewhere
View attachment 29633
I have that enabled on the free version and so far it completes ok. I haven't yet come across what options or actions it would show if verification failed.


My Computers

System One System Two

  • OS
    Win 11 Pro & Dev.
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    INTEL SSD 660p 512GB NVMe
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    1.024 TB SSD M.2 2280 - Samsung
    PSU
    180 Watt, 19.5 V
    Mouse
    Logitech
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro
I haven't yet come across what options or actions it would show if verification failed.
Well, I did very mean things LOL in testing MRF, like deliberately disconnecting the external backup medium for a few seconds to induce a failure in creating or verifying an image. All options or actions are still there, MRF is VERY robust.

Edit: Don't do those things on your main work computer. I did that on my test computer.


My Computer

System One

  • OS
    Windows 10 Pro

DigitalGoat

Well-known member
Member
VIP
Local time
12:26 AM
Posts
278
Location
United Kingdom
OS
Windows 11 Pro 22H2, build: 22621.521
One thing you may want to consider, especially with critical data backup, is to keep at least one uncompressed copy of the data.
Although most compression tools don't tend to go the way of the dodo, often there is a chance that the app you use may have a bad update causing your backups to become unusable for some time, or a bad system update causes issues.
This can be inconvenient to disastrous depending on the type of data backup and the use case and whether you have kept an older version of a start up disk.
Any manipulation of data from just copying to a new location to compressing then copying/ moving runs the risk of data corruption, it is also a lot easier to recover data from an uncompressed state.
Another valid backup method for critical data, depending on the type of course, is to have a hard copy. A folder of A4 printouts of login info, passwords, favourite website addresses, config info etc is (barring theft, fire and acts of mythical divine beings) a lot more resistant to corruption and failure than any computer based technology.
These methods are much easier to verify by their very nature as well, although can be a lot more work. :)


My Computer

System One

  • OS
    Windows 11 Pro 22H2, build: 22621.521
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS Custom 1700
    CPU
    Intel i7-12700K 3.6GHz Base (5.0GHz Turbo)
    Motherboard
    Asus ProArt Creator B660 D4
    Memory
    64GB DDR 3600Mhz
    Graphics Card(s)
    Asus Tuff RTX 3080 10GB OC
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Gigabyte G32QC 32inch 16:9 curved @2560 x 1440p 165Hz Freesync Premium Pro/ Dell SE2422H 24inch 16:9 1920 x 1080p 75Hz Freesync
    Screen Resolution
    2560 x 1440p & 1920 x 1080p
    Hard Drives
    WD SN570 1TB NVME (Boot), Samsung 870QVO 1TB (SSD), SanDisk 3D Ultra 500Gb (SSD) x2, Seagate 3Tb Expansion Desk (Ext HDD), 2x Toshiba 1Tb P300 (Ext HDD)
    PSU
    Corsair RM1000X Modular
    Case
    Corsair 4000D Airflow Desktop
    Cooling
    Corsair Hydro H150i RGB Pro XT 360mm Liquid Cooler, 3 x 120mm fans, 1x Exhaust
    Keyboard
    Microsoft Ergonomic
    Mouse
    Logitech G402
    Internet Speed
    800Mbs
    Browser
    Edge Chromium
    Antivirus
    Defender, Malwarebytes

jimbo45

Well-known member
Power User
VIP
Local time
11:26 PM
Posts
2,040
Location
Hafnarfjörður IS
OS
Windows XP,7,10,11 Linux Arch Linux
Here's another - but longer indirect way to test and you can run the whole thing from an external drive - and it's a physical test so all drivers etc and data can be checked for integrity. This way you don't corrupt your "C" drive if the backup image is faulty and works on Windows HOME as well as other editions of Windows so doesn't need any HYPER-V settings or VM settings in Windows. Steps 1) to to 5) only need to be done once to "prep the environment".

1) attach external drive to computer
2) in command mode go to diskpart
3) create on the drive 1 EFI partition size 100 formatted fat32, 1 msr partition size 128 rest of drive one NTFS partition.
4) create a vhdx file (virtual hard drive file of the size of your current windows drive -- it can be smaller if you want to "shrink" the size and there's enough space) --
5) select and attach the vhdx. select the disk, format it as a SINGLE ntfs partition (no efi etc)
exit disk part.

Now run your restore to the newly assigned disk - you only want the basic Windows partition - not any efi or recovery partition.
then we need to install the bootloader so
Boot stand alone macrium recovery or a windows iso and get into command mode
assign the 100 mb "hidden" partition on the external disk as letter S
attach the vdisk as letter W (this is the one with the windows image on it).

then cd w:\windows\system32
bcdboot w:\windows /s S: /f UEFI

exit everything and boot the external drive -- now you've got a backup and running as a "Windows 2 go" system. !! Test to your hearts content.


looks complex to do but once you've done it it's surprisingly easy. Also once ve got a spare useable physical Windows system for testing software / hardware without needing a VM or breaking anything on a running machine. If the external device is large enough too you can have several copies of Windows on it too - all different versions if necessary and they'll all be activated with digital license.

Cloning usually works easier as it's easier dragging / dropping a partition and re-sizing so on restore you just clone the external Windows image (not the entire disk but the "disk windows is on") , run the macrium fix boot problems and boot your orginal C drive system again.

But however you do it one should always attempt a restore once in a while -- just because a backup says completed you can't be sure that a restore will be 100% successful. It usually is but data errors, backup media corruption or whatever can cause these things to fail and absolutely 100% according to that law that's more rigid than Einsteins E=MC squared equation the restore will fail on the one time you absolutely must have it.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

cereberus

Well-known member
Pro User
VIP
Local time
12:26 AM
Posts
2,521
OS
Windows 10 Pro + others in VHDs
@cereberus I use the paid version of Macrium which lets me set my default option to verify each image as it is is created. Does the free version not have that automatic option?
same


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro
@DigitalGoat Those are exactly the reasons I still use the 'primitive' Direct Copy for 'irreplaceables' (only a few GBs) on USB and DVD 'archives' in addition to regular backups. I check the 'archives' only every other year or so, just to see if they are still good (Brownian motion in storage media :eek1:) but they are safe from malware, safe from frequent use :):) ... and then there is still room for paper in a safety deposit box :cool:

@jimbo45 Very true comments about doing actual restores once in a while, that's part of the reason for the hierarchy in the OP, from doing actual restore step-by-step (in 4 steps) down to not doing any verification of the image at all.


My Computer

System One

  • OS
    Windows 10 Pro

cereberus

Well-known member
Pro User
VIP
Local time
12:26 AM
Posts
2,521
OS
Windows 10 Pro + others in VHDs
@DigitalGoat Those are exactly the reasons I still use the 'primitive' Direct Copy for 'irreplaceables' (only a few GBs) on USB and DVD 'archives' in addition to regular backups. I check the 'archives' only every other year or so, just to see if they are still good (Brownian motion in storage media :eek1:) but they are safe from malware, safe from frequent use :):) ... and then there is still room for paper in a safety deposit box :cool:
I think one has to draw a distinction between backup and archiving. Backups are really a (mostly temporary) activity to enable a user to revert if something craps out. I do not hold image backups going back more than 2 or 3 builds, as I will never use them again. Data is different (some I want to keep for long term, some I probably keep for a while, and some are disposable),

Archiving is a completely different kettle of fish e.g. solicitors have to archive legal agreements, practically in perpetuity. This data would typically be stored in some form of database, often managed (for a fee) by a 3rd party. One of MS's major revenue streams comes from Azure archiving for example.

Of course, life is not that black and white e.g. backing up treasured personal photos to onedrive - is that backup or archiving?

I would say it is more backup (for long term), as it is usually just a copy online, but not incorporated into a specific database, which is fine for relatively small quantities of data, but after a while, it is like looking for a piece of hay in a needle stack (painful).


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
7:26 PM
Posts
982
OS
Windows 10 Pro
I read some more about Hyper-V and the fact that Windows no longer runs on bare metal became more and more disagreeable to me (n) > I turned off Hyper-V > I am now running viBoot VM on VirtualBox (y)

viBoot VM on VirtualBox is as convincing as viBoot VM on Hyper-V in terms of verifying an MRF image :) just short of doing an actual restore.

When I opened an MS Word file, a message from MS 365 reads something like 'It looks like you have new hardware, please connect to the Internet so we can verify your subscription' I am surprised that MS Word files notice the difference WOW Lucky me, I did not turned on the Virtual Switch when defining the viBoot VM LOL

No other suprises so far in the very short time since I am running viBoot VM on VirtualBox, but stay tuned :cool:


My Computer

System One

  • OS
    Windows 10 Pro

cereberus

Well-known member
Pro User
VIP
Local time
12:26 AM
Posts
2,521
OS
Windows 10 Pro + others in VHDs
I read some more about Hyper-V and the fact that Windows no longer runs on bare metal became more and more disagreeable to me (n) > I turned off Hyper-V > I am now running viBoot VM on VirtualBox (y)

viBoot VM on VirtualBox is as convincing as viBoot VM on Hyper-V in terms of verifying an MRF image :) just short of doing an actual restore.

When I opened an MS Word file, a message from MS 365 reads something like 'It looks like you have new hardware, please connect to the Internet so we can verify your subscription' I am surprised that MS Word files notice the difference WOW Lucky me, I did not turned on the Virtual Switch when defining the viBoot VM LOL

No other suprises so far in the very short time since I am running viBoot VM on VirtualBox, but stay tuned :cool:
I rather think you are overstating your case - having the hypervisor on has no really significant real world performance impact, is properly segregated from other vms in an operating viewpoint, and running Windows vms in Hyper-V are definitely more efficient (y)than running in Virtualbox(n) (that is not just opinion - I have done tests).

With Hyper-V, Windows still effectively runs on bare metal (i.e. uses exactly same drivers) but so do its vms to some extent as well.

With virtualbox, vms are totally isolated from the hardware using emulated drivers but there is a penalty i.e. virtualbox itself uses much more resources.

Not only that, there have been a number of cases where virtualbox has crashed following Windows updates. I have never seen that happen with Hyper-V for years.

The only time when virtualbox is preferable (in my opinion) is when running OSs that cannot be run in enhanced mode with Hyper-V.

I have just run passmark benchtesting with hypervisor on and off just to check on my new laptop, and reconfirm above,

The average figures are virtually identical.

It is hard to interpret results precisely, as figures get weighted down by crappy graphics.

It seems the CPU is slightly reduced with hypervisor on taking a bit of the CPU performance, but in the end, that does not mean much as I am rarely running my I7 CPU anywhere near flat out.

Same is true to the drives - nvme drives but again, I only run them flat out when copying large files (many GB).

In other words - real world impact to me is barely detectable unless doing some really intensive memory/disk work e.g. intensive video editing.
Gamers might find the impact more significant I guess.

I accept the fact that running with hypervisor off maximises theoretical performance if not running vms, and you only get a hit when actually running virtualbox.

However, if you run vms a lot as I do, the real world minor performance loss of having hypervisor on is far more offset by vms running in Hyper-V as opposed to Virtualbox.

Of course, it is each to their own.

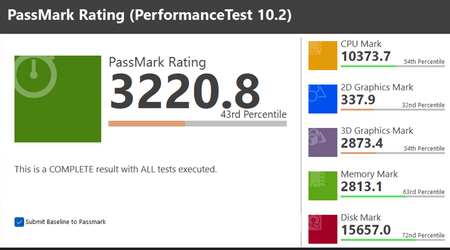

Hypervisor On

Hypervisor off

Last edited:

My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
Top Bottom
