Solved VMware player for W11!


Alexey2912

Well-known member
Member
VIP
Local time
5:32 AM
Posts
1,940
Location
Aiea, Honolulu HI
OS
Windows 11 Pro 23H2 (22631.3296).
Hi,

I am trying to install it on W11 , aim to run different/check isos, flavors of Linux etc. on my laptop.

Have a few queries:

1. How much memory/ RAM should I allocate..... 8 of 16 installed?

2. Space allocation?

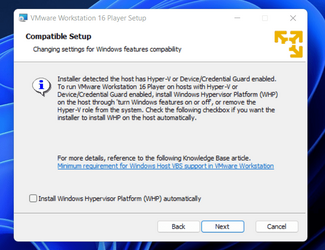

3. I get this message (WHP) during install, should it be checked or unchecked....on W11?

4. Do I need to install drivers for W10, Linux etc. after installing to check the new install?

5. Any other recommendations?

Hoping to year from you experts.

Thanks.


Windows Build/Version
21H2 (22000.1042)

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (22631.3296).
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron i5 5510
    CPU
    core i7 11th gen
    Memory
    16 GB DDR4 @3200 MHz
    Hard Drives
    1 TB SSD M.2 NVMe
    Keyboard
    Dell Premier Multi-Device Wireless Keyboard and Mouse – KM7321W
    Browser
    Brave.
    Other Info
    Edifier speakers. (Thanks to @Edwin).
  • Operating System
    W11
    Computer type
    PC/Desktop
    Manufacturer/Model
    XPS Special Edition
    CPU
    11th Gen Intel® Core i7-11700 processor
    Memory
    32 GB, 2 x 16 GB, DDR4, 2933 MHz, dual channel
    Graphics card(s)
    NVIDIA GeForce RTX 3060 12GB GDDR6
    Hard Drives
    2TB M.2 PCIe NVMe SSD
I tried running the Multi edition W11 iso, as test run but it won't even load...…

Reason cause it contains all versions of W11?

How do I extract W11 Home from it and create an iso file or a bootable USB drive?

Would you recommend installing Rufus 1st on the USB/ thumb drive?

Thanks.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (22631.3296).
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron i5 5510
    CPU
    core i7 11th gen
    Memory
    16 GB DDR4 @3200 MHz
    Hard Drives
    1 TB SSD M.2 NVMe
    Keyboard
    Dell Premier Multi-Device Wireless Keyboard and Mouse – KM7321W
    Browser
    Brave.
    Other Info
    Edifier speakers. (Thanks to @Edwin).
  • Operating System
    W11
    Computer type
    PC/Desktop
    Manufacturer/Model
    XPS Special Edition
    CPU
    11th Gen Intel® Core i7-11700 processor
    Memory
    32 GB, 2 x 16 GB, DDR4, 2933 MHz, dual channel
    Graphics card(s)
    NVIDIA GeForce RTX 3060 12GB GDDR6
    Hard Drives
    2TB M.2 PCIe NVMe SSD
How much memory/ RAM should I allocate..... 8 of 16 installed?

I would start with 4 or max 6.

2. Space allocation?

Depends on where you are storing drive. On Hyper-V, I use 80 gb by use dynamically expanding disks.

3. I get this message (WHP) during install, should it be checked or unchecked....on W11?

Vmware does not play very well with the Hyper-V hypervisor features enabled. Turn them off.

4. Do I need to install drivers for W10, Linux etc. after installing to check the new install?

VMware should sort out drivers.

5. Any other recommendations?

Not really as you are on W11 Home.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
I tried running the Multi edition W11 iso, as test run but it won't even load...…

Reason cause it contains all versions of W11?

How do I extract W11 Home from it and create an iso file or a bootable USB drive?

Would you recommend installing Rufus 1st on the USB/ thumb drive?

Thanks.
Q1 - no - you select version during installation.
Q2 - no as above
Q3 - no - you do not need to use a usb drive to boot into W11 in vmware.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
How much memory/ RAM should I allocate..... 8 of 16 installed?

I would start with 4 or max 6.

2. Space allocation?

Depends on where you are storing drive. On Hyper-V, I use 80 gb by use dynamically expanding disks.

3. I get this message (WHP) during install, should it be checked or unchecked....on W11?

Vmware does not play very well with the Hyper-V hypervisor features enabled. Turn them off.

4. Do I need to install drivers for W10, Linux etc. after installing to check the new install?

VMware should sort out drivers.

5. Any other recommendations?

Not really as you are on W11 Home.


Thanks for replying each query.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (22631.3296).
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron i5 5510
    CPU
    core i7 11th gen
    Memory
    16 GB DDR4 @3200 MHz
    Hard Drives
    1 TB SSD M.2 NVMe
    Keyboard
    Dell Premier Multi-Device Wireless Keyboard and Mouse – KM7321W
    Browser
    Brave.
    Other Info
    Edifier speakers. (Thanks to @Edwin).
  • Operating System
    W11
    Computer type
    PC/Desktop
    Manufacturer/Model
    XPS Special Edition
    CPU
    11th Gen Intel® Core i7-11700 processor
    Memory
    32 GB, 2 x 16 GB, DDR4, 2933 MHz, dual channel
    Graphics card(s)
    NVIDIA GeForce RTX 3060 12GB GDDR6
    Hard Drives
    2TB M.2 PCIe NVMe SSD
Q1 - no - you select version during installation.
Q2 - no as above
Q3 - no - you do not need to use a usb drive to boot into W11 in vmware.

Thanks again!


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (22631.3296).
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron i5 5510
    CPU
    core i7 11th gen
    Memory
    16 GB DDR4 @3200 MHz
    Hard Drives
    1 TB SSD M.2 NVMe
    Keyboard
    Dell Premier Multi-Device Wireless Keyboard and Mouse – KM7321W
    Browser
    Brave.
    Other Info
    Edifier speakers. (Thanks to @Edwin).
  • Operating System
    W11
    Computer type
    PC/Desktop
    Manufacturer/Model
    XPS Special Edition
    CPU
    11th Gen Intel® Core i7-11700 processor
    Memory
    32 GB, 2 x 16 GB, DDR4, 2933 MHz, dual channel
    Graphics card(s)
    NVIDIA GeForce RTX 3060 12GB GDDR6
    Hard Drives
    2TB M.2 PCIe NVMe SSD
Thanks for replying each query.

What exactly do you mean by:

Depends on where you are storing drive. On Hyper-V, I use 80 gb by use dynamically expanding disks.
If your virtual drive is large - put it on a drive with plenty of space.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (22631.3296).
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron i5 5510
    CPU
    core i7 11th gen
    Memory
    16 GB DDR4 @3200 MHz
    Hard Drives
    1 TB SSD M.2 NVMe
    Keyboard
    Dell Premier Multi-Device Wireless Keyboard and Mouse – KM7321W
    Browser
    Brave.
    Other Info
    Edifier speakers. (Thanks to @Edwin).
  • Operating System
    W11
    Computer type
    PC/Desktop
    Manufacturer/Model
    XPS Special Edition
    CPU
    11th Gen Intel® Core i7-11700 processor
    Memory
    32 GB, 2 x 16 GB, DDR4, 2933 MHz, dual channel
    Graphics card(s)
    NVIDIA GeForce RTX 3060 12GB GDDR6
    Hard Drives
    2TB M.2 PCIe NVMe SSD
Hi,

I am trying to install it on W11 , aim to run different/check isos, flavors of Linux etc. on my laptop.

Have a few queries:

1. How much memory/ RAM should I allocate..... 8 of 16 installed?

2. Space allocation?

3. I get this message (WHP) during install, should it be checked or unchecked....on W11?

4. Do I need to install drivers for W10, Linux etc. after installing to check the new install?

5. Any other recommendations?

Hoping to year from you experts.

Thanks.

View attachment 40441
1). As far as memory goes, for a Linux host I typically give it between 512MB and 2GB depending upon what I am doing. For windows hosts, I usually start with 4GB. Sometimes on a server i will bump it to 16.

2). I use dynamically expanding disks. Linux distros usually take about 1-2GB of space to start, Windows hosts closer to 15GB. But they then have the ability to grow to the max size you stated.

4). The hardware passed through is usually pretty generic and supported within VMWare, VirtualBox or Hyper-V. You shouldn't have to really install any specific drivers manually. Just check device manager, it should be clean.

5)). Using VMWare Workstation is an expensive option. It's $150 to $200 to buy it. If you have a Pro version of Windows you can use Hyper-V. Or you could also use Oracle Virtual Box (which is great for Windows and Linux...and it's also free for personal use. VMWare Workstation is great if you have a VMWare environment at work or in production somehwere, but for just running some VM's at home, it's overkill and honestly too pricey in most cases.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Beelink SEI8
    CPU
    Intel Core i5-8279u
    Motherboard
    AZW SEI
    Memory
    32GB DDR4 2666Mhz
    Graphics Card(s)
    Intel Iris Plus 655
    Sound Card
    Intel SST
    Monitor(s) Displays
    Asus ProArt PA278QV
    Screen Resolution
    2560x1440
    Hard Drives
    512GB NVMe
    PSU
    NA
    Case
    NA
    Cooling
    NA
    Keyboard
    NA
    Mouse
    NA
    Internet Speed
    500/50
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    Mini PC used for testing Windows 11.
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    Ryzen 9 5900x
    Motherboard
    Asus Rog Strix X570-E Gaming
    Memory
    64GB DDR4-3600
    Graphics card(s)
    EVGA GeForce 3080 FT3 Ultra
    Sound Card
    Onboard
    Monitor(s) Displays
    ASUS TUF Gaming VG27AQ. ASUS ProArt Display PA278QV 27” WQHD
    Screen Resolution
    2560x1440
    Hard Drives
    2TB WD SN850 PCI-E Gen 4 NVMe
    2TB Sandisk Ultra 2.5" SATA SSD
    PSU
    Seasonic Focus 850
    Case
    Fractal Meshify S2 in White
    Cooling
    Dark Rock Pro CPU cooler, 3 x 140mm case fans
    Mouse
    Logitech G9 Laser Mouse
    Keyboard
    Corsiar K65 RGB Lux
    Internet Speed
    500/50
    Browser
    Chrome
    Antivirus
    Defender.
1). As far as memory goes, for a Linux host I typically give it between 512MB and 2GB depending upon what I am doing. For windows hosts, I usually start with 4GB. Sometimes on a server i will bump it to 16.

2). I use dynamically expanding disks. Linux distros usually take about 1-2GB of space to start, Windows hosts closer to 15GB. But they then have the ability to grow to the max size you stated.

4). The hardware passed through is usually pretty generic and supported within VMWare, VirtualBox or Hyper-V. You shouldn't have to really install any specific drivers manually. Just check device manager, it should be clean.

5)). Using VMWare Workstation is an expensive option. It's $150 to $200 to buy it. If you have a Pro version of Windows you can use Hyper-V. Or you could also use Oracle Virtual Box (which is great for Windows and Linux...and it's also free for personal use. VMWare Workstation is great if you have a VMWare environment at work or in production somehwere, but for just running some VM's at home, it's overkill and honestly too pricey in most cases.

Thanks for replying with additional expert recommendations, appreciated. (y)


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 (22631.3296).
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron i5 5510
    CPU
    core i7 11th gen
    Memory
    16 GB DDR4 @3200 MHz
    Hard Drives
    1 TB SSD M.2 NVMe
    Keyboard
    Dell Premier Multi-Device Wireless Keyboard and Mouse – KM7321W
    Browser
    Brave.
    Other Info
    Edifier speakers. (Thanks to @Edwin).
  • Operating System
    W11
    Computer type
    PC/Desktop
    Manufacturer/Model
    XPS Special Edition
    CPU
    11th Gen Intel® Core i7-11700 processor
    Memory
    32 GB, 2 x 16 GB, DDR4, 2933 MHz, dual channel
    Graphics card(s)
    NVIDIA GeForce RTX 3060 12GB GDDR6
    Hard Drives
    2TB M.2 PCIe NVMe SSD

Latest Support Threads

Back
Top Bottom
