W11 - Computer turns on after shutdown


bobshaw5000

Member
Local time
5:14 AM
Posts
9
Visit site
OS
Windows 11
Hey, I just swapped my PSU recently (EVGA 750w to Thermaltake gf3 1000w) along with a new GPU installation (for 4090 install) and then later some SSDs (m2 and SATA SSD). My mobo is the AORUS z690 pro on f21 with 12700kf; Kingston fury 5200 32GB. I'm on w11. The PC has been shutting off fine with the previous PSU (EVGA 750w) and has been working for about two weeks with the new PSU (TT GF3 1000W) before the latest installation of two new SSDs. However, after installing SSDs, I started having shutdown issues.

The issue: my PC constantly turns back on after shutting down (shutdown /p, front panel, etc.) (double-checked f_panel connections). I've turned off all the fast boot/wake on lan software things, and it still boots up after a shutdown. I can still put the PC to sleep, but the only way to shut off the PC is by holding the front power for 5s. I've tried removing all peripherals (USB etc.) and booted into safe mode, and nothing helps - the PC turns on after shutting down.

So far, I've done DDU re Nvidia drivers and reverted to bios f5 (and then f7) while troubleshooting. I have reset the CMOS battery on my mobo while taking out the two SSDs to troubleshoot. I've repetitively disabled power on wake re USBs in the device manager and tried to shut down in BIOs w/ no USBs + ethernet connected - the PC still restarts. I've also checked the powercfg cmds and it doesn't show any wake events or any wake_armed devices.

Besides the restart upon shutdown, the PC works fine, and I can generally use the sleep function (however, it seems to wake up around 10 hrs or so).

I am running out of ideas. What else can I do to troubleshoot? Is it a PSU issue, or perhaps mobo/and or front panel? I have a PSU tester arriving soon, and I might swap back to my older EVGA 750w and my previous GPU (3070) to check. I appreciate any help you can provide.

Windows Build/Version
Windows 11 22H2 (OS Build 22621.900)

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I7 12700KF
    Motherboard
    GIGABYTE AORUS Z690 Pro
    Memory
    kingston fury 5200 40cl, 32gb
    Graphics Card(s)
    MSI Gaming Trio RTX 4090
    PSU
    Thermaltake Toughpower GF3 1000W

johnlgalt

Antidisestablishmentarianist
Power User
VIP
Local time
5:14 AM
Posts
2,945
Location
3rd Rock
about.me
OS
Windows 11 21H2 Current build
Hey, @bobshaw5000, and welcome to the forums!

You've tackled just about everything I would have checked myself, and since it initially it worked with the older PSU and then the new PSU, but stopped working when you added the SSDs, are either of the SSDs system drives, or were both added as data drives?

Also, have you tried the old PSU (just don't play any power intensive games and the 4090 should be fine with it) to see if the thing shuts off correctly?

Finally, did you keep the same Windows install or cleanly install after all the hardware additions?


My Computers

System One System Two

  • OS
    Windows 11 21H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    Eve Spectrum ES07D03 4K Gaming Monitor (Matte finish) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy finish)
    Screen Resolution
    4K x2
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    ZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable),Chrome, Edge/ß/Dev/Canary
    Antivirus
    Defender
  • Operating System
    CHromeOS Flex v108 Dev
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth

bobshaw5000

Member
Thread Starter
Local time
5:14 AM
Posts
9
Visit site
OS
Windows 11
@johnlgalt The SSDs were just added as data drives for storage expansion purposes (gpt drives) formatted using EaseUS partition master.

I have not tried the old EVGA 750w PSU for fear of 4090 adapter burn + watt concerns hence the TT GF3 1k watts upgrade, but I can give it a go.

I kept the same Windows install after hardware additions. I initially used DDU for the GPU driver, and it worked fine 100% until I installed the two SSDs down the line.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I7 12700KF
    Motherboard
    GIGABYTE AORUS Z690 Pro
    Memory
    kingston fury 5200 40cl, 32gb
    Graphics Card(s)
    MSI Gaming Trio RTX 4090
    PSU
    Thermaltake Toughpower GF3 1000W

johnlgalt

Antidisestablishmentarianist
Power User
VIP
Local time
5:14 AM
Posts
2,945
Location
3rd Rock
about.me
OS
Windows 11 21H2 Current build
The 4090 won't pull nearly close to full watts just on the Windows desktop, which is all you need to get to in order to test the shutdown. It should be perfectly fine.

There has to be a setting or something somewhere that is causing it to come back on, usually something like fast startup is the cause, but it may be something more insidious, such as the BIOS reporting hte SSDs as HDDs instead, or even something really weird like Windows having set the new SSDs to removable drives that don't flush the write buffers and thus must maintain power to complete those operations.

It's Windows lol.

Anything on your motherboard doing the same thing for other Win 10 / 11 users?

Also, are you doing a normal nVidia driver install, and not using any utilities to remove parts of the drivers system? either way, you might try another driver install (don't worry about DDU) - just do an advanced install, select driver only no GeForce experience), then uncheck PhysX and HDAUdio, and finally check the box near the bottom to perform a clean install.


My Computers

System One System Two

  • OS
    Windows 11 21H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    Eve Spectrum ES07D03 4K Gaming Monitor (Matte finish) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy finish)
    Screen Resolution
    4K x2
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    ZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable),Chrome, Edge/ß/Dev/Canary
    Antivirus
    Defender
  • Operating System
    CHromeOS Flex v108 Dev
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth

bobshaw5000

Member
Thread Starter
Local time
5:14 AM
Posts
9
Visit site
OS
Windows 11
I have done a driver-only install just now (no GeForce exp, no HDAudio or Physx), and it still restarted after the shutdown went through like before. I will try putting in the 750w EVGA this week with the adapter + 4090 and let you know how it goes.

Also, to your question re issues with my particular mobo - I have seen some bios issues re F20-F21 for the z690 DDR5 versions but not precisely the Aorus Z690 pro, which is what prompted me to downgrade from F20 to F5 -- F7. Initially, prior 4090/Thermaltake, I was running F5. After installing PSU and GPU, I upped to F20, and it was okay until the later SSD installations.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I7 12700KF
    Motherboard
    GIGABYTE AORUS Z690 Pro
    Memory
    kingston fury 5200 40cl, 32gb
    Graphics Card(s)
    MSI Gaming Trio RTX 4090
    PSU
    Thermaltake Toughpower GF3 1000W

johnlgalt

Antidisestablishmentarianist
Power User
VIP
Local time
5:14 AM
Posts
2,945
Location
3rd Rock
about.me
OS
Windows 11 21H2 Current build
Another (maybe stupid) thing to try - remove the SSDs and see if it stays shut down. One by one, naturally, to see if it is either one or the other *or both*.

These are the types of issues that cause tech to prematurely lose their hair - because we keep pulling them out in frustration when we try 17 things and nothing fixes the issue lol.


My Computers

System One System Two

  • OS
    Windows 11 21H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    Eve Spectrum ES07D03 4K Gaming Monitor (Matte finish) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy finish)
    Screen Resolution
    4K x2
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    ZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable),Chrome, Edge/ß/Dev/Canary
    Antivirus
    Defender
  • Operating System
    CHromeOS Flex v108 Dev
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth

bobshaw5000

Member
Thread Starter
Local time
5:14 AM
Posts
9
Visit site
OS
Windows 11
Oh yea I have done the removal of the SSDs (forgot to mention)- one at a time and both for the 2nd run during my CMOS reset troubleshooting. It still restarted after a shutdown.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I7 12700KF
    Motherboard
    GIGABYTE AORUS Z690 Pro
    Memory
    kingston fury 5200 40cl, 32gb
    Graphics Card(s)
    MSI Gaming Trio RTX 4090
    PSU
    Thermaltake Toughpower GF3 1000W

neves

Member
Local time
12:14 PM
Posts
46
Visit site
OS
Windows 11 Pro ( v10.00 Build 22621, 22H2)
Last time i had this issue was running Windows 98. Manage to solve it by editing a registry entry - which not that surprising - is still present in Windows 11. Tho, can't say for sure if it still works or not - cause Microsoft devs are well known to be lazy at cleaning old/redundant settings - which either don't work anymore or need custom mods. In this specific case - it's all up to the OEM who made your mobo (the BIOS in particular).

Open registry (win + R, type regedit) - copy the following line in the address bar: Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon and search for PowerdownAfterShutdown - should be set to 0 modify to 1.

I don't see how the PSU could cause that. At first, seems more like a wake feature - but i see you already mentioned about checking powercfg for waketimers. You could also try Disabling Hibernate:


In case you don't have that feature - Disable Modern Standby:


Just to see if a proper shutdown/reset - helps in any way.

PS. Do you have a cat?! That too - can be the culprit - at times... 😸


My Computer

System One

  • OS
    Windows 11 Pro ( v10.00 Build 22621, 22H2)
    Computer type
    Laptop
    Manufacturer/Model
    MSI GP65 Leopard 9SEX
    CPU
    Intel® Core™ i7-9750H Mobile 2592 MHz
    Motherboard
    MSI MS-16U1 Rev 1.0 / Intel® HM370 Rev.10
    Memory
    SO-DIMM SK Hynix 15.8 GB Dual-Channel DDR4-2666 (2 x 8 GB) 1329MHz (19-19-19-43)
    Graphics Card(s)
    nVidia RTX 2060 6GB Mobile GPU (TU106M)
    Sound Card
    Onbord Realtek ALC1220
    Monitor(s) Displays
    AU Optronics K055G B156HAN08.0 (AUO80ED)
    Screen Resolution
    1920 x 1080
    Hard Drives
    1x Samsung PM981 NVMe PCIe M.2 512GB / 1x Seagate Expansion ST1000LM035 1TB
    Keyboard
    Redragon K512 SHIVA
    Mouse
    HyperX Pulsefire Haste
    Internet Speed
    Download 482.2 Mbps Upload 453.0 Mbps
    Browser
    Firefox

bobshaw5000

Member
Thread Starter
Local time
5:14 AM
Posts
9
Visit site
OS
Windows 11
@neves

I have disabled hibernate along with setting Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon and search for PowerdownAfterShutdown to 1. The computer still restarts after shutdown.

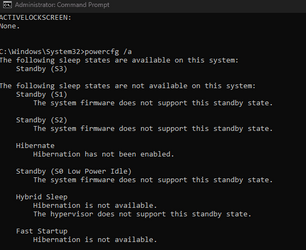

Re: modern standby, I'm not sure if my board has that option (no S0) so I did not disable.

PS - I do not own a cat lol



My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I7 12700KF
    Motherboard
    GIGABYTE AORUS Z690 Pro
    Memory
    kingston fury 5200 40cl, 32gb
    Graphics Card(s)
    MSI Gaming Trio RTX 4090
    PSU
    Thermaltake Toughpower GF3 1000W

jds63

Well-known member
Member
VIP
Local time
5:14 AM
Posts
327
Location
United States
Visit site
OS
Windows 11 Pro
Can’t see how maybe leaving sleep enabled in power settings can cause PC to boot up after shutdown but would go to power settings and remove all sleep features anyway. Also choose High Performance for power plan.

Is tough type of problem to figure out tried just about everything although it can be hardware issue (motherboard ..PSU) it’s usually a Windows issue when researched.

Sure made no changes software related during two weeks it worked with new hardware ? Any maintenance type software could trigger this ? Checked Event Viewer see any critical or warning errors ?

Run sfc /scannow in elevated command prompt ….

Know can be time consuming to try other PSU even though does not sound like something PSU would do if bad.
A lot has been mentioned already from my knowledge I’d be stumped. Does this without new drives ? Might of seen this mentioned as trying one at a time not both.

Did you upgrade from Windows 10 to 11 if so have you ever done a clean install lately ?
If all else fails might have to try this unless keep checking for software or Windows issues.

Also recheck all connection inside PC you made since upgrade for tight connections .


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    jds63 /self built
    CPU
    Intel Core i7 10700KF 3.8 MHz
    Motherboard
    ASUS ROG Strix Z490-E Gaming
    Memory
    G.Skill Trident RGB Series 64GB DDR4-3600MHz
    Graphics Card(s)
    ASUS ROG Strix GeForce RTX 3060 Ti OC Edition
    Sound Card
    Creative Sound BlasterX AE-5 Plus
    Monitor(s) Displays
    ASUS VG28UQL1A 28" 144 Mhz 4K Monitor
    Screen Resolution
    3840 X 2160p HDR
    Hard Drives
    Samsung 970 EVO Plus NVMe 500GB M.2 Drive, (2) Samsung 870 EVO 1TB SATA III Internal SSD, (2) Samsung 860 EVO 1TB SATA III Internal SSD & Seagate Barracuda 2TB
    PSU
    ASUS ROG Thor 850 80+ Platinum 850W Fully Modular RGB Power Supply
    Case
    Lian Li Lancool II Mesh Performance
    Cooling
    Noctua NH-U12A CPU Cooler, (5) Noctua NF-A12x15 chromax.black.swap 120mm, (3) Lepa BOL.Quiet PWM LED 120mm
    Keyboard
    Logitech MX Keys
    Mouse
    Logitech MX Ergo Trackball
    Internet Speed
    325Mbps/ 20Mbps
    Browser
    Mozilla Firefox 109.0 64-bit, Microsoft Edge
    Antivirus
    Kaspersky Internet Security 2022
    Other Info
    Pioneer Blu-Ray/DVD Burner 209DBK, Logitech Z906 5.1 Speakers and Epson XP7100 All-in-One

glasskuter

Well-known member
Pro User
VIP
Local time
4:14 AM
Posts
3,266
Location
Paris in the Lone Star State of Texas
Visit site
OS
Windows 11 Pro 22H2 22621.1105
I may have missed it in your posts but didn't see whether or not you have used the power menu to shut down. Does it shut down and stay shut down from there?


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.1105
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Winuser

Well-known member
Pro User
VIP
Local time
5:14 AM
Posts
4,427
Visit site
OS
Windows 11
Does your power supply have a on/off switch? If it does, let the computer shutdown by hitting the shutdown option in Windows. Then use the switch on the power supply to turn off the power supply. Unplug the power supply from the outlet if it doesn't. Hit the power switch on the computer to discharge any stored electric. Then turn the power supply back on or plug it back in. If the computer stays off, it's a software problem. If it turns back on, it's a hardware problem.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

jds63

Well-known member
Member
VIP
Local time
5:14 AM
Posts
327
Location
United States
Visit site
OS
Windows 11 Pro
Does your power supply have a on/off switch? If it does, let the computer shutdown by hitting the shutdown option in Windows. Then use the switch on the power supply to turn off the power supply. Unplug the power supply from the outlet if it doesn't. Hit the power switch on the computer to discharge any stored electric. Then turn the power supply back on or plug it back in. If the computer stays off, it's a software problem. If it turns back on, it's a hardware problem.
Nice !! Would that mean motherboard or PSU you think If hardware issue ?


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    jds63 /self built
    CPU
    Intel Core i7 10700KF 3.8 MHz
    Motherboard
    ASUS ROG Strix Z490-E Gaming
    Memory
    G.Skill Trident RGB Series 64GB DDR4-3600MHz
    Graphics Card(s)
    ASUS ROG Strix GeForce RTX 3060 Ti OC Edition
    Sound Card
    Creative Sound BlasterX AE-5 Plus
    Monitor(s) Displays
    ASUS VG28UQL1A 28" 144 Mhz 4K Monitor
    Screen Resolution
    3840 X 2160p HDR
    Hard Drives
    Samsung 970 EVO Plus NVMe 500GB M.2 Drive, (2) Samsung 870 EVO 1TB SATA III Internal SSD, (2) Samsung 860 EVO 1TB SATA III Internal SSD & Seagate Barracuda 2TB
    PSU
    ASUS ROG Thor 850 80+ Platinum 850W Fully Modular RGB Power Supply
    Case
    Lian Li Lancool II Mesh Performance
    Cooling
    Noctua NH-U12A CPU Cooler, (5) Noctua NF-A12x15 chromax.black.swap 120mm, (3) Lepa BOL.Quiet PWM LED 120mm
    Keyboard
    Logitech MX Keys
    Mouse
    Logitech MX Ergo Trackball
    Internet Speed
    325Mbps/ 20Mbps
    Browser
    Mozilla Firefox 109.0 64-bit, Microsoft Edge
    Antivirus
    Kaspersky Internet Security 2022
    Other Info
    Pioneer Blu-Ray/DVD Burner 209DBK, Logitech Z906 5.1 Speakers and Epson XP7100 All-in-One

johnlgalt

Antidisestablishmentarianist
Power User
VIP
Local time
5:14 AM
Posts
2,945
Location
3rd Rock
about.me
OS
Windows 11 21H2 Current build
Could be either, actually. Could be something as simple as the hardware switch to power on the mainboard when testing is stuck pressed down. Could mean that the management 4 pin connection for the ATX 3.0 PSU is receiving a bad signal from the video card.... Which then means it could be the Video card putting out a bad signal, or it could be the management pins receiving a bad signal due to a short or some other issue...


My Computers

System One System Two

  • OS
    Windows 11 21H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    Eve Spectrum ES07D03 4K Gaming Monitor (Matte finish) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy finish)
    Screen Resolution
    4K x2
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    ZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable),Chrome, Edge/ß/Dev/Canary
    Antivirus
    Defender
  • Operating System
    CHromeOS Flex v108 Dev
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth

Winuser

Well-known member
Pro User
VIP
Local time
5:14 AM
Posts
4,427
Visit site
OS
Windows 11
Nice !! Would that mean motherboard or PSU you think If hardware issue ?
It's really hard to say. If it leans toward being hardware, the first thing I would look for is for any loose connections inside the computer. The second thing I would try is swapping out the power supply with the old one.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

jds63

Well-known member
Member
VIP
Local time
5:14 AM
Posts
327
Location
United States
Visit site
OS
Windows 11 Pro

My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    jds63 /self built
    CPU
    Intel Core i7 10700KF 3.8 MHz
    Motherboard
    ASUS ROG Strix Z490-E Gaming
    Memory
    G.Skill Trident RGB Series 64GB DDR4-3600MHz
    Graphics Card(s)
    ASUS ROG Strix GeForce RTX 3060 Ti OC Edition
    Sound Card
    Creative Sound BlasterX AE-5 Plus
    Monitor(s) Displays
    ASUS VG28UQL1A 28" 144 Mhz 4K Monitor
    Screen Resolution
    3840 X 2160p HDR
    Hard Drives
    Samsung 970 EVO Plus NVMe 500GB M.2 Drive, (2) Samsung 870 EVO 1TB SATA III Internal SSD, (2) Samsung 860 EVO 1TB SATA III Internal SSD & Seagate Barracuda 2TB
    PSU
    ASUS ROG Thor 850 80+ Platinum 850W Fully Modular RGB Power Supply
    Case
    Lian Li Lancool II Mesh Performance
    Cooling
    Noctua NH-U12A CPU Cooler, (5) Noctua NF-A12x15 chromax.black.swap 120mm, (3) Lepa BOL.Quiet PWM LED 120mm
    Keyboard
    Logitech MX Keys
    Mouse
    Logitech MX Ergo Trackball
    Internet Speed
    325Mbps/ 20Mbps
    Browser
    Mozilla Firefox 109.0 64-bit, Microsoft Edge
    Antivirus
    Kaspersky Internet Security 2022
    Other Info
    Pioneer Blu-Ray/DVD Burner 209DBK, Logitech Z906 5.1 Speakers and Epson XP7100 All-in-One

jds63

Well-known member
Member
VIP
Local time
5:14 AM
Posts
327
Location
United States
Visit site
OS
Windows 11 Pro
Could be either, actually. Could be something as simple as the hardware switch to power on the mainboard when testing is stuck pressed down. Could mean that the management 4 pin connection for the ATX 3.0 PSU is receiving a bad signal from the video card.... Which then means it could be the Video card putting out a bad signal, or it could be the management pins receiving a bad signal due to a short or some other issue...
Lot's point towards software related, but can't ever rule out hardware especially when was added and changed recently.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    jds63 /self built
    CPU
    Intel Core i7 10700KF 3.8 MHz
    Motherboard
    ASUS ROG Strix Z490-E Gaming
    Memory
    G.Skill Trident RGB Series 64GB DDR4-3600MHz
    Graphics Card(s)
    ASUS ROG Strix GeForce RTX 3060 Ti OC Edition
    Sound Card
    Creative Sound BlasterX AE-5 Plus
    Monitor(s) Displays
    ASUS VG28UQL1A 28" 144 Mhz 4K Monitor
    Screen Resolution
    3840 X 2160p HDR
    Hard Drives
    Samsung 970 EVO Plus NVMe 500GB M.2 Drive, (2) Samsung 870 EVO 1TB SATA III Internal SSD, (2) Samsung 860 EVO 1TB SATA III Internal SSD & Seagate Barracuda 2TB
    PSU
    ASUS ROG Thor 850 80+ Platinum 850W Fully Modular RGB Power Supply
    Case
    Lian Li Lancool II Mesh Performance
    Cooling
    Noctua NH-U12A CPU Cooler, (5) Noctua NF-A12x15 chromax.black.swap 120mm, (3) Lepa BOL.Quiet PWM LED 120mm
    Keyboard
    Logitech MX Keys
    Mouse
    Logitech MX Ergo Trackball
    Internet Speed
    325Mbps/ 20Mbps
    Browser
    Mozilla Firefox 109.0 64-bit, Microsoft Edge
    Antivirus
    Kaspersky Internet Security 2022
    Other Info
    Pioneer Blu-Ray/DVD Burner 209DBK, Logitech Z906 5.1 Speakers and Epson XP7100 All-in-One

johnlgalt

Antidisestablishmentarianist
Power User
VIP
Local time
5:14 AM
Posts
2,945
Location
3rd Rock
about.me
OS
Windows 11 21H2 Current build
Lot's point towards software related, but can't ever rule out hardware especially when was added and changed recently.

Yeah, I know. And you're spot on when you said earlier:

Is tough type of problem to figure out tried just about everything although it can be hardware issue (motherboard ..PSU) it’s usually a Windows issue when researched.

It *usually* is a power issue in the OS, but my MSI mobo-based system does this sporadically as well, and I've given up trying to fix it, just counting the days until I replace it with a new build.


My Computers

System One System Two

  • OS
    Windows 11 21H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    Eve Spectrum ES07D03 4K Gaming Monitor (Matte finish) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy finish)
    Screen Resolution
    4K x2
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    ZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable),Chrome, Edge/ß/Dev/Canary
    Antivirus
    Defender
  • Operating System
    CHromeOS Flex v108 Dev
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth

jds63

Well-known member
Member
VIP
Local time
5:14 AM
Posts
327
Location
United States
Visit site
OS
Windows 11 Pro
Yeah, I know. And you're spot on when you said earlier:



It *usually* is a power issue in the OS, but my MSI mobo-based system does this sporadically as well, and I've given up trying to fix it, just counting the days until I replace it with a new build.
Still have issue posted on here i can't figure it out, but feel might have fixed it without knowing and that bothers me a bit not knowing.
Freezes then restarts nvlddmkm.sys


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    jds63 /self built
    CPU
    Intel Core i7 10700KF 3.8 MHz
    Motherboard
    ASUS ROG Strix Z490-E Gaming
    Memory
    G.Skill Trident RGB Series 64GB DDR4-3600MHz
    Graphics Card(s)
    ASUS ROG Strix GeForce RTX 3060 Ti OC Edition
    Sound Card
    Creative Sound BlasterX AE-5 Plus
    Monitor(s) Displays
    ASUS VG28UQL1A 28" 144 Mhz 4K Monitor
    Screen Resolution
    3840 X 2160p HDR
    Hard Drives
    Samsung 970 EVO Plus NVMe 500GB M.2 Drive, (2) Samsung 870 EVO 1TB SATA III Internal SSD, (2) Samsung 860 EVO 1TB SATA III Internal SSD & Seagate Barracuda 2TB
    PSU
    ASUS ROG Thor 850 80+ Platinum 850W Fully Modular RGB Power Supply
    Case
    Lian Li Lancool II Mesh Performance
    Cooling
    Noctua NH-U12A CPU Cooler, (5) Noctua NF-A12x15 chromax.black.swap 120mm, (3) Lepa BOL.Quiet PWM LED 120mm
    Keyboard
    Logitech MX Keys
    Mouse
    Logitech MX Ergo Trackball
    Internet Speed
    325Mbps/ 20Mbps
    Browser
    Mozilla Firefox 109.0 64-bit, Microsoft Edge
    Antivirus
    Kaspersky Internet Security 2022
    Other Info
    Pioneer Blu-Ray/DVD Burner 209DBK, Logitech Z906 5.1 Speakers and Epson XP7100 All-in-One

bobshaw5000

Member
Thread Starter
Local time
5:14 AM
Posts
9
Visit site
OS
Windows 11
@glasskuter I almost always use the power menu to initiate the shutdown. I've also used the command prompt (shutdown /s) to do so during my troubleshooting process which didn't stop the issue.

@Winuser I've actually done that when I was taking SSDs out one by one to test if they were the problem source/CMOS clearing etc. The PC turned on as soon as the power cable was connected (with the PSU switch on) to the power strip, so I think it might be the new PSU's fault (or maybe GPU's). Hopefully, I can check the PSU when my PSU tester arrives during the weekend.

Things I haven't tested thus far: 1. testing whether the 4090 hardware is at fault (ie trying to start it w/o that) or 2. running the 4090 with my previous PSU (EVGA 750w).

The weirdest thing is everything works fine inside the OS and operates 100% normally (intensive gaming, watching media, etc.). No issues beyond the restart right after shutdown. I had some issues with the Sleep function, but I turned off my Ethernet Controller (3) I225V wake in power mgmt, and it was fine.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    I7 12700KF
    Motherboard
    GIGABYTE AORUS Z690 Pro
    Memory
    kingston fury 5200 40cl, 32gb
    Graphics Card(s)
    MSI Gaming Trio RTX 4090
    PSU
    Thermaltake Toughpower GF3 1000W

Latest Support Threads

Top Bottom
