Whats up here?


Bikeit

Member
Local time
7:57 AM
Posts
15
OS
Windows 11 pro

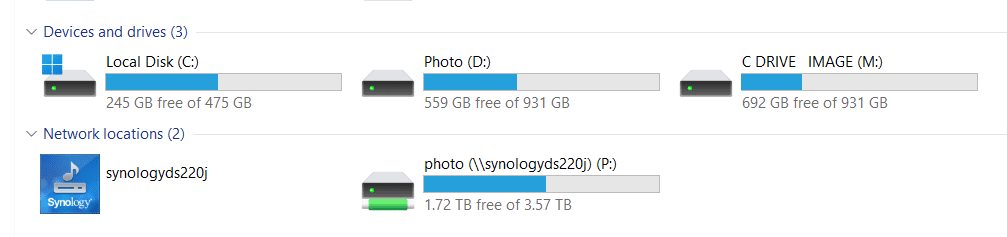

I have just imaged the C drive in my laptop to an external SSD, the C drive is 512Gb and the External drive (M) is 1TB and this is the what im getting, anyone know whats happening here?

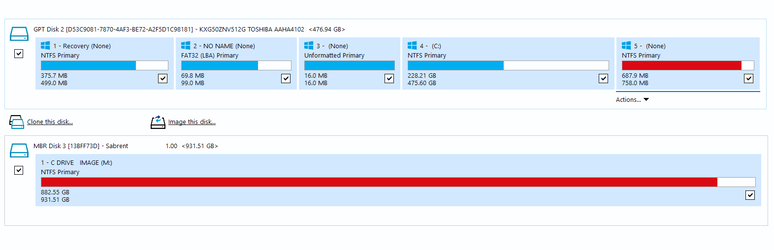

This is the view inside Macrium reflect.

Windows Build/Version
windows 11 pro

My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

dlross

Member
Local time
12:57 AM
Posts
6
Location
Denver, CO, USA
OS
Windows 11 Pro
Not without some more data. Post a directory listing of your M: drive and a listing of the Reflect configuration that you used to make the image.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    AMD Ryzen 5 3400G
    Motherboard
    Gigabyte B450M DS3H-CF
    Memory
    16 GB
    Graphics Card(s)
    Radeon Vega RX 11 (integrated)
    Sound Card
    AMD High Definition Audio Device
    Monitor(s) Displays
    LG 65OLEDB7 via HDMI through Denon AVR-X4400H
    Hard Drives
    128 GB SSD (system drive)
    1 TB spinner for data
    PSU
    350 W
    Case
    Silverstone
    Cooling
    3 120mm fans
    Keyboard
    Lenovo mini RF
    Mouse
    on keyboard
    Internet Speed
    900 Mbs
    Browser
    Edge
    Antivirus
    Win Defender
    Other Info
    Main apps : JRiver Media Center; Win apps for Netflix & Prime Video; Edge for Apple+ TV, HBO Max, & other media web sites

Bastet

Well-known member
Member
VIP
Local time
7:57 AM
Posts
246
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
How many older images are on the backup drive?
How often are you backing up?
Are you creating Full & differential backups, just full backups or other?
Every new full backup will create a fresh image, older backups are not automatically deleted.


My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro
How many older images are on the backup drive?
How often are you backing up?
Are you creating Full & differential backups, just full backups or other?
Every new full backup will create a fresh image, older backups are not automatically deleted.

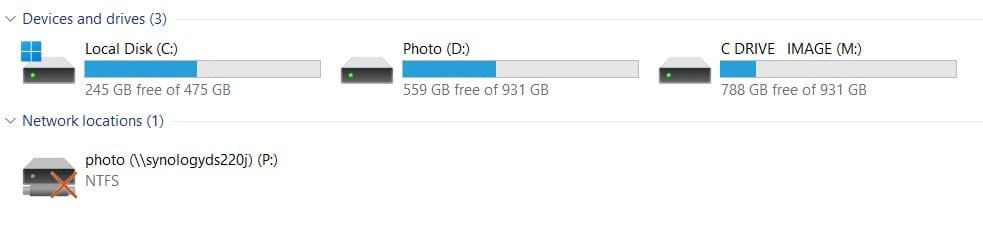

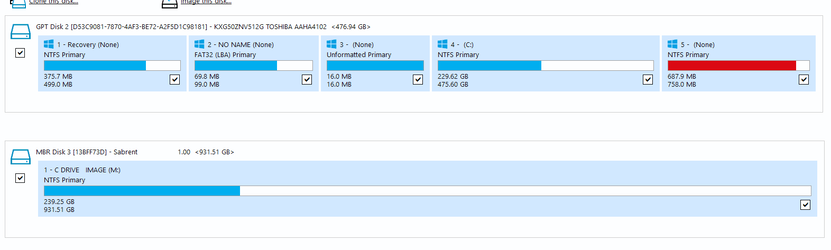

There was 1 older image of windows 10, I have since formatted the external drive and imaged the C drive again and this is the result?
Going forward i will be backing up once a week, choosing differential, does this sound ok? still getting the red bar inside MF.


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro
Not without some more data. Post a directory listing of your M: drive and a listing of the Reflect configuration that you used to make the image.

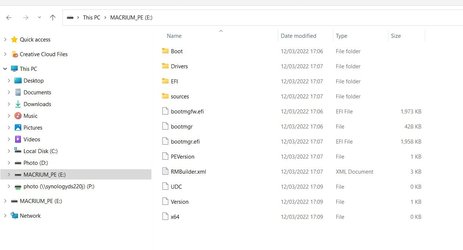

Where inside MF can i get this info?


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

Ghot

Well-known member
Pro User
VIP
Local time
2:57 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
Where inside MF can i get this info?

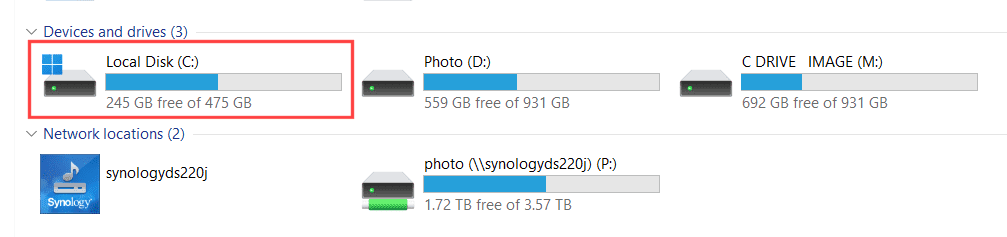

A full backup of your C:\ drive is gonna be 114GB, at default compression settings.
You can only fit 7 full backups on that 1TB drive.

If you did a sector by sector backup (228GB)... you can only fit 4 on the 1TB drive.

And that's assuming the 1TB drive is empty.

What @dlross asked for was a screenshot of the M: drive open in file explorer.
So we can see what's actually ON that 1TB drive.

There, now the numbers are fixed.
Too early in my morning to do math. :-)


And @Bastet is also asking for a screenshot of the M:\ drive opened in File Explorer, and what settings you chose, here...

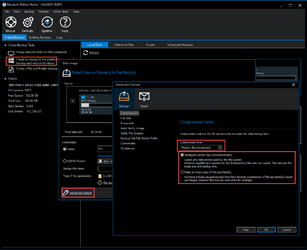

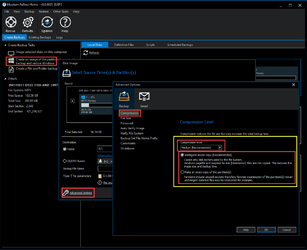

Macrium, at default settings, is set to Medium compression and Intelligent sector copy.
This would make a full backup of your C:\ drive 114GB.
At Medium compression and "Make an exact copy... a full backup would be 228GB.

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro
A full backup of your C:\ drive is gonna be 188GB, at default compression settings.
You can only fit 4 full backups on that 1TB drive.

If you did a sector by sector backup... you can only fit 2 on the 1TB drive.
I only intend keeping two full backups and the rest will be differentials. Would this be ok?


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

Bastet

Well-known member
Member
VIP
Local time
7:57 AM
Posts
246
Location
Manchester. UK.
OS
Windows 11 Pro 64bit

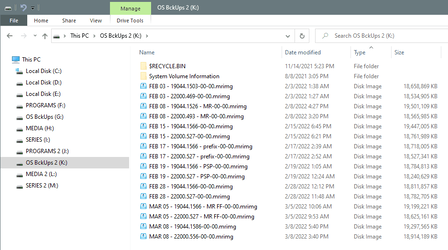

I have a 5TB HDD & this can fill up quickly with a few full backups, their differentials & the incremental.
A 1TB will not be large enough for two full backups & their diffs.
Did you clean the drive using disk part before formatting or just format it? Is the drive formatted to exFAT, FAT or NTFS?


My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

CornishRattler

Well-known member
Pro User
VIP
Local time
7:57 AM
Posts
1,770
Location
Cornwall UK
OS
Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot
I have a 5TB HDD & this can fill up quickly with a few full backups, their differentials & the incremental.
A 1TB will not be large enough for two full backups & their diffs.
Did you clean the drive using disk part before formatting or just format it? Is the drive formatted to exFAT, FAT or NTFS?

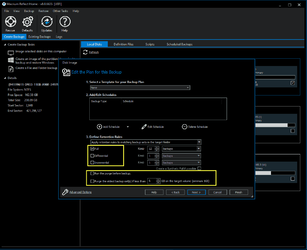

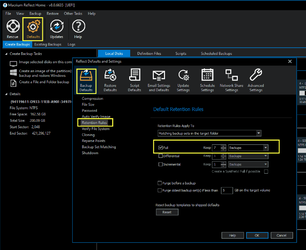

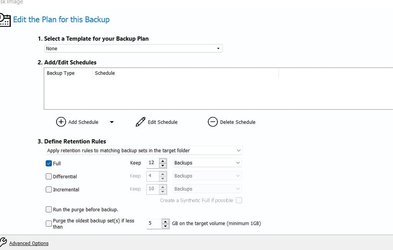

Macrium defaults to deleting the oldest full back up if there is less than 5GB of space left on the BU drive


My Computer

System One

  • OS
    Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Alienware M15 Ryzen Edition R6
    CPU
    AMD Ryzen™ 9 5900HX
    Memory
    32GB
    Graphics Card(s)
    NVIDIA® GeForce RTX™ 3070 8GB GDDR6
    Hard Drives
    1 x Samsung 980 Pro 1TB
    1 x Samsung 970 Evo Plus 1TB

Ghot

Well-known member
Pro User
VIP
Local time
2:57 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
I only intend keeping two full backups and the rest will be differentials. Would this be ok?


It depends on what else is on that 1TB drive.
Your C:\ drive has 228GB of data on it. A full backup, just by itself, would be 1/2 of that ( or 114GB), at default settings.

And, as others have mentioned... incrementals or differentials, will add to that 114GB size.

An empty 1TB drive has 931GB of space on it.
If you have other stuff on there... you will have less than 931GB.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro
I have a 5TB HDD & this can fill up quickly with a few full backups, their differentials & the incremental.
A 1TB will not be large enough for two full backups & their diffs.
Did you clean the drive using disk part before formatting or just format it? Is the drive formatted to exFAT, FAT or NTFS?


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

Ghot

Well-known member
Pro User
VIP
Local time
2:57 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856

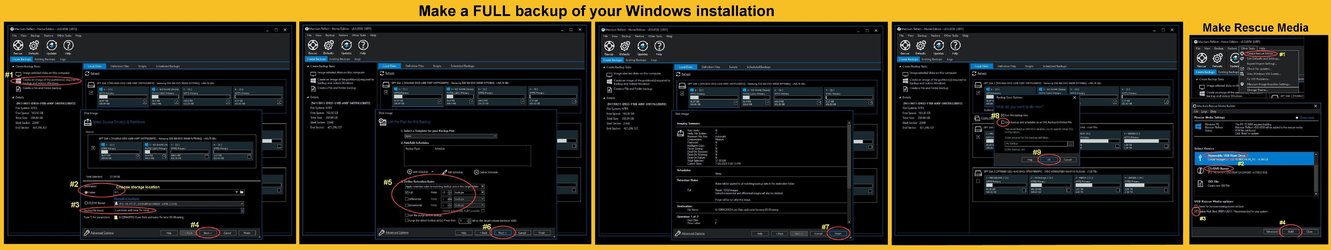

Try this... delete all backups off of the 1TB drive. Then make a full backup of the C:\ drive... with these settings.
Then post a screenshot of Macrium Reflect again.


000000 MACRIUM 2.jpg


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro
It depends on what else is on that 1TB drive.
Your C:\ drive has 228GB of data on it. A full backup, just by itself, would be 1/2 of that ( or 114GB), at default settings.

And, as others have mentioned... incrementals or differentials, will add to that 114GB size.

An empty 1TB drive has 931GB of space on it.
If you have other stuff on there... you will have less than 931GB.
The drive has nothing else on it.


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

Ghot

Well-known member
Pro User
VIP
Local time
2:57 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bastet

Well-known member
Member
VIP
Local time
7:57 AM
Posts
246
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
Macrium defaults to deleting the oldest full back up if there is less than 5GB of space left on the BU drive
Thanks @CornishRattler. I don’t let it get that full as it’s easier to manually delete backups, especially if I wish to keep an older backup as I did when I upgraded to Win 11 - I kept Win 10 image just in case I needed it.


My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro

My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

Ghot

Well-known member
Pro User
VIP
Local time
2:57 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro
Try this... delete all backups off of the 1TB drive. Then make a full backup of the C:\ drive... with these settings.
Then post a screenshot of Macrium Reflect again.


View attachment 24082
Will I just format the 1TB drive?


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender

Ghot

Well-known member
Pro User
VIP
Local time
2:57 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
Will I just format the 1TB drive?


No... just do what's in post #17

Then, if everything goes according to plan... your full backup of C:\ will be 115GB.
So if that happens (your backup is 115GB)... you can then set the Retention Rules, to "Keep 7 backups"
Then when it gets to 7 backups on the 1TB drive... it will delete the oldest one, when you go to make another backup.

It should take approx. 12 mins to make a full backup of C:\
Approx. same time, if you have to restore from a backup.





The 1TB drive will actually hold eight 115GB backups...
so we will set the Retention Rules at 7, so Macrium doesn't turn your 1TB drive RED. :)



Note: If there's stuff on your C:\ drive that you don't use... remove it.
The smaller the amount of data on your C:\ drive, the faster your backups will be.

I have approx. 38Gb on my C:\ drive, so my backups are only 19GB, and only take me about 2 minutes to make.





Macrium Reflect v8 User Guide

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bikeit

Member
Thread Starter
Local time
7:57 AM
Posts
15
OS
Windows 11 pro
Ok guys thanks a lot for all your help to date, I have followed your suggestions. Hopefully this is correct?


Attachments

  • Screenshot 2022-03-12 222412.jpg no 1.jpg
    Screenshot 2022-03-12 222412.jpg no 1.jpg
    70.6 KB · Views: 1
  • Screenshot 2022-03-12 222814.jpg no 3.jpg
    Screenshot 2022-03-12 222814.jpg no 3.jpg
    36.3 KB · Views: 1
  • Screenshot 2022-03-12 222949.jpg no 4.jpg
    Screenshot 2022-03-12 222949.jpg no 4.jpg
    22.7 KB · Views: 1
  • Screenshot 2022-03-12 231920.jpg no 7.jpg
    Screenshot 2022-03-12 231920.jpg no 7.jpg
    15.2 KB · Views: 1
  • Screenshot 2022-03-12 224624.jpg no 5.jpg
    Screenshot 2022-03-12 224624.jpg no 5.jpg
    45.4 KB · Views: 1
  • Screenshot 2022-03-13 112037.jpg no 8.jpg
    Screenshot 2022-03-13 112037.jpg no 8.jpg
    47.5 KB · Views: 1

My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook
    CPU
    Intel(R) Core(TM) i7-8850H CPU @ 2.60GHz 2.59 GHz
    Motherboard
    HP 842D
    Memory
    32GB
    Graphics Card(s)
    Nvidia Quadro P3200
    Hard Drives
    M.2 Samsung 980 1TB
    Toshiba KXG50ZNV512G
    Internet Speed
    150MBPS
    Browser
    Chrome, Edge
    Antivirus
    Windows defender
Top Bottom
