Windows 11 Pro - Black Screen with Cursor after Login


Signup1

Member
Local time
12:17 AM
Posts
14
OS
Windows 11
Hello All, I had this weird problem for the past two days on one of my PC. After login Windows is showing a Black screen with a cursor point.

Tried below options by seeing from Youtube and MS Forums

  • Tried to run Explorer through Task Manager but no luck.
  • Safe Mode is also not working After login showing the same black screen.
  • In REGEDIT, checked Shell value name is Explorer.Exe (in WinLogon)
  • Disabled Startup Type in App Readiness service through Task Manager
I tried to Copy Dxgi.dll file to System32 folder but getting the file is already running error so cant copy the file (I updated the permissions to Administrator to copy it to this folder)

After trying all these steps finally I decided to format the System. After completing the format problem was gone.

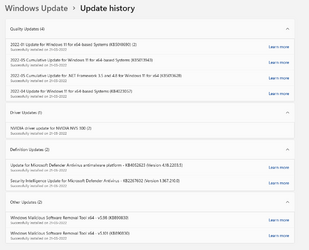

However, after some time windows installed a few updates and updated NVIDIA graphic drivers and prompted me to restart the PC. When I restarted the PC, Black Screen with cursor issue came again, and don't know what is the actual problem?

Is it my NVIDIA Driver(NVS 300) or any other feature update causing this problem? Now I used the System restore option and went back to before Windows Update.
As there is no graphic driver installed Only One Monitor is working now and that too on Windows Basic Display Driver so the screen is flickering while playing the videos. However, in the background graphic driver is updated but I haven't restarted the system yet. If I restart the system same problem will occur?

What should I do? Can you please advise and provide me with a working solution for this?

Edition Windows 11 Pro
Version 21H2
Installed on ‎21-‎05-‎2022
OS build 22000.318
Experience Windows Feature Experience Pack 1000.22000.318.0

Windows Build/Version
Windows 11 Pro 22000.318

Attachments

  • image.png
    30.6 KB · Views: 1

My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    Memory
    8 GB DDR4
    Graphics Card(s)
    NVIDIA GeForce 1650Ti
    Screen Resolution
    1920*1080
    Hard Drives
    500 GB SSD
    Internet Speed
    50 MBPS
    Browser
    Chrome
  • Operating System
    Microsoft Windows 11 (10.0) Professional 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel
    CPU
    Intel® Core™ i7-3770S CPU @ 3.10GHz
    Motherboard
    Intel DH77KC
    Memory
    16384 MB || Dual Channel (128 bit) DDR3-SDRAM
    Graphics card(s)
    NVIDIA NVS 300 (512 MB)
    Monitor(s) Displays
    Dell Computer DELL S2240L (DELD053) - 2
    Screen Resolution
    21.7 inches (55.1 cm) / 1920 x 1080 pixels @ 56-76 Hz
    Hard Drives
    Seagate ST2000DM001-1CH164 (FW: CC27)
    1863.0 GiB (~2000 GB)
    Case
    Cooler Master
    Mouse
    Lenovo Wireless Mouse
    Keyboard
    Microsoft Wired Keyboard
    Internet Speed
    40 MBPS
    Browser
    Chrome || Firefox
    Antivirus
    Windows Defender

Ghot

Well-known member
Pro User
VIP
Local time
2:47 PM
Posts
3,434
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
@Signup1


If we are discussing the laptop listed in your specs...

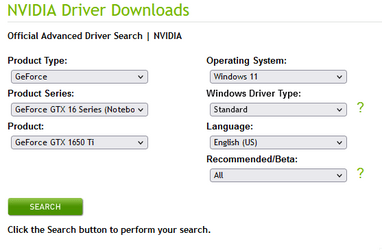

I would try the Standard driver first.
Download the driver, and save it to your desktop. Then disconnect the internet.





Then... install the driver and reboot when it asks. Post back here with the results.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Signup1

Member
Thread Starter
Local time
12:17 AM
Posts
14
OS
Windows 11
@Signup1


If we are discussing the laptop listed in your specs...

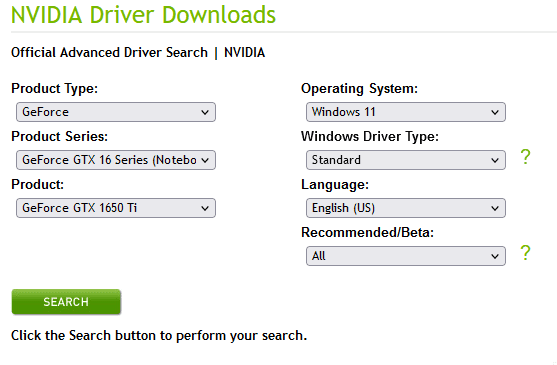

I would try the Standard driver first.
Download the driver, and save it to your desktop. Then disconnect the internet.


View attachment 29677



Then... install the driver and reboot when it asks. Post back here with the results.

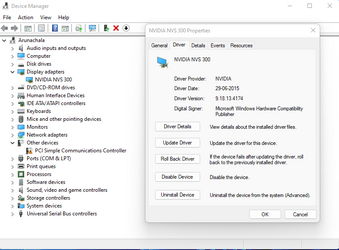

Hi, @Ghot Thanks for the reply. This is for my PC not for my laptop. Is this problem due to Graphic driver only? or due to any Windows update?

Processor Intel(R) Core(TM) i7-3770S CPU @ 3.10GHz 3.10 GHz
Installed RAM 16.0 GB
System type 64-bit operating system, x64-based processor
Pen and touch No pen or touch input is available for this display
NVIDIA NVS 300 Graphic Card

Hope this info will help..


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    Memory
    8 GB DDR4
    Graphics Card(s)
    NVIDIA GeForce 1650Ti
    Screen Resolution
    1920*1080
    Hard Drives
    500 GB SSD
    Internet Speed
    50 MBPS
    Browser
    Chrome
  • Operating System
    Microsoft Windows 11 (10.0) Professional 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel
    CPU
    Intel® Core™ i7-3770S CPU @ 3.10GHz
    Motherboard
    Intel DH77KC
    Memory
    16384 MB || Dual Channel (128 bit) DDR3-SDRAM
    Graphics card(s)
    NVIDIA NVS 300 (512 MB)
    Monitor(s) Displays
    Dell Computer DELL S2240L (DELD053) - 2
    Screen Resolution
    21.7 inches (55.1 cm) / 1920 x 1080 pixels @ 56-76 Hz
    Hard Drives
    Seagate ST2000DM001-1CH164 (FW: CC27)
    1863.0 GiB (~2000 GB)
    Case
    Cooler Master
    Mouse
    Lenovo Wireless Mouse
    Keyboard
    Microsoft Wired Keyboard
    Internet Speed
    40 MBPS
    Browser
    Chrome || Firefox
    Antivirus
    Windows Defender

glasskuter

Well-known member
Pro User
VIP
Local time
1:47 PM
Posts
2,225
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.832
Is it my NVIDIA Driver(NVS 300)
However, in the background graphic driver is updated but I haven't restarted the system yet. If I restart the system same problem will occur?

That's a good indication the driver is at fault. The NVS 300 is 12 years old. Since it will BSOD again at next boot, only thing I can suggest is to do another system restore, disable automatic driver updates using Group Policy (this article under section marked How to Stop Windows From Updating Drivers Using Group Policies, and reinstall whatever driver you were using before the crash.


This post needs to be in the BSOD section of the forum. Attention @zbook.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.832
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Ghot

Well-known member
Pro User
VIP
Local time
2:47 PM
Posts
3,434
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
@Signup1

Go here...



and click on "Download latest stable release"
Save it to your desktop and run: WhyNotWin11.exe (it's portable)

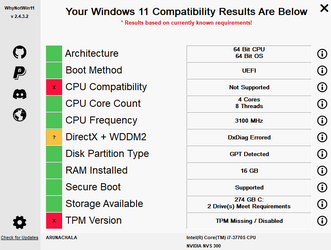

What does the DirectX + WDDM2 ...entry, show?


I'm wondering if that may be the beginning and end of the problem.
Windows 11 in general, might have issues with your NVS 300.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Signup1

Member
Thread Starter
Local time
12:17 AM
Posts
14
OS
Windows 11
What does the DirectX + WDDM2 ...entry, show?

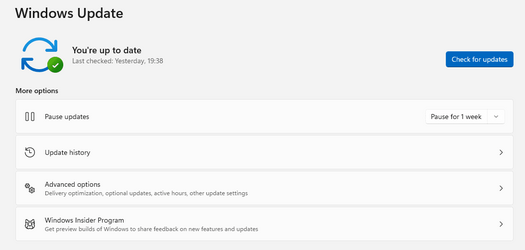

Plz check below screen shot. However, I restared the systema and as of now no issues even after updating the graphic driver through the Windows Update.

Also, I have added DirectX Diagnostic Tool data in a Text File. As per the info, it is showing DirectX Version as = DirectX 12 & WDDm 1.2

Please check once. Thank you!!





I have created the System Restore for now after updating the drivers.


Attachments

  • DxDiag.txt
    75.6 KB · Views: 1

My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    Memory
    8 GB DDR4
    Graphics Card(s)
    NVIDIA GeForce 1650Ti
    Screen Resolution
    1920*1080
    Hard Drives
    500 GB SSD
    Internet Speed
    50 MBPS
    Browser
    Chrome
  • Operating System
    Microsoft Windows 11 (10.0) Professional 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel
    CPU
    Intel® Core™ i7-3770S CPU @ 3.10GHz
    Motherboard
    Intel DH77KC
    Memory
    16384 MB || Dual Channel (128 bit) DDR3-SDRAM
    Graphics card(s)
    NVIDIA NVS 300 (512 MB)
    Monitor(s) Displays
    Dell Computer DELL S2240L (DELD053) - 2
    Screen Resolution
    21.7 inches (55.1 cm) / 1920 x 1080 pixels @ 56-76 Hz
    Hard Drives
    Seagate ST2000DM001-1CH164 (FW: CC27)
    1863.0 GiB (~2000 GB)
    Case
    Cooler Master
    Mouse
    Lenovo Wireless Mouse
    Keyboard
    Microsoft Wired Keyboard
    Internet Speed
    40 MBPS
    Browser
    Chrome || Firefox
    Antivirus
    Windows Defender

vorsv

Member
Local time
12:17 AM
Posts
29
OS
windows 11 pro for workstations
how did u fixed it mate
it happend to me
someone reply


My Computer

System One

  • OS
    windows 11 pro for workstations
    Computer type
    Laptop
    Manufacturer/Model
    samsung rv509
    CPU
    i3 m380
    Motherboard
    in built
    Memory
    8 gb
    Graphics Card(s)
    none
    Sound Card
    in built
    Monitor(s) Displays
    1(in-built)
    Screen Resolution
    1366x720
    Hard Drives
    500 gb
    PSU
    in built
    Case
    none
    Keyboard
    hp(ck-440g) .,wireless
    Mouse
    enter voyager(wireless)
    Internet Speed
    ~10 to 190 mbps wired
    Browser
    vivaldi,opera,chrome,brave
    Antivirus
    none(defender disabled)
    Other Info
    no tpm
    no secure boot

glasskuter

Well-known member
Pro User
VIP
Local time
1:47 PM
Posts
2,225
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.832
@vorsv Welcome to the forum. What generated a bsod for this poster may or may not be the same fault as what you are encountering. I suggest you post your issue in the BSOD section of the forum so it can get the attention it deserves. Posting instructions and what log files you need to submit are at the top of that section of the forum. Describe what is happening and what error messages you are getting.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.832
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Top Bottom
