XML file not displaying in Edge


perdrix

Member
Local time
10:41 AM
Posts
69
OS
Windows 11 for Workstations
So I have this xsl stylesheet that I use to display my iTunes library that worked a treat in IE.

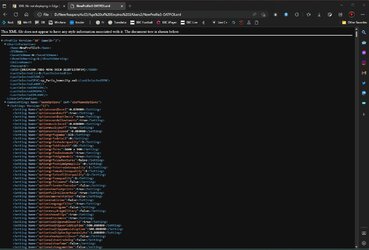

Now i am on Windows 11, if I load the xml file into Edge, I am just shown a blank screen :(

I tried to install IE11 but running the installed iexplore.exe just starts the edge browser.

Here's what the xml says:


Code:
<?xml version="1.0" encoding="UTF-8"?>
<!-- <?xml-stylesheet href="albumList.xsl" type="text/xsl"?>-->
<?xml-stylesheet href="albumListByGenre.xsl" type="text/xsl"?>
<wrapper>
  <incl file="iTunes Music Library.xml"/>
</wrapper>

Is there any way to persuade Edge to do something useful with this? If not what are my alternatives please?
D.

Windows Build/Version
22H2

My Computer

System One

  • OS
    Windows 11 for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    Dell Precision 7750
    CPU
    Xeon W-11885M
    Motherboard
    Dell
    Memory
    128GB
Last edited:

My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
If I change the shortcut as suggested: "C:\Program Files (x86)\Microsoft\Edge\Application\msedge.exe" --allow-file-access-from-files --profile-directory=Default

I still get a blank screen.

If I try to follow the stuff in the link you gave me I, it still doesn't work. What a heap of ****

How can I force W11 to run IE instead of Edge when I run iexplore.exe


My Computer

System One

  • OS
    Windows 11 for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    Dell Precision 7750
    CPU
    Xeon W-11885M
    Motherboard
    Dell
    Memory
    128GB

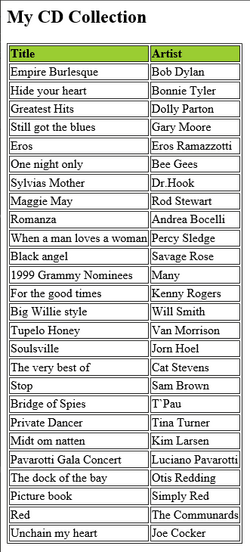

You are doing something wrong then because both methods work.
IE is no longer usable by itself in Win 11.


Attachments

  • Screenshot 2022-12-02 183557.jpg
    Screenshot 2022-12-02 183557.jpg
    151.8 KB · Views: 2

My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM

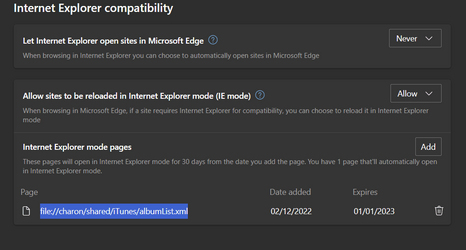

To get it to display I had to do this:


which strikes as very unfriendly - I don't want the darn thing to revert after 30 days!
Why the heck won't it just open the xml and process it correctly using the style sheet.

If Edge won't work nicely - what tools will work??

D.


My Computer

System One

  • OS
    Windows 11 for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    Dell Precision 7750
    CPU
    Xeon W-11885M
    Motherboard
    Dell
    Memory
    128GB
For security reasons, and rightfully so, .xls/.xml will not open directly open in edge.
I repeat that when I start Edge with the parameter --allow-file-access-from-files
XML/XSL files are displayed properly.


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
The XML document you were displaying was a small one that didn't use a style sheet.

I can display one like that just fine - a large one however gets me: Error code: Out of memory

My Edge short cut now reads: "C:\Program Files (x86)\Microsoft\Edge\Application\msedge.exe" --allow-file-access-from-files --profile-directory=Default

Here's my stylesheet (albumListByGenre.xsl):


D.
Code:
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
  <!-- (c) Chris Veness 2005-2006 -->
  <xsl:output method="html" encoding="UTF-8" indent="yes"/>


  <!-- match the wrapper and apply templates to the <incl> xml file -->
  <xsl:template match="/wrapper">
    <xsl:apply-templates select="document(incl/@file)/plist/dict/dict"/>
  </xsl:template>


  <xsl:key name="songsByGenre" match="dict" use="string[preceding-sibling::key[1]='Genre']"/>
  <xsl:key name="songsByAlbum" match="dict" use="string[preceding-sibling::key[1]='Album']"/>


  <xsl:template match="dict">
    <html>
      <head>
        <title>iTunes Album Listing</title>
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"/>
        <style type='text/css'> td { vertical-align: top; padding-right: 1em; } </style>
      </head>
      <body>
        <table>

          <xsl:for-each select="dict[generate-id(.)=generate-id(key('songsByGenre',string)[1])]">
            <xsl:sort select="string[preceding-sibling::key[1]='Genre']"/>
            <xsl:for-each select="key('songsByGenre',string)[1]">
              <xsl:call-template name="albumsInGenre">
                <xsl:with-param name="genre" select="string[preceding-sibling::key[1]='Genre']"/>
              </xsl:call-template>
            </xsl:for-each>
          </xsl:for-each>

          <!-- totals -->
          <tr>
            <td colspan='4' style='color: gray'><b>Total</b></td>
            <td style='color: gray' align='right'><xsl:call-template name="iPodTimeTotal"/></td>
            <td style='color: gray' align='right'><xsl:call-template name="iTunesTimeTotal"/></td>
          </tr>
          <tr>
            <td colspan='4'> </td>
            <td style='color: gray' align='right'><xsl:call-template name="iPodSizeTotal"/></td>
            <td style='color: gray' align='right'><xsl:call-template name="iTunesSizeTotal"/></td>
          </tr>

        </table>
      </body>
    </html>
  </xsl:template>


  <xsl:template name="albumsInGenre">
    <xsl:param name="genre"/>

    <tr>  <!-- genre header -->
      <td colspan='4'><b><xsl:value-of select="$genre"/></b></td>
      <td align='right' style='color: gray'><i>iPod</i></td>
      <td align='right' style='color: gray'><i>iTunes</i></td>
    </tr>

    <xsl:variable name="song" select="/plist/dict/dict/dict"/>
    <xsl:for-each select="$song[generate-id(.)=
        generate-id(key('songsByAlbum',string[preceding-sibling::key[1]='Album'])[1])]">
      <xsl:sort select="string[preceding-sibling::key[1]='Album']"/>
      <xsl:for-each select="key('songsByAlbum',string[preceding-sibling::key[1]='Album'])
          [string[preceding-sibling::key[1]='Genre']=$genre]
          [1]">
          <!--  for albums on iPod only, add
                [not(true[preceding-sibling::key[1]='Disabled'])] -->
        <tr>
          <td> </td>
          <td><xsl:call-template name="album"/></td>
          <td><xsl:call-template name="artist"/></td>
          <td align='right'><xsl:call-template name="iPodTimeAlbum"/></td>
          <td align='right'><xsl:call-template name="iTunesTimeAlbum"/></td>
        </tr>
      </xsl:for-each>
    </xsl:for-each>
    <tr><td colspan='6'>&#160;</td></tr>  <!-- space between genres -->
  </xsl:template>


  <xsl:template name="album">
    <xsl:value-of select="string[preceding-sibling::key[1]='Album']"/>
  </xsl:template>


  <xsl:template name="artist">
    <xsl:choose>
      <xsl:when test="true[preceding-sibling::key[1]='Compilation']">
        <i>Compilation</i>
      </xsl:when>
      <xsl:otherwise>
        <xsl:value-of select="string[preceding-sibling::key[1]='Artist']"/>
      </xsl:otherwise>
    </xsl:choose>
  </xsl:template>


  <xsl:template name="iPodTimeAlbum">
    <xsl:variable name="tracksInAlbum"
        select="key('songsByAlbum',string[preceding-sibling::key[1]='Album'])"/>
    <xsl:variable name="t"
        select="sum($tracksInAlbum/integer[preceding-sibling::key[1]='Total Time']
            [not(../true[preceding-sibling::key[1]='Disabled'])])"/>
    <xsl:call-template name="formatTime">
      <xsl:with-param name="t" select="$t"/>
    </xsl:call-template>
  </xsl:template>


  <xsl:template name="iTunesTimeAlbum">
    <xsl:variable name="tracksInAlbum"
        select="key('songsByAlbum',string[preceding-sibling::key[1]='Album'])"/>
    <xsl:variable name="t"
        select="sum($tracksInAlbum/integer[preceding-sibling::key[1]='Total Time'])"/>
    <xsl:call-template name="formatTime">
      <xsl:with-param name="t" select="$t"/>
    </xsl:call-template>
  </xsl:template>


  <xsl:template name="iPodTimeTotal">
    <xsl:variable name="t" select="sum(dict/integer[preceding-sibling::key[1]='Total Time']
        [not(../true[preceding-sibling::key[1]='Disabled'])])"/>
    <xsl:call-template name="formatTime">
      <xsl:with-param name="t" select="$t"/>
    </xsl:call-template>
  </xsl:template>


  <xsl:template name="iTunesTimeTotal">
    <xsl:variable name="t" select="sum(dict/integer[preceding-sibling::key[1]='Total Time'])"/>
    <xsl:call-template name="formatTime">
      <xsl:with-param name="t" select="$t"/>
    </xsl:call-template>
  </xsl:template>


  <xsl:template name="iPodSizeTotal">
    <xsl:variable name="s" select="sum(dict/integer[preceding-sibling::key[1]='Size']
        [not(../true[preceding-sibling::key[1]='Disabled'])])"/>
    <xsl:value-of select="floor($s div (1000000)) div 1000"/>GB
  </xsl:template>


  <xsl:template name="iTunesSizeTotal">
    <xsl:variable name="s" select="sum(dict/integer[preceding-sibling::key[1]='Size'])"/>
    <xsl:value-of select="floor($s div (1000000)) div 1000"/>GB
  </xsl:template>


  <xsl:template name="formatTime">
    <xsl:param name="t"/>
    <xsl:if test="$t != 0">
      <xsl:variable name="h" select="floor(($t div (1000*60*60)))"/>
      <xsl:variable name="m" select="floor(($t div (1000*60)) mod 60)"/>
      <xsl:variable name="s" select="floor(($t div 1000) mod 60)"/>
      <xsl:if test="$h != 0"><xsl:value-of select="$h"/>:</xsl:if>
      <xsl:value-of select="format-number($m,'00')"/>:<xsl:value-of select="format-number($s,'00')"/>
    </xsl:if>
  </xsl:template>

</xsl:stylesheet>


My Computer

System One

  • OS
    Windows 11 for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    Dell Precision 7750
    CPU
    Xeon W-11885M
    Motherboard
    Dell
    Memory
    128GB
Maybe you could ask the author. <!-- (c) Chris Veness 2005-2006 -->

You told me you wanted to display a file when you actually wanted to run it.
I am done here.


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
Please explain what I am doing wrong here. Why shouldn't I be able to open it and have it display in Edge

D.


My Computer

System One

  • OS
    Windows 11 for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    Dell Precision 7750
    CPU
    Xeon W-11885M
    Motherboard
    Dell
    Memory
    128GB
You told me you wanted to display a file when you actually wanted to run it.
I am done here.
I don't understand what you are saying about display versus run. All I want to do is open this xml and have it display using its style sheet. Works fine in IE mode ...

Why would it not work in Edge?


My Computer

System One

  • OS
    Windows 11 for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    Dell Precision 7750
    CPU
    Xeon W-11885M
    Motherboard
    Dell
    Memory
    128GB
@perdrix

Enable Internet Explorer mode (IE mode) button in your toolbar for Edge.
You can access the setting here: edge://settings/appearance#CustomizeToolbar


For XML-files with stylesheet/transform associated you can then simply press this button: 1670007032806.png
Which in my test will display this:

No need to start Edge in different modes or anything, nor add some hard links to settings.

Note: I used the example files from w3schools.com


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 build 10.0.22631.3296 (Release Channel) / Linux Mint 21.3 Cinnamon
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo A485
    CPU
    Ryzen 7 2700U Pro
    Motherboard
    Lenovo (WiFi/BT module upgraded to Intel Wireless-AC-9260)
    Memory
    32GB
    Graphics Card(s)
    iGPU Vega 10
    Sound Card
    Realtek
    Monitor(s) Displays
    14" FHD (built-in) + 14" Lenovo Thinkvision M14t (touch+pen) + 32" Asus PB328
    Screen Resolution
    FHD + FHD + 1440p
    Hard Drives
    Intel 660p m.2 nVME PCIe3.0 x2 512GB
    PSU
    65W
    Keyboard
    Thinkpad / Logitech MX Keys
    Mouse
    Logitech MX Master 2S
    Internet Speed
    600/300Mbit
    Browser
    Edge (Chromium)
    Antivirus
    Windows Defender
    Other Info
    SecureBoot: Enabled
    TPM2.0: Enabled
    AMD-V: Enabled
  • Operating System
    Windows 11 Pro 23H2 build 10.0.22631.3296(Release Preview Channel)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7-7700k @4.8GHz
    Motherboard
    Asus PRIME Z270-A
    Memory
    32GB 2x16GB 2133MHz CL15
    Graphics card(s)
    EVGA GTX1080Ti FTW 11GB
    Sound Card
    Integrated
    Monitor(s) Displays
    32" 10-bit Asus PB328Q
    Screen Resolution
    WQHD 2560x1440
    Hard Drives
    512GB ADATA SX8000NP NVMe PCIe Gen 3 x4
    PSU
    850W
    Case
    Fractal Design Define 7
    Cooling
    Noctua NH-D15 chromax.black
    Mouse
    Logitech MX Master 2S
    Keyboard
    Logitech MX Keys
    Internet Speed
    600/300Mbit
    Browser
    Edge (Cromium)
    Antivirus
    Windows Defender
    Other Info
    AC WiFi Card
It is also possible to write a html file, with some JavaScript, which will open XML/XLT fine in Edge without any modifications to the browser at all. My above example is only for opening XML files directly.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 build 10.0.22631.3296 (Release Channel) / Linux Mint 21.3 Cinnamon
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo A485
    CPU
    Ryzen 7 2700U Pro
    Motherboard
    Lenovo (WiFi/BT module upgraded to Intel Wireless-AC-9260)
    Memory
    32GB
    Graphics Card(s)
    iGPU Vega 10
    Sound Card
    Realtek
    Monitor(s) Displays
    14" FHD (built-in) + 14" Lenovo Thinkvision M14t (touch+pen) + 32" Asus PB328
    Screen Resolution
    FHD + FHD + 1440p
    Hard Drives
    Intel 660p m.2 nVME PCIe3.0 x2 512GB
    PSU
    65W
    Keyboard
    Thinkpad / Logitech MX Keys
    Mouse
    Logitech MX Master 2S
    Internet Speed
    600/300Mbit
    Browser
    Edge (Chromium)
    Antivirus
    Windows Defender
    Other Info
    SecureBoot: Enabled
    TPM2.0: Enabled
    AMD-V: Enabled
  • Operating System
    Windows 11 Pro 23H2 build 10.0.22631.3296(Release Preview Channel)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7-7700k @4.8GHz
    Motherboard
    Asus PRIME Z270-A
    Memory
    32GB 2x16GB 2133MHz CL15
    Graphics card(s)
    EVGA GTX1080Ti FTW 11GB
    Sound Card
    Integrated
    Monitor(s) Displays
    32" 10-bit Asus PB328Q
    Screen Resolution
    WQHD 2560x1440
    Hard Drives
    512GB ADATA SX8000NP NVMe PCIe Gen 3 x4
    PSU
    850W
    Case
    Fractal Design Define 7
    Cooling
    Noctua NH-D15 chromax.black
    Mouse
    Logitech MX Master 2S
    Keyboard
    Logitech MX Keys
    Internet Speed
    600/300Mbit
    Browser
    Edge (Cromium)
    Antivirus
    Windows Defender
    Other Info
    AC WiFi Card
Thanks folks


My Computer

System One

  • OS
    Windows 11 for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    Dell Precision 7750
    CPU
    Xeon W-11885M
    Motherboard
    Dell
    Memory
    128GB

Latest Support Threads

Back
Top Bottom
