Z590 BIOS Update

Unfortunately they don't like to update my Motherboard TUF GAMING Z590-PLUS still on
Version 1801

2023/01/04

"1. Improve system stability
2. Improve compatibility with NVIDIA RTX40 series cards

I haven't seen posts anywhere by anyone that has tried 1903 yet. There were issues with 1701 and 1801. Have you tried it?
I am on 1601.

Did the ME 1st and then the 1903 bios, no issues here. Never had a problem with any Z590 update, just have to reset all my tweaks.

Why is he not updating it ? yet

dfukbvuin said:

Why is he not updating it ? yet

Click to expand...

He who?

Mokichu

Hemimax said:

Did the ME 1st and then the 1903 bios, no issues here. Never had a problem with any Z590 update, just have to reset all my tweaks.

Click to expand...

You'll probably be argued my down by certain elite as I was that a BIOS doesn't reset after a BIOS update - which of course it does

Anyway, I'm like you as I too like the have the latest BIOS updates, whether I think I need them or not

dfukbvuin said:

Why is he not updating it ? yet

Click to expand...

geneo said:

He who?

Click to expand...

dfukbvuin said:

Mokichu

Click to expand...

Hi,

You're wrong, the last Intel ME firmware from my thread is newer that the last Intel ME firmware from your motherboard support page (the last Intel ME firmware from my thread contains newer PCHC Firmware that the last Intel ME firmware from your motherboard support page which contains PCHC Firmware v15.0.0.1013 [29/06/2020]).

Last Intel ME firmware from my thread ([FIRMWARE] Intel ME (H510/B560/H570/Z590)):


Last Intel ME firmware from your motherboard support page :

I'm running 1903 for a few days now and no issues found so far.

MoKiChU said:

Hi,

You're wrong, the last Intel ME firmware from my thread is newer that the last Intel ME firmware from your motherboard support page (the last Intel ME firmware from my thread contains newer PCHC Firmware that the last Intel ME firmware from your motherboard support page which contains PCHC Firmware v15.0.0.1013 [29/06/2020]).

Last Intel ME firmware from my thread :

Firmware : 15.0.45.2411 [13/02/2023]​

PMC Firmware : 150.2.10.1020 [17/02/2022]​

PCHC Firmware : 15.0.0.1021 [28/04/2021]​

PHY Firmware : 12.14.215.2015 [25/08/2021]​

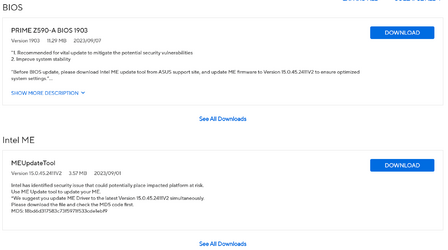

Last Intel ME firmware from your motherboard support page :

Firmware : 15.0.45.2411 [13/02/2023]​

PMC Firmware : 150.2.10.1020 [17/02/2022]​

PCHC Firmware : 15.0.0.1013 [29/06/2020]​

PHY Firmware : 12.14.215.2015 [25/08/2021]​

Click to expand...

So the one on the rog strix z590 is older? May I ask why it says 2411v2? and also can I go about upgrading my bios now? Since I have the one you uploaded in July? I just wanna make sure it's the newest is all.. & can I skip bios versions? Like 1701 to 1903? & skip downloading install 1801.

dfukbvuin said:

So the one on the rog strix z590 is older?

Click to expand...

Not only the one from your motherboard support page, all Intel H510/B560/H570/Z590 chipset based ASUS consumer motherboards support page with this "15.0.45.2411V2" firmware package are concerned.

dfukbvuin said:

May I ask why it says 2411v2?

Click to expand...

Don't look at v2/v3/v4/etc... naming, that doesn't mean anything, it's an ASUS internal build version naming related to the overlay they add to Intel's tools, this has nothing to do with Intel ME firmware version naming. I'd say ask ASUS if you want more details, but they probably won't give you any.

dfukbvuin said:

and also can I go about upgrading my bios now? Since I have the one you uploaded in July? I just wanna make sure it's the newest is all.. & can I skip bios versions? Like 1701 to 1903? & skip downloading install 1801.

Click to expand...

Since you have already installed the last Intel ME firmware from my thread, just go upgrade your BIOS to the last BIOS 1903.

Back on topic sorta.

I updated to 1903. I haven't seen the "case has been opened" issues other people have reported for 1701 and 1801. The other issue others have reported is that they cannot go back to BIOS earlier than 1701. That I am not going to try since I am not having any sort of issues so far and my OC seems fine. There was an update to the LED lighting firmware included. That appears to be working OK so far.

geneo said:

The other issue others have reported is that they cannot go back to BIOS earlier than 1701.

Click to expand...

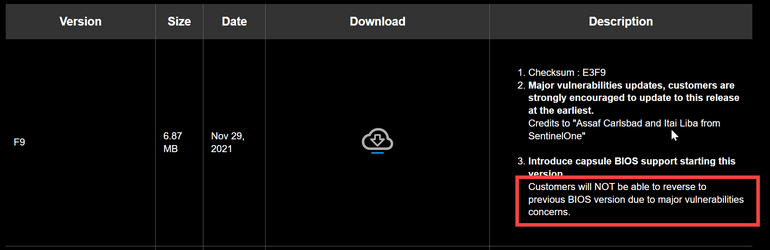

Gigabyte's last BIOS update for their Z390 Aorus boards was like that, but you're made aware of that before downloading. Once you install the update you cannot revert to any previous versions.

Dru2 said:

Gigabyte's last BIOS update for their Z390 Aorus boards was like that, but you're made aware of that before downloading. Once you install the update you cannot revert to any previous versions.

Click to expand...

Hmm, had an Aorus Master Z390 but never had that issue. But I am not sure I was ever a their last BIOS update.

geneo said:

Hmm, had an Aorus Master Z390 but never had that issue. But I am not sure I was ever a their last BIOS update.

Click to expand...

Hmm.... I certainly don't make these things up...

Oh my goodness. I thought you did!

Yeah i am so mad. I thought I backed up my bios but apparently it was a txt file and i had to do the cmo file ? Then it reverted armory crate on and when i turned on my pc it put asusupdatecheck.exe on my pc -.- there should be a cleanup tool to REMOVE those files and registry stuff even after disabling armory crate in your bios. Because once you hit the switch. It doesn’t remove the files from your os. Even after it is disabled! I’ve tried the armory crate uninstall tool. It didn’t get rid of the service. (Very mad the bios backup didn’t work and landed me into frustration) also iOS 17 does not have autocorrect like it use too and I am tired of manually correcting my grammar…. lol

Is there anyway to restore from txt file and not a cmo file ?

dfukbvuin said:

Is there anyway to restore from txt file and not a cmo file ?

Click to expand...

No, you have to reenter it by hand
