AMD Zen 2 CPUs vulnerable to ZenBleed data leak bug


  • Staff

 AMD Security Bulletin:

Cross-Process Information Leak​

Bulletin ID:  AMD-SB-7008
Potential Impact: Information disclosure
Severity: Medium

Summary​

Under specific microarchitectural circumstances, a register in “Zen 2” CPUs may not be written to 0 correctly. This may cause data from another process and/or thread to be stored in the YMM register, which may allow an attacker to potentially access sensitive information.

CVE Details​

Refer to Glossary for explanation of terms
CVESeverityCVE Description
CVE-2023-20593MediumAn issue in “Zen 2” CPUs, under specific microarchitectural circumstances, may allow an attacker to potentially access sensitive information.

Mitigation​

AMD recommends applying the µcode patch listed below for AMD EPYC™ 7002 Processors, and applying BIOS updates that include the following AGESA™ firmware versions for other affected products. AMD plans to release to the Original Equipment Manufacturers (OEM) the AGESA™ versions on the target dates listed below. Please refer to your OEM for the BIOS update specific to your product.

DATA CENTER

Mitigation detail
Update to versions listed or higher		2nd Gen AMD EPYC™ Processors
“Rome”
µcode0x0830107A
AGESA™ firmwareRomePI 1.0.0.H

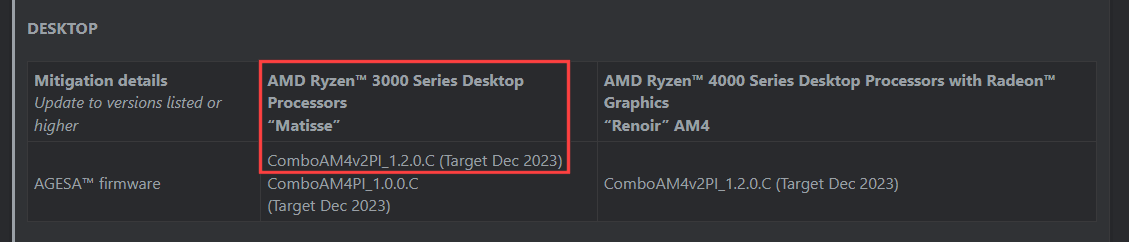

DESKTOP

Mitigation details
Update to versions listed or higher		AMD Ryzen™ 3000 Series Desktop Processors
“Matisse”		AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics
“Renoir” AM4
AGESA™ firmwareComboAM4v2PI_1.2.0.C (Target Dec 2023)
ComboAM4PI_1.0.0.C
(Target Dec 2023)		ComboAM4v2PI_1.2.0.C (Target Dec 2023)

HIGH END DESKTOP (HEDT)

Mitigation details
Update to versions listed or higher		AMD Ryzen™ Threadripper™ 3000 Series Processors
“Castle Peak” HEDT
AGESA™ firmwareCastlePeakPI-SP3r3 1.0.0.A
(Target Oct 2023)

WORKSTATION

Mitigation details
Update to versions listed or higher		AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors
“Castle Peak” WS SP3
AGESA™ firmwareCastlePeakWSPI-sWRX8 1.0.0.C
(Target Nov 2023)

ChagallWSPI-sWRX8 1.0.0.7
(Target Dec 2023)

MOBILE - AMD Ryzen™ Series

Mitigation details
Update to versions listed or higher		AMD Ryzen™ 5000 Series Mobile Processors with Radeon™ Graphics
“Lucienne”		AMD Ryzen™ 4000 Series Mobile Processors with Radeon™ Graphics
“Renoir”		AMD Ryzen™ 7020 Series Processors
“Mendocino” FT6
AGESA™ firmwareCezannePI-FP6_1.0.1.0
(Target Dec 2023)		RenoirPI-FP6_1.0.0.D
(Target Nov 2023)		MendocinoPI-FT6_1.0.0.6
(Target Dec 2023)

Acknowledgement​

AMD thanks Tavis Ormandy of Google Information Security Engineering for reporting this issue and engaging in coordinated vulnerability disclosure.

Revisions​

Revision Date Description
2023-07-24Initial publication


 Read more:

www.tomshardware.com

AMD 'Zenbleed' Bug Leaks Data From Zen 2 Ryzen, EPYC CPUs: Most Patches Coming Q4 (Updated)

A huge Zen 2 leak requires a patch.
www.tomshardware.com www.tomshardware.com


Attachments

  • amd.png
    6.4 KB · Views: 1
Last edited:
Click to expand...
I just knew this was bound to happen.


My Computer

System One

  • OS
    WIN 11, WIN 10, WIN 8.1, WIN 7 U, WIN 7 PRO, WIN 7 HOME (32 Bit), LINUX MINT
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY, ASUS, and DELL
    CPU
    Intel i7 6900K (octocore) / AMD 3800X (8 core)
    Motherboard
    ASUS X99E-WS USB 3.1
    Memory
    128 GB CORSAIR DOMINATOR PLATINUM (B DIE)
    Graphics Card(s)
    NVIDIA 1070
    Sound Card
    Crystal Sound (onboard)
    Monitor(s) Displays
    single Samsung 30" 4K and 8" aux monitor
    Screen Resolution
    4K and something equally attrocious
    Hard Drives
    A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W

    Ports X, Y, and Z are reserved for USB access and removable drives.

    Drive types consist of the following: Various mechanical hard drives bearing the brand names, Seagate, Toshiba, and Western Digital. Various NVMe drives bearing the brand names Kingston, Intel, Silicon Power, Crucial, Western Digital, and Team Group. Various SATA SSDs bearing various different brand names.

    RAID arrays included:

    LSI RAID 10 (WD Velociraptors) 1115.72 GB
    LSI RAID 10 (WD SSDS) 463.80 GB

    INTEL RAID 0 (KINGSTON HYPER X) System 447.14 GB
    INTEL RAID 1 TOSHIBA ENTERPRIZE class Data 2794.52 GB
    INTEL RAID 1 SEAGATE HYBRID 931.51 GB
    PSU
    SEVERAL. I prefer my Corsair Platinum HX1000i but I also like EVGA power supplies
    Case
    ThermalTake Level 10 GT (among others)
    Cooling
    Noctua is my favorite and I use it in my main. I also own various other coolers. Not a fan of liquid cooling.
    Keyboard
    all kinds.
    Mouse
    all kinds
    Internet Speed
    360 mbps - 1 gbps (depending)
    Browser
    FIREFOX
    Antivirus
    KASPERSKY (no apologies)
    Other Info
    I own too many laptops: A Dell touch screen with Windows 11 and 6 others (not counting the other four laptops I bought for this household.) Being a PC builder I own many desktop PCs as well. I am a father of five providing PCs, laptops, and tablets for all my family, most of which I have modified, rebuilt, or simply built from scratch. I do not own a cell phone, never have, never will.
In the old days I never heard about CPU vulnerabilty


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    MAG X570S TOMAHAWK MAX WIFI
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    BENQ and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes
Because a lot of these use similar attack vectors to Spectre and Meltdown, or else derived from them, and the initial research that went into discovering those two.

And those were initially discovered in 2017. So, yeah, before then these side--channel attacks had not been discovered.


My Computers

System One System Two

  • OS
    Windows 11 23H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2x Eve Spectrum ES07D03 4K Gaming Monitor (Matte) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy)
    Screen Resolution
    3x 3840 x 2160
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM) } 3x Sabrent Rocket NVMe 4.0 1 TB SSD (USB)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    NZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S | MX Master 3 for Business
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable), Chrome, Edge
    Antivirus
    Defender + MB 5 Beta
  • Operating System
    ChromeOS Flex Dev Channel (current)
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryville 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
Interesting reading from Google:

A CPU vulnerability is a security flaw in a computer processor that can be exploited to gain unauthorized access to data or other sensitive information. These vulnerabilities can be exploited by malicious software, such as viruses and malware, to steal passwords, financial information, or other sensitive data.

There are two main types of CPU vulnerabilities:

  • Speculative execution vulnerabilities allow malicious software to trick the CPU into speculatively executing instructions that it should not be allowed to execute. This can be used to access data that the software should not have access to.
  • Cache side-channel vulnerabilities exploit the way that the CPU caches data in memory. By measuring the time it takes for the CPU to access different pieces of data, malicious software can infer which data is stored in the cache. This can be used to steal sensitive data that is not directly accessible to the software.
The two most well-known CPU vulnerabilities are Meltdown and Spectre. Meltdown is a speculative execution vulnerability that affects Intel processors. Spectre is a cache side-channel vulnerability that affects Intel, AMD, and ARM processors.

There are a number of mitigations that can be applied to protect against CPU vulnerabilities. These include:

  • Software updates that patch the vulnerabilities.
  • Hardware updates that disable speculative execution.
  • Operating system and application changes that make it more difficult for malicious software to exploit the vulnerabilities.
CPU vulnerabilities are a serious security threat. However, there are a number of mitigations that can be applied to protect against them. It is important to keep your software up to date and to use security best practices to protect your data.

In addition to Meltdown and Spectre, there are a number of other CPU vulnerabilities that have been discovered in recent years. These include:

  • Foreshadow
  • Zombieload
  • LazyFP
  • Retbleed
  • SQUIP
These vulnerabilities are all different, but they all exploit the same basic principle: that the CPU is not always able to keep track of what data is being accessed. This can be used by malicious software to gain unauthorized access to sensitive information.

The best way to protect yourself from CPU vulnerabilities is to keep your software up to date and to use security best practices. You should also be aware of the latest vulnerabilities and how they can be exploited.
Click to expand...


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    MAG X570S TOMAHAWK MAX WIFI
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    BENQ and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes
Brink said:
Read more:
www.tomshardware.com

AMD 'Zenbleed' Bug Leaks Data From Zen 2 Ryzen, EPYC CPUs: Most Patches Coming Q4 (Updated)

A huge Zen 2 leak requires a patch.
www.tomshardware.com www.tomshardware.com
Click to expand...
Looks like it's AMD's turn. I have a feeling AMD will deal with the issue in a much more timely fashion than Intel. In fact, I'm not even sure Intel has addressed the problem at the architectural level yet. From my understanding it's still just smoke and mirrors, microcode that can be easily dodged by savvy hackers. Kind of scary when you think that nearly every CPU Intel has made for the last 20 years is vulnerable to Spectre/Meltdown.


My Computer

System One

  • OS
    WIN 11, WIN 10, WIN 8.1, WIN 7 U, WIN 7 PRO, WIN 7 HOME (32 Bit), LINUX MINT
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY, ASUS, and DELL
    CPU
    Intel i7 6900K (octocore) / AMD 3800X (8 core)
    Motherboard
    ASUS X99E-WS USB 3.1
    Memory
    128 GB CORSAIR DOMINATOR PLATINUM (B DIE)
    Graphics Card(s)
    NVIDIA 1070
    Sound Card
    Crystal Sound (onboard)
    Monitor(s) Displays
    single Samsung 30" 4K and 8" aux monitor
    Screen Resolution
    4K and something equally attrocious
    Hard Drives
    A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W

    Ports X, Y, and Z are reserved for USB access and removable drives.

    Drive types consist of the following: Various mechanical hard drives bearing the brand names, Seagate, Toshiba, and Western Digital. Various NVMe drives bearing the brand names Kingston, Intel, Silicon Power, Crucial, Western Digital, and Team Group. Various SATA SSDs bearing various different brand names.

    RAID arrays included:

    LSI RAID 10 (WD Velociraptors) 1115.72 GB
    LSI RAID 10 (WD SSDS) 463.80 GB

    INTEL RAID 0 (KINGSTON HYPER X) System 447.14 GB
    INTEL RAID 1 TOSHIBA ENTERPRIZE class Data 2794.52 GB
    INTEL RAID 1 SEAGATE HYBRID 931.51 GB
    PSU
    SEVERAL. I prefer my Corsair Platinum HX1000i but I also like EVGA power supplies
    Case
    ThermalTake Level 10 GT (among others)
    Cooling
    Noctua is my favorite and I use it in my main. I also own various other coolers. Not a fan of liquid cooling.
    Keyboard
    all kinds.
    Mouse
    all kinds
    Internet Speed
    360 mbps - 1 gbps (depending)
    Browser
    FIREFOX
    Antivirus
    KASPERSKY (no apologies)
    Other Info
    I own too many laptops: A Dell touch screen with Windows 11 and 6 others (not counting the other four laptops I bought for this household.) Being a PC builder I own many desktop PCs as well. I am a father of five providing PCs, laptops, and tablets for all my family, most of which I have modified, rebuilt, or simply built from scratch. I do not own a cell phone, never have, never will.
No one has addressed it at the architectural level - that's why these vulnerabilities keep being discovered.

And as for fixes:

Benchmarking The Performance Impact To AMD Inception Mitigations - Phoronix

www.phoronix.com www.phoronix.com

This is the story that all the media outlets ran with claiming 54% performance drop.

They fail to put in their headlines "In one scenario"

But all the side-channel attack fixes thus far have been at the application layer.


My Computers

System One System Two

  • OS
    Windows 11 23H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2x Eve Spectrum ES07D03 4K Gaming Monitor (Matte) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy)
    Screen Resolution
    3x 3840 x 2160
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM) } 3x Sabrent Rocket NVMe 4.0 1 TB SSD (USB)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    NZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S | MX Master 3 for Business
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable), Chrome, Edge
    Antivirus
    Defender + MB 5 Beta
  • Operating System
    ChromeOS Flex Dev Channel (current)
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryville 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
Oh well, I guess I know what I'm getting for Christmas. :cool:


Current AGESA version I have (latest version on ASUS site)... ComboV2PI 1.2.0.A (seems I need the C version).

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3527 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
William654 said:
In the old days I never heard about CPU vulnerabilty
Click to expand...
Technically it is still not the thing, it requires PC to be infected with actual malware. I have disabled SPECTRE mitigations to regain performance. I have not updated BIOS since 2020 (it causes BSOD), besides the insecure BIOS gives much better score in benchmarks.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600 & No fTPM (07/19)
    Motherboard
    MSI B450 TOMAHAWK 7C02v1E & IFX TPM (07/19)
    Memory
    4x 8GB ADATA XPG GAMMIX D10 DDR4 3200MHz CL16
    Graphics Card(s)
    MSI Radeon RX 580 ARMOR 8G OC @48FPS (08/19)
    Sound Card
    Creative Sound Blaster Z (11/16)
    Monitor(s) Displays
    24" AOC G2460VQ6 (01/19)
    Screen Resolution
    1920×1080@75Hz & FreeSync (DisplayPort)
    Hard Drives
    ADATA XPG GAMMIX S11 Pro SSD 512GB (07/19)
    PSU
    Seasonic M12II-520 80 Plus Bronze (11/16)
    Case
    Lian Li PC-7NB & 3x Noctua NF-S12A FLX@700rpm (11/16)
    Cooling
    CPU Cooler Noctua NH-U12S@700rpm (07/19)
    Keyboard
    HP Wired Desktop 320K + Rabalux 76017 Parker (01/24)
    Mouse
    Logitech M330 Silent Plus (04/23)
    Internet Speed
    400/40 Mbps via RouterOS (05/21) & TCP Optimizer
    Browser
    Edge (No FB/Google) & Brave for YouTube & LibreWolf for FB
    Antivirus
    NoAV & Binisoft WFC & NextDNS
    Other Info
    Headphones: Sennheiser RS170 (09/10)
    Phone: Samsung Galaxy Xcover 7 (02/24)
Ghot said:
Oh well, I guess I know what I'm getting for Christmas. :cool:

View attachment 68302

Current AGESA version I have (latest version on ASUS site)... ComboV2PI 1.2.0.A (seems I need the C version).
Click to expand...

Yeah, or Jan 2024. We're gonna be waiting for a (small) while.


My Computers

System One System Two

  • OS
    Windows 11 23H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2x Eve Spectrum ES07D03 4K Gaming Monitor (Matte) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy)
    Screen Resolution
    3x 3840 x 2160
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM) } 3x Sabrent Rocket NVMe 4.0 1 TB SSD (USB)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    NZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S | MX Master 3 for Business
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable), Chrome, Edge
    Antivirus
    Defender + MB 5 Beta
  • Operating System
    ChromeOS Flex Dev Channel (current)
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryville 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
Ghot said:
Current AGESA version I have (latest version on ASUS site)... ComboV2PI 1.2.0.A (seems I need the C version).
Click to expand...
Lucky you. Gigabyte has yet to release the 1.2.0.A version of its BIOS.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home built
    CPU
    Ryzen 3900x
    Motherboard
    Gigabyte Aorus Master x570 rel 1.0
    Memory
    32GB (2x16) @ 3600 MHz Corsair Vengeance LPX
    Graphics Card(s)
    Gigabyte Windforce RTX 2080
    Sound Card
    No separate sound card.
    Monitor(s) Displays
    Dell U2718Q
    Screen Resolution
    3840x2160
    Hard Drives
    1TB WD-Black SN850; 1TB Samsung Sata 850 Evo; 4 TB WD Blue Sata SA510 2.5''; 4TB Samsung Sata SSD 870 EVO 2.5".
    PSU
    Be Quiet Dark Power Pro 11 750W
    Case
    Lian Li PC-8FIB
    Cooling
    CPU: Noctua NH-U12A; Case: BeQuiet + Lian Li fans.
    Keyboard
    Steelseries Apex 7 brown keys.
    Mouse
    Logitech (wired) G403
    Internet Speed
    940 Mb/s down; 105 Mb/s up
    Browser
    Edge (Chromium)
    Antivirus
    Eset Internet Security
    Other Info
    Pioneer blu-ray optical drive.
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7373 2-in-1
    CPU
    Intel Core i7 8th Generation
    Motherboard
    Dell 0HG1FH (U3E1)
    Memory
    8GB DDR4
    Graphics card(s)
    Intel UHD Graphics 620 (Dell)
    Sound Card
    Realtek Audio (on motherboard)
    Monitor(s) Displays
    Touch screen generic monitor
    Screen Resolution
    1920x1080
    Hard Drives
    256GB Micron SATA SSD.
    Internet Speed
    400Mb/s (Wifi)
    Browser
    Edge Chromium
    Antivirus
    Eset Internet Security
    Other Info
    Dell says this system is not Windows 11 capable, but Microsoft seems happy with it.

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3527 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
Ghot said:
Yeah... it doesn't look like they're working over-time to get the fixed BIOSes out. :D
Click to expand...
Turns out I was wrong. A new BIOS has just (in the last day) been posted with 1.2.0.A. Phew.

However, with regards to the C version, I guess we'll just have to be careful until it eventually makes an appearance.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home built
    CPU
    Ryzen 3900x
    Motherboard
    Gigabyte Aorus Master x570 rel 1.0
    Memory
    32GB (2x16) @ 3600 MHz Corsair Vengeance LPX
    Graphics Card(s)
    Gigabyte Windforce RTX 2080
    Sound Card
    No separate sound card.
    Monitor(s) Displays
    Dell U2718Q
    Screen Resolution
    3840x2160
    Hard Drives
    1TB WD-Black SN850; 1TB Samsung Sata 850 Evo; 4 TB WD Blue Sata SA510 2.5''; 4TB Samsung Sata SSD 870 EVO 2.5".
    PSU
    Be Quiet Dark Power Pro 11 750W
    Case
    Lian Li PC-8FIB
    Cooling
    CPU: Noctua NH-U12A; Case: BeQuiet + Lian Li fans.
    Keyboard
    Steelseries Apex 7 brown keys.
    Mouse
    Logitech (wired) G403
    Internet Speed
    940 Mb/s down; 105 Mb/s up
    Browser
    Edge (Chromium)
    Antivirus
    Eset Internet Security
    Other Info
    Pioneer blu-ray optical drive.
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7373 2-in-1
    CPU
    Intel Core i7 8th Generation
    Motherboard
    Dell 0HG1FH (U3E1)
    Memory
    8GB DDR4
    Graphics card(s)
    Intel UHD Graphics 620 (Dell)
    Sound Card
    Realtek Audio (on motherboard)
    Monitor(s) Displays
    Touch screen generic monitor
    Screen Resolution
    1920x1080
    Hard Drives
    256GB Micron SATA SSD.
    Internet Speed
    400Mb/s (Wifi)
    Browser
    Edge Chromium
    Antivirus
    Eset Internet Security
    Other Info
    Dell says this system is not Windows 11 capable, but Microsoft seems happy with it.
Senecio said:
Turns out I was wrong. A new BIOS has just (in the last day) been posted with 1.2.0.A. Phew.

However, with regards to the C version, I guess we'll just have to be careful until it eventually makes an appearance.
Click to expand...


Yep. For me... the BIOS with the "A" version came out May 23rd this year.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3527 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

My Computers

System One System Two

  • OS
    Windows 11 23H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2x Eve Spectrum ES07D03 4K Gaming Monitor (Matte) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy)
    Screen Resolution
    3x 3840 x 2160
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM) } 3x Sabrent Rocket NVMe 4.0 1 TB SSD (USB)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    NZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S | MX Master 3 for Business
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable), Chrome, Edge
    Antivirus
    Defender + MB 5 Beta
  • Operating System
    ChromeOS Flex Dev Channel (current)
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryville 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
TairikuOkami said:
I have not updated BIOS since 2020 (it causes BSOD)
Click to expand...
Is your B450 Tomahawk still working? Mine died unexpectedly in August, 2022, when I just got it on January 3, 2020. Seems that these likely can't handle 8c/16t Ryzens. My BIOS was flashed to 1E and it was working all along until suddenly a year, if not two years later. It just won't power on anymore. I can't smell anything fried. One thing to also check for: Thermal pads on the MOSFETs, because they may be oozing oil!


My Computers

System One System Two

  • OS
    Windows 11 Pro x64 23H2
    Computer type
    PC/Desktop
    CPU
    Ryzen 9 5900X
    Motherboard
    ASRock B550 PG Velocita (UEFI-BIOS P3.40)
    Memory
    32 GB G.Skill F4-3200C16D-32GVR
    Graphics Card(s)
    Sapphire Nitro+ Radeon RX 6750 XT
    Monitor(s) Displays
    Alienware AW3423DWF OLED ultrawide
    Hard Drives
    Western Digital Black SN850 1 TB NVMe SSD
    PSU
    eVGA Supernova 750 G3
    Case
    Corsair 275R
    Internet Speed
    VTel FTTH 1 Gb down and 1 Gb up
  • Computer type
    PC/Desktop
    CPU
    Ryzen 7 5800X3D
    Motherboard
    Asus ROG Strix B550-F Gaming (UEFI-BIOS version 3405, which fixes " LogoFail" bug according to Asus)
    Memory
    16 GB
    Graphics card(s)
    Sparkle Titan Arc A770 16 GB
    Hard Drives
    Samsung 970 Pro 512 GB NVMe SSD
    PSU
    eVGA Supernova 650 GQ
    Case
    Fractal Focus G
I just checked. My 3700X is bleeding. :-)


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3527 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
My 3950X is bleeding, but still chugging along. Building new VMs again, making this work horse actually work like a horse!


My Computers

System One System Two

  • OS
    Windows 11 23H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2x Eve Spectrum ES07D03 4K Gaming Monitor (Matte) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy)
    Screen Resolution
    3x 3840 x 2160
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM) } 3x Sabrent Rocket NVMe 4.0 1 TB SSD (USB)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    NZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S | MX Master 3 for Business
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable), Chrome, Edge
    Antivirus
    Defender + MB 5 Beta
  • Operating System
    ChromeOS Flex Dev Channel (current)
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryville 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
Is an Inception mitigation already in place under Windows 11? If so, how do you disable it?


My Computer

System One

  • OS
    Windows 11
You must log in or register to reply here.

Similar threads

  • Article
CES 2024: New AMD Ryzen 5000, 8000G, 8040 Series Mobile and Desktop Processors
Replies
0
Views
666
Brink
Brink
  • Article
New AMD Ryzen 8040 Series Mobile Processors
Replies
1
Views
755
Brink
Brink
  • Article
AMD Note About Potential Speculative Return Stack Overflow (SRSO) Vulnerability
Replies
0
Views
253
Brink
Brink
  • Article
Hardware & Firmware Assessment to ID flawed AMD Zenbleed CPUs
Replies
0
Views
559
Brink
Brink
  • Article
AMD Introduces Fastest AMD Radeon RX 7900M Laptop Graphics Ever
Replies
0
Views
476
Brink
Brink

Latest Support Threads

Latest Tutorials

Back
Top Bottom
