Can't restore graphical boot menu


octiceps

Member
Local time
7:59 PM
Posts
6
OS
Windows 11 Pro
Previously, I was dual booting W10 and W7 on separate drives. W7 was set as the default OS, so the OS select menu was the old black and white one. But if I pressed F8 with W10 highlighted, the advanced options menu switched to the newer blue UI style.

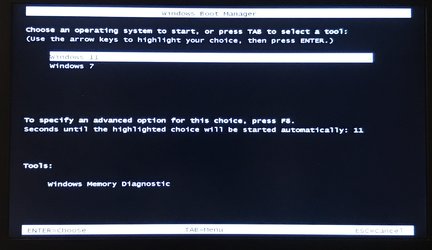

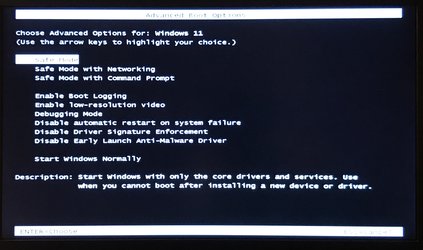

Now, I wiped the W10 drive and installed W11 on it. But I can't get the graphical boot menu back. It's stuck on the legacy menu, even if I press F8 with W11 selected.

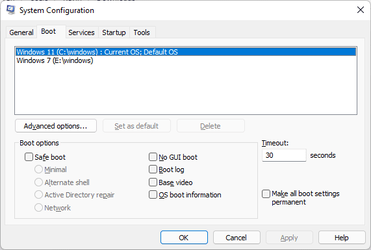

I have made sure that W11 is the default OS.

Startup and Recovery.PNG MSConfig.PNG

I have also tried these commands:

bcdboot c:\windows (where W11 is installed)

bcdboot e:\windows (where W7 is installed)

bcdedit /set {default} bootmenupolicy standard

bcdedit /set "{current}" bootmenupolicy legacy


But no luck in getting the graphical boot menu back. Any advice?

Windows Build/Version
21H2 Build 22000.318

My Computer

System One

  • OS
    Windows 11 Pro
    CPU
    i7-8086K
    Motherboard
    Z370
    Memory
    16GB DDR4-3100
    Graphics Card(s)
    GTX 1080
    Screen Resolution
    1080p 120Hz
    Hard Drives
    1TB Sabrent Rocket NVMe

JMedlock83

Former NWS Storm Spotter
Member
VIP
Local time
9:59 PM
Posts
626
Location
Van Buren, AR
OS
Windows 11 Pro x64 v22598.1
What's the graphical menu look like?


My Computers

System One System Two

  • OS
    Windows 11 Pro x64 v22598.1
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 1800X
    Motherboard
    Asus Crosshair VI Hero
    Memory
    16GB
    Graphics Card(s)
    AMD Radeon R290
    Sound Card
    On Board
    Monitor(s) Displays
    Pavilion 27xi
    Screen Resolution
    1920X1080
    Hard Drives
    WD 500GB SSD
    3TB WD Red HDD (extra storage)
    PSU
    Apevia 1100 Watt Worlock
    Case
    NZXT
    Cooling
    Air Cooling
    Keyboard
    Logitech K860
    Mouse
    Logitech MX
    Internet Speed
    150Mbps/25Mbps
    Browser
    Edge/Chrome
    Antivirus
    Pfizer + Booster
  • Operating System
    Windows 10 Pro x64
    Computer type
    PC/Desktop
    CPU
    AMD FX 8350
    Motherboard
    Asus Crosshair V Formula Z
    Memory
    16GB
    Graphics card(s)
    AMD Radeon R290
    Sound Card
    On Board
    Monitor(s) Displays
    AOC 27"
    Screen Resolution
    1920X1080
    Hard Drives
    250GB Intel SSD
    500GB Seagate
    PSU
    Cougar CMX 1000w
    Cooling
    Air Cooling
    Mouse
    MX Master
    Keyboard
    Microsoft Ergonomic 4000
    Internet Speed
    150Mbps/5Mbps
    Browser
    Edge/Chrome
    Antivirus
    Malwarebytes

JMedlock83

Former NWS Storm Spotter
Member
VIP
Local time
9:59 PM
Posts
626
Location
Van Buren, AR
OS
Windows 11 Pro x64 v22598.1

My Computers

System One System Two

  • OS
    Windows 11 Pro x64 v22598.1
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 1800X
    Motherboard
    Asus Crosshair VI Hero
    Memory
    16GB
    Graphics Card(s)
    AMD Radeon R290
    Sound Card
    On Board
    Monitor(s) Displays
    Pavilion 27xi
    Screen Resolution
    1920X1080
    Hard Drives
    WD 500GB SSD
    3TB WD Red HDD (extra storage)
    PSU
    Apevia 1100 Watt Worlock
    Case
    NZXT
    Cooling
    Air Cooling
    Keyboard
    Logitech K860
    Mouse
    Logitech MX
    Internet Speed
    150Mbps/25Mbps
    Browser
    Edge/Chrome
    Antivirus
    Pfizer + Booster
  • Operating System
    Windows 10 Pro x64
    Computer type
    PC/Desktop
    CPU
    AMD FX 8350
    Motherboard
    Asus Crosshair V Formula Z
    Memory
    16GB
    Graphics card(s)
    AMD Radeon R290
    Sound Card
    On Board
    Monitor(s) Displays
    AOC 27"
    Screen Resolution
    1920X1080
    Hard Drives
    250GB Intel SSD
    500GB Seagate
    PSU
    Cougar CMX 1000w
    Cooling
    Air Cooling
    Mouse
    MX Master
    Keyboard
    Microsoft Ergonomic 4000
    Internet Speed
    150Mbps/5Mbps
    Browser
    Edge/Chrome
    Antivirus
    Malwarebytes

Superfly

Well-known member
Member
VIP
Local time
4:59 AM
Posts
399
OS
Windows
Previously, I was dual booting W10 and W7 on separate drives. W7 was set as the default OS, so the OS select menu was the old black and white one. But if I pressed F8 with W10 highlighted, the advanced options menu switched to the newer blue UI style.

Now, I wiped the W10 drive and installed W11 on it. But I can't get the graphical boot menu back. It's stuck on the legacy menu, even if I press F8 with W11 selected.

View attachment 16562
View attachment 16563

I have made sure that W11 is the default OS.

View attachment 16564 View attachment 16565

I have also tried these commands:

bcdboot c:\windows (where W11 is installed)

bcdboot e:\windows (where W7 is installed)

bcdedit /set {default} bootmenupolicy standard

bcdedit /set "{current}" bootmenupolicy legacy


But no luck in getting the graphical boot menu back. Any advice?
Remember to run as admin

in Terminal (Admin) the command would be

Code:
bcdboot $env:windir


My Computer

System One

  • OS
    Windows

cereberus

Well-known member
Power User
VIP
Local time
3:59 AM
Posts
1,691
OS
Windows 10 Pro + others in VHDs
You only need to run the first bcdedit command (as admin). Do not follow by by doing second command in Windows 7.

The other thing is you sometimes need to do a full shutdown before change kicks in (do alt+f4, shutdown)


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

jimbo45

Well-known member
Power User
VIP
Local time
2:59 AM
Posts
1,470
Location
Hafnarfjörður IS
OS
Windows XP,7,10,11 Linux Arch Linux
You only need to run the first bcdedit command (as admin). Do not follow by by doing second command in Windows 7.

The other thing is you sometimes need to do a full shutdown before change kicks in (do alt+f4, shutdown)
Hi there

As @cereberus says just do the first bcdedit command. I added a Winpe "emergency shell" as a vhdx physical file and the boot menu reverted to the non graphical one (still gave me all the OS'es though). I then re-booted into a W11 OS and ran the bcdboot command again from that OS and the graphical boot menu was restored again (also with the winpe boot os as a bootable OS too).

cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

Superfly

Well-known member
Member
VIP
Local time
4:59 AM
Posts
399
OS
Windows
Hi there

As @cereberus says just do the first bcdedit command. I added a Winpe "emergency shell" as a vhdx physical file and the boot menu reverted to the non graphical one (still gave me all the OS'es though). I then re-booted into a W11 OS and ran the bcdboot command again from that OS and the graphical boot menu was restored again (also with the winpe boot os as a bootable OS too).

cheers
jimbo
I've never used "bcdedit /set {default} bootmenupolicy" how does that change the files being booted from?


My Computer

System One

  • OS
    Windows

jimbo45

Well-known member
Power User
VIP
Local time
2:59 AM
Posts
1,470
Location
Hafnarfjörður IS
OS
Windows XP,7,10,11 Linux Arch Linux
I've never used "bcdedit /set {default} bootmenupolicy" how does that change the files being booted from?
Hi there
I think you've misread the info --- it's bcdboot command on the latest Windows system -- you don't need bcdedit !!!!

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

octiceps

Member
Thread Starter
Local time
7:59 PM
Posts
6
OS
Windows 11 Pro
Remember to run as admin

in Terminal (Admin) the command would be

Code:
bcdboot $env:windir
I ran this followed by a full shutdown, but it is still giving me the non-graphical boot menu.


My Computer

System One

  • OS
    Windows 11 Pro
    CPU
    i7-8086K
    Motherboard
    Z370
    Memory
    16GB DDR4-3100
    Graphics Card(s)
    GTX 1080
    Screen Resolution
    1080p 120Hz
    Hard Drives
    1TB Sabrent Rocket NVMe

Superfly

Well-known member
Member
VIP
Local time
4:59 AM
Posts
399
OS
Windows
I ran this followed by a full shutdown, but it is still giving me the non-graphical boot menu.
Oh well.. then I just dunno... NB shutdown and restart are very different.

But I don't think that's the issue... you need to post screenshots... it's impossible to find your way in the dark.


My Computer

System One

  • OS
    Windows

octiceps

Member
Thread Starter
Local time
7:59 PM
Posts
6
OS
Windows 11 Pro
Oh well.. then I just dunno... NB shutdown and restart are very different.

But I don't think that's the issue... you need to post screenshots... it's impossible to find your way in the dark.
What should I post screenshots of?


My Computer

System One

  • OS
    Windows 11 Pro
    CPU
    i7-8086K
    Motherboard
    Z370
    Memory
    16GB DDR4-3100
    Graphics Card(s)
    GTX 1080
    Screen Resolution
    1080p 120Hz
    Hard Drives
    1TB Sabrent Rocket NVMe

octiceps

Member
Thread Starter
Local time
7:59 PM
Posts
6
OS
Windows 11 Pro
Each step...
When I entered your command all it said was that the boot files were created successfully but nothing changed.


My Computer

System One

  • OS
    Windows 11 Pro
    CPU
    i7-8086K
    Motherboard
    Z370
    Memory
    16GB DDR4-3100
    Graphics Card(s)
    GTX 1080
    Screen Resolution
    1080p 120Hz
    Hard Drives
    1TB Sabrent Rocket NVMe

Scott

Active member
Member
Local time
4:59 PM
Posts
139
Location
Maui, HI
OS
Win 11 Pro 22000.675
I have also tried these commands:

bcdboot c:\windows (where W11 is installed)

bcdboot e:\windows (where W7 is installed)
Run these again, but the other way around.


My Computer

System One

  • OS
    Win 11 Pro 22000.675
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz
    Motherboard
    ASUS Prime Z370-P II LGA1151
    Memory
    CORSAIR Vengeance LPX 8GB DDR4 3000 (x4)
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Creative Labs PCIe Sound Blaster X-Fi Titanium (dan_k drivers)
    Monitor(s) Displays
    ASUS TUF Gaming 27" WQHD
    Screen Resolution
    2560 x 1440 @144Hz
    Hard Drives
    SAMSUNG 970 EVO M.2 2280 1TB PCIe Gen3. X4, NVMe (x2)
    SAMSUNG 870 EVO Series 2.5" 2TB SATA III (x2)
    SAMSUNG 870 EVO Series 2.5" 250GB SATA III
    PSU
    CORSAIR HX Series HX750
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Corsair Hydro Series H60 AIO
    Keyboard
    Logitech MK 320
    Mouse
    Logitech MX 1000 Laser
    Internet Speed
    200Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    UEFI, Secure Boot, TPM 2.0
    MR 8 HE

octiceps

Member
Thread Starter
Local time
7:59 PM
Posts
6
OS
Windows 11 Pro
Run these again, but the other way around.

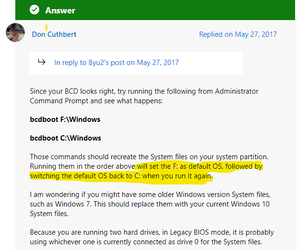

View attachment 16808
Definitely tried that already. At this point, I’m wondering if it’s because I’m booting in legacy mode instead of UEFI, but I can’t change it because both my OSes are already installed in legacy mode because W7 doesn’t work in UEFI.


My Computer

System One

  • OS
    Windows 11 Pro
    CPU
    i7-8086K
    Motherboard
    Z370
    Memory
    16GB DDR4-3100
    Graphics Card(s)
    GTX 1080
    Screen Resolution
    1080p 120Hz
    Hard Drives
    1TB Sabrent Rocket NVMe

zbook

Well-known member
Power User
VIP
Local time
9:59 PM
Posts
922
OS
Windows 10
Windows 10 can run in either Legacy or UEFI native or UEFI hybrid.

Windows 11 requires UEFI without CSM and cannot run in Legacy according to this link:


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

FDretired

Member
Local time
10:59 PM
Posts
86
OS
windows 11
THIS IS A NOVICE POST

Many of the posts above are Greek to me. At age 79 I am too old to learn a new language.

In my desktop I have 6 ssd. 3 are nvme. (one in nvme slot and the other 2 on pci adapter card)

I always played with linux in the smallest disk in bios mode. After updating my hardware I cannot install an operating system in bios mode.

I decided to install windows 10 on the small disk to test new programs that may be discussed on the forum.

I did not want a boot menu. I wanted windows 10 and 11 to have their own UEFI partitions.

This is how achieved it.
1) Make a Macrium Image of Windows 11 to D drive
2) Bootup with EaseUS usb drive
3) Deletes windows 11 and all the partitons in that drive.
4) Install a fresh copy of win 10 on the small "play ssd"
5) Boot again with Macrium usb drive and restore the image from the backup drive to the C drive.

My system boots to windows 11.

Now i have this choice.

If I bring up the boot menu (F8 for my motherboard) I have 2 items. Win 10 on the small disk and win 11 on the larger disk.

My order of my SSD got a bit jumped after my computer hardware was upgraded by a small computer shop.

I will boot to win 10 periodically when I experience nostalgia for win 10 :)


Attachments

  • Screenshot (4).jpg
    Screenshot (4).jpg
    59.3 KB · Views: 2

My Computer

System One

  • OS
    windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    No Name - Assembled by a Compute shop in a Strip Mall.
    CPU
    Intel i511400
    Motherboard
    ASUS PRIME B560-PLUS motherboard
    Memory
    16 GB
    Graphics Card(s)
    0
    Sound Card
    0
    Monitor(s) Displays
    28 in Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    5 SSDs a mixture of Nvme and Sata.
    PSU
    600w
    Case
    Mid Tower DEEP COOL
    Internet Speed
    40 MPS download and 3.5 MPS upload. The condo building is nor wired with Fibe yet
    Browser
    Firefox, Microsoft Edge
    Antivirus
    Defender

SIW2

Active member
Member
VIP
Local time
3:59 AM
Posts
233
W7 doesn’t work in UEFI.
My win7 works beautifully in efi mode. I am posting from it now. Unless there is something weird about your bios, you should be able to.

You list a z370 but you didnt spec which one, dont know why there would any problem with that. Set csm on and secure boot off.

Last edited:

My Computer

SIW2

Active member
Member
VIP
Local time
3:59 AM
Posts
233
Windows 10 can run in either Legacy or UEFI native or UEFI hybrid.

Windows 11 requires UEFI without CSM and cannot run in Legacy according to this link:
Round objects.

Until a few days ago ( when I get rid of it ) I had win11 running fine with csm enabled.


My Computer

Top Bottom
