cloning new windows 11 os to new 1T drive

Expecting new Dell Rugged 5420 laptop to arrive tomorrow. I need to upgrade the 256ssd drive to 1T drive.
I know there is online software that i've used in the past whats the best way to connect the new 1t hd to laptop to be able to clone the windows 11 OS?
Any help would be great. thank you

If it was me I would clone the existing drive to the new drive using Macrium (other programs are available) and then just change the drives over. If there is nothing on the 256 drive seeing as it's a new laptop you could just stick the 1tb drive in and install the OS to that drive from a usb

owenpga said:

Expecting new Dell Rugged 5420 laptop to arrive tomorrow. I need to upgrade the 256ssd drive to 1T drive.
I know there is online software that i've used in the past whats the best way to connect the new 1t hd to laptop to be able to clone the windows 11 OS?
Any help would be great. thank you

Click to expand...

Nice laptop. ^^

Might wanna check, you can probably run both the 256GB SSD and the 1TB SSD at the same time.
Leave Windows on the 256GB and put everything else on the 1TB.

CornishRattler said:

If it was me I would clone the existing drive to the new drive using Macrium (other programs are available) and then just change the drives over. If there is nothing on the 256 drive seeing as it's a new laptop you could just stick the 1tb drive in and install the OS to that drive from a usb

Click to expand...

so i would just select the usb drive from the macrium software and clone OS? how big a usb drive do i need? thank you for responding.

Ghot said:

Nice laptop. ^^

Might wanna check, you can probably run both the 256GB SSD and the 1TB SSD at the same time.
Leave Windows on the 256GB and put everything else on the 1TB.

Click to expand...

not sure if the laptop has another slot? i'll check it out. yes that would be an easier solution if possible. thanks for the response.

owenpga said:

so i would just select the usb drive from the macrium software and clone OS? how big a usb drive do i need? thank you for responding.

Click to expand...

Just create an installation usb using windows mct and boot from that onto the new 1tb drive. Also check out what @Ghot suggested

owenpga said:

not sure if the laptop has another slot? i'll check it out. yes that would be an easier solution if possible. thanks for the response.

Click to expand...

I "think" it may have a 2230 and a 2280 slot. But as I stated, I would check that first.

It’s listed as having 2 slots

Spot for a 2nd SSD, doesn't look good.






So, unless you ordered that laptop with more than one storage device... there's no place to put a 2nd storage device.
So if you want to clone, you'll need to use an external enclosure.
If you already have the 1TB SSD, you'll need something like this...




You can still just keep Windows on the 256GB SSD and get something like this...





For future reference, I also found the Service Manual...

May I ask why didn't you ordered with a 1T drive?

Ghot said:

Spot for a 2nd SSD, doesn't look good.

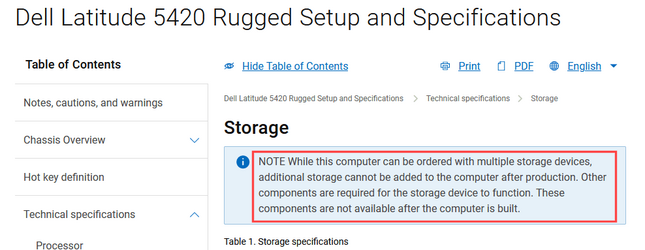

Dell Latitude 5420 Rugged Setup and Specifications | Dell US

View attachment 30985



So, unless you ordered that laptop with more than one storage device... there's no place to put a 2nd storage device.
So if you want to clone, you'll need to use an external enclosure.
If you already have the 1TB SSD, you'll need something like this...

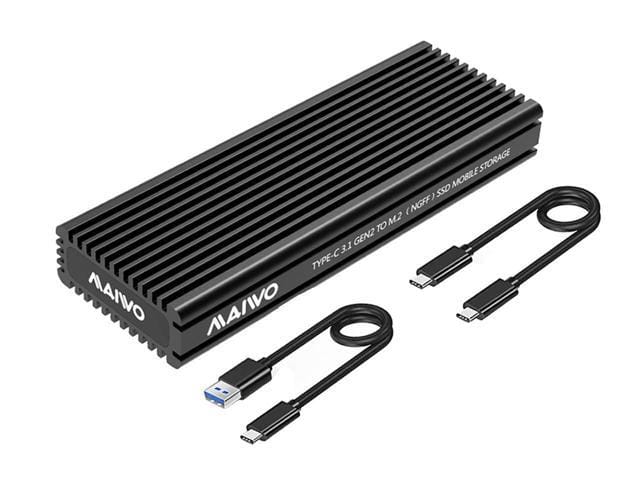

MAIWO M.2 SATA and NVMe Combo SSD Enclosure with Aluminum Heat Sink Shell, USB3.2 Gen2 Type C 10Gbps. Fits B+M key and M-key M.2 2242,2260,2280,Type C to A and Type C to C Cable Included - Newegg.com

Buy MAIWO M.2 SATA and NVMe Combo SSD Enclosure with Aluminum Heat Sink Shell, USB3.2 Gen2 Type C 10Gbps. Fits B+M key and M-key M.2 2242,2260,2280,Type C to A and Type C to C Cable Included with fast shipping and top-rated customer service. Once you know, you Newegg!

www.newegg.com

You can still just keep Windows on the 256GB SSD and get something like this...

Samsung T5 1 TB External SSD (MU-PA1T0B/AM) - PCPartPicker

Samsung T5 1 TB External SSD (MU-PA1T0B/AM)

pcpartpicker.com

Samsung T5 2 TB External SSD (MU-PA2T0B/AM) - PCPartPicker

Samsung T5 2 TB External SSD (MU-PA2T0B/AM)

pcpartpicker.com

For future reference, I also found the Service Manual...

Dell Latitude 5420 Rugged Service Manual | Dell US

Click to expand...

This is why I hate these companies. Why do they make laptops hard to perform upgrades? It's senseless.

kgarrett67 said:

This is why I hate these companies. Why do they make laptops hard to perform upgrades? It's senseless.

Click to expand...

I think quite a few people hate being trapped with their hardware.
But there is a company that's attempting to do something about it...




As for the laptop in this topic, it's one of those "rugged" laptops.
They're made more to survive anything, than to be necessarily easily upgraded, etc.
Ruggedized laptops, do what they're supposed to do... survive. They cost a pretty penny too.

Ghot said:

I think quite a few people hate being trapped with their hardware.
But there is a company that's attempting to do something about it...

Framework Laptop 16 pre-orders are now open

Framework Laptop: A thin, light, high-performance notebook that's upgradeable, repairable, and 100% yours. Order today with the latest configuration options.

frame.work

As for the laptop in this topic, it's one of those "rugged" laptops.
They're made more to survive anything, than to be necessarily easily upgraded, etc.
Ruggedized laptops, do what they're supposed to do... survive. They cost a pretty penny too.

Click to expand...

Thanks for sharing that website. I have visited and bookmarked for later. I'm glad to see someone is working on a laptop design that is not so much propriatary.

Megahertz said:

May I ask why didn't you ordered with a 1T drive?

( SSD, FIPS, SED, Opal)

M.2 2280 SSD PCIe x4

FIPS, SED, Opal

128 GB 1 TB 2 TB 1 TB OPAL SED 500 GB 1 TB 500 GB FIPS 140-2 compliant SE

Click to expand...

It was refurbished and i saved about 2g on the unit. New units are taking 2months delivery

So there are three partitions on my current disc. One say winretool at 700mb. Is that the OS that i can clone?

In fact there are four partitions. Disk manager hides MSR
- EFI - Fat32 - 100M
- MSR - RAW - 16M
- C: - NTFS
- MS Recovery - ~700M

The winretool is part of the MS Recovery.

To work perfectly you should clone the whole drive. (four partitions above)

so i managed to clone to new ssd. system starts up with new ssd installed. when i check storage it still sees new ssd as having 256storage vs 1t. when i look at partitions in macrium i see that 693gb is a partition that's grey out. is there a way to repartition in macrium without starting over?

Consider making a backup image instead of a clone.

Clean install Windows 11 on the new disk drive.

Restore only C:

Run startup repair as needed.

owenpga said:

so i managed to clone to new ssd. system starts up with new ssd installed. when i check storage it still sees new ssd as having 256storage vs 1t. when i look at partitions in macrium i see that 693gb is a partition that's grey out. is there a way to repartition in macrium without starting over?

Click to expand...

I expect you can resize with that tool it is a common feature.

owenpga said:

so i managed to clone to new ssd. system starts up with new ssd installed. when i check storage it still sees new ssd as having 256storage vs 1t. when i look at partitions in macrium i see that 693gb is a partition that's grey out. is there a way to repartition in macrium without starting over?

Click to expand...

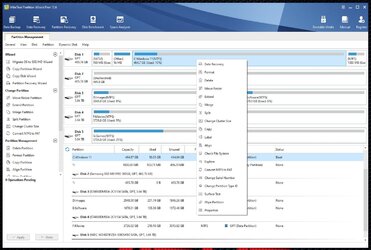

Do whatever you want to it with Partition Wizard Free. Not with Macrium, Macrium is for cloning and imaging.
Install PW, then run it. You`ll see your disk layout. Right click on your newly cloned SSD, and choose what you wanna do from the drop down.
If you wanna extend C, then do that. If you wannna make a partition out of the unallocated space then do that. It`s your choice :)
Then just click Apply down in the bottom left corner.
