Connecting a device that needs Ethernet cable to WiFi


Sigurd

Well-known member
Member
VIP
Local time
8:24 PM
Posts
333
OS
Windows 11 - Updated automatically
We currently have a Hive heating control system in the local church. (For those not familiar with it, Hive is a system that allows remote control of heating systems via the internet). We have a British Telecom modem/router, and via 125 metres (100M - hub - 25 M) of ethernet cable to two Netgear Access points it gives complete WiFi in all areas - church, adjoining hall and in an adjacent building, two other halls. Currently Hive Hub 360 connects to the internet via WiFi. Unfortunately this is faulty and as they are no longer supplied, BT are replacing it (free) with the replacement hub (Nemo 2) that connects via ethernet cable. I don't want to have to run a new 125m cable to modem or even to a 25m one to hub as this is difficult to find holes in 2-3 foot thick walls. The ethernet socket in the Netgear AP in the hall where the Nemo 2 has to go is used to connect it to the BT modem so I can't use that.
If I install another hub by the Netgear AP, would it work if I connected the AP to this hub and the Nemo 2 to the hub and thus to the modem. ie share the 125m cable?


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
You could solve this if the access point on the 25M cable could connect to the BT hub wirelessly rather than by Ethernet. 25M itself shouldn't be a problem but the 2-3 ft thick walls might be but worth a try?

EDIT - you could also get an Ethernet switch which will allow either cable to share its connection.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
    Browser
    Firefox
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb
    Internet Speed
    150Mbps/39Mbps
    Browser
    Firefox
    Other Info
    Incompatible device, upgraded to Win 11
These are great to convert an ethernet device to give it wifi ability.


The router connects to device and wifi bridge links to main router.

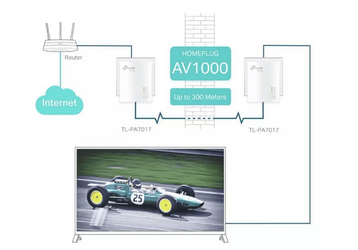

If the wifi signal is not strong enough, you could use powerline adaptors which transmit over existing electrial wiring.




My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
cereberus suggestion of using the Travel Router is an excellent one. It has a mode called "client mode" that does precisely what you are looking for.

As an example, I have a printer located in a remote corner of the house that has Ethernet capability but not WiFi. I plug it into this device which I have configured to connect to the WiFi network and it bridges the Ethernet to WiFi. So, now I can access that printer without running an Ethernet cable to it. Have had it connected for several years and NEVER once had a single issue with it. Seems to be stone cold solid.


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
There is no hope of getting a WiFi signal direct from hall to modem. Apart from distance, there is the small matter of two medieval walls to get through. They are a problem for both ethernet cable and WiFi! Thanks for the suggestion of a Travel Router which is a good one I will file away for possible future use. Unfortunately I don't think it will solve my problem.


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
... and an Ethernet switch? These enable multiple Ethernet connected devices to share the connection.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
    Browser
    Firefox
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb
    Internet Speed
    150Mbps/39Mbps
    Browser
    Firefox
    Other Info
    Incompatible device, upgraded to Win 11
I'd investigate the possibility of using a Power Line network, main issue is that they are on the same electrical circuit.

Out church uses a splitter provided by the Cable/Broadband ISP for running 2 lines from the outside junction box.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
Power Line network not an option as the power supply is 3-phase.


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
They have plugs that plug into a 3 phase connector to bridge the powerline signal across the phases.


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
I wasn't aware of that but I don't think the church authority would be keen on my doing anything like that after the near disaster we had. A new meter was being fitted and the electrician either made a mistake or didn't notice a loose bit of wire. Result two phases shorted. Blew every transformer in the place but one light high in the nave next to wooden roof caught fire but fortunately self extinguished.


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
I wasn't aware of that but I don't think the church authority would be keen on my doing anything like that after the near disaster we had. A new meter was being fitted and the electrician either made a mistake or didn't notice a loose bit of wire. Result two phases shorted. Blew every transformer in the place but one light high in the nave next to wooden roof caught fire but fortunately self extinguished.
Seemples ::

run the LAN cables into a cheap switch and then cables from switch to a decent wifi extender or whatever. The Nighthawk models are great and very fast too !!!.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
I have a working 100M ethernet cable running from modem, along side of nave to organ loft (big church!), 4 port Netgear hub, from it I have managed to get 2 cables through a small hole alongside heating pipes into adjoining hall (10M) and two adjacent halls (25M). Access ports in adjoining hall and lower hall of adjacent building. All this gives me strong WiFi everywhere.
To deal with the need for an additional RJ45 port in each building I propose using a switch - the Netgear AP will plug into one of the ports and the Hive hub, which needs an ethernet connection in one of the other three.
Will try tomorrow when I get switches.
🤞


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
I have a working 100M ethernet cable running from modem, along side of nave to organ loft (big church!), 4 port Netgear hub, from it I have managed to get 2 cables through a small hole alongside heating pipes into adjoining hall (10M) and two adjacent halls (25M). Access ports in adjoining hall and lower hall of adjacent building. All this gives me strong WiFi everywhere.
To deal with the need for an additional RJ45 port in each building I propose using a switch - the Netgear AP will plug into one of the ports and the Hive hub, which needs an ethernet connection in one of the other three.
Will try tomorrow when I get switches.
🤞
Hi there
Well done


At least I was on the right lines !!!!

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
Indeed you were Jimbo. If nothing else, between this thread and the specific Hive one, I have increased my networking knowledge several fold.
Mind you, I still think networking is a black art taught at Hogwarts.


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
Can't have you two claiming all the credit for this one - I gave you the answer in #2 and again in #6 :p


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Lafite 14
    CPU
    i7
    Memory
    16Gb
    Internet Speed
    150Mbps/39Mbps
    Browser
    Firefox
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    PC Specialist
    CPU
    i5
    Memory
    8Gb
    Internet Speed
    150Mbps/39Mbps
    Browser
    Firefox
    Other Info
    Incompatible device, upgraded to Win 11
My penultimate post (#13) was a summary of where I'd got to as a result of many bits of information I received, including from the Hive specific forum - there was a bit of overlap. I started with sparse networking knowledge and thanks to several suggestions solved several problems.
When this thread ends it will probably be with a thank you from me to all - I was brought up nicely to write thank you letters. 1660055085282.png


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
Indeed you were Jimbo. If nothing else, between this thread and the specific Hive one, I have increased my networking knowledge several fold.
Mind you, I still think networking is a black art taught at Hogwarts.
Hi there
Even Gandalf the Wizard couldn't sort out Windows Networking !!

It really is the "Black arts" -- Linux while people think it's a complex OS seems to have all sorts of Networking that works straight out of the box !!!!!!.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
I am still having problems with Hive and trying to get them to provide an engineer rathe than guided DIY. One thing they may blame is the length of cable - 100M - hub - 25m. Is there any app, like the ones to measure WiFi signal strength that can be used to measure signal drop along cables?


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
I am pleased to say that I have finally solved my WiFi and Hive problems and all now working well and reliably. I didn't get the engineer for Hive but a very helpful phone call from one talked me through the issues, combining actions by me locally and actions by him at their end. Incidentally, Hive uses Zigbee , not WiFi, which explains why doing things with WiFi did not help!

However I had got a long way towards the final solution of both WiFi and Hive issues with the help of all you guys, so thank you very much for your input.


My Computer

System One

  • OS
    Windows 11 - Updated automatically
    Computer type
    PC/Desktop
    Manufacturer/Model
    Updated Chillblast
    CPU
    Intel i7 12700K Twelve Core 3.6Ghz
    Motherboard
    MSI PRO Z690-A DDR4 Motherboard
    Memory
    Corsair 32Gb Vengeance RAM
    Cooling
    Air cooled
    Internet Speed
    72Mb down, 18Mb up
    Browser
    Chrome
    Antivirus
    Avast
Back
Top Bottom
