Solved garlin's PowerShell scripts for updating Secure Boot CA 2023


Celery:​

Yes, there are more ways to solve it.
But you don't have to write it to me, I'm technically proficient, write it to iFX_Legacy :-)


My Computer My Computer

At a glance

Windows 11AMD32 GB
OS
Windows 11
Computer type
PC/Desktop
Manufacturer/Model
Gigabyte
CPU
AMD
Motherboard
Gigabyte
Memory
32 GB
fernando BARBA said:
ok, garlin, i will try as you advise and report the results
thank you very much for your help,
fernando
Click to expand...

Use O&O 10 Shutup Secure Boot Status tab to verify your 2023 Secure Boot certificates were installed and you're good to go.


My Computers My Computers

System One System Two

  • At a glance

    Windows 11 Education For 25H2Intel® Core i7 5500u8 GBIntel HD Family Graphics 5500 AMD Firepro 4150M
    OS
    Windows 11 Education For 25H2
    Computer type
    Laptop
    Manufacturer/Model
    HP ZBook G2
    CPU
    Intel® Core i7 5500u
    Motherboard
    HP
    Memory
    8 GB
    Graphics Card(s)
    Intel HD Family Graphics 5500 AMD Firepro 4150M
    Sound Card
    Realtek High Audio
    Hard Drives
    1 TB SSD
    Mouse
    HP USB Mouse
    Antivirus
    Windows Defender

  • At a glance

    Windows 11 Pro For Workstations 25H2Xeon 1535m v632 GBAMD Quadro Pro 4100
    Operating System
    Windows 11 Pro For Workstations 25H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook G4
    CPU
    Xeon 1535m v6
    Motherboard
    HP
    Memory
    32 GB
    Graphics card(s)
    AMD Quadro Pro 4100
    Sound Card
    Bang and Olufson Audio
    Hard Drives
    1TB SSD
    Mouse
    HP USB Mouse
    Antivirus
    Windows Defender
@Celery, you have Rufus to simplify all of that.

But not everyone's using the "CA 2023" option, or realizing the key point: if the boot manager changes after a Monthly Update (like in June 2026), then you need to run MCT or UUP dump to get a newer image which matches the last time the boot manager (and SVN) changed.

Technically you could just copy the bare minimum files, but if there are security changes for Windows, you should get all of them.


My Computer My Computer

At a glance

Windows 7
OS
Windows 7
@iFX_Legacy
Since my post in which I gave you detailed advice was deleted, I'll simplify it again.
The solution to your problem with SVN 7 is the current installation media with June Windows 11 25H2 26200.8655 or 26200.8737, because June Windows 11 has efi files with SVN 9.
= bootmgfw_EX.efi must be SVN 9 (install.wim/boot.wim)

Last edited:

My Computer My Computer

At a glance

Windows 11AMD32 GB
OS
Windows 11
Computer type
PC/Desktop
Manufacturer/Model
Gigabyte
CPU
AMD
Motherboard
Gigabyte
Memory
32 GB
NormanF said:

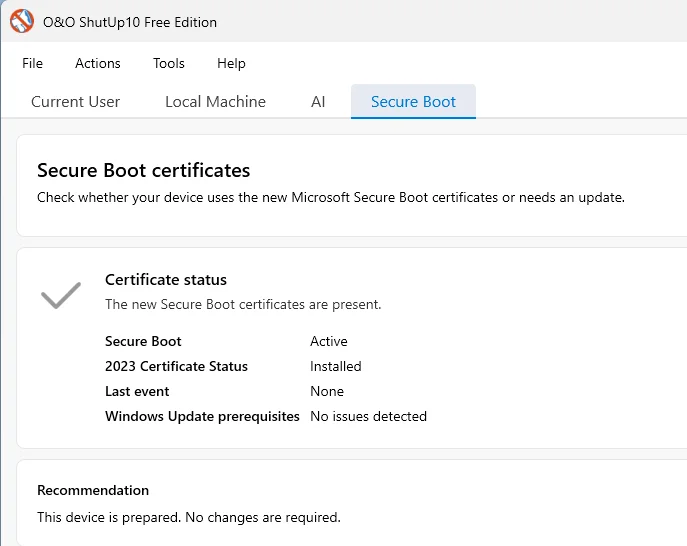

Use O&O 10 Shutup Secure Boot Status tab to verify your 2023 Secure Boot certificates were installed and you're good to go.
Click to expand...
O&O doesn't inform you about SVN, after the CA 2023 certs have been installed.
If you like the product so much, why don't you make a feedback suggestion to add this feature?


A PC can be updated to CA 2023, and yet fail the SVN test because of a mismatch over boot manager versions.

Users won't begin to experience issues with SVN until the CA 2011 revocation has been done. Which not everyone has elected to revoke, since MS hasn't made it mandatory yet.


My Computer My Computer

At a glance

Windows 7
OS
Windows 7
garlin said:
O&O doesn't inform you about SVN, after the CA 2023 certs have been installed.
If you like the product so much, why don't you make a feedback suggestion to add this feature?

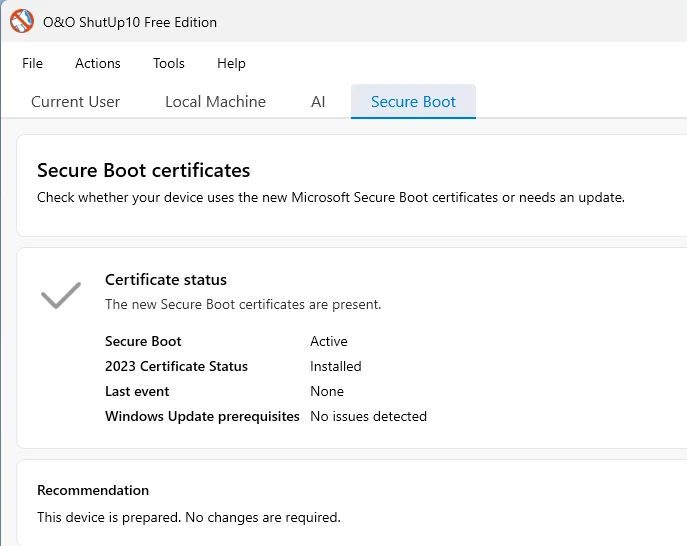

View attachment 175251

A PC can be updated to CA 2023, and yet fail the SVN test because of a mismatch over boot manager versions.

Users won't begin to experience issues with SVN until the CA 2011 revocation has been done. Which not everyone has elected to revoke, since MS hasn't made it mandatory yet.
Click to expand...

SVN isn't exposed to the end user. Microsoft is going to revoke the old certificates eventually and for the moment, while I have the 2023 installed, they haven't been activated yet.

There are reasons SVN isn't visible:

Why Microsoft hides SVN​

Three reasons:

A. Prevent rollback tampering​

If users could see or modify SVN, attackers could too.

B. OEM variability​

Different firmware vendors implement SVN differently.

C. Avoid support nightmares​

Imagine millions of users asking why their SVN is “wrong.”

Microsoft avoids this by hiding it.


My Computers My Computers

System One System Two

  • At a glance

    Windows 11 Education For 25H2Intel® Core i7 5500u8 GBIntel HD Family Graphics 5500 AMD Firepro 4150M
    OS
    Windows 11 Education For 25H2
    Computer type
    Laptop
    Manufacturer/Model
    HP ZBook G2
    CPU
    Intel® Core i7 5500u
    Motherboard
    HP
    Memory
    8 GB
    Graphics Card(s)
    Intel HD Family Graphics 5500 AMD Firepro 4150M
    Sound Card
    Realtek High Audio
    Hard Drives
    1 TB SSD
    Mouse
    HP USB Mouse
    Antivirus
    Windows Defender

  • At a glance

    Windows 11 Pro For Workstations 25H2Xeon 1535m v632 GBAMD Quadro Pro 4100
    Operating System
    Windows 11 Pro For Workstations 25H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook G4
    CPU
    Xeon 1535m v6
    Motherboard
    HP
    Memory
    32 GB
    Graphics card(s)
    AMD Quadro Pro 4100
    Sound Card
    Bang and Olufson Audio
    Hard Drives
    1TB SSD
    Mouse
    HP USB Mouse
    Antivirus
    Windows Defender
Windows Security doesn't display it. Run this command as Admin:
Code:
C:\Windows\System32>powershell Get-SecureBootSVN

FirmwareSVN      : 9.0
BootManagerSVN   : 9.0
StagedSVN        : 9.0
ComplianceStatus : Compliant (Boot Manager SVN meets staged SVN)
BootManagerPath  : \\.\HarddiskVolume1\EFI\Microsoft\Boot\bootmgfw.efi

FirmwareSVN <-- UEFI's current value
BootManagerSVN <-- boot manager's current value
StagedSVN <-- latest possible value from \Windows\System32\SecureBootUpdates\DBXUpdateSVN.bin, if you haven't applied revocation or recent Secure Boot updates

To check the boot file on an USB device:
Code:
C:\Windows\System32>powershell Get-SecureBootSVN -BootManagerPath D:\EFI\Boot\bootx64.efi

FirmwareSVN      : 9.0
BootManagerSVN   : 9.0
StagedSVN        : 9.0
ComplianceStatus : Compliant (Boot Manager SVN meets staged SVN)
BootManagerPath  : D:\EFI\Boot\bootx64.efi


My Computer My Computer

At a glance

Windows 7
OS
Windows 7
