Help needed with advanced partition problem! I’m stuck.


Marc Hufnagel

Active member
Local time
7:39 AM
Posts
4
OS
Windows 11
Windows 11 23H2. I have a 2gb ssd with two non-adjacent partitions that need to be merged. I have about 50% of the disc that is showing as unallocated but want to add it to the C partition.

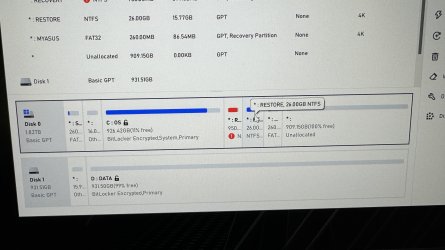

I’ve tried AOEMI partition wizard but getting nowhere. Here is a picture of my dilemma.

Any help is appreciated



My Computer

System One

  • OS
    Windows 11
Windows 11 23H2. I have a 2gb ssd with two non-adjacent partitions that need to be merged. I have about 50% of the disc that is showing as unallocated but want to add it to the C partition.

I’ve tried AOEMI partition wizard but getting nowhere. Here is a picture of my dilemma.

Any help is appreciated

View attachment 92688
According to your image you have a 2TB SSD C: on a 1TB partition plus a 1TB unallocated space with several small partitions and a 1TB D:. I've not seen more than 5 partitions on any drive so there appears there is an issue that may only be curable by a clean wipe and install. I don't use it but the image shows that Bitlocker may be involved, can complicate things.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
According to your image you have a 2TB SSD C: on a 1TB partition plus a 1TB unallocated space with several small partitions and a 1TB D:. I've not seen more than 5 partitions on any drive so there appears there is an issue that may only be curable by a clean wipe and install. I don't use it but the image shows that Bitlocker may be involved, can complicate things.
Those smaller partitions include a system restore partition among some others. I'm really wanting to keep it if at all possible. I'm not sure if I could remove the ones between the two partitions I want to merge but I feel I could see it all going south really quickly.


My Computer

System One

  • OS
    Windows 11
@Marc Hufnagel

Please post a screen shot of Disk Management (or AOMEI PW), spread out so we can read everything side to side and top to bottom.



To post a screenshot on this forum...​

1. Take the screenshot, edit it as desired, save to your desktop as .png or .jpg (max. size = 2MB)
2. Left click in your post, where you want to place the screenshot.
3. Click the Attach Files button at lower left, browse to your pic and click Insert.
4. After clicking Insert, I usually choose the Thumbnail (smaller) option, or the Full Image (larger) option.

If the "new" PrtSc key function is not to your liking... here is how to set it back to it's classic function...






Like this...



My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3880 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
Use the FREE version of EaseUS Partition Master

You can move one partition at a time, or - if you have the confidence - do multiple moves together.

Which ever you choose, make sure you an image of the disc before starting.


My Computer

System One

  • OS
    Windows 11 Pro v 24H2 (Build 26100.1150)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Precision 3660 Tower Workstation
    CPU
    12th Gen Intel(R) Core(TM) i9-12900 5.10 GHz
    Motherboard
    64-bit operating system, x64-based processor
    Memory
    32.00 GB
    Graphics Card(s)
    Intel UHD Graphics 770
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Dell P2714H Monitor
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 x 512GB NVME PC801 NVMe SK hynix Boot
    1 x 1TB Seagate ST1000LM049-2GH172 Internal HDD
    1 x 1TB Seagate STGX4000400 External HDD
    1 x 2TB Seagate STGX4000400 External HDD
    1 x 4TB Seagate STGX4000400 External HDD
    PSU
    300 Watts
    Cooling
    Air
    Keyboard
    Microsoft Wired Keyboard 600
    Mouse
    Microsoft USB Basic Optical Mouse v2.0
    Browser
    Firefox
    Antivirus
    Windows Defender + Malwarebytes Premium
    Other Info
    BaseBoard Manufacturer Dell Inc.
    BaseBoard Product 0J1CP3
    BaseBoard Version A01
Delete any partitions you do not need making it unallocated space. Minitool Partition Wizard Free can then extend partitions into non-contiguous space. Install the program, then create its bootable media. Boot from the media to extend the partition.

Edit: Disable bitlocker first!!!
