Solved Icon in/not in context menu: what makes the difference?


Wisewiz

π’π©πžπšπ€π¬ π€π§πœπ’πžπ§π­ π†πžπžπ€
Pro User
VIP
Local time
8:39 AM
Posts
4,116
Location
Ontario, Canada
OS
11 Pro 23H2 22631.3447
I have this in the context menu for .reg files on one machine:
and this in the context menu for .reg files on the other machine:

Both are set with reg editor as default (thus the Merge at the top) and when I click Edit, both open my default text editor (the one with that icon), not Notepad, correctly. The question is just Why does the one have the text editor icon, while the other doesn't?

Just curious, and I'll fix it if someone knows what the diff is.

Windows Build/Version
11 Pro 23h2 2506

My Computers

System One System Two

  • OS
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i7-9700 @ 3.00GHz
    Motherboard
    Lenovo 3132
    Memory
    32GBDDR4 @ 2666MHz
    Graphics Card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    LG E2442
    Screen Resolution
    1920x1080
    Hard Drives
    1 x Samsung 970 EVO PLUS 500GB NVMe SSD, 1 x WD_BLACK SN770
    250GB NVMe SSD (OS and programs), 1 x WD_BLACK SN770
    500GB NVMe SSD (Data)
    Case
    Lenovo SFF
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Mouse
    LogiTech M510 wireless
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome, sometimes Firefox
    Antivirus
    Malwarebytes Premium & Defender (working together beautifully!)
  • Operating System
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i5-8400 @ 2.80GHz
    Motherboard
    Lenovo 3132
    Memory
    32GB DDR4 @ 2600MHz
    Graphics card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek High Definition Audio onboard
    Monitor(s) Displays
    LG FULL HD (1920x1080@59Hz)
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 x Samsung 970 EVO PLUS NVMe; 1 x Samsung 980 NVMe SSD
    Case
    Lenovo Think Centre SFF
    Mouse
    LogiTech M510 wireless
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome
    Antivirus
    Malwarebytes Premium and MS Defender, beautiful together
track down the reg key for each (i assume one is for file and one is for folder.. or something to that effect?). one will have a string value with the icon location set. the other probably doesn't have that string value created


My Computer

System One

  • OS
    Windows 11 Pro
Hey @Wisewiz,
I will use the example I created for flushing DNS,
It's a bit of an overkill since it checks for user access.

Code:
Windows Registry Editor Version 5.00


[HKEY_CLASSES_ROOT\DesktopBackground\Shell\FlushDNS]
"MUIVerb"="Flush DNS"
"Icon"="cmd.exe"
"Position"="Bottom"
"SubCommands"=""


[HKEY_CLASSES_ROOT\DesktopBackground\Shell\FlushDNS\shell]


[HKEY_CLASSES_ROOT\DesktopBackground\Shell\FlushDNS\shell\01FlushDNS]
"HasLUAShield"=""
"MUIVerb"="Flush DNS"


[HKEY_CLASSES_ROOT\DesktopBackground\Shell\FlushDNS\shell\01FlushDNS\Command]
@="PowerShell -windowstyle hidden -command \"Start-Process cmd -ArgumentList '/s,/k, IPconfig.exe /flushdns & pause & exit' -Verb runAs\""
As you can see, on the 3rd line, there is an optional 'Icon' entry.
Because cmd is already pathed by the system, I do not have to put the fully qualified path, and it grabs the icon from that .exe.
Is your icon subkey pointing correctly on the machine which does not show the icon?

Last edited:

My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
Poking around in HKCR, I just don't see any entry on .reg files that one has and the other doesn't.


My Computers

System One System Two

  • OS
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i7-9700 @ 3.00GHz
    Motherboard
    Lenovo 3132
    Memory
    32GBDDR4 @ 2666MHz
    Graphics Card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    LG E2442
    Screen Resolution
    1920x1080
    Hard Drives
    1 x Samsung 970 EVO PLUS 500GB NVMe SSD, 1 x WD_BLACK SN770
    250GB NVMe SSD (OS and programs), 1 x WD_BLACK SN770
    500GB NVMe SSD (Data)
    Case
    Lenovo SFF
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Mouse
    LogiTech M510 wireless
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome, sometimes Firefox
    Antivirus
    Malwarebytes Premium & Defender (working together beautifully!)
  • Operating System
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i5-8400 @ 2.80GHz
    Motherboard
    Lenovo 3132
    Memory
    32GB DDR4 @ 2600MHz
    Graphics card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek High Definition Audio onboard
    Monitor(s) Displays
    LG FULL HD (1920x1080@59Hz)
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 x Samsung 970 EVO PLUS NVMe; 1 x Samsung 980 NVMe SSD
    Case
    Lenovo Think Centre SFF
    Mouse
    LogiTech M510 wireless
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome
    Antivirus
    Malwarebytes Premium and MS Defender, beautiful together
Poking around in HKCR, I just don't see any entry on .reg files that one has and the other doesn't.
And the program you are using to edit is installed in the same location on both systems?


My Computers

System One System Two

  • OS
    Win11 All /Debian/Arch
    Computer type
    Laptop
    Manufacturer/Model
    ASUSTeK COMPUTER INC. TUF Gaming FX705GM
    CPU
    2.20 gigahertz Intel i7-8750H Hyper-threaded 12 cores
    Motherboard
    ASUSTeK COMPUTER INC. FX705GM 1.0
    Memory
    24428 Megabytes
    Graphics Card(s)
    Intel(R) UHD Graphics 630 / NVIDIA GeForce GTX 1060
    Sound Card
    Intel(R) Display Audio / Realtek(R) Audio
    Monitor(s) Displays
    Integrated Monitor (17.3"vis)
    Screen Resolution
    FHD 1920X1080 16:9
    Hard Drives
    2 SSD SATA/NVM Express 1.3
    WDS500G2B0A-00SM50 500.1 GB
    WDCSDAPNUW-1002 256 GB
    PSU
    19V DC 6.32 A 120 W
    Cooling
    Dual Fans
    Mouse
    MS Bluetooth
    Internet Speed
    Fiber 1GB Cox -us & ADSL Bouygues -fr
    Browser
    Edge Canary- Firefox Nightly
    Antivirus
    Windows Defender
    Other Info
    VMs of Windows 11 stable/Beta/Dev/Canary
    VM of XeroLinux- Arch based & Debian 12
  • Operating System
    Windows 11 Insider Canary
    Computer type
    Laptop
    Manufacturer/Model
    ASUS X751BP
    CPU
    AMD Dual Core A6-9220
    Motherboard
    ASUS
    Memory
    8 GB
    Graphics card(s)
    AMD Radeon R5 M420
    Sound Card
    Realtek
    Monitor(s) Displays
    17.3
    Screen Resolution
    1600X900 16:9
    Hard Drives
    1TB 5400RPM
the one that the icon is not working on, delete the icon string value that exists. reboot, create the string value, restart explorer. see if it populates the icon.


My Computer

System One

  • OS
    Windows 11 Pro

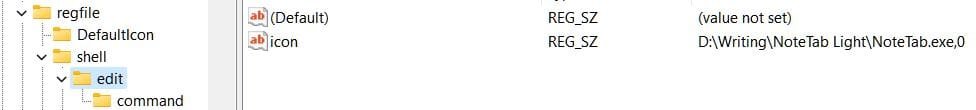

Found it! Tried the regfile key (not reg), and there it was on the machine that had the icon in its context menu with the Edit command. Added the Icon string value to the other machine, gave it the path to the text editor executable, added the ",0" (comma, zero) needed, and Shazzam!
Thank you both, @dacrone and @OAT. Appreciation points above.
Dan

Last edited:

My Computers

System One System Two

  • OS
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i7-9700 @ 3.00GHz
    Motherboard
    Lenovo 3132
    Memory
    32GBDDR4 @ 2666MHz
    Graphics Card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    LG E2442
    Screen Resolution
    1920x1080
    Hard Drives
    1 x Samsung 970 EVO PLUS 500GB NVMe SSD, 1 x WD_BLACK SN770
    250GB NVMe SSD (OS and programs), 1 x WD_BLACK SN770
    500GB NVMe SSD (Data)
    Case
    Lenovo SFF
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Mouse
    LogiTech M510 wireless
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome, sometimes Firefox
    Antivirus
    Malwarebytes Premium & Defender (working together beautifully!)
  • Operating System
    11 Pro 23H2 22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo ThinkCentre M920S SFF
    CPU
    i5-8400 @ 2.80GHz
    Motherboard
    Lenovo 3132
    Memory
    32GB DDR4 @ 2600MHz
    Graphics card(s)
    Intel HD 630 Graphics onboard
    Sound Card
    Realtek High Definition Audio onboard
    Monitor(s) Displays
    LG FULL HD (1920x1080@59Hz)
    Screen Resolution
    1920 x 1080
    Hard Drives
    1 x Samsung 970 EVO PLUS NVMe; 1 x Samsung 980 NVMe SSD
    Case
    Lenovo Think Centre SFF
    Mouse
    LogiTech M510 wireless
    Keyboard
    Cherry Stream TKL JK-8600US-2 Wired
    Internet Speed
    Fast (for fixed wireless!)
    Browser
    Chrome
    Antivirus
    Malwarebytes Premium and MS Defender, beautiful together
BTW, for any visitor looking at this and wondering: I did a registry search for the full path to the executable for my text editor. I figured if the icon was in use on that machine's .reg context menu, it had to be taken from that executable. Got a couple of hits that were irrelevant, and then got the Root\regfile entry, and it was in a string value named "Icon." Yes! Then I went to the icon-less machine, found the same spot in its registry, added the string value and put the path to that executable in it, and that was that.

Successful mini-project completed with the help of my friends.
