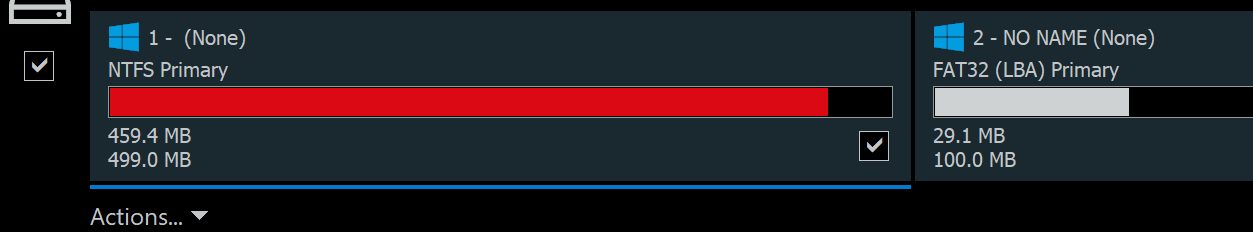

The primary partition is showing [RED] in Macrium. This is an indication of limited space remaining, but how would you correct this. Notice WinRE is 442MB, can this be edited??part1.pngZ-drive.JPG


My Computers

System One System Two

  • Operating System
    W10 19043.1165
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self
    CPU
    AMD 8 Core FX-8350 AM3
    Motherboard
    Gigabyte GA-990FXA-UD3R5
    Memory
    32 GB
    Graphics Card(s)
    NVIDIA GeForce GTX 750 Ti
    Sound Card
    On Board
    Monitor(s) Displays
    Dual Asus VN248H
    Screen Resolution
    1920 x 1080
    Hard Drives
    Crucial mx100, 2x WD 2TB
    PSU
    Antec 750
    Case
    CoolMaster HAF 912
    Cooling
    3 Fab
    Keyboard
    K345
    Mouse
    M275
    Internet Speed
    940/940
  • Operating System
    W11 22000.160 / Linux Mint/Chrome OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    SELF
    CPU
    AMD A8-5545M
    Motherboard
    Biostar A68n-5545
    Memory
    2x4GB
    Graphics card(s)
    MSI NVIDIA GEFORCE 710
    Sound Card
    Internal
    Monitor(s) Displays
    TCL 4K 43" TV
    Screen Resolution
    3840x2160
    Hard Drives
    ADATA SP-550
    PSU
    500W
    Case
    COLOLER MASTER ELITE 110 RC-110-KKN2
    Cooling
    3 fAN
    Mouse
    lOGITEC
    Keyboard
    LOGITEC
    Internet Speed
    940/940
    Browser
    FF/EDGE
    Antivirus
    MS -MWB
    Other Info
    itx MB

Ghot

Well-known member
Power User
VIP
Local time
4:36 PM
Posts
1,271
Location
PA, USA
The primary partition is showing [RED] in Macrium. This is an indication of limited space remaining, but how would you correct this. Notice WinRE is 442MB, can this be edited??View attachment 5843View attachment 5844

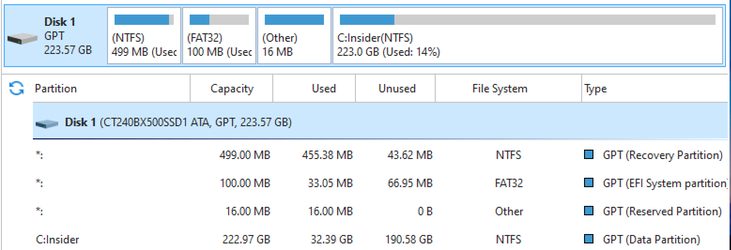

You can increase the size of the Recovery partition a bit. Mine is at 507 MB with 422 MB data on the partition.
It doesn't show RED in Macrium Reflect.
I haven't adjust my Recovery partition size. That's just how it was created, I guess.
A program like EaseUS Partition Master or MiniTools Partition Wizard (both free), can easily resize that partition.



Last edited:

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Meebers

Active member
VIP
Thread Starter
Local time
4:36 PM
Posts
37
Location
Florida
You can increase the size of the Recovery partition a bit. Mine is at 507 MB with 422 MB data on the partition.
A program like EaseUS Partition Master or MiniTools Partition Wizard (both free), can do that easily.
Did you take it from partition 2. Tried with Mini tools


My Computers

System One System Two

  • Operating System
    W10 19043.1165
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self
    CPU
    AMD 8 Core FX-8350 AM3
    Motherboard
    Gigabyte GA-990FXA-UD3R5
    Memory
    32 GB
    Graphics Card(s)
    NVIDIA GeForce GTX 750 Ti
    Sound Card
    On Board
    Monitor(s) Displays
    Dual Asus VN248H
    Screen Resolution
    1920 x 1080
    Hard Drives
    Crucial mx100, 2x WD 2TB
    PSU
    Antec 750
    Case
    CoolMaster HAF 912
    Cooling
    3 Fab
    Keyboard
    K345
    Mouse
    M275
    Internet Speed
    940/940
  • Operating System
    W11 22000.160 / Linux Mint/Chrome OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    SELF
    CPU
    AMD A8-5545M
    Motherboard
    Biostar A68n-5545
    Memory
    2x4GB
    Graphics card(s)
    MSI NVIDIA GEFORCE 710
    Sound Card
    Internal
    Monitor(s) Displays
    TCL 4K 43" TV
    Screen Resolution
    3840x2160
    Hard Drives
    ADATA SP-550
    PSU
    500W
    Case
    COLOLER MASTER ELITE 110 RC-110-KKN2
    Cooling
    3 fAN
    Mouse
    lOGITEC
    Keyboard
    LOGITEC
    Internet Speed
    940/940
    Browser
    FF/EDGE
    Antivirus
    MS -MWB
    Other Info
    itx MB

Ghot

Well-known member
Power User
VIP
Local time
4:36 PM
Posts
1,271
Location
PA, USA
Did you take it from partition 2. Tried with Mini tools

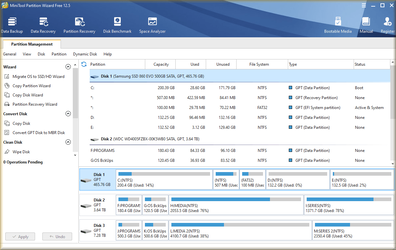

I didn't have to resize the Recovery partition. It was just created at 507 MB by the upgrade from Win 10 to Win 11.
However, I would just take it from... the Windows partition, if it's touching the Recovery partition.
I can't tell your disk layout from your pic.

If they are touching (adjacent), just shrink the Windows 11 partition by 10 MB. Then resize the Recovery partition to use that extra 10 MB.

Or post a MiniTools Partition Wizard screenshot.



/edit

To post a screenshot on this forum...

1. Take the screenshot, edit it as desired, save to your desktop as .png or .jpg
2. Left click the mouse in your post, where you want to place the screenshot.
3. Drag and drop the screenshot from your desktop to your post.

Last edited:

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bree

Well-known member
Power User
VIP
Local time
9:36 PM
Posts
938
Location
S/E England, UK
The primary partition is showing [RED] in Macrium. This is an indication of limited space remaining, but how would you correct this. Notice WinRE is 442MB, can this be edited??
I also note that this Recovery partition is the first partition on your disk. That was typical of a clean install of older versions of Windows 10. Is this a W10 machine that has been upgraded to W11?

Starting with (as I recall) 2004 the Recovery partition was moved and is now placed immediately after the C: partition. This allows future upgrades to shrink C: and expand the Recovery partition as required. Prior to this, with WinRE as the first partition expansion was impossible, so a second larger one would be created.

It's a pity your screenshot didn't show the whole of the disk. If it had I suspect it would show at least one more (almost certainly larger) Recovery partition. If so, then your partition 1 WinRE is probably not the active recovery partition any more and can safely be ignored. You can find out which WinRE is active with the command reagentc /info run in a Command prompt (Admin).

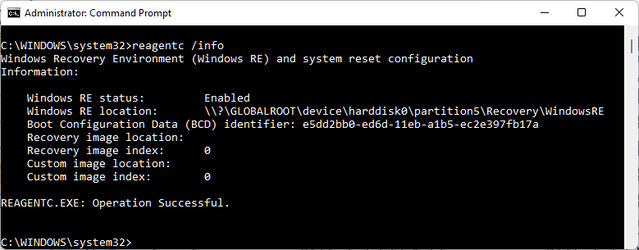

WinRE - which one is active.PNG

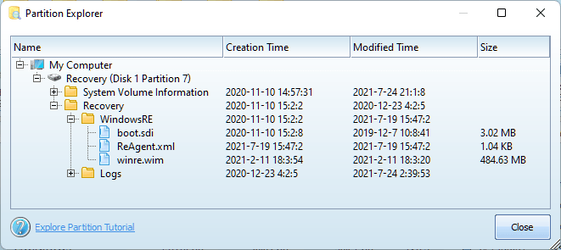

The above is from a W10 machine that has had an upgrade to W11. It has two recovery partitions, the active W11 one is partition 5 and has a WinRE.wim much larger than yours at 543MB.

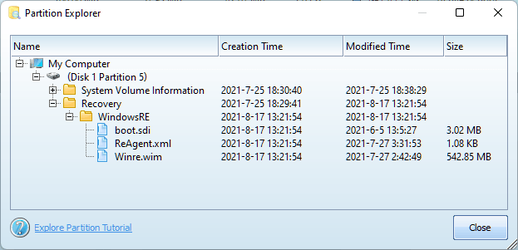

WinRE W11.PNG

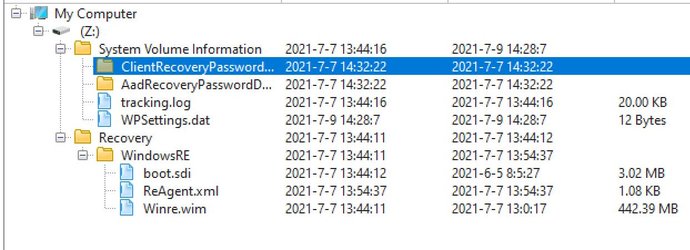

The left over W10 recovery partition (no longer in use) has a WinRE.wim of 485MB, closer in size to that in your screenshot. That's why I suspect your 'apparently full' recovery partition is a redundant W10 recovery partition that is no longer in use, and that you have another active one elsewhere.

WinRE W10.PNG


My Computers

System One System Two

  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Meebers

Active member
VIP
Thread Starter
Local time
4:36 PM
Posts
37
Location
Florida

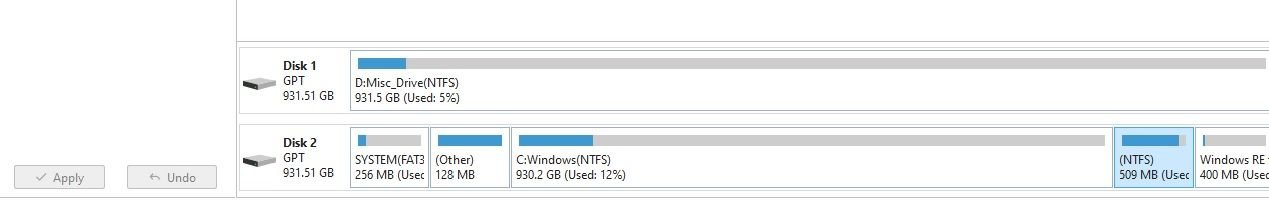

Mea culpa ! Here is the full view. Yes W10 to W11. MiniTool will let me move/resize Part 4 [Data], but there are no options on the other 3 partitions

W11 Part.png

Last edited:

My Computers

System One System Two

  • Operating System
    W10 19043.1165
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self
    CPU
    AMD 8 Core FX-8350 AM3
    Motherboard
    Gigabyte GA-990FXA-UD3R5
    Memory
    32 GB
    Graphics Card(s)
    NVIDIA GeForce GTX 750 Ti
    Sound Card
    On Board
    Monitor(s) Displays
    Dual Asus VN248H
    Screen Resolution
    1920 x 1080
    Hard Drives
    Crucial mx100, 2x WD 2TB
    PSU
    Antec 750
    Case
    CoolMaster HAF 912
    Cooling
    3 Fab
    Keyboard
    K345
    Mouse
    M275
    Internet Speed
    940/940
  • Operating System
    W11 22000.160 / Linux Mint/Chrome OS
    Computer type
    PC/Desktop
    Manufacturer/Model
    SELF
    CPU
    AMD A8-5545M
    Motherboard
    Biostar A68n-5545
    Memory
    2x4GB
    Graphics card(s)
    MSI NVIDIA GEFORCE 710
    Sound Card
    Internal
    Monitor(s) Displays
    TCL 4K 43" TV
    Screen Resolution
    3840x2160
    Hard Drives
    ADATA SP-550
    PSU
    500W
    Case
    COLOLER MASTER ELITE 110 RC-110-KKN2
    Cooling
    3 fAN
    Mouse
    lOGITEC
    Keyboard
    LOGITEC
    Internet Speed
    940/940
    Browser
    FF/EDGE
    Antivirus
    MS -MWB
    Other Info
    itx MB

Winuser

Well-known member
Power User
VIP
Local time
4:36 PM
Posts
991
I see the same thing when I run Macium Reflect. My NTFS partition is right after the C: partition and Disk Management will not allow me to resize it. I shrank the C: partition by 10 MB and when I click on the primary partition I do not get any options. In Minitool Partition Wizard it will only allow me to take 10 MBs from the Windows Re partition that is on the right of the NTFS partition. I only tried it to see if I could resize it.


Last edited:

My Computer

System One

  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    Keyboard
    HP USB Kekboard
    Mouse
    2.4 wireless mouse
    Browser
    Microsoft Edge and Firefox
Top Bottom
