Recommendations for bootable ISOs to add to Ventoy


SIW2 said:
Booting from iso is different. Efisys expects bootmgr.efi on the root.
Click to expand...
hdmi:
The root inside the Boot.wim file, yes. Not the root inside the iso file.
Click to expand...


Try booting an iso without it. It is clear my post which you quoted refers to an iso file.

You are confusing two different things.

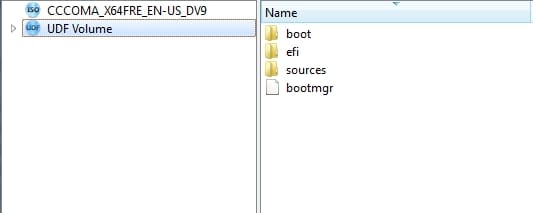

This iso can boot in efi mode and loads the wim



This iso does not load the wim in efi mode, it hangs on the "press any key.." message till it times out



Last edited:

My Computers

System One System Two

  • OS
    Win7,Win11
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7,win11
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
SIW2 said:
Try booting an iso without it. It is clear my post which you quoted refers to an iso file.

You are confusing two different things.

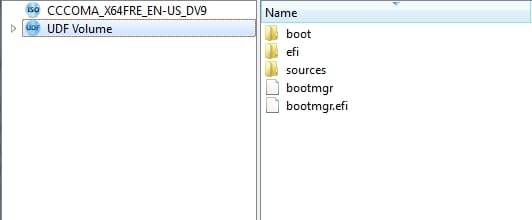

This iso can boot in efi mode and loads the wim

View attachment 76532


This iso does not load the wim in efi mode, it hangs on the "press any key.." message till it times out


View attachment 76533
Click to expand...
Of course yes, but when I start the Deployment and Imaging Tools Environment as an administrator like explained in the docs from Microsoft and I run the following command to create my iso file:
MakeWinPEMedia /ISO C:\WinPE_amd64 "C:\WinPE_amd64\DiskGenius 5.5.1.1508 x64.iso"
...then the root inside the resulting iso file already has the bootmgr.efi in it so, I still fail to see the problem about that part.


My Computers

System One System Two

  • OS
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus TUF Gaming F16 (2024)
    CPU
    i7 13650HX
    Memory
    16GB DDR5
    Graphics Card(s)
    GeForce RTX 4060 Mobile
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    512GB SSD internal
    37TB external
    PSU
    Li-ion
    Cooling
    2× Arc Flow Fans, 4× exhaust vents, 5× heatpipes
    Keyboard
    Logitech K800
    Mouse
    Logitech G402
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF
  • Operating System
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Medion S15450
    CPU
    i5 1135G7
    Memory
    16GB DDR4
    Graphics card(s)
    Intel Iris Xe
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    2TB SSD internal
    37TB external
    PSU
    Li-ion
    Mouse
    Logitech G402
    Keyboard
    Logitech K800
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF
SIW2 said:
If you are still struggling with this, you could use the little workaround I have illustrated several times before.

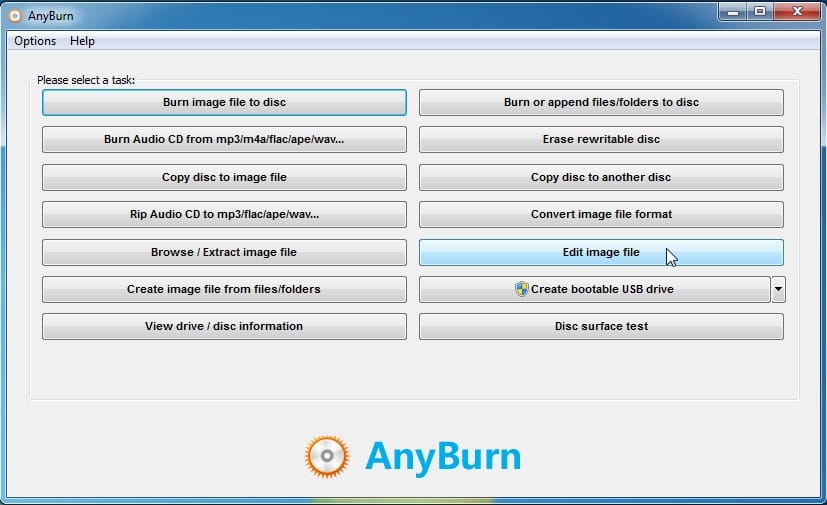

Using something like the free anyburn, edit a known working iso file (e.g. your macrium iso file ) . Replace the \sources\boot.wim in the known working iso with the boot.wim from your diskgenius usb stick. Then save the iso as a new name, e.g. diskgenius.iso

Download AnyBurn

Download AnyBurn
www.anyburn.com


View attachment 76378
Click to expand...
Will give this a go, thanks!

It works! It boots in wimboot mode


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2 26100.2454
    Computer type
    Laptop
    Manufacturer/Model
    Acer Swift SF114-34
    CPU
    Pentium Silver N6000 1.10GHz
    Memory
    4GB
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD
    Cooling
    fanless
    Internet Speed
    150 Mbps
    Browser
    Brave
    Antivirus
    Webroot Secure Anywhere
    Other Info
    System 3

    ASUS T100TA Transformer
    Processor Intel Atom Z3740 @ 1.33GHz
    Installed RAM 2.00 GB (1.89 GB usable)
    System type 32-bit operating system, x64-based processor

    Edition Windows 10 Home
    Version 22H2 build 19045.3570
  • Operating System
    Windows 11 Pro 23H2 22631.2506
    Computer type
    Laptop
    Manufacturer/Model
    HP Mini 210-1090NR PC (bought in late 2009!)
    CPU
    Atom N450 1.66GHz
    Memory
    2GB
    Browser
    Brave
    Antivirus
    Webroot
Last edited:

My Computers

System One System Two

  • OS
    Win7,Win11
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7,win11
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
I wonder why it wouldn't boot in normal mode since it was based on the Macrium iso which does?


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2 26100.2454
    Computer type
    Laptop
    Manufacturer/Model
    Acer Swift SF114-34
    CPU
    Pentium Silver N6000 1.10GHz
    Memory
    4GB
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD
    Cooling
    fanless
    Internet Speed
    150 Mbps
    Browser
    Brave
    Antivirus
    Webroot Secure Anywhere
    Other Info
    System 3

    ASUS T100TA Transformer
    Processor Intel Atom Z3740 @ 1.33GHz
    Installed RAM 2.00 GB (1.89 GB usable)
    System type 32-bit operating system, x64-based processor

    Edition Windows 10 Home
    Version 22H2 build 19045.3570
  • Operating System
    Windows 11 Pro 23H2 22631.2506
    Computer type
    Laptop
    Manufacturer/Model
    HP Mini 210-1090NR PC (bought in late 2009!)
    CPU
    Atom N450 1.66GHz
    Memory
    2GB
    Browser
    Brave
    Antivirus
    Webroot
I don't know what is happening on your system.

without using ctrl+w

if it is an iso it loads using bootmgr.efi which is on the root of the iso

if it is a wim on the usb it loads using bootx64.efi. Looks like the ventoy one will work fine.

Last edited:

My Computers

System One System Two

  • OS
    Win7,Win11
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7,win11
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
There are several other ways to access lots of different programs from one booted winpe.

One way is to copy and paste the c:\program files\diskgenius folder onto the usb stick. Then after booting into e.g macrium winpe, use the quasi explorer to reach down to the usb stick and run diskgenius\disgenius.exe.

could do the same sort of thing with firefox browser and plenty more programs.

If there isnt a quasi explorer in whatever winpe you have booted into, can browse to the programs on the usb stick with notepad instead.

If your winpe is 64 bit, you can only run 64 bit programs that way.

I do this all the time, in a slightly more elaborate fashion. I usually include wow support and explorer etc in my winpe, then it links the programs on the usb stick to the winpe desktop.

It is handy to have them on the usb stick because it is easy to add extra programs, or change them for newer versions.

Last edited:

My Computers

System One System Two

  • OS
    Win7,Win11
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7,win11
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
SIW2 said:
There are several other ways to access lots of different programs from one booted winpe.

One way is to copy and paste the c:\program files\diskgenius folder onto the usb stick. Then after booting into e.g macrium winpe, use the quasi explorer to reach down to the usb stick and run diskgenius\disgenius.exe.

could do the same sort of thing with firefox browser and plenty more programs.
Click to expand...
I'll give this a go! Thanks.


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2 26100.2454
    Computer type
    Laptop
    Manufacturer/Model
    Acer Swift SF114-34
    CPU
    Pentium Silver N6000 1.10GHz
    Memory
    4GB
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD
    Cooling
    fanless
    Internet Speed
    150 Mbps
    Browser
    Brave
    Antivirus
    Webroot Secure Anywhere
    Other Info
    System 3

    ASUS T100TA Transformer
    Processor Intel Atom Z3740 @ 1.33GHz
    Installed RAM 2.00 GB (1.89 GB usable)
    System type 32-bit operating system, x64-based processor

    Edition Windows 10 Home
    Version 22H2 build 19045.3570
  • Operating System
    Windows 11 Pro 23H2 22631.2506
    Computer type
    Laptop
    Manufacturer/Model
    HP Mini 210-1090NR PC (bought in late 2009!)
    CPU
    Atom N450 1.66GHz
    Memory
    2GB
    Browser
    Brave
    Antivirus
    Webroot
Thank you this is just what i needed to convert a rufus boot usb of windows 11 24h2 with all the checks removed back to an iso for ventoy. worked liked a charm. imgburn and anyburn would not make the iso bootable no matter what i tried. you rock.
SIW2 said:
**************************************************************

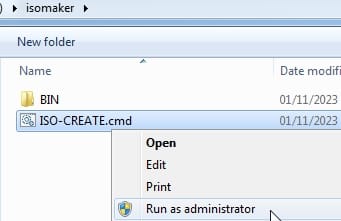

I have made one which is just a simple .cmd file and doesnt look for setup.exe

Copy and paste the usb stick to a hard drive. Then run the .cmd file and browse to directory you just copied.

View attachment 76151
Click to expand...
