Splitting my encrypted C: drive into two partitions


dbookbinder

Active member
Member
Local time
8:29 AM
Posts
75
OS
Windows 11
My C: drive is a 2TB SSD encrypted with Bitlocker. I want to split it into two partitions and move my data files to the second partition so that creating a boot image is less time consuming -- currently it takes all night. I separately back up the data files incrementally, so I don't need these to be in the disk image.

I have several related questions:
  1. Can I do this without decrypting the C: drive using something like Minitool or EASUS partition managers?
  2. If I don't have to decrypt, should I suspend Bitlocker while the repartitioning is happening?
  3. After the split, will each partition be encrypted, or do I need to re-encrypt the new second partition?
  4. Will the second partition have a different encryption key?
  5. I also have a second internal drive. Will the second partition become D: and the second internal drive E:?

    I'm running Windows 11 Pro, 23H2.
    Thanks!

Windows Build/Version
Windows 11, 23H2

My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    i7-1355U
    Motherboard
    HP
    Memory
    64GB
    Graphics Card(s)
    Intel IRIS 1GB
    Sound Card
    Realtek (internal)
    Monitor(s) Displays
    Stock and external 27" Acer monitor
    Screen Resolution
    1080p
    Hard Drives
    NVme 2TB (Windows), 2TB SSD
    PSU
    Stock
    Case
    Stock
    Cooling
    Stock
    Keyboard
    Stock and external HP keyboard
    Mouse
    Trackpad and external Logitech wired mouse
    Internet Speed
    FIOS 1GB
    Browser
    Chrome, Edge, Brave
    Antivirus
    Microsoft Defender
    Other Info
    2TB Samsung 990 Pro, 2TB Samsung 870 EVO
  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 5770
    CPU
    Intel i7-8550U
    Motherboard
    Dell
    Memory
    32GB
    Graphics card(s)
    AMD Radeon 530
    Sound Card
    Realtek
    Monitor(s) Displays
    Laptop screen
    Screen Resolution
    1920x1080
    Hard Drives
    256GB Samsung SDD, 2TB Western Digital HDD
    Mouse
    Logitech wired
    Keyboard
    Arteck wireless
    Internet Speed
    FIOS 1GB
    Browser
    Chrome, Edge
    Antivirus
    Microsoft Defender
My experience on a clients computer?
1, 2, 3 eliminate all encryption,
4 maybe,
5 disconnect any other drive/s first.

Not listed, keep in mind that if one partition fails the whole drive may be having issues, may fail. I prefer my 8TB NAS drive running as RAID 1 with 2 x 4TB HDDs for 4TB total storage.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
@dbookbinder

Definitely decrypt first.
You don't have to unhook the other drives, just to partition.
You can change the drive letters to whatever you want... afterwards. With Minitool or Disk Management.



You can easily go all OCD with drive letters... if desired. :-)


This is my Disk Management, and File Explorer...

000000 Disk Management 2.png






I only backup the stuff in the RED box, in the top pic. Approx. 35GB. Takes just under two minutes.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
My C: drive is a 2TB SSD encrypted with Bitlocker. I want to split it into two partitions and move my data files to the second partition so that creating a boot image is less time consuming -- currently it takes all night. I separately back up the data files incrementally, so I don't need these to be in the disk image.

I have several related questions:
Can I do this without decrypting the C: drive using something like Minitool or EASUS partition managers?

If I could follow Microsoft instructions to use Windows diskpart to shrink my Bitlockered system partition to make room for a larger recovery partition, you should be able to do the same to make room for a new partition. The Windows Disk Management app might also do the trick.

If I don't have to decrypt, should I suspend Bitlocker while the repartitioning is happening?

No.


After the split, will each partition be encrypted, or do I need to re-encrypt the new second partition?

The new partition won't be encrypted.

Will the second partition have a different encryption key?

Yes, and it will be a data drive, so you should enable auto-unlock after you encrypt it. This has implications when you restore the OS partition. This article explains different ways to backup/restore Bitlockered OS partitions for the imaging software I use, but it applies to all such software:


This article explains how to recover when you mess up and restore the OS partition in the unencrypted state, such that you have to re-encrypt it, which screws up auto-unlock:


I also have a second internal drive. Will the second partition become D: and the second internal drive E:?

No, the drive letters won't change for fixed drives.


My Computer

System One

  • OS
    Windows 11
My 2 cents, if my drive was encrypted (it's not) I would never take the chance and perform disk tasks without decrypting and turning off bitlocker first.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3593
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Hi,
Personally the 2tb ssd is best used as a pure personal data/ games drive
If it were me I'd look into getting a 250-500gb ssd just for os

But indeed decrypt first.


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro

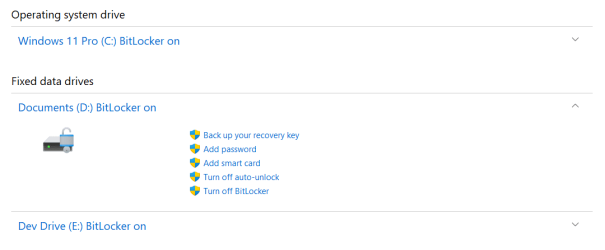

I've never decrypted when shrinking C: and creating new partitions using disk management. It shrinks fine and when I format the new simple partition it is automatically encrypted.


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender

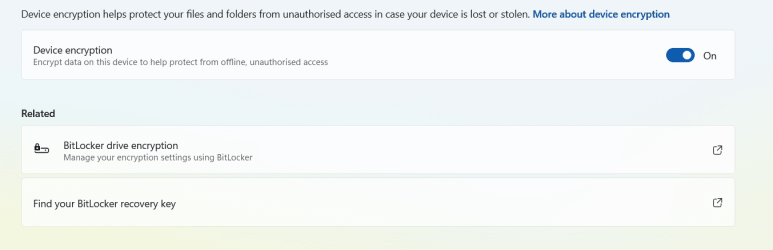

I've never decrypted when shrinking C: and creating new partitions using disk management. It shrinks fine and when I format the new simple partition it is automatically encrypted.
There seem to be widely divergent views on this. Good to hear you've had no problems. When it's automatically encrypted, does it use the same encryption key or a new one for that partition?


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    i7-1355U
    Motherboard
    HP
    Memory
    64GB
    Graphics Card(s)
    Intel IRIS 1GB
    Sound Card
    Realtek (internal)
    Monitor(s) Displays
    Stock and external 27" Acer monitor
    Screen Resolution
    1080p
    Hard Drives
    NVme 2TB (Windows), 2TB SSD
    PSU
    Stock
    Case
    Stock
    Cooling
    Stock
    Keyboard
    Stock and external HP keyboard
    Mouse
    Trackpad and external Logitech wired mouse
    Internet Speed
    FIOS 1GB
    Browser
    Chrome, Edge, Brave
    Antivirus
    Microsoft Defender
    Other Info
    2TB Samsung 990 Pro, 2TB Samsung 870 EVO
  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 5770
    CPU
    Intel i7-8550U
    Motherboard
    Dell
    Memory
    32GB
    Graphics card(s)
    AMD Radeon 530
    Sound Card
    Realtek
    Monitor(s) Displays
    Laptop screen
    Screen Resolution
    1920x1080
    Hard Drives
    256GB Samsung SDD, 2TB Western Digital HDD
    Mouse
    Logitech wired
    Keyboard
    Arteck wireless
    Internet Speed
    FIOS 1GB
    Browser
    Chrome, Edge
    Antivirus
    Microsoft Defender

My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3593
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
There seem to be widely divergent views on this. Good to hear you've had no problems. When it's automatically encrypted, does it use the same encryption key or a new one for that partition?
Same one


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender
There seem to be widely divergent views on this. Good to hear you've had no problems. When it's automatically encrypted, does it use the same encryption key or a new one for that partition?

To those who say the newly formatted partition will be automatically encrypted, are you using "Device Encryption"? That's different than regular Bitlocker and unavailable on my Windows 11 Pro 23H2 system, which is the same OS the OP says he's running. From what I've just read, "Device Encryption" is indeed automatic for OS and fixed drives. Regular Bitlocker, OTOH, is not. At least I've always had to manually enable it on every volume I want encrypted, which is all of them, and this goes back to when I moved from Truecrypt to Bitlocker in 2014. That said, I've never partitioned a drive aside from re-creating and enlarging the recovery volume to apply the recent updates. I don't have direct experience with creating a normal data partition on an OS drive, and I would be surprised if regular Bitlocker automatically encrypts it just because the OS partition is encrypted. That definitely does not happen with separate data drives.


My Computer

System One

  • OS
    Windows 11
To those who say the newly formatted partition will be automatically encrypted, are you using "Device Encryption"? That's different than regular Bitlocker and unavailable on my Windows 11 Pro 23H2 system, which is the same OS the OP says he's running. From what I've just read, "Device Encryption" is indeed automatic for OS and fixed drives. Regular Bitlocker, OTOH, is not. At least I've always had to manually enable it on every volume I want encrypted, which is all of them, and this goes back to when I moved from Truecrypt to Bitlocker in 2014. That said, I've never partitioned a drive aside from re-creating and enlarging the recovery volume to apply the recent updates. I don't have direct experience with creating a normal data partition on an OS drive, and I would be surprised if regular Bitlocker automatically encrypts it just because the OS partition is encrypted. That definitely does not happen with separate data drives.
No, I have Bitlocker on all my partitions and when I created two new partitions, one for my documents which is NTFS and one for my DevDrive which is ReFS they both had Bitlocker enabled straight away.


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender
No, I have Bitlocker on all my partitions and when I created two new partitions, one for my documents which is NTFS and one for my DevDrive which is ReFS they both had Bitlocker enabled straight away.

Well, either you're using Device Encryption, or your system behaves differently than mine for unknown reasons. Using Disk Management, I just tried shrinking my Bitlockered C: drive and created a new partition right after it, and after formatting the new partition, it was not encrypted. IOW, the new partition on the OS drive is treated exactly the same as a separate drive, which is what I thought would happen.


My Computer

System One

  • OS
    Windows 11
Well, either you're using Device Encryption, or your system behaves differently than mine for unknown reasons. Using Disk Management, I just tried shrinking my Bitlockered C: drive and created a new partition right after it, and after formatting the new partition, it was not encrypted. IOW, the new partition on the OS drive is treated exactly the same as a separate drive, which is what I thought would happen.
Definitely Bitlocker 1710870866771.png


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender

I don't know if that's the right place to look. Device Encryption uses Bitlocker but is a higher-level construct, and I wouldn't be surprised if that dialog box I'm very familiar with doesn't give information about the former. Go to "Settings > Privacy & security" and see what's under the "Security" section at the top. If your device supports "Device Encryption", there will be an option for it there, and you can click on it to see if you're using it:


Neither of my Windows 11 Pro systems has the option for "Device Encryption". Don't know why, and in fact, I'd never heard of it before reading these posts talking about "automatic encryption", which I've never experienced in 10 years of using Bitlocker on probably a couple dozen drives.


My Computer

System One

  • OS
    Windows 11
I don't know if that's the right place to look. Device Encryption uses Bitlocker but is a higher-level construct, and I wouldn't be surprised if that dialog box I'm very familiar with doesn't give information about the former. Go to "Settings > Privacy & security" and see what's under the "Security" section at the top. If your device supports "Device Encryption", there will be an option for it there, and you can click on it to see if you're using it:


Neither of my Windows 11 Pro systems has the option for "Device Encryption". Don't know why, and in fact, I'd never heard of it before reading these posts talking about "automatic encryption", which I've never experienced in 10 years of using Bitlocker on probably a couple dozen drives.
I have this and when I click on BitLocker drive encryption it takes me to the screen shot I posted earlier. 1710873431800.png


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender
I also have a Samsung NVME SSD which has had encrypted drive enabled by Samsung Magician which utilises hardware encryption.


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender
I also have a Samsung NVME SSD which has had encrypted drive enabled by Samsung Magician which utilises hardware encryption.
I'm a longtime BitLocker user. I have several Samsung SSD drives that came with Samsung Magician installed. When I get them, I format them and then install BitLocker.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 15 9510 OLED
    CPU
    11th Gen i9 -11900H
    Memory
    32 GB 3200 MHz DDR4
    Graphics Card(s)
    NVIDIA® GeForce® RTX 3050Ti
    Monitor(s) Displays
    15.6" OLED Infinity Edge Touch
    Screen Resolution
    16:10 Aspect Ratio (3456 x 2160)
    Hard Drives
    1 Terabyte M.2 PCIe NVMe SSD
    2 Thunderbolt™ 4 (USB Type-C™)
    1 USB 3.2 Gen 2 (USB Type-C™)
    SD Card Reader (SD, SDHC, SDXC)
    Internet Speed
    900 Mbps Netgear Orbi + 2 Satellites
    Browser
    Microsoft Edge (Chromium) + Bing
    Antivirus
    Microsoft Windows Security (Defender)
    Other Info
    Microsoft 365 subscription
    Microsoft OneDrive 1TB Cloud
    Microsoft Outlook
    Microsoft OneNote
    Microsoft PowerToys
    Microsoft Visual Studio
    Microsoft Visual Studio Code
    Macrium Reflect
    Dell Support Assist
    Dell Command | Update
    LastPass Password Manager
    Amazon Kindle
    Interactive Brokers Trader Workstation
    Lightroom/Photoshop subscription
  • Operating System
    Windows 11 Pro
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    i5
    Memory
    8 GB
    Hard Drives
    256GB SSD
    Internet Speed
    900 Mbps Netgear Orbi + 2 Satellites
    Browser
    Microsoft Edge (Chromium) + Bing
    Antivirus
    Microsoft Windows Security (Defender)
    Other Info
    Microsoft 365 subscription (Office)
    Microsoft OneDrive 1TB Cloud
    Microsoft Outlook
    Microsoft OneNote
    Microsoft Visual Studio
    Amazon Kindle
    Interactive Brokers Trader Workstation
    Lightroom/Photoshop subscription
I have this and when I click on BitLocker drive encryption it takes me to the screen shot I posted earlier.

So, as I suspected, you're using "Device Encryption", and that's why you're getting automatic encryption. If Device Encryption isn't enabled for whatever reason, you don't get automatic encryption, but you can still use Bitlocker directly, which is what I've always done.

I also have a Samsung NVME SSD which has had encrypted drive enabled by Samsung Magician which utilises hardware encryption.

Microsoft stopped trusting self-encrypting drives five years ago:


You can use "manage-bde -status" to see if you're using hardware or software encryption. I never wanted to multiply vulnerabilities so never trusted the individual hardware manufacturers anyway and always used software encryption.


My Computer

System One

  • OS
    Windows 11
Back
Top Bottom
