W11 on unsupported hardware. Did what it said on MS site. No joy ?


FredM8

Well-known member
Local time
6:40 AM
Posts
18
OS
W10
I have spent the past few hours trying to install W11 on a unsupported W10 PC.
Version 22H2 (OS Build 19045.4291)

The workaround given on the MS site has been followed, except the English version on my PC is GB English.
This version was not available on the language choice prior to downloading the ISO, so I selected International English for the download.

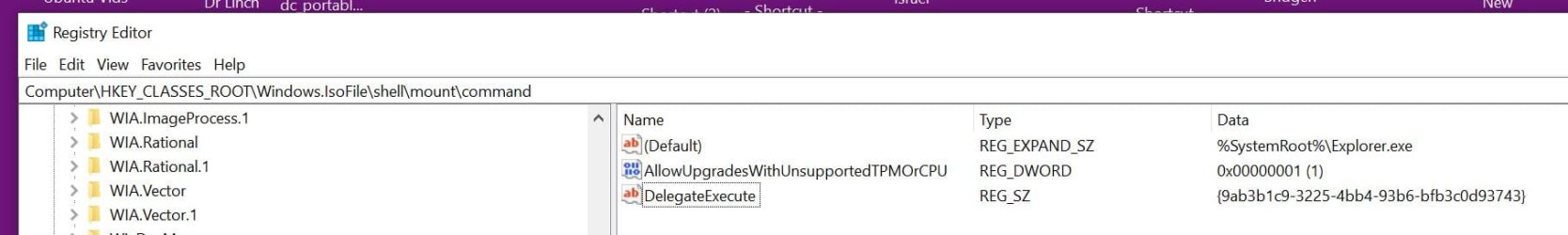

The attached image shows my edit of the registry for this purpose.

I have used Rufus to mount the ISO in a folder on my desktop.

Windows is still giving me the error message about the need for secure boot and TPM.

It then stops the process.

Ticking the appropriate boxes in Rufus does not solve the problem.

Any suggestions ?


Attachments

  • Registry details.JPG
    Registry details.JPG
    47.6 KB · Views: 2

My Computer

System One

  • OS
    W10
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASUS - Home Build
    CPU
    Intel i7 4790K LGA 1150
    Motherboard
    ASUS Z97-WS
    Memory
    32GB
    Graphics Card(s)
    EVGA GTX960
    Monitor(s) Displays
    ViewSonic 32in 4K
    Screen Resolution
    3840 X 2160
    Hard Drives
    Assorted
    PSU
    EVGA 850
    Case
    Coolermaster Stryker
    Cooling
    Assorted Noctua Fans
    Keyboard
    Microsoft Wired
    Mouse
    Microsoft Wired
    Internet Speed
    The Pits
    Browser
    Chrome
    Antivirus
    Microsoft
This link may be useful:



My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation


My Computers

System One System Two

  • OS
    Windows 11 Workstation
    Computer type
    PC/Desktop
    Manufacturer/Model
    doofenshmirtz evil incorporated
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus ROG Crosshair VIII Formula
    Memory
    Corsair Vengeance RGB PRO Black 64GB (4x16GB) 3600MHz AMD Ryzen Tuned DDR4
    Graphics Card(s)
    ASUS AMD Radeon RX 6900 XT 16GB ROG Strix LC OC
    Sound Card
    Sound BlasterX Katana
    Monitor(s) Displays
    3 x27" Dell U2724D & 1 x 34" Dell U3415W
    Hard Drives
    Samsung 980 Pro 1TB M.2 2280 PCI-e 4.0 x4 NVMe Solid State
    Drive
    PSU
    ASUS ROG THOR 850W 80 Plus Platinum
    Case
    ASUS ROG Strix Helios Midi-Tower ARGB Gaming Case
    Cooling
    ASUS ROG Strix LC Performance RGB AIO CPU Liquid Cooler - 360mm
    Keyboard
    Logi Ergo
    Mouse
    Logitech MX Master 3
    Internet Speed
    900/100 Mbps
    Browser
    Chrome
    Antivirus
    Windows Defender, Malwarebytes Pro
    Other Info
    HP M281 Printer
    Logitech Brio Stream webcam
    Yeti X mic
  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    Surface Laptop
    CPU
    i7
I have spent the past few hours trying to install W11 on a unsupported W10 PC.
Version 22H2 (OS Build 19045.4291)

The workaround given on the MS site has been followed, except the English version on my PC is GB English.
This version was not available on the language choice prior to downloading the ISO, so I selected International English for the download.

The attached image shows my edit of the registry for this purpose.

I have used Rufus to mount the ISO in a folder on my desktop.

Windows is still giving me the error message about the need for secure boot and TPM.

It then stops the process.

Ticking the appropriate boxes in Rufus does not solve the problem.

Any suggestions ?

Install the Aveyo bypass, download the iso. and do the upgrade from within Windows!


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    HP ZBook G2
    CPU
    Intel® Core i7 5500u
    Motherboard
    HP
    Memory
    8 GB
    Graphics Card(s)
    Intel HD Family Graphics AMD Firepro 4150M
    Sound Card
    Realtek High Audio
    Hard Drives
    1 TB SSD
    Mouse
    HP USB Mouse
    Antivirus
    Zone Alarm Free Antivirus/Zone Alarm Free Firewall NEXT GEN
  • Operating System
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook G4
    CPU
    Xeon 1535m v6
    Motherboard
    HP
    Memory
    32 GB
    Graphics card(s)
    AMD Quadro Pro 4100
    Sound Card
    Bang and Olufson Audio
    Hard Drives
    1TB SSD
    Mouse
    HP USB Mouse
    Antivirus
    Zone Alarm Free Antivirus/Zone Alarm Free Firewall NEXT GEN
I upgraded a 10 year old non-complaint PC last week as follows:

  1. Download the latest Windows 11 ISO file and mount it as a virtual drive
  2. Turn off net access
  3. Run setup.exe
  4. On the first screen click 'Change how Setup downloads updates' and select 'Not right now'.
  5. Replace C:\$WINDOWS.~BT\Sources\appraiserres.dll with an empty dummy file. Use Notepad to make a new text document renaming it as appraiserres.dll. You can now continue the install and it will skip the compatibility checks.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self build
    CPU
    Core i7-13700K
    Motherboard
    Asus TUF Gaming Plus WiFi Z790
    Memory
    64 GB Kingston Fury Beast DDR5
    Graphics Card(s)
    Gigabyte GeForce RTX 2060 Super Gaming OC 8G
    Sound Card
    Realtek S1200A
    Monitor(s) Displays
    Viewsonic VP2770
    Screen Resolution
    2560 x 1440
    Hard Drives
    Kingston KC3000 2TB NVME SSD & SATA HDDs & SSD
    PSU
    EVGA SuperNova G2 850W
    Case
    Nanoxia Deep Silence 1
    Cooling
    Noctua NH-D14
    Keyboard
    Microsoft Digital Media Pro
    Mouse
    Logitech Wireless
    Internet Speed
    50 Mb / s
    Browser
    Chrome
    Antivirus
    Defender
except the English version on my PC is GB English.
This version was not available on the language choice prior to downloading the ISO, so I selected International English for the download
That's alright.
International English = GB English
[These days, English = US English]

Upgrade to Windows 11 - ElevenForumTutorials
And you'll need to create a dummy appraiserres.dll file as explained in some posts above.
See also Bypass Windows 11 System Requirements - ElevenForumTutorials


Denis

Last edited:

My Computer

System One

  • OS
    Windows 11 Home x64 Version 23H2 Build 22631.3447
You don't even need to do those workarounds --from the iso image (get from UUPDUMP etc) and simply run dism /ApplyImage .... etc then run the bootloader bcdboot.exe to the EFI partition on your target disk. Rufus also might still work.

This method also works if you use physical vhdx files too.

Note these methods mean you have to install from new -- not upgrade an existing build.

Aother get_around -- especially if you want to UPDATE an existing build via Windows update is to have a version in a VM -- the VM hardware can run on almost any real hardware - you can emulate TPM's, alter cpu topography etc -- update the build and then copy to a real system - windows can update the required physical drivers -- easier though if you copy those to a separate file from an existing real machine and after booting the "cloned VM" update the drivers from the saved file.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
I have used Rufus
And did you check Secure Boot and TPM? It should work, at least till 24H2.

apps.21432.14111155582262746.6f5f7fb7-cc23-4e72-b54d-cccac9942f13.c9f70458-ee65-4556-84c4-8792cff236c8


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600 & No fTPM (07/19)
    Motherboard
    MSI B450 TOMAHAWK 7C02v1E & IFX TPM (07/19)
    Memory
    4x 8GB ADATA XPG GAMMIX D10 DDR4 3200MHz CL16
    Graphics Card(s)
    MSI Radeon RX 580 ARMOR 8G OC @48FPS (08/19)
    Sound Card
    Creative Sound Blaster Z (11/16)
    Monitor(s) Displays
    24" Philips 24M1N3200ZS/00 (05/24)
    Screen Resolution
    1920×1080@165Hz via DP1.4
    Hard Drives
    ADATA XPG GAMMIX S11 Pro SSD 512GB (07/19)
    PSU
    Seasonic M12II-520 80 Plus Bronze (11/16)
    Case
    Lian Li PC-7NB & 3x Noctua NF-S12A FLX@700rpm (11/16)
    Cooling
    CPU Cooler Noctua NH-U12S@700rpm (07/19)
    Keyboard
    HP Wired Desktop 320K + Rabalux 76017 Parker (01/24)
    Mouse
    Logitech M330 Silent Plus (04/23)
    Internet Speed
    400/40 Mbps via RouterOS (05/21) & TCP Optimizer
    Browser
    Edge & Brave for YouTube & LibreWolf for FB
    Antivirus
    NoAV & Binisoft WFC & NextDNS
    Other Info
    Backup: Hasleo Backup Suite (PreOS)
    Notifier: Xiaomi Mi Band 7 NFC (05/24)
    Headphones: Sennheiser RS170 (09/10)
    Phone: Samsung Galaxy Xcover 7 (02/24)
    2nd Monitor: AOC G2460VQ6 @75Hz (02/19)
And did you check Secure Boot and TPM? It should work, at least till 24H2.

apps.21432.14111155582262746.6f5f7fb7-cc23-4e72-b54d-cccac9942f13.c9f70458-ee65-4556-84c4-8792cff236c8

I think even 10 year old computers had secure boot available so I'm not sure if that's a real issue. If the computer is only MBR / BIOS with no UEFI support / boot then Rufus might be the only answer as I'm not sure if bcdboot.exe would install to the disk with the /MBR parameter without an error.

Might be interesting to test on an old Sony VAIO laptop I've got around somewhere -- that's only MBR boot.

It worked for Windows 10 - but Windows 11 -- ????

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
Load the system hive of the installation media \sources\boot.wim image 2

make the reg changes and unload the hive.

One easy way is to use 7-zip to insert the .cmd file that will do it on the fly


The installation media has to be writeable.

Extract iso contents to usb stick will be fine as it will be writeable.
************************************************************************


The long way is mount boot.wim image 2



1. create an empy folder to mount the wim image

md %systemdrive%\mountfolder

2. mount the bootable wim image into that folder ( in ms install media boot.wim image 2 is the bootable image by default )

if the usb stick is E:

DISM /Mount-image /imagefile:E:\sources\boot.wim 2 /MountDir:%systemdrive%\mountfolder

3. In regedit or some 3d party reg editor, load the hive %systemdrive%\mountfolder\windows\system32\config\system

or use reg.exe

reg load HKLM\SOMENAME %systemdrive%\mountfolder\windows\system32\config\system

4. make the reg changes

reg add "HKLM\SOMENAME\Setup\LabConfig" /f /v "BypassTPMCheck" /t REG_DWORD /d 1
reg add "HKLM\SOMENAME\Setup\LabConfig" /f /v "BypassSecureBootCheck" /t REG_DWORD /d 1
reg add "HKLM\SOMENAME\Setup\LabConfig" /f /v "BypassRAMCheck" /t REG_DWORD /d 1
reg add "HKLM\SOMENAME\Setup\LabConfig" /f /v "BypassStorageCheck" /t REG_DWORD /d 1
reg add "HKLM\SOMENAME\Setup\LabConfig" /f /v "BypassCPUCheck" /t REG_DWORD /d 1


5. unload the hive

reg unload HKLM\SOMENAME

6. commit the changes and unmount the wim image

Dism /Unmount-Image /MountDir:%systemdrive%\mountfolder /Commit

Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
Those of us who have a strange obsession with pe building do this mounting and loading stuff all the time. It is probably incomprehensible to the average punter.

The 7-zip method linked in my previous post is a lot easier and quicker for most people.

➡️ 7-zip method

Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
Those of us who have a strange obsession with pe building do this mounting and loading stuff all the time. It is probably incomprehensible to the average punter.

The 7-zip method linked in my previous post is a lot easier and quicker for most people.

➡️ 7-zip method
Yep !
Like you say.
Incomprehensible.


My Computer

System One

  • OS
    W10
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASUS - Home Build
    CPU
    Intel i7 4790K LGA 1150
    Motherboard
    ASUS Z97-WS
    Memory
    32GB
    Graphics Card(s)
    EVGA GTX960
    Monitor(s) Displays
    ViewSonic 32in 4K
    Screen Resolution
    3840 X 2160
    Hard Drives
    Assorted
    PSU
    EVGA 850
    Case
    Coolermaster Stryker
    Cooling
    Assorted Noctua Fans
    Keyboard
    Microsoft Wired
    Mouse
    Microsoft Wired
    Internet Speed
    The Pits
    Browser
    Chrome
    Antivirus
    Microsoft

Latest Support Threads

Back
Top Bottom
