What software to backup Samsung Laptop with ARM64 Windows 11?


dagar7

Member
Local time
12:48 AM
Posts
17
OS
Windows 11 Pro 22000.778
I am setting up a Samsung Galaxy Book Go NP340XLA KA5 laptop for a friend (xmas gift). It uses a Qualcomm 7C Kryo465 (7c Gen 2) and 128 GB UFS Samsung KM5V8001DM-B622 storage. Windows 11 ARM x64 Home.
AOMEI support stated in an e-mail: "our developers said AOMEI Partition Assistant doesn't support ARM, so there is no way to use it on this computer"
I had tried installing Macrium Reflect vs 8 free and got some very bizarre results (it showed 6 disks, etc.). In reply to my post on Macrium Reflect Forum (Compatibility with ARM CPU with Windows 11) a Macrium Development rep explained why they don't support it.

Also, interesting is that running Hardware Id utility identified the storage chip as Samsung K45V8001DM-8622 but showed 5 separate entries all with Interface: ATA

Any suggestions for backing up the whole system would be appreciated. Otherwise I guess the only method for future backups is just copying personal files.

Windows Build/Version
Windows 11 ARM x64 Home

My Computer

System One

  • OS
    Windows 11 Pro 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home built
    CPU
    Ryzen 7 5800X
    Motherboard
    ASUS TUF Gaming X570-Pro WiFi
    Memory
    32 GB Crucial 3200 MHz
    Graphics Card(s)
    Nvidia GTX 3060 Ti
    Sound Card
    none
    Monitor(s) Displays
    LG 29UB55 B 29 inch
    Screen Resolution
    2560 x 1080
    Hard Drives
    Samsung 980 Pro 1 TB NVMe SSD
    PSU
    Seasonic Focus GM650
    Case
    Fractal Design Define 7 Compact
    Cooling
    Noctua NH-U12A CPU Cooler
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    115 Mbps download
    Browser
    Google Chrome with Duck Duck Go search
    Antivirus
    Bitdefender Total Security and Malwarebytes Premium 4.5.11
  • Helpful
Reactions: Nil

Bree

Well-known member
Guru
VIP
Local time
8:48 AM
Posts
7,580
Location
S/E England, UK
OS
Windows 11 Home
Any suggestions for backing up the whole system would be appreciated.
This might be one of the very few occasions where the built-in Microsoft system imaging may be the only viable option. That is, if it is included in the ARM version of Windows 11. Despite having been deprecated by Microsoft some 4 years ago it is still included in x64 Windows 11.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

The-Hive

The First Three Star Guru
Guru
VIP
Local time
8:48 AM
Posts
11,345
Location
Wiltshire UK
OS
Windows 11 Pro
Go with @Bree whilst you research ARM compatible backup software. Maybe with Macrium just back up one partition ( the one with all your files on ) that you want, afterall you can ingor backing up the recovery drive etc.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Alienware Area 51m R2
    CPU
    10th Gen Core i9 10900K
    Memory
    32GB
    Graphics Card(s)
    Geforce RTX 2080 Super
    Sound Card
    Nvidia HD
    Screen Resolution
    1920x1080
    Hard Drives
    C: Samsung 2TB P981A
    D: Samsung 2TB 970 Evo
    Case
    Dark side of the moon
    Mouse
    Alienware AW610M
    Browser
    Chrome and Firefox
    Antivirus
    Norton
    Other Info
    Killer E3000 Ethernet Controller
    Killer AX1650i Wi-Fi Network Adaptor
    Alienware Z01G Graphic Amplifier
    Tobii Eye Tracker
  • Operating System
    Dual Boot Windows 11 Pro / Windows 11 Pro Dev build
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 3501
    CPU
    11th Gen i-7 2.80 gb
    Memory
    16Gb
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb SSD
    WD 2GB EXT
    Browser
    Chrome
    Antivirus
    Norton

dagar7

Member
Thread Starter
Local time
12:48 AM
Posts
17
OS
Windows 11 Pro 22000.778
@Bree
The Windows 7 Backup is still in Windows 11 ARM. I will try it tonight.
thanks


My Computer

System One

  • OS
    Windows 11 Pro 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home built
    CPU
    Ryzen 7 5800X
    Motherboard
    ASUS TUF Gaming X570-Pro WiFi
    Memory
    32 GB Crucial 3200 MHz
    Graphics Card(s)
    Nvidia GTX 3060 Ti
    Sound Card
    none
    Monitor(s) Displays
    LG 29UB55 B 29 inch
    Screen Resolution
    2560 x 1080
    Hard Drives
    Samsung 980 Pro 1 TB NVMe SSD
    PSU
    Seasonic Focus GM650
    Case
    Fractal Design Define 7 Compact
    Cooling
    Noctua NH-U12A CPU Cooler
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    115 Mbps download
    Browser
    Google Chrome with Duck Duck Go search
    Antivirus
    Bitdefender Total Security and Malwarebytes Premium 4.5.11

dagar7

Member
Thread Starter
Local time
12:48 AM
Posts
17
OS
Windows 11 Pro 22000.778

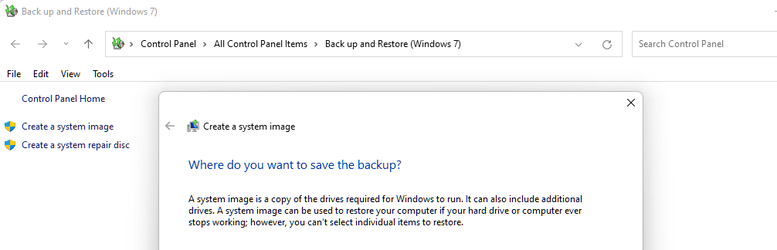

The Windows 7 Backup method, "create a system image", seems to work OK to a 1 TB USB 3 HDD. The only negative thing was that after making the image backup, I restarted "Back up or Restore Your Files" again and it did not find the image on the USB drive and reported "Windows could not find a backup for your computer". It did offer to create a system repair disc, so that could probably be used to boot the computer and restore from the image on the USB drive.


My Computer

System One

  • OS
    Windows 11 Pro 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home built
    CPU
    Ryzen 7 5800X
    Motherboard
    ASUS TUF Gaming X570-Pro WiFi
    Memory
    32 GB Crucial 3200 MHz
    Graphics Card(s)
    Nvidia GTX 3060 Ti
    Sound Card
    none
    Monitor(s) Displays
    LG 29UB55 B 29 inch
    Screen Resolution
    2560 x 1080
    Hard Drives
    Samsung 980 Pro 1 TB NVMe SSD
    PSU
    Seasonic Focus GM650
    Case
    Fractal Design Define 7 Compact
    Cooling
    Noctua NH-U12A CPU Cooler
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    115 Mbps download
    Browser
    Google Chrome with Duck Duck Go search
    Antivirus
    Bitdefender Total Security and Malwarebytes Premium 4.5.11

Bree

Well-known member
Guru
VIP
Local time
8:48 AM
Posts
7,580
Location
S/E England, UK
OS
Windows 11 Home

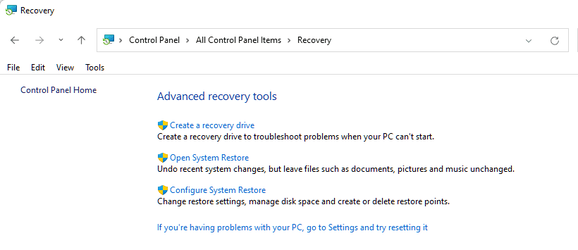

It did offer to create a system repair disc, so that could probably be used to boot the computer and restore from the image on the USB drive.
A repair disc is never terribly useful (or possible to make) if you don't have a DVD drive. Making a Recovery Drive USB (without including system files) is functionally identical to a system repair disc, but probably more convenient. Find it in the Control Panel, or just click Start and type recovery drive

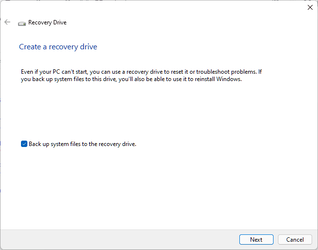

un-tick 'Back up system files to the recovery drive' to save time, you don't need them to perform a restore. If you leave it ticked then you will make a bootable USB that is also capable of a 'factory reset' clean install of Windows, including any OEM utilities, customisations and drivers. It will also take a lot longer to make and need a larger USB.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

mar11974

New member
Local time
3:48 AM
Posts
5
OS
Windows 10/11
I have been playing with a Galaxy Book Go to learn the ins and outs of ARM64 as well. The process you may want to look into is the Windows FFU (Full Flash Update). I extracted the drivers from the Windows created Recovery Drive and built ARM64 PE using those drivers. I managed to build a clean Windows 11 installation using the drivers and UUP Dump. The Recovery Drive will restore the Operating System, but will not backup and restore the recovery partition, FFU will backup the entire system as it came from the factory. The FFU file from the Windows 10 Galaxy Book Go took 22.1GB on my drive.

Last edited:

My Computer

System One

  • OS
    Windows 10/11
  • Like
Reactions: Nil

mar11974

New member
Local time
3:48 AM
Posts
5
OS
Windows 10/11
Here is a link to download the WinPE ARM64 iso I created for the Galaxy Book Go ONLY (I used Rufus to put it on my usb drive):

And the command to capture the image (always check the drive using diskpart to ensure it's correct):
DISM.exe /capture-ffu /imagefile=e:\WinOEM.ffu /capturedrive=\\.\PhysicalDrive0 /name:disk0 /description:"GalaxyBookGo FFU"

Last edited:

My Computer

System One

  • OS
    Windows 10/11
  • Like
Reactions: Nil

mar11974

New member
Local time
3:48 AM
Posts
5
OS
Windows 10/11
I created a list of the included apps from the Galaxy Book Go to use with my clean install, they may come in handy to someone else.


Attachments

  • Samsung Windows 11 Apps for ARM64.txt
    889 bytes · Views: 7

My Computer

System One

  • OS
    Windows 10/11

dagar7

Member
Thread Starter
Local time
12:48 AM
Posts
17
OS
Windows 11 Pro 22000.778
Bree: Thanks for your help. At least I have a backup image and will make a recovery drive like you suggested.
mar11974: you are way more knowledgeable than I. I don't understand your DISM command enough to try it. Is e:\ an external usb drive? Is DISM being run from within Windows?
As I said in my OP, I am setting this up for a friend and need to get this laptop to her by the end of today so not much time left to experiment.


My Computer

System One

  • OS
    Windows 11 Pro 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home built
    CPU
    Ryzen 7 5800X
    Motherboard
    ASUS TUF Gaming X570-Pro WiFi
    Memory
    32 GB Crucial 3200 MHz
    Graphics Card(s)
    Nvidia GTX 3060 Ti
    Sound Card
    none
    Monitor(s) Displays
    LG 29UB55 B 29 inch
    Screen Resolution
    2560 x 1080
    Hard Drives
    Samsung 980 Pro 1 TB NVMe SSD
    PSU
    Seasonic Focus GM650
    Case
    Fractal Design Define 7 Compact
    Cooling
    Noctua NH-U12A CPU Cooler
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    115 Mbps download
    Browser
    Google Chrome with Duck Duck Go search
    Antivirus
    Bitdefender Total Security and Malwarebytes Premium 4.5.11

mar11974

New member
Local time
3:48 AM
Posts
5
OS
Windows 10/11
@dagar7 Yes "e:\" refers to an external storage device/location. The Dism command is executed within WinPE, booted from usb drive usually.


My Computer

System One

  • OS
    Windows 10/11
