AMD Stutter Experienced with fTPM Enabled on Windows 10 and 11


  • Staff
Article Number: PA-410
This documentation provides information on improving intermittent performance stutter(s) on select PCs running Windows® 10 and 11 with Firmware Trusted Platform Module (“fTPM”) enabled.

Issue Description
AMD has determined that select AMD Ryzen™ system configurations may intermittently perform extended fTPM-related memory transactions in SPI flash memory (“SPIROM”) located on the motherboard, which can lead to temporary pauses in system interactivity or responsiveness until the transaction is concluded.

Update and Workaround

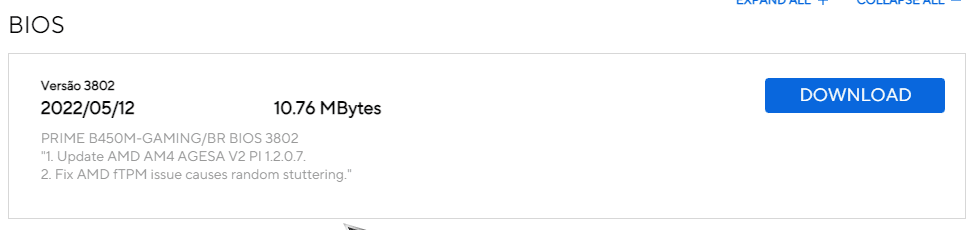

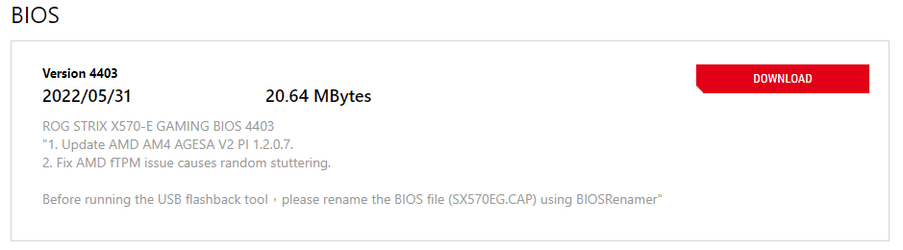

  • Update: Affected PCs will require a motherboard system BIOS (sBIOS) update containing enhanced modules for fTPM interaction with SPIROM. AMD expects that flashable customer sBIOS files to be available starting in early May, 2022. Exact BIOS availability timing for a specific motherboard depends on the testing and integration schedule of your manufacturer. Flashable updates for motherboards will be based on AMD AGESA 1207 (or newer).
  • Workaround: As an immediate solution, affected customers dependent on fTPM functionality for Trusted Platform Module support may instead use a hardware TPM (“dTPM”) device for trusted computing. Platform dTPM modules utilize onboard non-volatile memory (NVRAM) that supersedes the TPM/SPIROM interaction described in this article.
    1. COMPATIBILITY: Please check with your system or motherboard manufacturer to ensure that your platform supports add-in dTPM modules before attempting or implementing this workaround.
    2. WARNING: If switching an active system from fTPM to dTPM, it is critical that you disable TPM-backed encryption systems (e.g. BitLocker Drive Encryption) and/or back up vital system data prior to switching TPM devices. You must have full administrative access to the system, or explicit support from your IT administrator if the system is managed. For more information on transferring ownership to a new TPM device, please visit this Microsoft webpage.


Source:


Attachments

  • amd.png
    6.4 KB · Views: 0

kellymac35

Active member
Member
VIP
Local time
8:52 PM
Posts
50
OS
Windows 11 Pro
This tread is awesome! Computer specs are below. Never had an issue. I have always been an Intel fanboy, but my AMD builds rock!


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    AMD Ryzen 9 5950X (Zen 3) 16-Core
    Motherboard
    MSI PRESTIGE X570 CREATION
    Memory
    G.SKILL Trident Z Neo (For AMD Ryzen) 32G DDR4-3600
    Graphics Card(s)
    EVGA GeForce RTX 3070 XC3 ULTRA PCI Express 4.0, Resizable BAR : Yes
    Screen Resolution
    3840 x 2160
    Hard Drives
    SB-ROCKET-NVMe4-500 M.2
    SB-ROCKET-NVMe4-500 M.2
    970 EVO Plus 1TB - M.2
    ADATA XPG SX8200 Pro 1TB M.2
    2TB 7200 RPM Hard Drive
    PSU
    Super Flower Leadex V Gold PRO 1000W 130mm
    Case
    MSI Premium Mid-Tower MPG GUNGNIR 100
    Cooling
    EK AIO 360mm Liquid CPU Cooler
    Keyboard
    NPET K11 Wireless Gaming Keyboard, Rechargeable Backlit
    Mouse
    Logitech
    Internet Speed
    T Mobile Home Internet 5G. $50.00 A month with autopay
    Antivirus
    Windows Defender / Malwarebytes Premium
    Other Info
    M.2 XPANDER-Z GEN4
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    AMD Ryzen 7 5800X 8-core
    Motherboard
    MSI MPG X570 GAMING PLUS
    Memory
    GeIL EVO X II AMD Edition 32 GB
    Graphics card(s)
    EVGA GeForce RTX 2060 KO ULTRA
    Screen Resolution
    1920 x 1080
    Hard Drives
    PNY CS1030 250GB M.2 NVMe Windows
    PNY CS1030 250GB M.2 NVMe Xbox
    Sandisk 500GB SSD Steam / Origin
    Sandisk 120GB SSD Storage
    PSU
    Corsair CX 750M
    Case
    EVGA DG-76 Matte Black Mid-Tower
    Cooling
    AMD Wraith Prism
    Mouse
    Logitech
    Keyboard
    Logitech
    Internet Speed
    T Mobile Home Internet 5G. $50.00 A month with autopay
    Antivirus
    Windows Defender / Malwarebytes

TairikuOkami

Brony
Power User
VIP
Local time
3:52 AM
Posts
395
Location
Trnava, SK
OS
Windows 11 Home

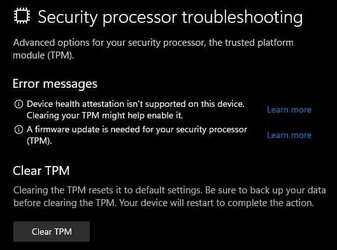

So I have got TPM module from China for $10, that should solve the never-ending problems with fTPM. The only downsize it that this Infineon TPM module is not actually secure, made in 2013, vulnerable to bug from 2017. No firmware available. Whatever, as long as Windows does not report it as a problem and it accepts it. :smirk:


Attachments

  • capture_05102022_093856.jpg
    21.4 KB · Views: 2
  • capture_05102022_093921.jpg
    26.2 KB · Views: 2

My Computer

System One

  • OS
    Windows 11 Home
    CPU
    AMD Ryzen 5 3600 (07/19)
    Motherboard
    MSI B450 TOMAHAWK 7C02v1H6 (07/19)
    Memory
    4x 8GB ADATA XPG GAMMIX D10 DDR4 3200MHz CL16
    Graphics Card(s)
    MSI Radeon RX 580 ARMOR 8G OC (08/19)
    Sound Card
    Creative Sound Blaster Z (11/16)
    Monitor(s) Displays
    24" AOC G2460VQ6 (01/19)
    Screen Resolution
    1920×1080@75Hz + FreeSync (DisplayPort)
    Hard Drives
    ADATA XPG GAMMIX S11 Pro SSD 512GB (07/19)
    PSU
    Seasonic M12II-520 80 Plus Bronze (11/16)
    Case
    Lian Li PC-7NB + 3x Noctua NF-S12A FLX@700rpm (11/16)
    Cooling
    CPU Cooler Noctua NH-U12S@700rpm
    Keyboard
    HP Wired Desktop 320K Keyboard (04/22)
    Mouse
    HP Wireless Silent 280M Mouse (05/21)
    Internet Speed
    400/40 Mbps via RouterOS (05/21) + TCP Optimizer
    Browser
    Microsoft Edge
    Antivirus
    None
    Other Info
    Headphones: Sennheiser RS170 (09/10)

clam1952

Well-known member
Member
VIP
Local time
2:52 AM
Posts
429
Location
Crewe, Cheshire, UK
OS
Windows 11 21H2 OS Build 22621.1

My Computers

System One System Two

  • OS
    Windows 11 21H2 OS Build 22621.1
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Build
    CPU
    AMD Ryzen 7 3800X
    Motherboard
    Asus PRIME B350-PLUS
    Memory
    16GB Corsair Vengeance LPX DDR4 @3000Mhz
    Graphics Card(s)
    ASUS - GeForce RTX 3070 Ti 8 GB TUF GAMING OC
    Sound Card
    On Board Realtec
    Monitor(s) Displays
    Acer KA241
    Screen Resolution
    1920 x 1080 @60Hz
    Hard Drives
    240GB PNY CS900 SSD - OS
    2 x 1TB Crucial MX500 SSD
    1 x 500GB Crucial MX300 SSD
    2TB Seagate ST2000DM001-1ER164
    2TB Seagate ST2000DM008-2FR102
    4TB Seagate ST4000DM000-1F2168
    PSU
    750 Watt Corsair TX750 Plus
    Case
    Cooler Master 690 III
    Cooling
    Akasa AK98 5 Case Fans
    Keyboard
    Logitech K270 - wireless
    Mouse
    Logitech - M185 wireless
    Internet Speed
    BT Fibre 75 Mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    Use hardware KVM to switch monitors on three PCs and software (input director) to use mouse and keyboard on all 4 PCs.
  • Operating System
    Windows 11 Pro 21H2 build 22000.675
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Inspiron 3881 - modified with SFX PSU fitted internally
    CPU
    Intel i5 - 10400
    Motherboard
    Dell 032w55 version A00
    Memory
    16GB of HyperX Fury @ 2133 Mhz
    Graphics card(s)
    EVGA 6GB GTX 1060.
    Sound Card
    Builtin
    Monitor(s) Displays
    ACER KA241
    Screen Resolution
    1920x 1080 @60Hz
    Hard Drives
    256GB SK hynix NVMe
    1TB Western Digital WD10EZEX-75WN4A1
    PSU
    Modular 450 Watt Corsair SF450 Platinum ( Mod to replace the Dell 265 Watt PSU)
    Case
    Inspiron Small Desktop
    Cooling
    Dell stock cooler
    Mouse
    Dell
    Keyboard
    Dell
    Internet Speed
    BT Fibre 75 Mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    Use hardware KVM to switch monitors on three PCs and software (input director) to use mouse and keyboard on all 4 PCs.

Dru2

Well-known member
Power User
VIP
Local time
9:52 PM
Posts
1,648
Location
Virginia
OS
Windows 11 Pro 21H2 (22000.613)

My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 (22000.613)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    Intel i9-9900K
    Motherboard
    Gigabyte Aorus Z390 Xtreme
    Memory
    32G (4x8) DDR4 Corsair RGB Dominator Platinum (3600Mhz)
    Graphics Card(s)
    Radeon VII
    Sound Card
    Onboard (ESS Sabre HiFi using Realtek drivers)
    Monitor(s) Displays
    NEC PA242w (24 inch)
    Screen Resolution
    1920 x 1200
    Hard Drives
    5 Samsung SSD drives: 2X 970 NVME (512 & 1TB), 3X EVO SATA (2X 2TB, 1X 1TB)
    PSU
    EVGA Super Nova I000 P2 (1000 watt)
    Case
    Cooler Master H500M
    Cooling
    Corsair H115i RGB Platinum
    Keyboard
    Logitech Craft
    Mouse
    Logitech MX Master 2S
    Internet Speed
    500mb Download. 11mb Upload
    Browser
    Microsoft Edge Chromium
    Antivirus
    Windows Security
    Other Info
    System used for gaming, photography, audiophile media center, work.
  • Operating System
    Win 11 Pro Dev build 22454.1000
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkPad Yoga X1
    CPU
    Intel i7-7600U
    Motherboard
    Intel
    Memory
    16igg
    Graphics card(s)
    Intel HD 620
    Sound Card
    Onboard
    Monitor(s) Displays
    14.0 WQHD OLED Touch
    Screen Resolution
    2560 x 1440
    Hard Drives
    1TB NVMe Drive (OEM)
    PSU
    laptop
    Case
    laptop
    Cooling
    Laptop cooling
    Mouse
    Logitech MX Anywhere 2S
    Keyboard
    Laptop
    Internet Speed
    100MB
    Browser
    Edge Chromium
    Antivirus
    Windows Security

Dch48

Well-known member
Member
Local time
9:52 PM
Posts
424
Location
Upstate NY
OS
Windows 11 Home
I'm running the BIOS with 1.2.0.5 in my desktop with no issues. I do not do any tweaks however. No overclocking or voltage adjustments. Never have, never will.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    AMD Ryzen 5 5600X
    Motherboard
    MSI B550-A Pro
    Memory
    16 GB DDR4-3200
    Graphics Card(s)
    PowerColor Red Devil Radeon RX 6600XT with 8GB GDDR6
    Sound Card
    Realtek integrated
    Monitor(s) Displays
    Acer Nitro 24" RG241Y 144hz refresh rate
    Screen Resolution
    1920 X 1080
    Hard Drives
    Samsung 860 QVO 1 TB SATA SSD
    Seagate Barracuda 1 TB HDD
    PSU
    LEPA B650 650 watt
    Case
    Enermax Coenus
    Cooling
    Cooler Master Hyper T4 air
    Keyboard
    CM Storm Devastator
    Mouse
    E-Blue Cobra Jr.
    Internet Speed
    100mbs
    Browser
    Microsoft Edge Chromium
    Antivirus
    Microsoft Defender
    Other Info
    Optical Drives: LG DVD-RW and Pioneer BluRay/ DVD burner
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus ROG Zephyrus G14
    CPU
    AMD Ryzen 9 6900HS
    Motherboard
    Asus board (GA402RK)
    Memory
    16 GB DDR5-4800
    Graphics card(s)
    Integrated Radeon 680M and discrete Radeon RX 6800S with 8GB GDDR6
    Sound Card
    Integrated Realtek with Dolby Atmos
    Monitor(s) Displays
    Laptop screen 14" WQXGA, IPS, 120hz refresh rate
    Screen Resolution
    2560 X 1600
    Hard Drives
    1TB PCIe Gen 4 SSD (Micron)
    PSU
    Battery power and Asus power brick/adapter. Also has USB-C charging
    Case
    Laptop
    Cooling
    Laptop fans in vapor chamber
    Mouse
    Touchpad and Omoton bluetooth mouse
    Keyboard
    Built in backlit
    Internet Speed
    100mbps
    Browser
    Edge Chromium
    Antivirus
    Microsoft Defender

BrianInEngland

Active member
Member
VIP
Local time
2:52 AM
Posts
179
OS
Windows 11 Pro 21H2 (RP channel)
So I have got TPM module from China for $10, that should solve the never-ending problems with fTPM. The only downsize it that this Infineon TPM module is not actually secure, made in 2013, vulnerable to bug from 2017. No firmware available. Whatever, as long as Windows does not report it as a problem and it accepts it. :smirk:
$10 TPM module from China is not secure, who knew 🤔 Your machine is probably more secure without this!


My Computer

System One

  • OS
    Windows 11 Pro 21H2 (RP channel)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 5900X 12-core
    Motherboard
    X570 Aorus Xtreme
    Memory
    32GB Corsair Platinum RGB 3600MHz
    Graphics Card(s)
    MSI Suprim X 3080 Ti
    Sound Card
    Soundblaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming VG289
    Screen Resolution
    3840x2160
    Hard Drives
    Samsung 980 Pro 2TB
    Samsung 970 Pro Plus 1TB
    Samsung 970 Pro 1TB
    Samsung T7 Touch 1TB
    PSU
    Asus ROG Strix 1000W
    Case
    Corsair D750 Airflow
    Cooling
    Noctua NH-D15S
    Keyboard
    Logitech G810
    Mouse
    Logitech G903 with PowerPlay charger

johnlgalt

Antidisestablishmentarianistentarianist
Power User
VIP
Local time
9:52 PM
Posts
2,351
Location
3rd Rock
OS
Windows 11 21H2
So I have got TPM module from China for $10, that should solve the never-ending problems with fTPM. The only downsize it that this Infineon TPM module is not actually secure, made in 2013, vulnerable to bug from 2017. No firmware available. Whatever, as long as Windows does not report it as a problem and it accepts it. :smirk:

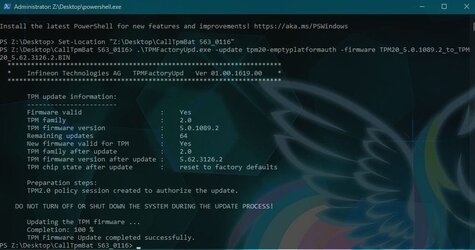

I bought mine directly from MSI. Mine is running fw 5.63, which is dated 2016, but Windows Update hasn't thrown up any message regarding the need for it to be updated.

But, just for S&G I sent a message to MSI via the contact form linking to the Microsoft article and the Infineon web page where the firmware links are for the vendor specific items.

Who knows, maybe they respond?


My Computers

System One System Two

  • OS
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * Corsair Vengeance 32 GB 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    Eve Spectrum ES07D02 280 Hz QHD | Eve Spectrum ES07D03 4K Gaming Monitor
    Screen Resolution
    1440p | 4k
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    ZXT KRAKEN Z73 73.11 CFM Liquid CPU Cooler (3x 120 mm push top) + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3 for Business
    Internet Speed
    Logitech MX Master 3 for Business
    Browser
    Nightly (default) + Firefox (stable),Chrome, Edge/ß/Dev/Canary
    Antivirus
    Defender
  • Operating System
    Windows 10 x64 Pro build 21H1
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master (shared) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex
    Browser
    Edge Chromium | Chrome | Firefox Nightly | Brave
    Antivirus
    Defender + MB4
Top Bottom
