Anybody have multiple bootable disks in their Secure Boot PC?


steve17

Member
Local time
6:02 AM
Posts
34
OS
Windows11
I do. It seems to work well until I install another Windows or re-install a Windows. Then I get some strange problems that eventually go away. Now that I've got some experience backing up these newfangled partitions like the EFI/System partition, I shouldn't need to do more reinstalls.

I'm guessing the problems are because I break the rules with multiple bootable disks, but maybe it's just some goofy Secure Boot/TPM code.


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASrock extreme wifi 6e mobo
    CPU
    Intel core 7 gen 11
    Motherboard
    ASrock extreme wifi 6e
    Memory
    32 GB
    Graphics Card(s)
    none
    Sound Card
    none
    Monitor(s) Displays
    1 Samsung
    Hard Drives
    Several now for testing.

Scott

Active member
Member
Local time
12:02 AM
Posts
141
Location
Maui, HI
OS
Win 11 Pro 22000.675
I did. One disk booted Win 10 Pro, the other Win 11 Pro insider beta build. I found myself booting into Win 11 more often then 10 so I bit the bullet, left the insider program, and upgraded to 11 with the installation assistant. No regrets. Plus I got tired of maintaining two OS's.


My Computer

System One

  • OS
    Win 11 Pro 22000.675
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz
    Motherboard
    ASUS Prime Z370-P II LGA1151
    Memory
    CORSAIR Vengeance LPX 8GB DDR4 3000 (x4)
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Creative Labs PCIe Sound Blaster X-Fi Titanium (dan_k drivers)
    Monitor(s) Displays
    ASUS TUF Gaming 27" WQHD
    Screen Resolution
    2560 x 1440 @144Hz
    Hard Drives
    SAMSUNG 970 EVO M.2 2280 1TB PCIe Gen3. X4, NVMe (x2)
    SAMSUNG 870 EVO Series 2.5" 2TB SATA III (x2)
    SAMSUNG 870 EVO Series 2.5" 250GB SATA III
    PSU
    CORSAIR HX Series HX750
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Corsair Hydro Series H60 AIO
    Keyboard
    Logitech MK 320
    Mouse
    Logitech MX 1000 Laser
    Internet Speed
    200Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    UEFI, Secure Boot, TPM 2.0
    MR 8 HE

CountMike

Well-known member
Power User
VIP
Local time
12:02 PM
Posts
678
OS
W10 and Insider Dev.+ Linux Mint
I did. One disk booted Win 10 Pro, the other Win 11 Pro insider beta build. I found myself booting into Win 11 more often then 10 so I bit the bullet, left the insider program, and upgraded to 11 with the installation assistant. No regrets. Plus I got tired of maintaining two OS's.
Same here, also another SSD wit Linux Mint but all were installed in UEFI/GPT mode with Secure BOOT enabled.


My Computer

System One

  • OS
    W10 and Insider Dev.+ Linux Mint
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home brewed
    CPU
    AMD Ryzen 7 3700x
    Motherboard
    Asus Prime x470 Pro
    Memory
    2x8GB Kingston 3600MHz, Cl 16
    Graphics Card(s)
    Asus ROG Rx 570 OC, 4GB
    Sound Card
    MB, Realtek Ac1220p
    Monitor(s) Displays
    2 x 27"
    Screen Resolution
    1080p
    Hard Drives
    Samsung 970 evo Plus 500GB, Samsung 960 evo250GB, 3x SSD SATA 2.5" 250GB, WD 2TB HDD.
    Cooling
    Arctic Freezer II 240mm

The-Hive

Well-known member
Pro User
VIP
Local time
11:02 AM
Posts
3,980
Location
Wiltshire UK
OS
Windows 11 Pro
Similar here but I kept booting to the wrong OS so I did the same as @Scott and never looked back


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Alienware Area 51m R2
    CPU
    10th Gen Core i9 10900K
    Memory
    32GB
    Graphics Card(s)
    Geforce RTX 2080 Super
    Screen Resolution
    1920x1080
    Hard Drives
    C: Samsung 2TB P981A
    D: Samsung 2TB 970 Evo
    Mouse
    Alienware AW610M
    Browser
    Chrome and Firefox
    Antivirus
    Norton
    Other Info
    Killer E3000 Ethernet Controller
    Killer AX1650i Wi-Fi Network Adaptor
    Alienware Z01G Graphic Amplifier
    Tobii Eye Tracker
  • Operating System
    Dual Boot Windows 11 Pro / Windows 11 Pro Dev build
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 3501
    CPU
    11th Gen i-7 2.80 gb
    Memory
    16Gb
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb SSD
    2GB External drive
    Browser
    Chrome
    Antivirus
    Norton

CountMike

Well-known member
Power User
VIP
Local time
12:02 PM
Posts
678
OS
W10 and Insider Dev.+ Linux Mint
I use this for easy way to make BOOT Menu.


My Computer

System One

  • OS
    W10 and Insider Dev.+ Linux Mint
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home brewed
    CPU
    AMD Ryzen 7 3700x
    Motherboard
    Asus Prime x470 Pro
    Memory
    2x8GB Kingston 3600MHz, Cl 16
    Graphics Card(s)
    Asus ROG Rx 570 OC, 4GB
    Sound Card
    MB, Realtek Ac1220p
    Monitor(s) Displays
    2 x 27"
    Screen Resolution
    1080p
    Hard Drives
    Samsung 970 evo Plus 500GB, Samsung 960 evo250GB, 3x SSD SATA 2.5" 250GB, WD 2TB HDD.
    Cooling
    Arctic Freezer II 240mm

The-Hive

Well-known member
Pro User
VIP
Local time
11:02 AM
Posts
3,980
Location
Wiltshire UK
OS
Windows 11 Pro

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Alienware Area 51m R2
    CPU
    10th Gen Core i9 10900K
    Memory
    32GB
    Graphics Card(s)
    Geforce RTX 2080 Super
    Screen Resolution
    1920x1080
    Hard Drives
    C: Samsung 2TB P981A
    D: Samsung 2TB 970 Evo
    Mouse
    Alienware AW610M
    Browser
    Chrome and Firefox
    Antivirus
    Norton
    Other Info
    Killer E3000 Ethernet Controller
    Killer AX1650i Wi-Fi Network Adaptor
    Alienware Z01G Graphic Amplifier
    Tobii Eye Tracker
  • Operating System
    Dual Boot Windows 11 Pro / Windows 11 Pro Dev build
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 3501
    CPU
    11th Gen i-7 2.80 gb
    Memory
    16Gb
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb SSD
    2GB External drive
    Browser
    Chrome
    Antivirus
    Norton

CountMike

Well-known member
Power User
VIP
Local time
12:02 PM
Posts
678
OS
W10 and Insider Dev.+ Linux Mint
That looks like a sweet little program @CountMike
Yes it is, using it for quite many years, free and can be uninstalled once choices are made and saved.
There 's one very annoying thing windows insider since W8 is doing. If it's in dual BOOT with stable edition, every time there's a proper CU update (one that makes windows.old), BOOT order gets reversed and insider get priority so I keep EasyBCD installed to make changes.


My Computer

System One

  • OS
    W10 and Insider Dev.+ Linux Mint
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home brewed
    CPU
    AMD Ryzen 7 3700x
    Motherboard
    Asus Prime x470 Pro
    Memory
    2x8GB Kingston 3600MHz, Cl 16
    Graphics Card(s)
    Asus ROG Rx 570 OC, 4GB
    Sound Card
    MB, Realtek Ac1220p
    Monitor(s) Displays
    2 x 27"
    Screen Resolution
    1080p
    Hard Drives
    Samsung 970 evo Plus 500GB, Samsung 960 evo250GB, 3x SSD SATA 2.5" 250GB, WD 2TB HDD.
    Cooling
    Arctic Freezer II 240mm

steve17

Member
Thread Starter
Local time
6:02 AM
Posts
34
OS
Windows11
I also have used EasyBCD for many years.

You don't need 2 bootable disks to install 2 Windows. You can put multiple Windows installs on 1 disk, on different partitions. You can also put Windows on a non-bootable disk as long as the installer sees a bootable one.

Microsoft won't create a bootable disk if it sees one, so you have to unplug any bootable disks before you can install another one.

The advantage of 2 bootable disks, for me, is that if one becomes unbootable, I can boot from the other. That's the way I've set up my computers for 25 years and I don't want to change.


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASrock extreme wifi 6e mobo
    CPU
    Intel core 7 gen 11
    Motherboard
    ASrock extreme wifi 6e
    Memory
    32 GB
    Graphics Card(s)
    none
    Sound Card
    none
    Monitor(s) Displays
    1 Samsung
    Hard Drives
    Several now for testing.

NavyLCDR

Well-known member
Power User
VIP
Local time
3:02 AM
Posts
820
OS
Windows 11
Microsoft won't create a bootable disk if it sees one, so you have to unplug any bootable disks before you can install another one.
I've never unplugged any disk when installing Windows 10/11 and the system partition(s) end up exactly on which disk I want them.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

steve17

Member
Thread Starter
Local time
6:02 AM
Posts
34
OS
Windows11
That didn't work for me. So you have an EFI/System partition on multiple disks?



My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASrock extreme wifi 6e mobo
    CPU
    Intel core 7 gen 11
    Motherboard
    ASrock extreme wifi 6e
    Memory
    32 GB
    Graphics Card(s)
    none
    Sound Card
    none
    Monitor(s) Displays
    1 Samsung
    Hard Drives
    Several now for testing.

TheOldMarine

Member
Local time
6:02 AM
Posts
20
OS
Windows 11 Pro and Windows 11 Beta
I have three on 3 different m.2 drives, Win 11 Pro, Win 11 insider preview, and a hold out Win 10 Pro just in case, not sure of what though.

Cheers
Ray


My Computer

System One

  • OS
    Windows 11 Pro and Windows 11 Beta
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self made
    CPU
    Ryzen 9 3900X
    Motherboard
    Gigabyte X370 Gaming 5
    Memory
    32GB Corsair 2600
    Graphics Card(s)
    MSI 2070
    Sound Card
    On MB
    Monitor(s) Displays
    Samsung 32 inch curved 4k
    Screen Resolution
    3840 X 2160P
    Hard Drives
    M.2 times 3, 1 SSD 3, HD
    PSU
    Corsair 750 semi mod
    Case
    Phanteks
    Cooling
    Asetek 360 AIO
    Keyboard
    Mech
    Mouse
    Not sure
    Internet Speed
    800 MB/S (Comcast)
    Browser
    Firefox, Edge
    Antivirus
    Windows defender
    Other Info
    Second self made PC - 80 years young and still going (first Windows for me was 3.1)

Lucas North

Well-known member
Member
VIP
Local time
8:02 PM
Posts
48
OS
Dual Boot 10 & 11
I've been running with 2 OS for many years, always the current 'stable' version of Windows and the newly released version.
more than enough Hard drives in my system to test them out.
At one stage I had Windows 7,10 and 11 but that was just me hating to part with windows 7, I do still have a Macrium backup of 7 though
just in case I feel the need to return to it. 🤦‍♂️🤷‍♂️😄


My Computer

System One

  • OS
    Dual Boot 10 & 11

steve17

Member
Thread Starter
Local time
6:02 AM
Posts
34
OS
Windows11
I have three on 3 different m.2 drives, Win 11 Pro, Win 11 insider preview, and a hold out Win 10 Pro just in case, not sure of what though.
I have a Win 10 and a Win11 on each of two M.2 "SSD" things. I will keep the Win 10 installations for a while. So far I have no need for W10, but this new computer isn't my "on line" computer yet. My 11 year old computer is still my official machine. I'm about ready to move over to the new one.

I think I had a Win 3.1 machine but back then Microware's OS9 was my favorite OS. I bought a Win 98 computer in '98 and then put NT4 on it as that is what I used at work. Finding NT drivers was not easy.

That Win98 computer had a noisy 8 cm fan. I put the innards into a bigger case and replaced the fan with a 12 cm fan. The bigger fans are much more efficient. They run much slower and are much quieter. I've been building my own computers ever since, for quiet, not speed.

I see you are a youngster. I'm 81.


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASrock extreme wifi 6e mobo
    CPU
    Intel core 7 gen 11
    Motherboard
    ASrock extreme wifi 6e
    Memory
    32 GB
    Graphics Card(s)
    none
    Sound Card
    none
    Monitor(s) Displays
    1 Samsung
    Hard Drives
    Several now for testing.

obelix

Member
Local time
12:02 PM
Posts
69
OS
Win11 PRO

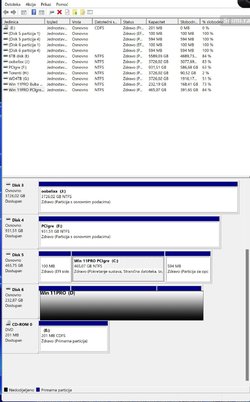

When you have two windows systems on two disks install windows on 1 disk ssd m.2 the other does not put in the motherboard install on one when the installation is complete win 11 set in disk management that your D is empty that there is no disk or dvd rom on it all put the drivers from the motherboard on that disk when it's done take it out and put another one in another place m2 of the disk install windows put the drivers in disk management again it must be empty D turn off the comp put the one you installed 1 ssd m.2 turn on the comp windows goes to the last one you installed when you get windows, set the first disk to "D" in disk management by changing the letter and drive paths with the function when you get windows, set the first disk in disk management to "D" and with the function change the letter and drive paths in the BIOS you must have both m2 of disk because when you start the computer you have to boot from another disk in the bios when you get windows you also have to put another disk in disk management to "D" then install on both windows EasyBCD arrange and that's it


Attachments

  • Screenshot (20211208-220650).jpg
    Screenshot (20211208-220650).jpg
    185.4 KB · Views: 2

My Computer

System One

  • OS
    Win11 PRO
    Computer type
    PC/Desktop
    Manufacturer/Model
    AsRock
    CPU
    Ryzen Threadripper 1920x
    Motherboard
    AsRock Fatal1ty
    Memory
    Hyperx 32GB 3600Mhz
    Graphics Card(s)
    Asus GeForce TURBO RTX 2080Ti 11GB
    Sound Card
    matheboard and Logitech G933 Gaming Headset
    Monitor(s) Displays
    ASUS 28"
    Screen Resolution
    3840 x 2160
    Hard Drives
    ssd m2 970, 960, ssd 840 EVO 1TB, 4 x 4TB HDD
    PSU
    corsair 1200W
    Case
    big tower
    Cooling
    corsair H150IPro
    Keyboard
    logitech k800
    Mouse
    logitech G603
    Internet Speed
    download 200 Mbps upload 100 Mbps
    Browser
    Maxthon
    Antivirus
    avira

NavyLCDR

Well-known member
Power User
VIP
Local time
3:02 AM
Posts
820
OS
Windows 11
I'm so totally confused.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

obelix

Member
Local time
12:02 PM
Posts
69
OS
Win11 PRO
sorry if you can't read my bad english.
The point is to install windows on each one separately, which means that there must not be one and the other ssd m2 in the motherboard at the same time as installing windows.


My Computer

System One

  • OS
    Win11 PRO
    Computer type
    PC/Desktop
    Manufacturer/Model
    AsRock
    CPU
    Ryzen Threadripper 1920x
    Motherboard
    AsRock Fatal1ty
    Memory
    Hyperx 32GB 3600Mhz
    Graphics Card(s)
    Asus GeForce TURBO RTX 2080Ti 11GB
    Sound Card
    matheboard and Logitech G933 Gaming Headset
    Monitor(s) Displays
    ASUS 28"
    Screen Resolution
    3840 x 2160
    Hard Drives
    ssd m2 970, 960, ssd 840 EVO 1TB, 4 x 4TB HDD
    PSU
    corsair 1200W
    Case
    big tower
    Cooling
    corsair H150IPro
    Keyboard
    logitech k800
    Mouse
    logitech G603
    Internet Speed
    download 200 Mbps upload 100 Mbps
    Browser
    Maxthon
    Antivirus
    avira

NavyLCDR

Well-known member
Power User
VIP
Local time
3:02 AM
Posts
820
OS
Windows 11
sorry if you can't read my bad english.
The point is to install windows on each one separately, which means that there must not be one and the other ssd m2 in the motherboard at the same time as installing windows.
I've never had issues installing Windows 10 or 11 on two different m.2 SSDs connected at the same time. I'm not about to open up my laptop to disconnect an internal drive to install Windows.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

obelix

Member
Local time
12:02 PM
Posts
69
OS
Win11 PRO
the left image shows when the installation on each disk is separate, the second image shows when both disks are in the motherboard and what is the difference on the other no efi boot


Attachments

  • Screenshot (20211208-220650).jpg
    Screenshot (20211208-220650).jpg
    185.4 KB · Views: 2
  • Screenshot (20211208-220651).jpg
    Screenshot (20211208-220651).jpg
    178.8 KB · Views: 3

My Computer

System One

  • OS
    Win11 PRO
    Computer type
    PC/Desktop
    Manufacturer/Model
    AsRock
    CPU
    Ryzen Threadripper 1920x
    Motherboard
    AsRock Fatal1ty
    Memory
    Hyperx 32GB 3600Mhz
    Graphics Card(s)
    Asus GeForce TURBO RTX 2080Ti 11GB
    Sound Card
    matheboard and Logitech G933 Gaming Headset
    Monitor(s) Displays
    ASUS 28"
    Screen Resolution
    3840 x 2160
    Hard Drives
    ssd m2 970, 960, ssd 840 EVO 1TB, 4 x 4TB HDD
    PSU
    corsair 1200W
    Case
    big tower
    Cooling
    corsair H150IPro
    Keyboard
    logitech k800
    Mouse
    logitech G603
    Internet Speed
    download 200 Mbps upload 100 Mbps
    Browser
    Maxthon
    Antivirus
    avira

steve17

Member
Thread Starter
Local time
6:02 AM
Posts
34
OS
Windows11
Yes, that is what I found. If Microsoft sees one bootable disk, it won't create another bootable disk.

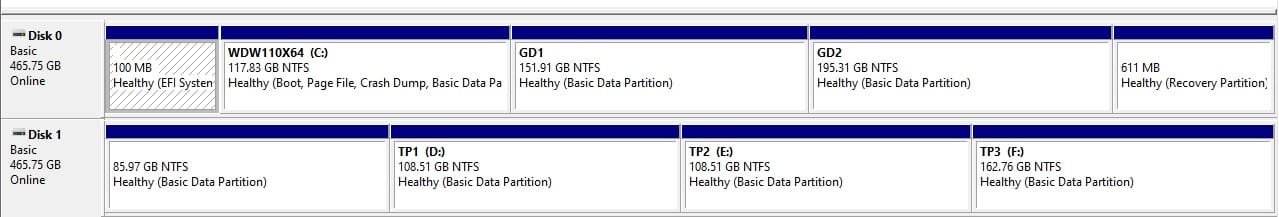

Let me explain what I mean as a bootable disk. It must have an EFI/System partition. This shows up with no partition letter. You can see it with Disk Management because it shows up as a 100MB partition.

To be bootable, the BIOS will show it in the list of bootable devices.

Microsoft will install Windows on non-bootable disks and you can run them because they will be put on the OS selection menu that will show up when you boot up from another bootable disk.


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASrock extreme wifi 6e mobo
    CPU
    Intel core 7 gen 11
    Motherboard
    ASrock extreme wifi 6e
    Memory
    32 GB
    Graphics Card(s)
    none
    Sound Card
    none
    Monitor(s) Displays
    1 Samsung
    Hard Drives
    Several now for testing.

RoadBlaster

Member
Local time
11:02 AM
Posts
4
Location
UK
OS
Windows 11 Pro
I did not unplug one or the other NVME's when installing dual boot & both my copies of W11 work perfect, 1 on each drive & windows always sets it up like in my picture.

efi boot.jpg


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custon Build
    CPU
    Ryzen 7 5800X
    Motherboard
    Gigabyte Aorus Elite X570
    Memory
    Patriot Viper Steel 2 X 8GB 3,200Mhz (4,000Mhz Rated)
    Graphics Card(s)
    GTX 980
    Sound Card
    Mobo Optical Output
    Monitor(s) Displays
    Asus FHD & Samsung HD
    Screen Resolution
    1080p
    Hard Drives
    1 X Aorus GP-AG70S1TB (much better than the samsung) 1 X Samsung 980Pro 500gb PCi 4.0 NVME (samsung prone to speed drops)
    PSU
    Aerocool Predator 1,000W Semi Modular
    Case
    DIY - MDF lined with aluminium (super quiet)
    Cooling
    1 X 230mm (Main Case), 2 X 140mm (GPU mod)
    Keyboard
    Logitech
    Mouse
    Logitech
    Internet Speed
    Virgin Gig1
    Browser
    Edge
    Antivirus
    Yes & VPN
Top Bottom
