Solved Bad Cluster(s) on SSD

I've found out that I may have some bad clusters on my internal SSD - 512GB NVME PC801 NVMe SK hynix.

I know this because some files are not being backed-up -


I've moved them to an alternate location / partition and they are now being backed-up.

Could anyone offer any advice on how to mark the bad cluster(s) as being permanently marked?

I'm not sure if the drive can be trusted or not. If it ever happens to me, I'm going to replace the drive.

Edit: This link my be of some help. SSD case: Bad sectors on SSD

Consider

a) Running chkdsk /b /v overnight while sleeping.

b) The next day run HD Sentinel.






1) Open administrative command prompt and type or copy and paste:

C:\WINDOWS\system32>chkdsk /b /v
The type of the file system is NTFS.
Cannot lock current drive.

Chkdsk cannot run because the volume is in use by another
process. Would you like to schedule this volume to be
checked the next time the system restarts? (Y/N)

Type: y

Reboot as needed.











2) Run chkdsk from event viewer > post a share link








3) Run HD Sentinel > post share links

a) Overview
b) Temperature
c) SMART

I always just run chkdsk /r

If that's the C: drive, then chkdsk c: /r
Computer will need to reboot to run that.

IanMosley said:

I've found out that I may have some bad clusters on my internal SSD - 512GB NVME PC801 NVMe SK hynix Boot.
.....Could anyone offer any advice on how to mark the bad cluster(s) as being permanently marked?

Click to expand...

Chkdsk /R can do that, it will also fix any logical errors it finds.

But first, see if the SMART data says there are actual read errors, it may just be a logical error and nothing to do with the SSD itself. I use CrystalDiskInfo to read the SMART data on my drives.

Please make sure that chkdsk /b /v runs before HD Sentinel.

Winuser said:

This link my be of some help. SSD case: Bad sectors on SSD

Click to expand...

I downloaded and ran the trial version of Hard Disk Sentinel, with the following result -


Thank you anyway.

IanMosley said:

I downloaded and ran the trial version of Hard Disk Sentinel, with the following result -

Click to expand...

Your screenshot shows the details for a Seagate drive, you need to click on the SK Hynix on the left to see its details.

Bree said:

Your screenshot shows the details for a Seagate drive, you need to click on the SK Hynix on the left to see its details.

Click to expand...

Looks like the drive is OK. I wonder why your files couldn't be backed up.

IanMosley said:

View attachment 110897

View attachment 110902

Click to expand...

Winuser said:

Looks like the drive is OK. I wonder why your files couldn't be backed up.

Click to expand...

I agree. You can run Chkdsk /Scan from within Windows to fix logical errors.

zbook said:

Consider

a) Running chkdsk /b /v overnight while sleeping.

b) The next day run HD Sentinel.

Click to expand...

I'll run this overnight.

Bree said:

I agree. You can run Chkdsk /Scan from within Windows to fix logical errors.

Click to expand...

I ran it and chkdsk did not find any errors.

zbook said:

Consider

a) Running chkdsk /b /v overnight while sleeping.

b) The next day run HD Sentinel.

Click to expand...

HD Sentinel results after running chkdsk /b /v

IanMosley said:

I've found out that I may have some bad clusters on my internal SSD - 512GB NVME PC801 NVMe SK hynix.

I know this because some files are not being backed-up -

!File cannot be backed up: C:\Users\xxxxxxxxx\Documents\Firefox\bookmarks.html​

!File cannot be backed up: C:\Users\xxxxxxxxx\Documents\Firefox\bookmarks-2024-10-02.json​

I've moved them to an alternate location / partition and they are now being backed-up.

Could anyone offer any advice on how to mark the bad cluster(s) as being permanently marked?

Click to expand...

How had you found bad clusters?

Was there a windows or third party software report?

zbook said:

How had you found bad clusters?
Was there a windows or third party software report?

Click to expand...

I had a similar issue about a week ago and I contacted LiveFileBackup support.

LiveFileBackup Log

2024.10.02 13:40:48 Backup cycle completed
2024.10.02 13:40:48 Files skipped due to long paths: 2
2024.10.02 13:40:47 !File cannot be backed up: X:\Windows 11 User Data Files\Users\* * * * * * * \Dell Drivers & Tools\05 Video\Intel UHD Graphics Driver and Intel Graphics Command Center\Intel-UHD-Graphics-Driver-and-Intel-Graphics-Command_M9W93_WIN64_31.0.101.4953_A00.EXE
2024.10.02 13:39:41 !File cannot be backed up: X:\Windows 11 User Data Files\Users\* * * * * * * \Dell Drivers & Tools\02 Applications\Dell SupportAssist OS Recovery Plugin for Dell Update\Dell-SupportAssist-OS-Recovery-Plugin-for-Dell-Update_WFVWJ_WIN_5.5.7.18773_A00.EXE
2024.10.02 13:39:40 Source directory processing: [1] X:\
2024.10.02 13:39:40 Source directory processing: [1] L:\
2024.10.02 13:39:40 Source directory processing: [1] F:\
2024.10.02 13:39:40 Source directory processing: [1] C:\Users\* * * * * * * \Pictures\
2024.10.02 13:39:39 Source directory processing: [1] C:\Users\* * * * * * * \Music\
2024.10.02 13:39:39 Source directory processing: [1] C:\Users\* * * * * * * \MS Outlook\
2024.10.02 13:39:39 Source directory processing: [1] C:\Users\* * * * * * * \Documents\Macrium Reflect\

2024.10.02 13:39:39 !File cannot be backed up: C:\Users\* * * * * * * \Documents\Firefox\bookmarks.html
2024.10.02 13:39:39 !File cannot be backed up: C:\Users\* * * * * * * \Documents\Firefox\bookmarks-2024-10-02.json

2024.10.02 13:39:39 Source directory processing: [1] C:\Users\* * * * * * * \Documents\Firefox\
2024.10.02 13:39:39 Source directory processing: [1] C:\Users\* * * * * * * \Documents\Bandicam\
2024.10.02 13:39:39 Source directory processing: [1] C:\Users\* * * * * * * \Documents\
2024.10.02 13:39:39 Source directory processing: [1] C:\Users\* * * * * * * \Documents\
2024.10.02 13:39:39 Source directory processing: [1] C:\Program Files\CCleaner\
2024.10.02 13:39:38 Target directories available: [1] Z:\Live File Backups\
2024.10.02 13:39:38 Backup cycle started
2024.10.02 13:39:01 Live File Backup program started - I F Mosley (Single License, 1 PC)

OEM Support Mail

It looks like one of the following possibilities could apply:

1 The Macrium backup program locks this directory exclusively for itself; perhaps through a background service that uses the directory on an ongoing basis.
2 The permissions of the directory do not allow access by the user under which LiveFileBackup is running.
3 There is a possible corruption on the host media

Best regards
Markus Ottiger

INFONAUTICS GmbH - World of Fine Information Solutions

Hi,

I’ve just done a Windows 11 (Windows 11 Pro v 24H2 Build 26100.1591) clean install, and I’ve found LFB will no longer (?) backups a particular directory

I’ve enclosed views of the source directory & source directory contents & also the LFB log.

I eliminated options (1) & (2), so I ran Chkdsk and it cleared the issue

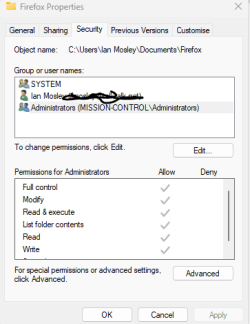

Folder Permissions

Please run the V2 log collector and post a share link into this thread.

IanMosley said:

Folder Permissions

Click to expand...

Backup Software needs SYSTEM privileges.

I had my internal SSD replaced by Dell yesterday, and everything is fine again now.
