Installation and Upgrade Bypass Windows 11 System Requirements on Unsupported PC



This tutorial will show you how to bypass the Windows 11 CPU, RAM, Secure Boot, and TPM 2.0 system requirements allowing you to clean install or upgrade to Windows 11 on a unsupported PC that doesn't meet these requirements.

Installing Windows 11 on a device that does not meet Windows 11 minimum system requirements is not recommended. If you choose to install Windows 11 on ineligible hardware, you should be comfortable assuming the risk of running into compatibility issues.

If you like, you can bypass the check for TPM 2.0 (at least TPM 1.2 is required) and the CPU family and model.

Trusted Platform Module (TPM) technology is designed to provide hardware-based, security-related functions. A TPM chip is a secure crypto-processor that helps you with actions such as generating, storing, and limiting the use of cryptographic keys.

A processor or central processing unit (CPU), is the electronic circuitry within a computer that carries out the instructions of a computer program by performing the basic arithmetic, logic, controlling, and input/output (I/O) operations specified by the instructions.

Windows 11 minimum system requirements:

Processor1 gigahertz (GHz) or faster with 2 or more cores on a compatible 64-bit processor or System on a Chip (SoC).
RAM4 gigabyte (GB).
Storage64 GB or larger storage device Note: See below under “More information on storage space to keep Windows 11 up-to-date” for more details.
System firmwareUEFI, Secure Boot capable. Check here for information on how your PC might be able to meet this requirement.
TPMTrusted Platform Module (TPM) version 2.0. Check here for instructions on how your PC might be enabled to meet this requirement.
Graphics cardCompatible with DirectX 12 or later with WDDM 2.0 driver or higher.
DisplayHigh definition (720p) display that is greater than 9” diagonally, 8 bits per color channel.

Your device might malfunction due to these compatibility or other issues. Devices that do not meet these system requirements will no longer be guaranteed to receive updates, including but not limited to security updates.

The following disclaimer applies if you install Windows 11 on a device that doesn't meet the minimum system requirements:

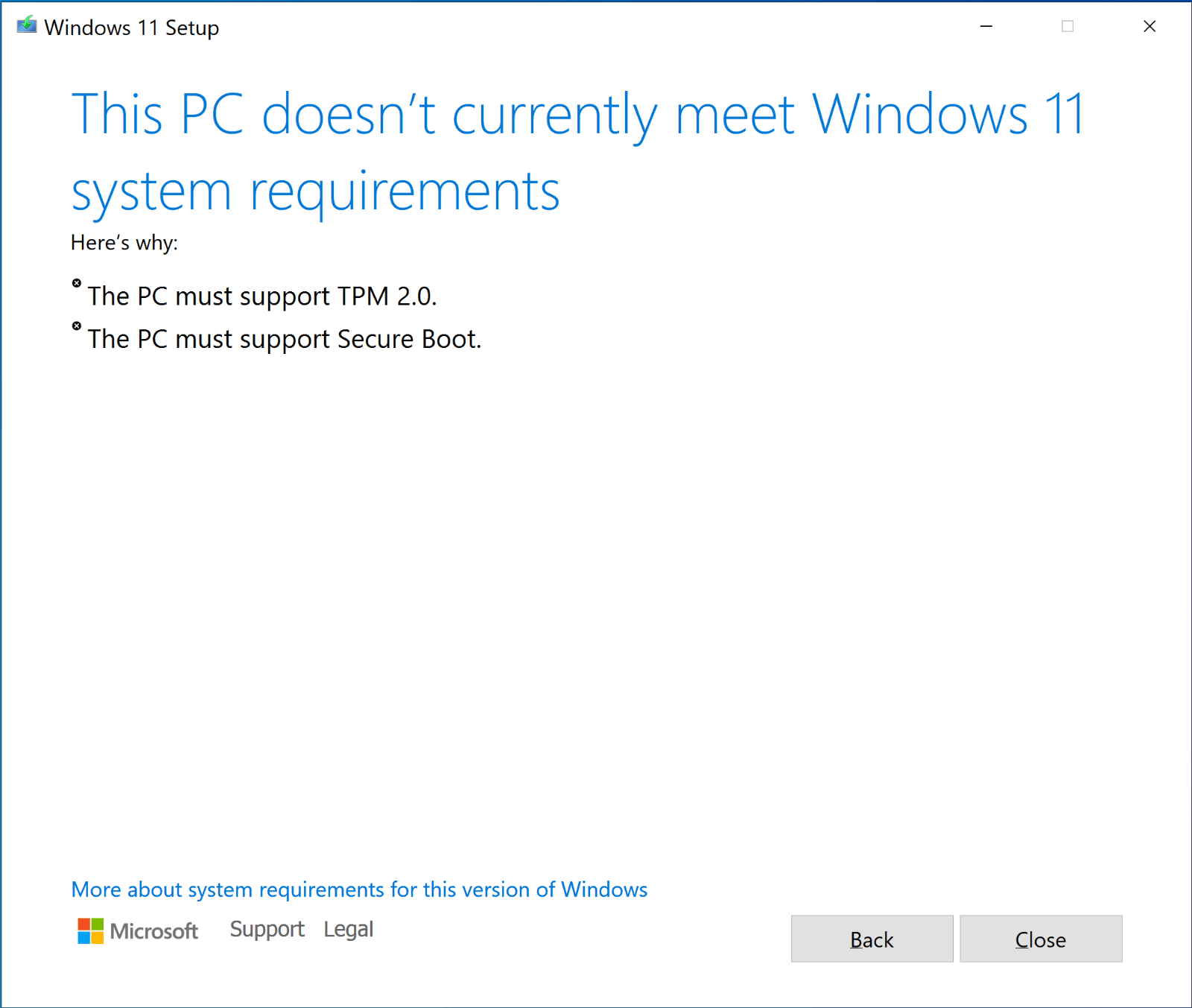

This PC doesn't meet the minimum system requirements for running Windows 11 - these requirements help ensure a more reliable and higher quality experience. Installing Windows 11 on this PC is not recommended and may result in compatibility issues. If you proceed with installing Windows 11, your PC will no longer be supported and won't be entitled to receive updates. Damages to your PC due to lack of compatibility aren't covered under the manufacturer warranty. By selecting Accept, you are acknowledging that you read and understand this statement.

Windows11Setup_warning_doesnt meet_requirements.webp


Before you install Windows 11
If you are unsure if your device meets the Windows 11 minimum system requirements and have Windows 10 already installed, you can download the PC Health Check app, which will assess eligibility and identify components of your device that don't meet the minimum requirements. The app will also link to info that details steps you can take to make your device meet the minimum system requirements.

After you install Windows 11 on unsupported hardware
When Windows 11 is installed on a device that does not meet the minimum system requirements, Windows will notify you using a watermark on your Windows 11 desktop. You might also see a notification in Settings to let you know the requirements are not met.

If you're experiencing issues after upgrading to Windows 11 and your device does not meet the minimum system requirements, Microsoft recommends you go back to Windows 10. This option is only available for 10 days following your upgrade, after which time the files needed to perform this function will be removed to free up disk space on your device.

References:

Windows 11 on devices that don't meet minimum system requirements - Microsoft Support

Installing Windows 11 on devices that do not meet minimum system requirements is unsupported and is not recommended by Microsoft.
support.microsoft.com support.microsoft.com

Ways to install Windows 11 - Microsoft Support

Learn how to install Windows 11, including the recommended option of visiting the Windows Update page in Settings.
support.microsoft.com support.microsoft.com
techcommunity.microsoft.com

TPM 2.0 – a necessity for a secure and future-proof Windows 11 - Windows IT Pro Blog

Learn why Trusted Platform Module (TPM) 2.0 is a non-negotiable standard for Windows 11 now and in the future.
techcommunity.microsoft.com techcommunity.microsoft.com

You must be signed in as an administrator to bypass the Windows 11 TPM 2.0 and CPU system requirements on a Windows 10 PC.




Contents

  • Option One: Bypass Windows 11 System Requirements using Rufus
  • Option Two: Bypass Windows 11 System Requirements using REG file
  • Option Three: Bypass Windows 11 System Requirements for 24H2 In-place Upgrade using Command




Option One

Bypass Windows 11 System Requirements using Rufus


1 Create a Windows 11 installation USB using a Windows 11 ISO and Rufus using the steps in the tutorial below.

www.elevenforum.com

Create Windows 11 Bootable USB Installation Media

This tutorial will show you how to create a bootable USB flash drive used to install Windows 11 with UEFI support. You can use a Windows 11 installation USB flash drive to clean install, upgrade, reset, or repair Windows 11. The installation USB can also be used as a recovery drive to boot to...
www.elevenforum.com www.elevenforum.com

2 Check at least Remove Requirement for 4GB+ RAM, Secure Boot and TPM 2.0 in Rufus.






Option Two

Bypass Windows 11 System Requirements using REG file


1 Click/tap on the Download button below to download the REG file below.

Allow_upgrade_to_Windows11_with_unsupported_system_requirements.reg​


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_CURRENT_USER\SOFTWARE\Microsoft\PCHC]
"UpgradeEligibility"=dword:00000001

[HKEY_LOCAL_MACHINE\SYSTEM\Setup\MoSetup]
"AllowUpgradesWithUnsupportedTPMOrCPU"=dword:00000001

[HKEY_LOCAL_MACHINE\SYSTEM\Setup\LabConfig]
"BypassRAMCheck"=dword:00000001
"BypassSecureBootCheck"=dword:00000001
"BypassTPMCheck"=dword:00000001

2 Save the .reg file to your desktop in Windows 10.

3 Double click/tap on the downloaded .reg file to merge it.

4 When prompted, click/tap on Run, Yes (UAC), Yes, and OK to approve the merge.

5 You can now delete the downloaded .reg file if you like.




Option Three

Bypass Windows 11 System Requirements for 24H2 In-place Upgrade using Command


You need to do the following steps in this option before running setup.exe for a in-place upgrade to 24H2.


github.com

Issue performing in-place upgrade to Windows 11 24H2 · Issue #2568 · pbatard/rufus

Checklist I have been made aware that if my problem can be summarized as "I've created or tried to create a media using Rufus, and ...", and I am not including a log, this issue will be summarily c...
github.com github.com

1 Open Windows Terminal (Admin), and select Command Prompt.

2 Copy and paste each command below one at a time into Windows Terminal (Admin), and press Enter after each command.

reg.exe delete "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\CompatMarkers" /f 2>NUL

reg.exe delete "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\Shared" /f 2>NUL

reg.exe delete "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators" /f 2>NUL

reg.exe add "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\HwReqChk" /f /v HwReqChkVars /t REG_MULTI_SZ /s , /d "SQ_SecureBootCapable=TRUE,SQ_SecureBootEnabled=TRUE,SQ_TpmVersion=2,SQ_RamMB=8192,"

reg.exe add "HKLM\SYSTEM\Setup\MoSetup" /f /v AllowUpgradesWithUnsupportedTPMOrCPU /t REG_DWORD /d 1


That's it,
Shawn Brink


Related Tutorials



Attachments

Last edited:
Click to expand...
garlin said:
The point is can you find BypassCPUCheck inside any of the Setup executables or DLL's? Some of these might have existed at one time in W11, but are they present in today's production code?

The exact rules for HW requirements are written in the appraiser.DLL (encoded in a machine form). That's why the old trick of deleting/zeroing the DLL worked, Setup would find no rules to invalidate the install.
Click to expand...

WT*. Okay, you were 100% right. Somewhere along the line things have changed. I just tried to install both Win 11 23H2 and 24H2 on an HP Spectre x360 laptop with a 6th gen Intel i7. The system meets all Win 11 requirements EXCEPT for the CPU. Note that this is a clean install. Both of these started installing just fine (I went as far as the first reboot during installation). In the past it would complain if I had an unsupported CPU. Has this requirement been completely dropped now???

I should also point out that I tried both a manual install and installation using an autounattend.xml answer file without the BypassCPUCheck. It worked fine in each case.

Out of curiosity, does anyone know when this changed?

I consider this a major good thing!


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
So, it turns out that I have been sheltered from this change. My program that injects all the latest updates into Windows images adds the BypassXXX registry entries into my ISO images as part of its SOP. As a result, I have always been able to install on unsupported machines with no difficulties but this hid from me the fact that this entry is no longer needed.

I just removed that entry from my program.


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
There's a long list of known workarounds for bypassing Setup's requirements. Some are easy to explain, some are more user friendly (if you're making a custom ISO).

- integrating BypassCheck reg values into boot.wim's Registry
- removing or tampering with appraiser.dll
- tampering with Setup.exe (AveYo's MCT script), by replacing the compatibility check's function name with a substitute string name
- adding keys via autounattend.xml
- adding keys via Panther\unattend.xml (Rufus and others)
- pausing in WinPE at first Setup screen, opening CMD and running regedit
- booting WinPE, and running DISM /Apply-Image & bcdboot (basically doing most of Setup's normal tasks)

Much of the same can be done with BypassRNO.

- integrating BypassRNO reg value into install.wim's Registry
- adding key via autounattend.xml
- adding key via Panther\unattend.xml (Rufus and others)
- pausing in OOBE, opening CMD and running OOBE\BypassRNO.cmd
