Solved CMD format ssd for install

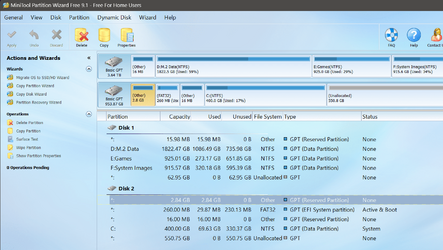

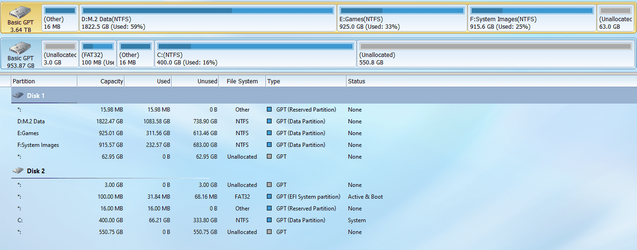

Here's the lappy


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
@ThrashZone
I'm not sure if I can help you with non standard partition layout, I always partition my drive prior Windows installment myself but according to docs, only because I want to perform slow format on drive where Windows will be installed.

If you let Windows installer create partitions it will perform quick format which might lead to issues with the new OS, that's why doing it yourself with SHIFT+F10 to open CMD during installment and run your script is better method.


My Computer

System One

  • OS
    Windows 11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI / MS-7B29
    CPU
    Intel i3 8100 @3.6Ghz
    Motherboard
    H310M PRO-VDH (MS-7B29)
    Memory
    1 x 16GB DDR4 @2400 MHz
    Graphics Card(s)
    Nvidia GeForce GT 1030 2GB SDDR4
    Sound Card
    Realtek VEN_10EC&DEV_0887 / NVIDIA VEN_10DE&DEV_0081
    Monitor(s) Displays
    Acer V226HQL
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD 500 GB Crucial MX500 / HDD 1 TB TOSHIBA DT01ACA100
    PSU
    ATX, details unknown
    Case
    Everest 551B
    Cooling
    details unknown
    Keyboard
    Mechanical Gaming Hydra R7 - Rampage
    Mouse
    Logitech G703
    Internet Speed
    Down: 28Mbps / Up: 19Mbps
    Browser
    Microsoft Edge
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    Bluetooth: TP Link 5.0 Nano USB adapter UB500
    WLAN: D-Link 150 Pico USB adapter, N standard
    Web camera: Logitech C270 HD 720p @30fps
    Microphone: Trust MICO, model 23790
Why on earth would you want to put the recovery partition at the beginning? Microsoft's recommendation is to create the Recovery Tools partition immediately AFTER the Windows partition. The reason for this is so that Windows can resize the partition if needed with future Windows upgrades (if you need details on how this works let me know).

In any case, below is a complete diskpart script. You can rearrange the partitions if you want as well as the sizes. This is simply meant to give an example of how to manually partition the drive.

One final note: If you are installing Windows manually (not using an answer file), Windows automatically creates the recovery tools partition last as is suggested.

Code:
REM Wipe disk 0

select disk 0
clean

REM Create a 260 MB EFI partition. NOTE: 100 MB is okay, but 260 MB ensure compatibility with all drives since advanced
REM format 4k drives will have a 260 MB minimum for a FAT32 partition

create partition efi size=260
format fs=fat32 quick label="System"

Create an MSR partition. This type of partition does not get formatted.

create partition msr size=128

REM Create a Windows partition. Do not specify a size. This cause it to occupy all remaining space on the disk.
REM After creating, shrink by 2 GB to make room for the Recovery Tools partition. You can change that size to anything.

create partition primary
shrink desired=2048
format fs=ntfs quick label="Windows"

REM Since we shrank the partition by 2 GB, create the Recovery partition without specifying a size.
REM This will cause it to occupy all remaining space (in this case 2 GB).
REM Note that for a recovery partition we have to set a specific ID and attribute.

create parttion primary
set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac
GPT ATTRIBUTES=0x8000000000000001
format FS=NTFS quick label="Recovery Tools"

REM Type exit to exit from diskpart. If you are using these commands in a diskpart script,
REM leave off the exit

exit
Hi,
Thanks starting out with the same as Bree posted was pretty unnecessary mate
Praising or stating ms policy when it was them screwing up peoples disks for decades is now some sort of saint for throwing it on the end of a 1-2-4 tb ssd is well insane to say the least !

Second part is all you needed to post which is appreciated 2nd post as well :cool:


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
@ThrashZone
I'm not sure if I can help you with non standard partition layout, I always partition my drive prior Windows installment myself but according to docs, only because I want to perform slow format on drive where Windows will be installed.

If you let Windows installer create partitions it will perform quick format which might lead to issues with the new OS, that's why doing it yourself with SHIFT+F10 to open CMD during installment and run your script is better method.
Yep live and learn the processes
I read a little and thought I had it down to give it a try but most weren't the same assortment I see why I failed but since I left the room it is doable now :cool:


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
Hi,
@SIW2

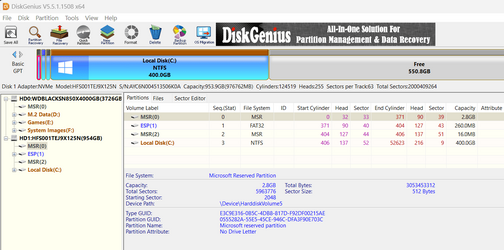

Got around to using disk genius :thumbsup:

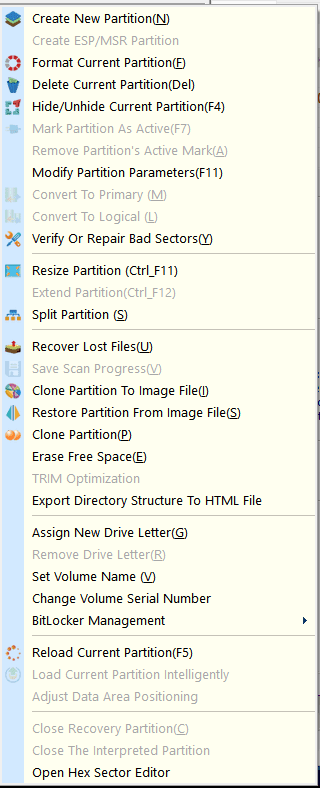

Little different no clear save on the reserved partition bit but popup messages helped and got it done
Didn't add a clear label as system reserved and just shows other but we'll see if ms uses it soon enough lol

I also extended the efi to 260mb it was this before the clean install so did it before the system reserved

Nice app seems it does everything clones/ system image/.... the interface needs a little updating but all and all system still boots so we'll call a win-win
Thank you for your help !



My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
I like the ui the other ones are for kids.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

My Computers

System One System Two

  • OS
    Windows 11 23H2 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Envy TE01-1xxx
    CPU
    Intel(R) Core(TM) i7-10700 CPU @ 2.90GHz 2.90 GHz
    Motherboard
    16.0GB Dual-Channel Unknown @ 1463MHz (21-21-21-47)
    Memory
    16384 MBytes
    Graphics Card(s)
    Intel UHD Graphics 630
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Monitor 1 - Acer 27" Monitor 2 - Acer 27"
    Screen Resolution
    1920 x 1080
    Hard Drives
    WDC PC SN530 SDBPNPZ-512G-1006 (SSD)
    Seagate ST1000DM003-1SB102
    Seagate BUP Slim SCSI Disk Device (SSD)
    PSU
    HP
    Case
    HP
    Cooling
    Standard
    Keyboard
    Logitech Wave K350
    Mouse
    Logitech M705
    Internet Speed
    500 mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    That's all Folks!
  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP
    CPU
    Intel Core i7 (10th gen) 10700
    Motherboard
    Intel
    Memory
    16 GB
    Graphics card(s)
    Intel UHD Graphics 630
    Sound Card
    Built-in
    Monitor(s) Displays
    Acer 27" & Samsung 24"
    Screen Resolution
    1920 x
    Hard Drives
    SSD (512 GB)
    HDD (1 TB)
    Seagate
    PSU
    Intel i7 10th Generation
    Case
    HP
    Cooling
    HP/Intel?
    Mouse
    Logitech M705
    Keyboard
    Logitech Wave K350
    Internet Speed
    50 mbps
    Browser
    Firefox 90.2
    Antivirus
    Windows Defender
    Other Info
    Headphone/Microphone Combo
    SuperSpeed USB Type-A (4 on front)
    HP 3-in-One Card Readr
    SuperSpeed USB Type-C
    DVD Writer
Sir, we don't insult each other in these forums. Please refrain.
Hi,
Yeah easy to ignore children
John was lurking and left it up so
I'm not here enough to care but yes indeed rude to other members is supposed to be an infraction.


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
I like the ui the other ones are for kids.
Got the job done so that is all that counts thank you again for the new tool @Wynona you might check it out :thumbsup:


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
Got the job done so that is all that counts thank you again for the new tool @Wynona you might check it out :thumbsup:
Glad you satisfactorily completed your task.

I checked out DiskGenius, and liked what I saw. I won't be doing what you did, but I may learn something new (I always learn when I visit ElevenForum). If there's a way to save time, I'm all for it. I think I'll install it just in case . . .


My Computers

System One System Two

  • OS
    Windows 11 23H2 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP Envy TE01-1xxx
    CPU
    Intel(R) Core(TM) i7-10700 CPU @ 2.90GHz 2.90 GHz
    Motherboard
    16.0GB Dual-Channel Unknown @ 1463MHz (21-21-21-47)
    Memory
    16384 MBytes
    Graphics Card(s)
    Intel UHD Graphics 630
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Monitor 1 - Acer 27" Monitor 2 - Acer 27"
    Screen Resolution
    1920 x 1080
    Hard Drives
    WDC PC SN530 SDBPNPZ-512G-1006 (SSD)
    Seagate ST1000DM003-1SB102
    Seagate BUP Slim SCSI Disk Device (SSD)
    PSU
    HP
    Case
    HP
    Cooling
    Standard
    Keyboard
    Logitech Wave K350
    Mouse
    Logitech M705
    Internet Speed
    500 mbps
    Browser
    Firefox
    Antivirus
    Windows Defender
    Other Info
    That's all Folks!
  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP
    CPU
    Intel Core i7 (10th gen) 10700
    Motherboard
    Intel
    Memory
    16 GB
    Graphics card(s)
    Intel UHD Graphics 630
    Sound Card
    Built-in
    Monitor(s) Displays
    Acer 27" & Samsung 24"
    Screen Resolution
    1920 x
    Hard Drives
    SSD (512 GB)
    HDD (1 TB)
    Seagate
    PSU
    Intel i7 10th Generation
    Case
    HP
    Cooling
    HP/Intel?
    Mouse
    Logitech M705
    Keyboard
    Logitech Wave K350
    Internet Speed
    50 mbps
    Browser
    Firefox 90.2
    Antivirus
    Windows Defender
    Other Info
    Headphone/Microphone Combo
    SuperSpeed USB Type-A (4 on front)
    HP 3-in-One Card Readr
    SuperSpeed USB Type-C
    DVD Writer
Hi,
Well I'm batting 500 here
I mounted 23h2 on my z490 system and the installer reused the 2gb system reserved I created a while back in front of C using cmd but this is a mbr disk it only has two partitions now so the installer could of created one if it wanted to.

New acer, disk genius failed multiple times to create one the 23h2 installer would reuse
Guess it needs this stuff after all so I'll try it on the next large update, off chance i get bored and mount 23h2 again before new years.

Code:
REM After creating, shrink by 2 GB to make room for the Recovery Tools partition. You can change that size to anything.

create partition primary
shrink desired=2048
format fs=ntfs quick label="Windows"

REM Since we shrank the partition by 2 GB, create the Recovery partition without specifying a size.
REM This will cause it to occupy all remaining space (in this case 2 GB).
REM Note that for a recovery partition we have to set a specific ID and attribute.

create parttion primary
set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac
GPT ATTRIBUTES=0x8000000000000001
format FS=NTFS quick label="Recovery Tools"

REM Type exit to exit from diskpart. If you are using these commands in a diskpart script,
REM leave off the exit

exit


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
If you have more than one Recovery Tools partition on your Windows drive, you can force Windows to use a specific partition. Here is how:

1) Disable the recovery partition by running reagentc /disable within Windows from an elevated command prompt.

2) Assign a drive letter to the Recovery Tools partition that you want Windows to use (this is only temporary).

3) Run the command reagentc /setreimage /path R:\Recovery\WindowsRE /target C:\Windows

NOTE: Replace the R: with the drive letter that you assigned to the Recovery Tools partition.

4) Run reagentc /enable.

5) Verify that this worked by running reagentc /info

6) You can now remove the drive letter that you assigned to the Recovery Tools partition.


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Hi,
Thanks for the entries I did try and didn't go well hehe
I restored with the original at the end of 400gb +- to see if you can give further details how to complete my task

Disk genius, I said it before it made a weird hidden/ looks full reserved partition maybe that's why installer ignored it ?
But if you can get the original installer recovery into the disk genius partition that would be really :cool: of you.
You can lecture me a little to if you want :lmao:


Attachments

  • CMD-acer disk-1.PNG
    CMD-acer disk-1.PNG
    16.6 KB · Views: 4

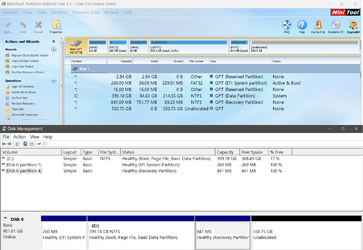

  • DM-Minitool-acer disk-1.PNG
    DM-Minitool-acer disk-1.PNG
    162.7 KB · Views: 3

My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
I like the ui the other ones are for kids.

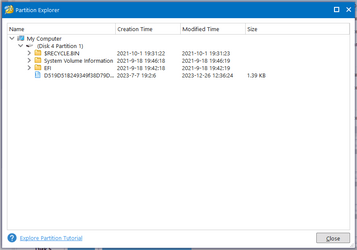

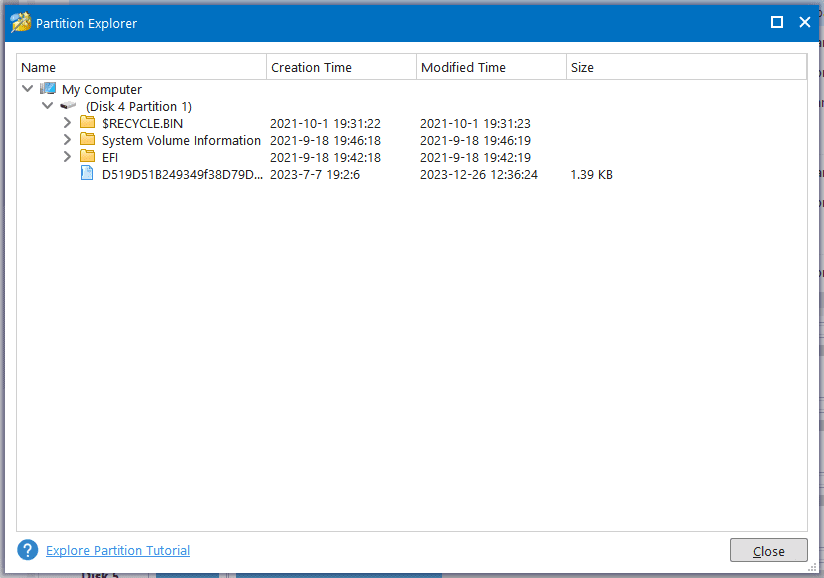

There is one feature MTPW has that DG doesn't, Partition Explorer...unless I missed it.




My Computers

System One System Two

  • OS
    Win 11 Pro 24H2 26100.1150
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i7-14700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    RTX 4070 Super OC 12 GB
    Sound Card
    Sound Blaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (Win 11)
    SK hynix P41 500GB NVMe (Win 10)
    SK hynix P41 2TB NVMe (x3)
    Crucial P3 Plus 4TB
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 11 23H2 22631.3880
    On System One
  • Operating System
    Win 11 Pro 23H2 22631.3737
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    SoundBlaster X-Fi Titanium
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security

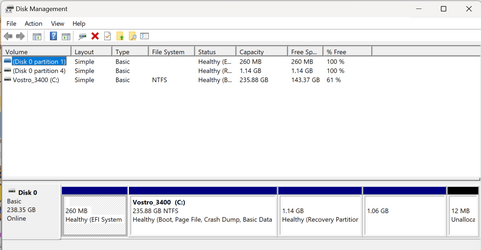

Just a note, my Dell Vostro 3400 Notebook default install 256GB NVMe:



My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

My Computers

System One System Two

  • OS
    Win 11 Pro 24H2 26100.1150
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i7-14700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    RTX 4070 Super OC 12 GB
    Sound Card
    Sound Blaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (Win 11)
    SK hynix P41 500GB NVMe (Win 10)
    SK hynix P41 2TB NVMe (x3)
    Crucial P3 Plus 4TB
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 11 23H2 22631.3880
    On System One
  • Operating System
    Win 11 Pro 23H2 22631.3737
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    SoundBlaster X-Fi Titanium
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security
If you have more than one Recovery Tools partition on your Windows drive, you can force Windows to use a specific partition. Here is how:

1) Disable the recovery partition by running reagentc /disable within Windows from an elevated command prompt.

2) Assign a drive letter to the Recovery Tools partition that you want Windows to use (this is only temporary).

3) Run the command reagentc /setreimage /path R:\Recovery\WindowsRE /target C:\Windows

NOTE: Replace the R: with the drive letter that you assigned to the Recovery Tools partition.

4) Run reagentc /enable.

5) Verify that this worked by running reagentc /info

6) You can now remove the drive letter that you assigned to the Recovery Tools partition.
Hi,
Looks like parts of both instructions worked I guess
Find out for sure if the new picky winRE update installs or errors :lmao:
Thanks for the help on this ! :crossed
Only quirk is it shows no content but does show about 16mbs with free minitool


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
Wow, that's an interesting configuration that you have with the Recovery Environment as the first partition. Not optimal, but at least it is large enough that you should not have to worry about it.


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Follow-up: Putting this in a separate post because I want to avoid confusion...

With a little tweaking you can configure your drive however you want. As an example, I have laptop with a single NVMe drive. I like to have a separate data partition so that when I backup the Windows partitions using disk imaging software, I end up with a smaller backup by eliminating the data partition from the backups.

So, it looks like this:

EFI partition
MSR partition
Windows partition
Recovery Tools partition
Data partition.

Take note that the recovery tools partition is still created AFTER the Windows partition, but it is NOT the last partition in this type of configuration.

The key to making this all so easy to do is to remember that anytime you create a partition without specifying a size, it will use all remaining space on the disk. You can then shrink the partition by a specific amount to make exactly that amount of space available after that partition.
This is exactly how I set up my drive 0. Like you, I only image backup 1st four partitions (3 hidden and C drive). The data partition is backed up separately.

IMO, this is the optimum layout unless you have a second data drive in which case, it is rather optional to have a data drive on drive 0.

I note the OPs layout is an mbr drive which is just asking for update troubled as Windows 11 is nominally designed for UEFI/GPT.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Latest Support Threads

Back
Top Bottom
