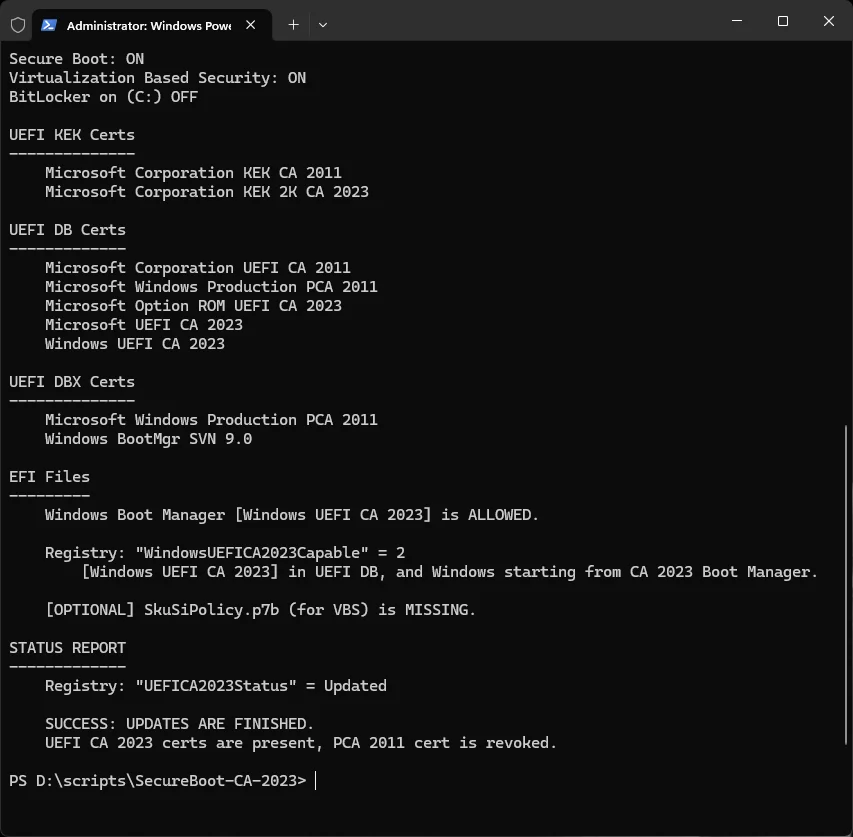

Solved garlin's PowerShell scripts for updating Secure Boot CA 2023


Fixed! And faster, too. Previously, there was a long delay at the start, but now it works quickly.
Thx


My Computers My Computers

  • At a glance

    Windows 11 Pro 24H2Intel i7-1260P 12th Gen 4.7GHz32GB DDR4-3200NVIDIA T550 Laptop GPU
    OS
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P16s Workstation
    CPU
    Intel i7-1260P 12th Gen 4.7GHz
    Memory
    32GB DDR4-3200
    Graphics Card(s)
    NVIDIA T550 Laptop GPU
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    16" Laptop Display
    Screen Resolution
    2560x1600
    Hard Drives
    2TB Samsung M.2 2280 SSD PCIe 4.0 x 4 NVMe
    Mouse
    Logitech MX Anywhere 2s
    Internet Speed
    1000 Mb
    Browser
    Firefox
    Antivirus
    Avast
  • At a glance

    Windows 11 Pro 24H2i7-6820HQ 6th Gen 3.6 GHz32GB DDR4-2133NVIDIA Quadro M2000M Laptop GPU
    Operating System
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo P50 Workstation
    CPU
    i7-6820HQ 6th Gen 3.6 GHz
    Memory
    32GB DDR4-2133
    Graphics card(s)
    NVIDIA Quadro M2000M Laptop GPU
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    15.6" Laptop Display
    Screen Resolution
    1920x1080
    Hard Drives
    2 x 1TB Samsung M.2 2280 SSD PCIe 3.0 x 4 NVMe
    Cooling
    Dual Fan System
    Mouse
    Logitech MX Anywhere 2s
    Internet Speed
    1000 Mb
    Browser
    Firefox
    Antivirus
    Avast
Hello all. I have read all 176 pages on all these subjects and all of you been great on your ideas, fixes, and end results. I truly mean it!
To begin this "I'm truly sorry" to be putting this out there! I'm doing this because I'm at my last resort of what to do so please be and have patience with me. I'm so so cautious of messing with my UEFI/BIOS because I can't afford another computer. I mostly work with spreadsheets and a CAD program. I really need advise what to do and how to do it. Not for work. I just poured a 1/4 bottle of Kahlua into my coffee, so here it goes. I just don't know if I should do the update or just leave as is? I really want to update though. When upgrading to Windows 11, I had to bypass all requirements. Thank you.
I'm in the bios as Administrator and secure keys is custom. This is what I see when I see if I can manually input UEFI files.

SECURE BOOT DATABASE: Installed and Locked.
ENFORCED SECURE BOOT: Enabled.
USER CUSTOMIZED SECURITY: No.
ERASE ALL SECURE BOOT SETTINGS: Disabled. (I can erase.)
This PC could be more risky to update. Acer, Lenovo and Sony use the Insyde BIOS as their reference platform.

Older versions of this BIOS (going back to 2016) may have a hidden HW or BIOS limitation, where trying to manually add certs can trigger a possible "bricking" situation. While the UEFI may have enough NVRAM (in total) to safely add more keys, the specific amount of memory allocated for Secure Boot may be artificially capped. In certain cases, adding new certs will fail and you get truncated data.

This leads to a bricking because the data fails the BIOS's consistency checks. Sometimes you can manage a way to get out, other times it requires reflashing the BIOS to a known good state to recovery. If this PC is important to you, I wouldn't risk it and just leave Secure Boot off. You can always try manual enrollment (it works for a wide range of PC's) but the older Insyde versions are more prone to failure than an older BIOS from AMI.

Typically this requires a new BIOS version, to account for how much memory is available for Secure Boot variables.

Last edited:

My Computer My Computer

At a glance

Windows 7
OS
Windows 7
Thank you Garlin for your quick response. because the Insyde bios in Sony Vaio laptops are pretty much imposable to get the password to unlock the bios and there's no way in hell to get a updated bios, I also felt that I would keep the laptop as is, until I find a rock solid way to update UEFI files manually or by using your UEFI pack to update the secure boot files.
I'm not on the internet that much. I use Norton365 and Norton AntiTrack to help what they can.
I know you have put a whole lot of time into helping everyone and giving them the bravery to update their UEFI/bios. Hell, If you told me to just do it wit an idea it would work, I would do it because I fully trust your mind and word, and I don't trust anyone, still at 62!
A great big thanks to all who is making updates possible!
all take care and keep up with the great work.
I will keep reading daily just in a case someone has the same problem I have and they have found a fix!
Bob


My Computer My Computer

At a glance

Windows 11 25H2Intel Core i7-3632QM 2.20GHZ / 3.20GHZ8MB DDR3-1600 SDRAM (SODRAM)Intel HD4000
OS
Windows 11 25H2
Computer type
Laptop
Manufacturer/Model
Sony Vaio sve15128cxs
CPU
Intel Core i7-3632QM 2.20GHZ / 3.20GHZ
Motherboard
Sony sve15128cxs Ivy Bridge, Insyde Bios- R0200DS (9/26/2016)
Memory
8MB DDR3-1600 SDRAM (SODRAM)
Graphics Card(s)
Intel HD4000
Hard Drives
HDD Western Digital WDC WD10JPVT-55A1YT0
Cooling
3 fan cooling pad
Mouse
Logitech ERGO
Antivirus
Norton Antivirus
Other Info
Sony doesn’t support anymore and has deleted all firmware and software from their site.
